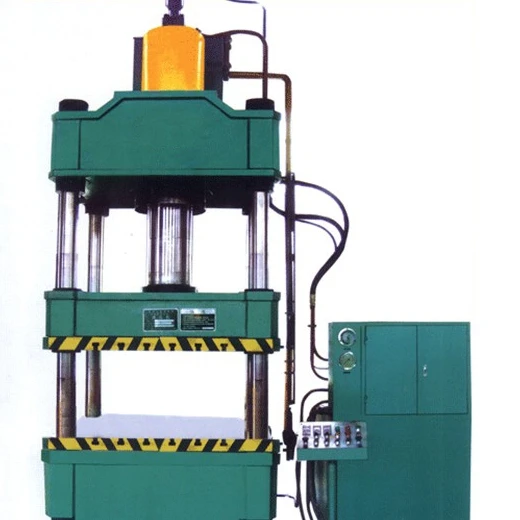

63~500 ton China sheet metal forming hydraulic punch press machine

MF Machinery started from scratch by the Tao Brothers in 2006 renting a old factory in Maanshan Bowang Industrial Zone in Anhui province of China. At present, the company had expanded to cover an area of 30,000 square meters and has building area up to 18,000 square meters till now. MF passed the ISO 9001:2008 quality management system standard in 2008, and obtained CE certificate in 2011.

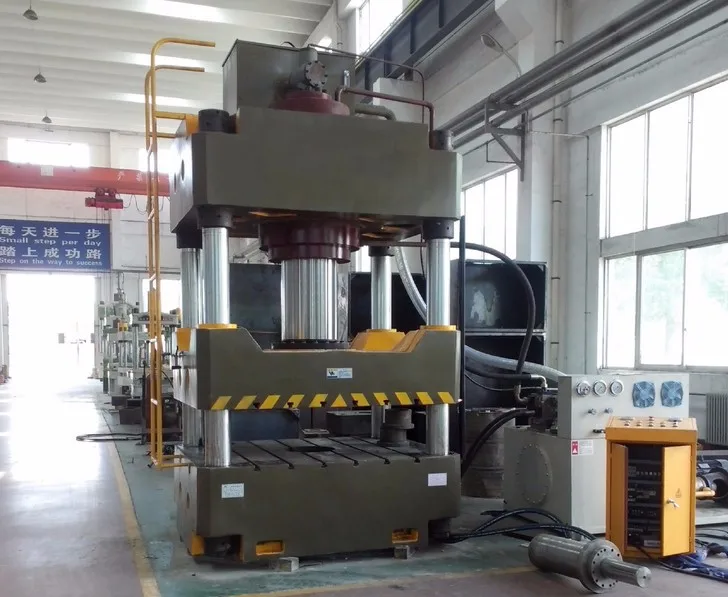

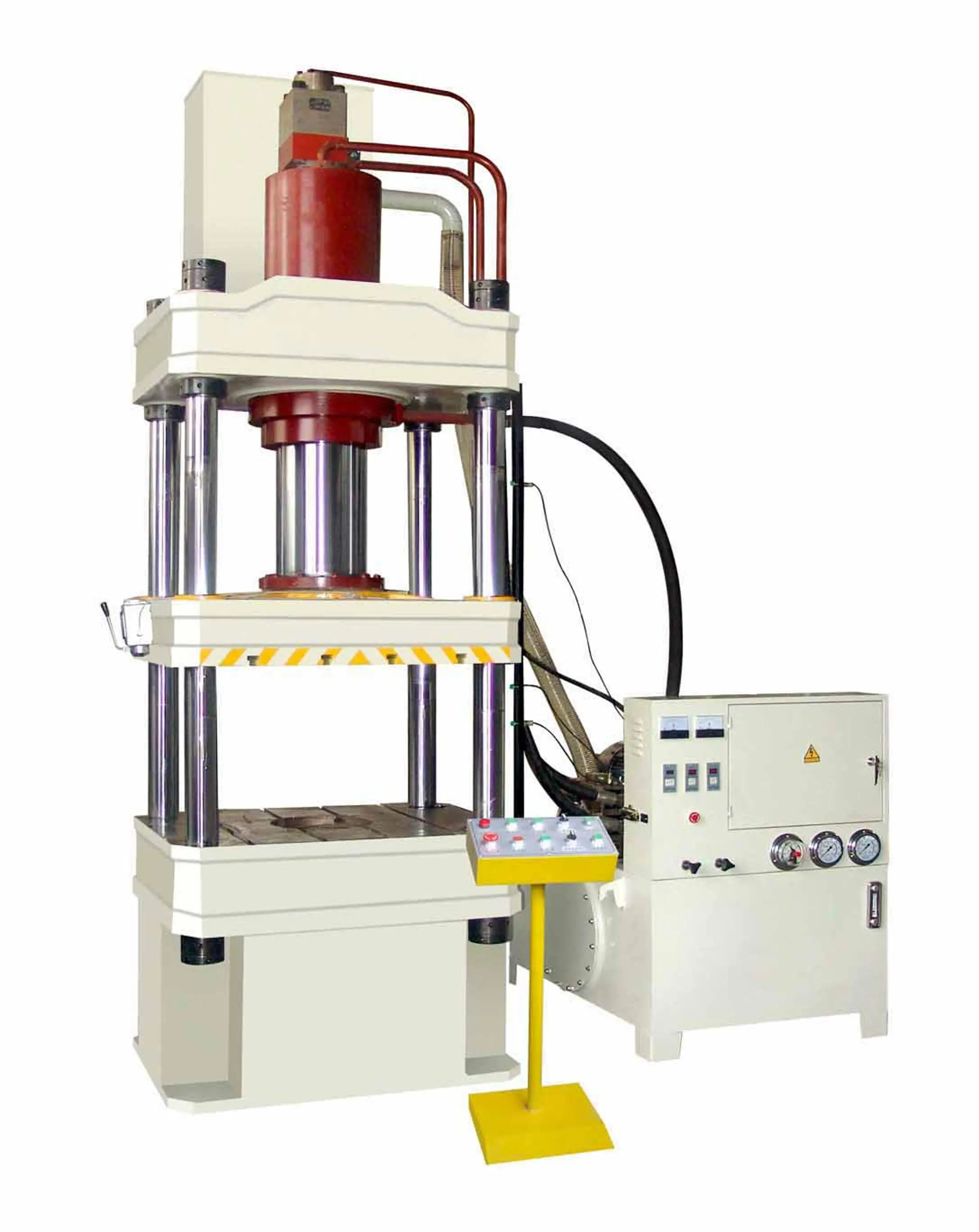

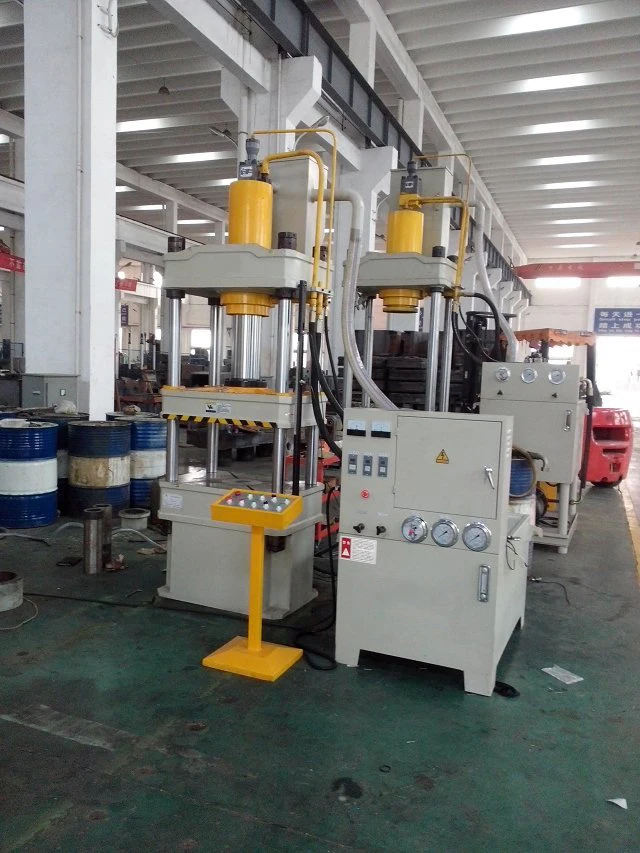

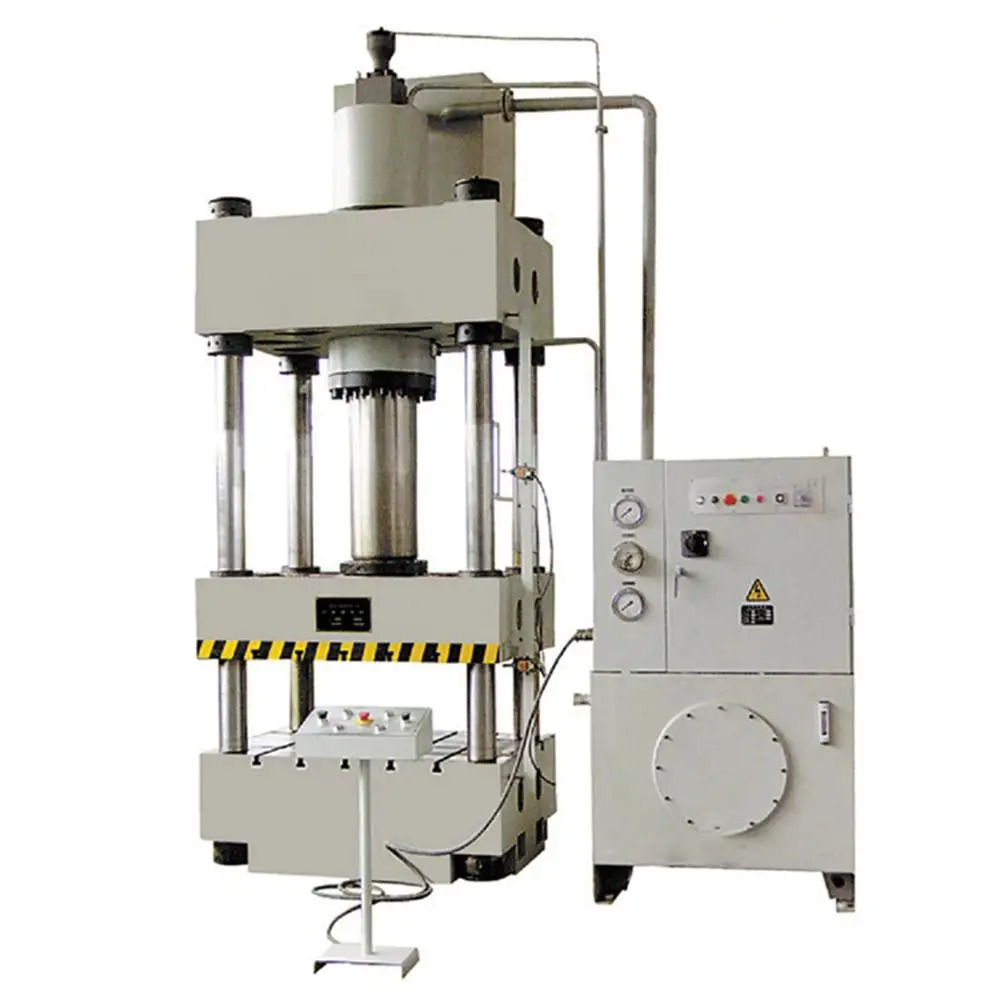

1. Y32 Series Four-Column Hydraulic Press is one of the new generation of plate process. Three-beam and four-pole structure design for large operating spaces - suitable for automatic operations forming, punching, bending, straightening and multi-press assemblies to form automatic production line.
2. Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts,slide and bolster tables with T-slots.
3. Uses a variable flow piston pump - offers high pressure resistance, high velocity, durability and low noise.
4. Hydraulic pipe system uses integrated circuits - manifold block fits inside the press to reduce piping and oil leaks, easy to maintain, simple and safe. Hydraulic system is from Bosch,Germany.
5. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
6. Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.
7. Guiding device: adopts four cylindrical location guiding to make sure of thesteady precision, and it's easy to test and maintain.
8. Presses operated with automatic one cycle design; two hand push button design for simple and safe operation. Presses which could realize three-operation mode: adjustment, manual and semi-automatic.
9. PLC press control is flexible and safe. djustable proximity switches allows stroke adjustments in seconds.
10. All our electrical, hydraulic and mechanical parts are standard in the industry and available throughout North America and Europe.
11. The Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
12. Dual control you can select to use:
a.Moveable pedestal height for comfort and ease of operation c/w dual electric palm buttons & extra emergency stop.
b.Movable single-hand pedal switch

Was established in 2006 with a registered capital of 15 million yuan. It is Located in Maanshan Bowang Industrial Zone in Anhui province of China (Mainland) near the Nanjing Lukou airport. At present, the company covers an area of 30,000 square meters and has building area up to 18,000 square meters. MF passed the ISO 9001:2008 quality management system standard in 2008, and obtained CE certificate in 2011.

We are standing by to help you get more out of your metal. Give MF the opportunity to show what our quality tools & services can do for you and your businesses success today and beyond
