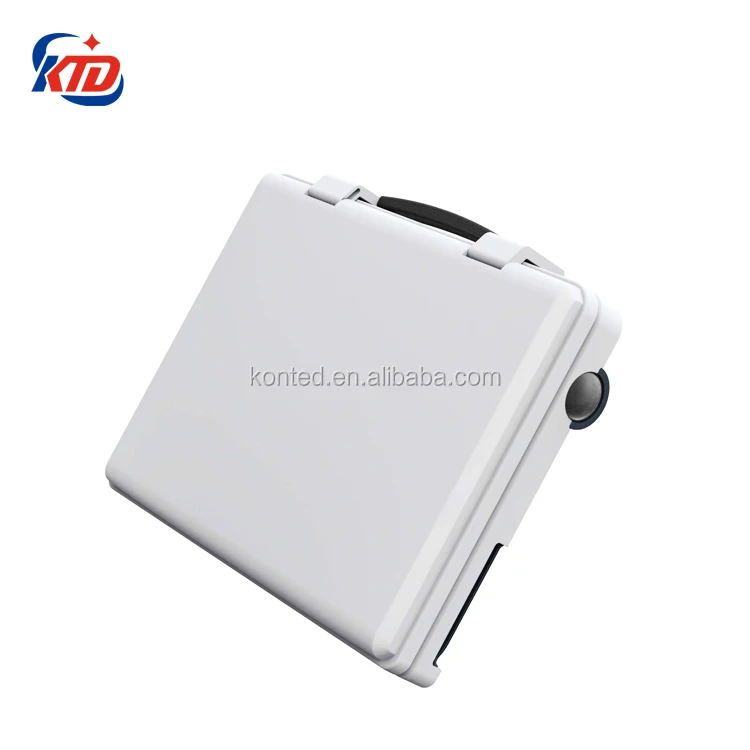

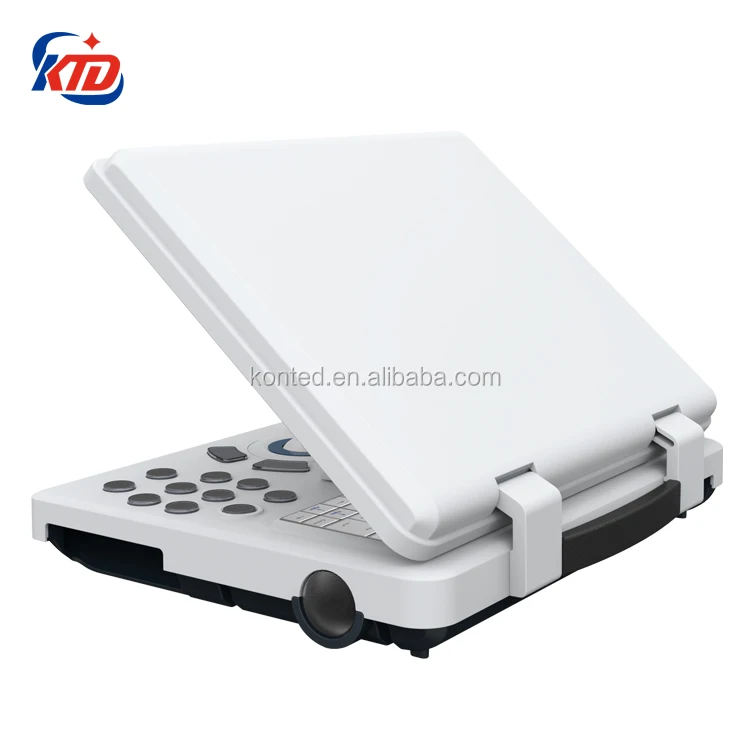

Konted Brand C6V Ecografo for Veterinary
- Category: >>>
- Supplier: Beijing Konted Medical Technology Co. Ltd.
Share on (60569429665):
Product Overview
Description
Konted Brand C6B Ecografo for Veterinary
Product Description
Imaging Processing
Pre-processing :
- Cloud processing technology
- Fine blood flow imaging, high sensitive
- Gain
- 8-segment TGC
- Dynamic range
- Persistence
- M soften
- Noise suppression
Post-processing:
- Image enhancement
- Gray-scale map
- Pseudo color map
- Interface to turn 180°
- Left/right reverse
- Up/down reverse
Technical Specifications
| Technical Specification | |
| Modes: | B, M ,2B ,B/M ,4B C,PW, Power,DirPower,THI |
| Gray Level: | 256 |
| Display: | 15”LCD monitor |
| Transducer Frequency: | 2-11Mhz |
| Digital Technology: | Wide-angle imaging |
| Panoramic focusing technology | |
| Rolling M technology | |
| Scanning Depth: | 220mm |
| Probe ports: | 3 active transducer connector ports |
| Peripheral ports: | 2 USB ports, 1 networking port, 1power inlet,video |
| Power supply: | 100-240V~ 50/60Hz <100VA |
| Measurement and Calculation | |
| B mode: | Distance, angle, area, volume, trace length,distance ratio |
| M mode: | Distance, time, slope, heart rate |
| Application package: | Abdomen, OB, Gynecology, Cardiac, Small parts |
| Function | |
| Cine loop: | 334 frames movie playback stored |
| Zoom: | Pan zoom for the active imaging |
| Qopt: | One-key optimize |
| THI: | Tissue harmonic imaging |
| DICOM: | Supported |
| Print: | Report print for text&graph&image |
| Dimensions(main unit) | 360mm(W)*360mm(L)*90mm(H) |
| Packing dimensions | 415mm(W)*435mm(L)*140mm(H) |
| Net weight | About 4.5kg |
| Gross weight | About 5.5kg |

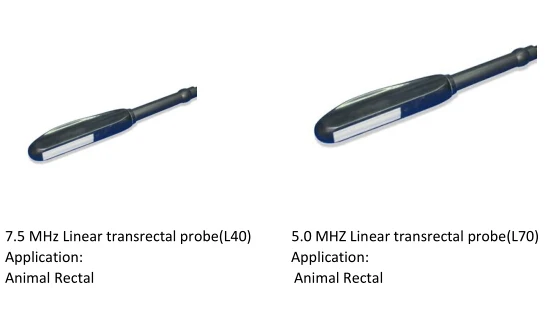

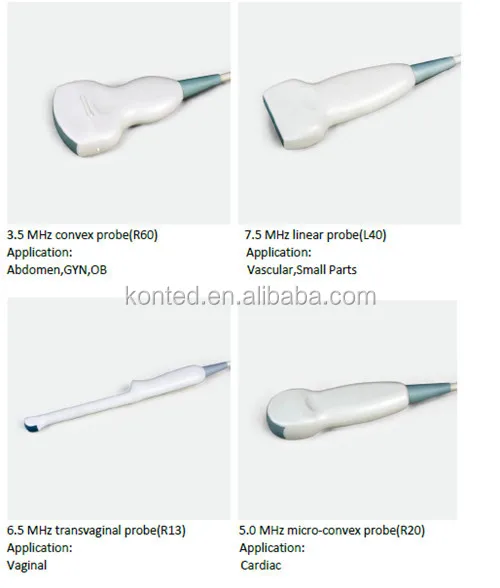

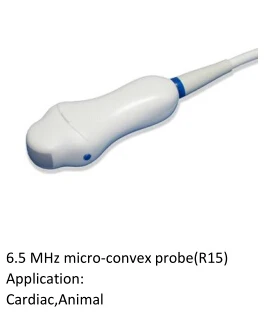

Probe Option (support 2~14MHz wideband probe)
Packaging & Shipping

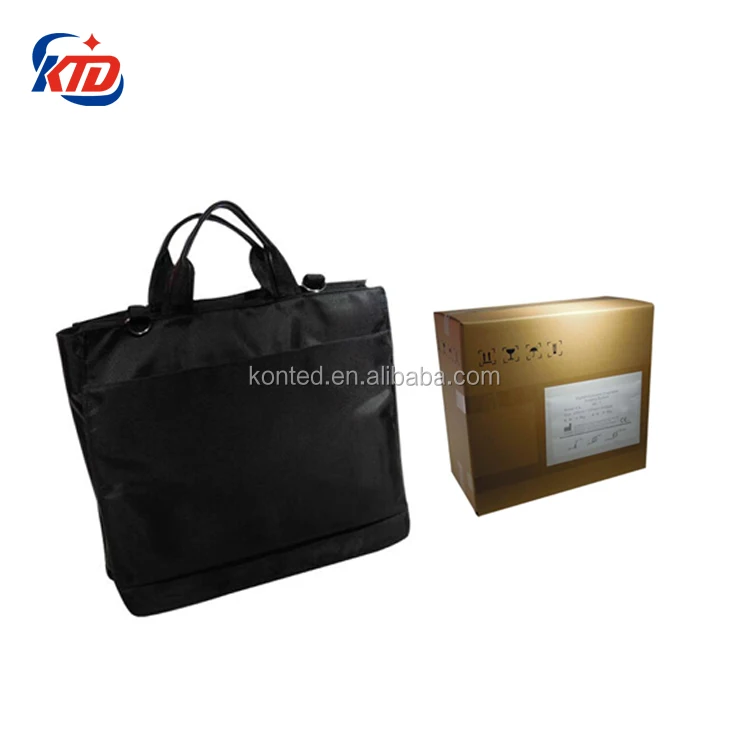

Packing : bag &carton.
Shipping :DHL, TNT, UPS, Fedex, ARAMEX, etc
Company Information
Our Services
- Guarantee: We offer 2 years free warranty for the machine ,12 months for the main accessories, lifetime maintain, 24 hours calling service.
- Service:There is OEM&ODM service for distributor.
- Training: After you get the machine, there is user manual, maintain manual, training video guide you to operate the machine.
- Delievery: All products will be shipped within 4 working days upon payment , Standard export aluminium air package, DHL/UPS/Forwarder
If you need more information, please feel free to contact us.
