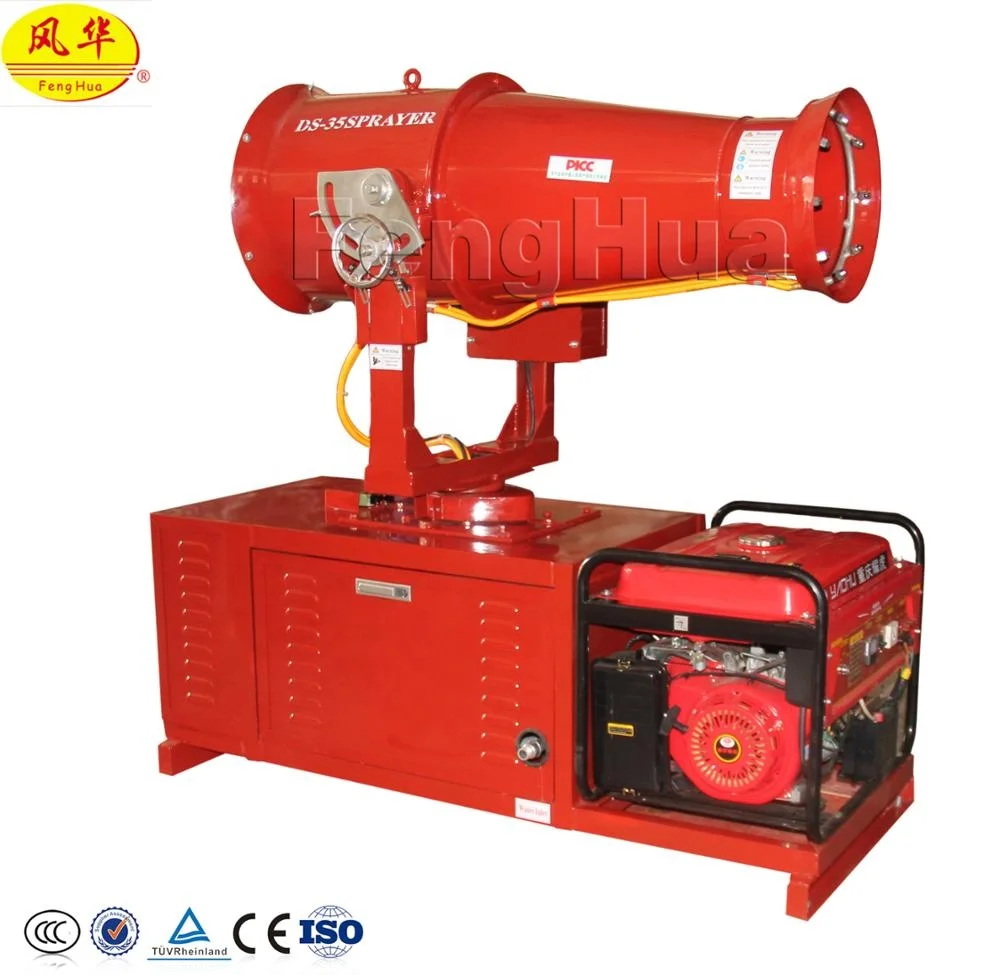

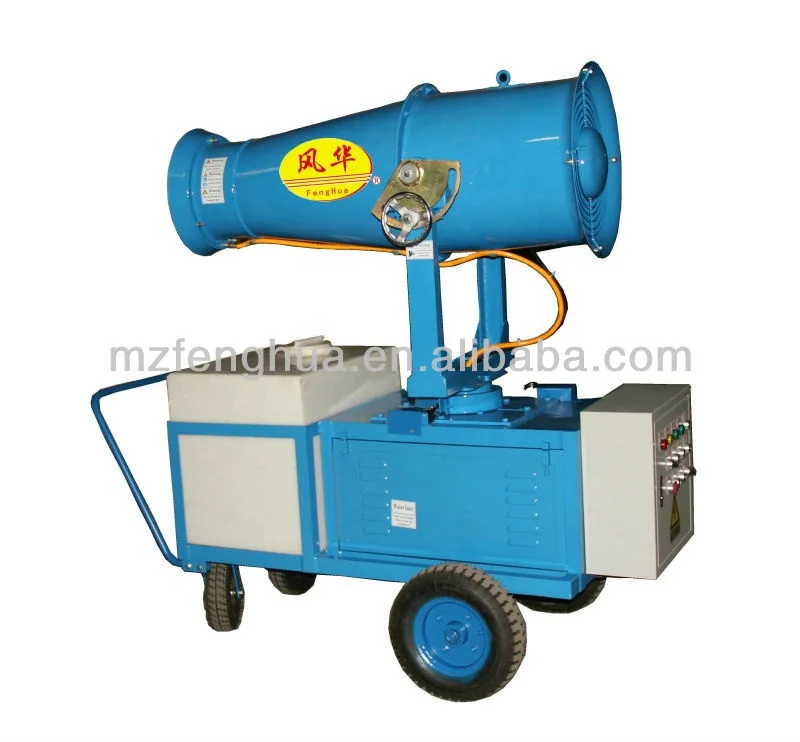

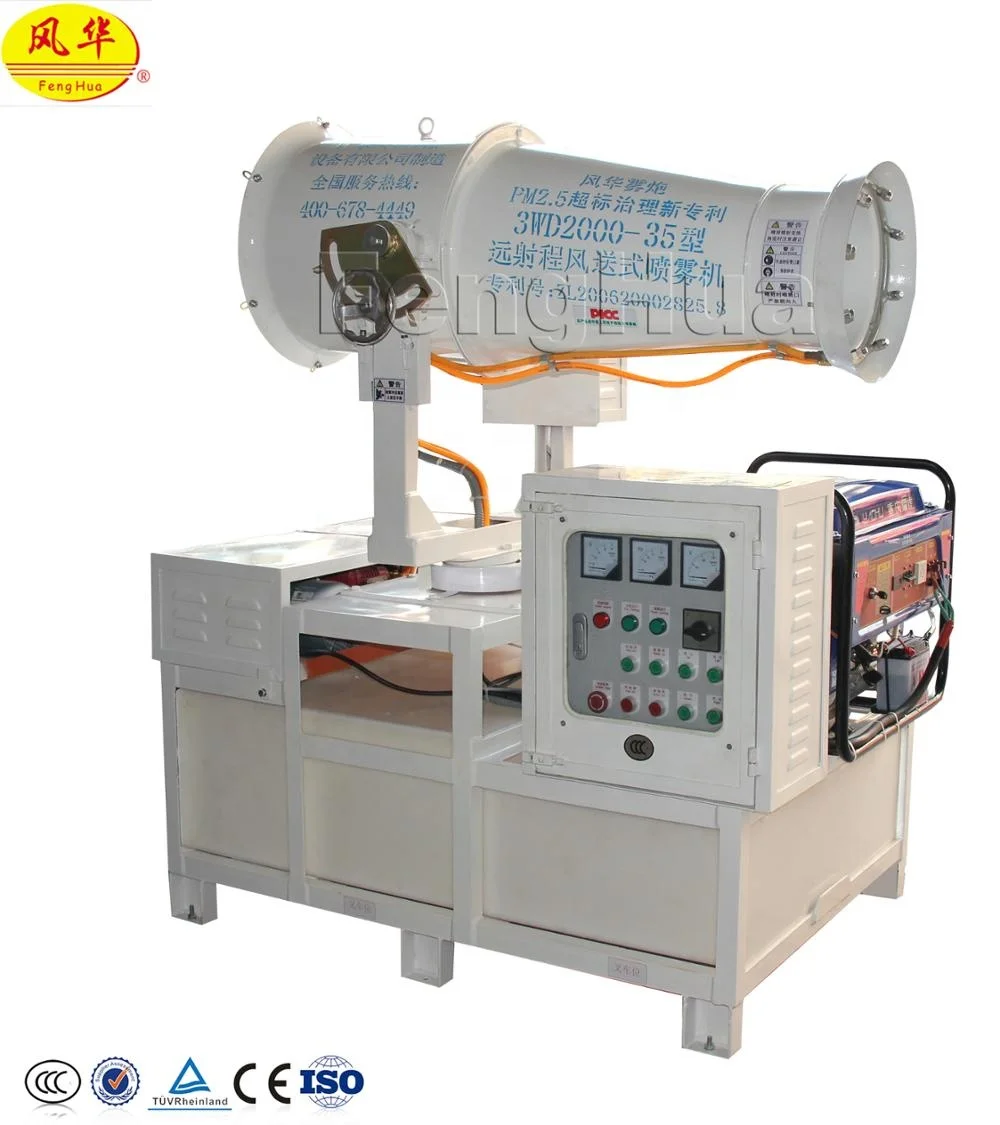

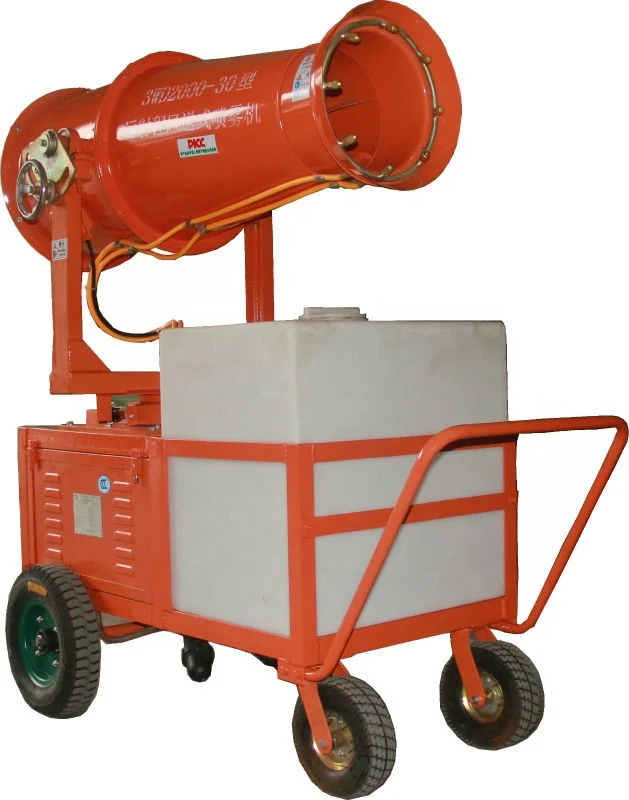

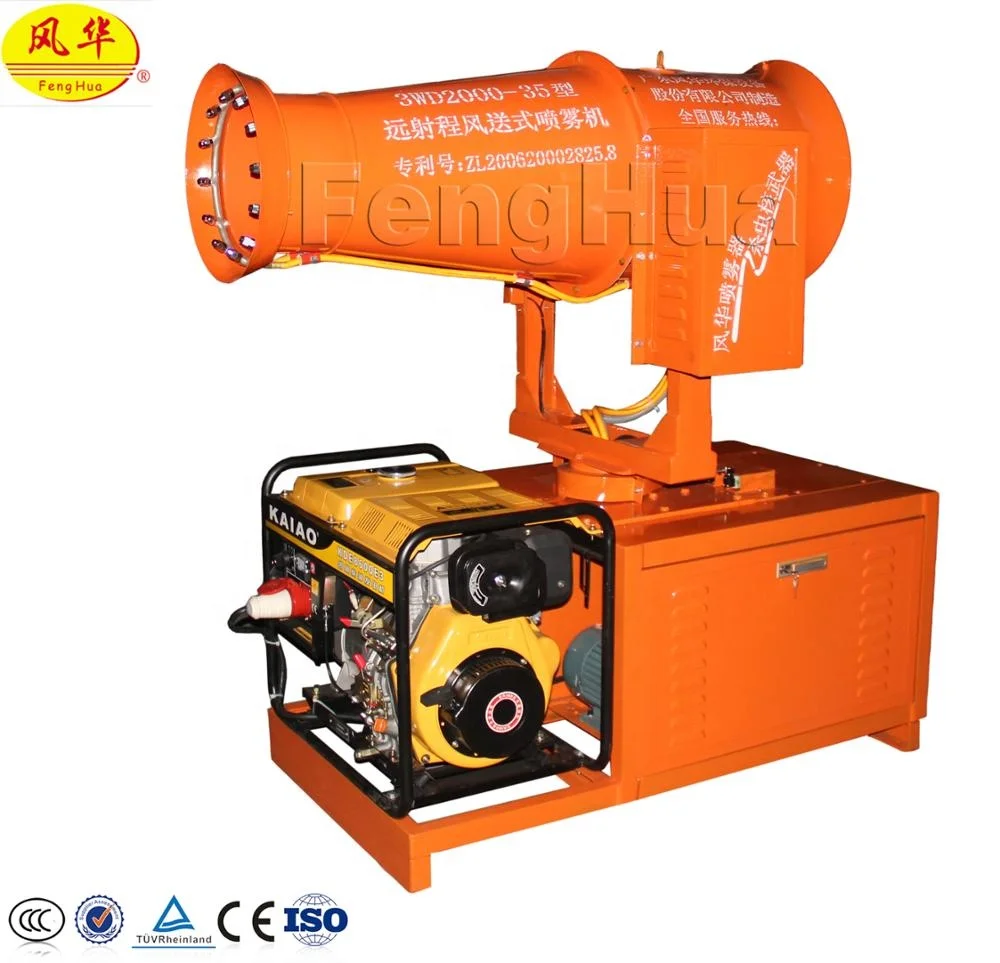

20 30m throw remote control sprayer fog machine mist nozzle dust removal equipment

Product Overview

Description

20-30m throw remote control sprayer fog machine  mist nozzle dust removal equipment



Features of Product

1. Applicable to various vehicles mounted: light truck, tractor, and etc.

2. Simple assembly & disassembly.

3. Manual control and remote control in driving cab, safe & convenient operation.

4. High power, big air quantity, wide coverage area, uniform fog droplet.

5.The gas-liquid mixture can turn the leaves of plants effectively,

so that the pesticide can be sprayed to both sides of the leaves evenly.

6. For the strong penetration and liquid adhesion, it can effectively save the pesticide and reduce the pollution.

7. High efficiency, wide application, spray fast speed and spraying with vehicle running.



Application

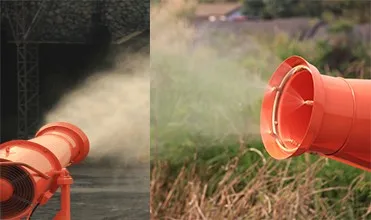

l Disinfection of city streets, stations, ports, schools, airports, public places, landfills, health & epidemic prevention, etc;

l Pest control of urban landscape, anti sand blown by the wind, farmland, forest, road greening, grassland, pasture,etc.



Technical Specification

Model	DS-30
Throw distance	Horizontal: 20-30m;  Vertical: ≥20m
Volume Flow	9-18L/min
Fog Droplet Size (adjustable )	50-150μm
Water Pressure (Mpa)	2.0~3.5MPa
Pitching Angle	-10~45°
Horizontal Rotation Angle	Manual control 180°
Overall dimension	L1150*W1250*H1550mm
Water Tank Capacity(optional)	400-2000L
Auxiliary Power Unit	diesel generator, plunger pump, motor
