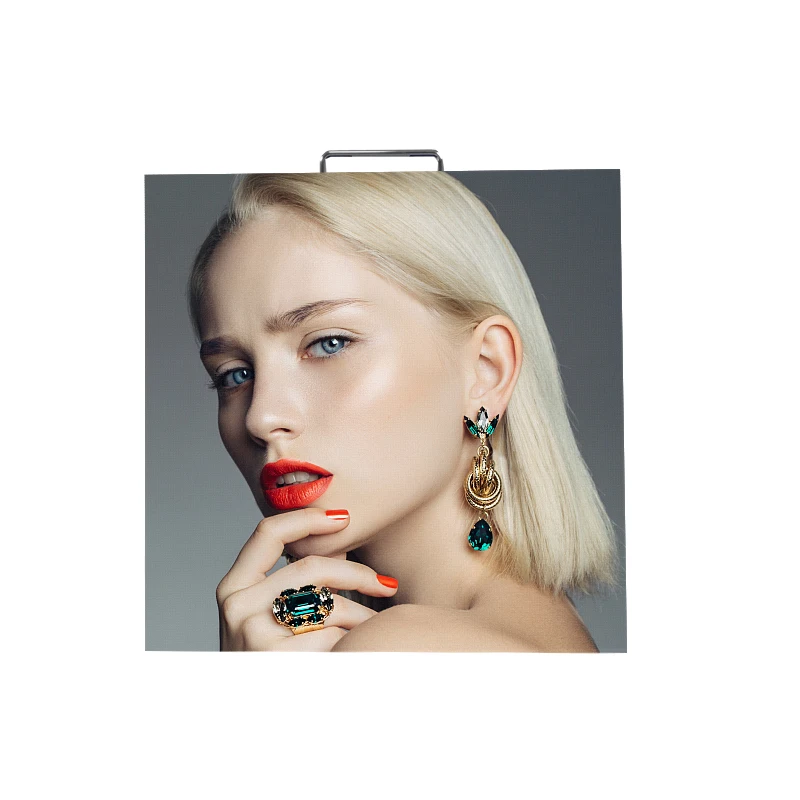

Indoor High Resolutions Rental Type LED Display Video Wall Ultra Slim Cabinet Stage LED Pane P2 P2.5 mm Rental Cabinets Panels
- Category: >>>
- Supplier: Shenzhen Signic Electronics Co. Ltd.
Share on (60569752588):
Product Overview
Description

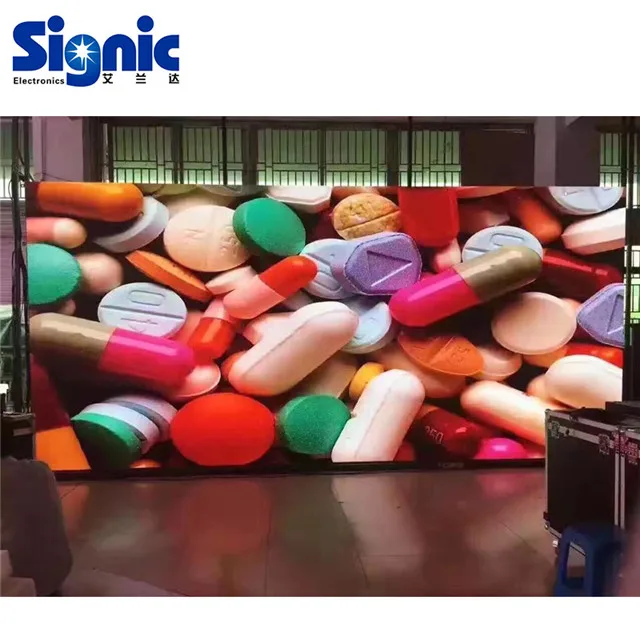

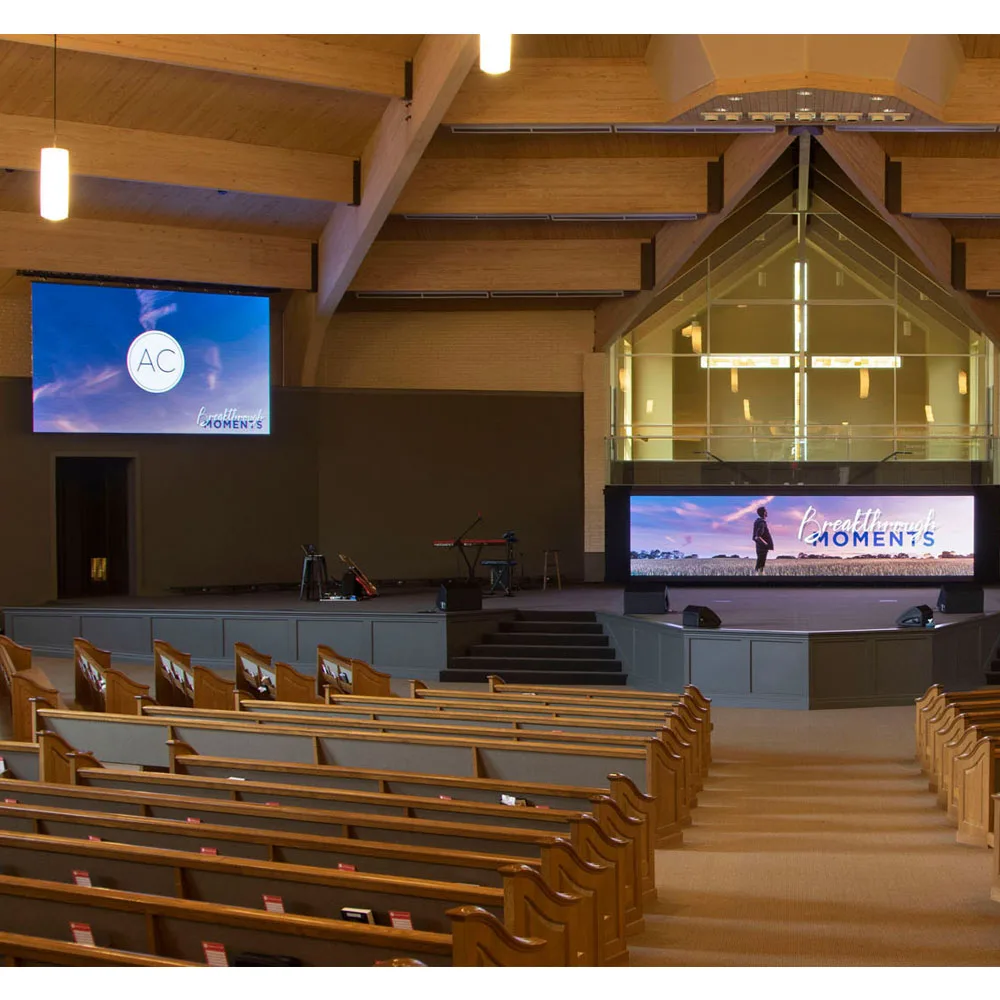

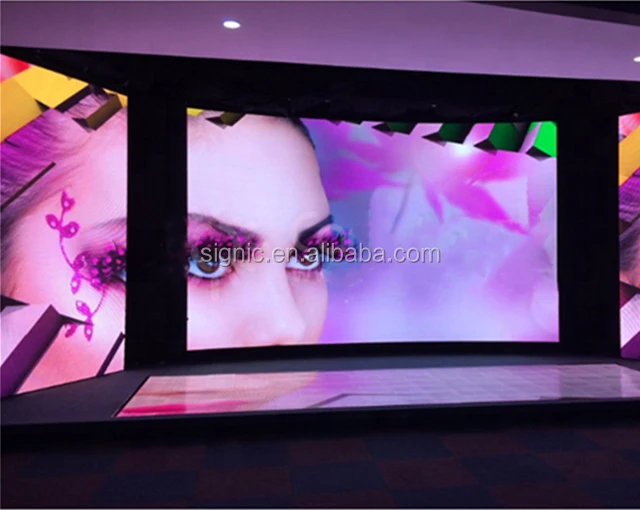

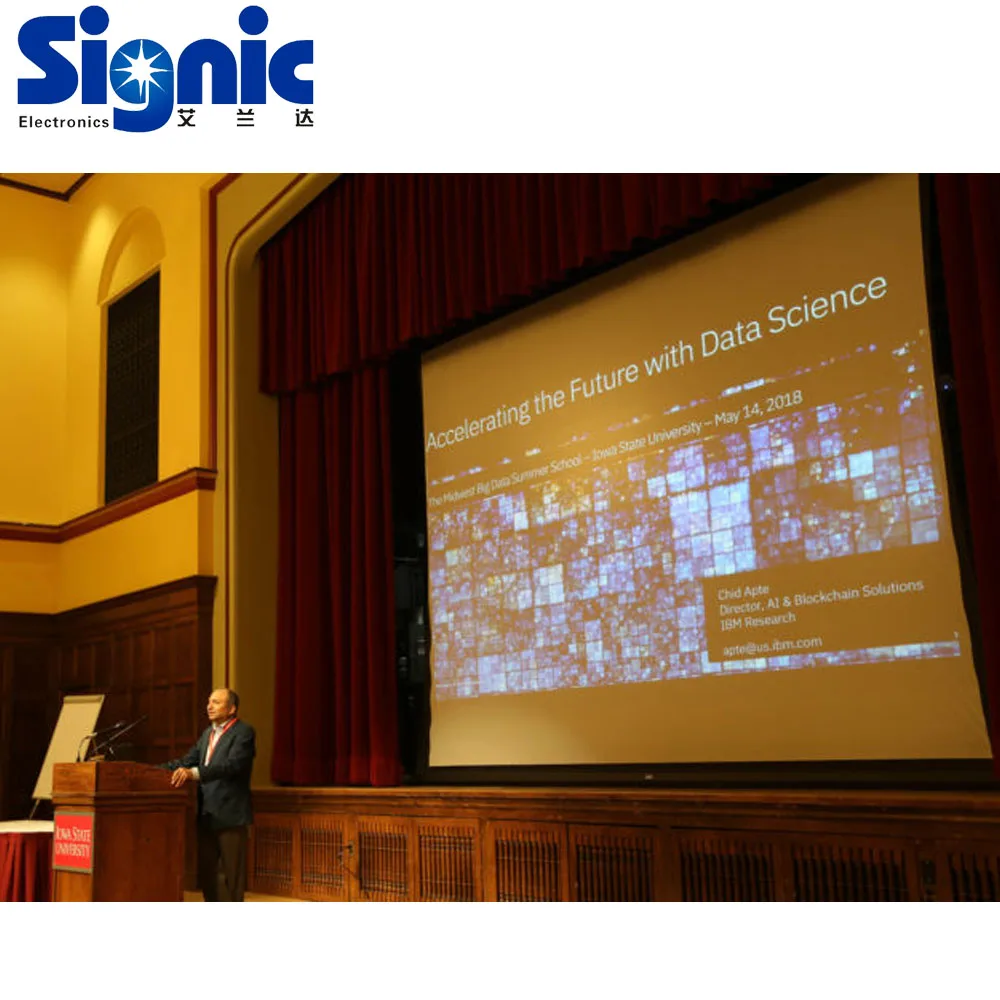

Product Case
Product Paramenters
Pixel pitch | P1.875mm | P2mm | P2.5mm | P2.6mm | |||
LED Encapsulation | SMD1515 | SMD1515 | SMD2121 | SMD212 | |||
Environment | Indoor | Indoor | Indoor | Indoor | |||
Resolution | 284,444dots/sqm | 250,000dots/sqm | 160,000dots/sqm | 147,930dots/sqm | |||
Module size | 240x240mm | 256x128mm | 160x160mm | 250x250mm | |||
Module resolution | 128x128 dots | 128x64 dots | 64x64 dots | 96x96 dots | |||
Cabinet size | 480x480mm | 512x512mm | 480x480mm | 500x500mm | |||
Cabinet resolution | 256x256 dots | 256x256 dots | 192x192 dots | 192x192 dots | |||
View distance | >2m | >2m | >2.5m | >2.6m | |||
View angle | H140°V140° | H140°V140° | H140°V140° | H140°V140° | |||
Refresh rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | |||
Max.Power consumption | 1350W/m2 | 1200W/m2 | 750W/m2 | 700W/m2 | |||
Avg.Power consumption | 450W/m2 | 360W/m2 | 250W/m2 | 210W/m2 | |||
Scan mode | 1/32 constant current | 1/32 constant current | 1/32 constant current | 1/32 constant current | |||
Brightness | 900 nits/sqm | 1000 nits/sqm | 1000 nits/sqm | 1000 nits/sqm | |||
Working Voltage | 110V/220V | ||||||
Fram Frequency | 50/60Hz | ||||||
Life span | 100,000hours | ||||||
Working Temperature | 0°C~45°C | ||||||
Working Humidity | 10%RH~90%RH | ||||||
Gray scale | 16 bits | ||||||
Operating platform | Windows 2000, XP, and Vista OS | ||||||
Running Files | Text, Animation, Picture, Video and etc | ||||||
Control distance | CAT5 cable<100m Single fiber | ||||||
Ingress Protection | IP30/IP31 | ||||||
Product Feature
Product Application
Certificates
Package&Shipping
FAQ
FAQ
Q1. How can I place the order?
Firstly, please provide the details of your requirements as clear as possible, so we can send you the offer at the first time. For custom design, it is better to contact us with Whatsapp/email /phone for accurate offer.
Q2.Do you accept customized design?
Yes, we can . We have professional team having rich experience in acrylic display design and manufacturing.
Q3.How to Select a Led Display?
Location-indoor,outdoor
Location is the most important factors for selecting the correct LED display.Different type of location such as rooftop,large billboards and stage backdrops or requires front access for servicing will require different led cabinets and modules.
Q4:What kind of payment methods do you have as a manufacturer?
We take T/T , Western union, L/C and cash as payment terms.
Q5What kind of packaging you offer?
During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
Q6. What is your pre-sale and post-sale service?
A:For pre-sale service,we have professional sales team and technical team,who are willing to answer your question within 24 hours.
