Портативная Расточная машина, восстановление двигателя T808A,T809A

Product Overview

Description

Portable boring machine, Engine rebuilding ,Cylinder Boring Machine T808A,T809A



Specifications

The boring machine is mainly used for reboring engine cylinders of motor cycles,automobiles, &-tractors.

Reliable performance ,widely use, processing accuracy high productivity. Easy and Flexible operation

Good rigidity ,amount of cutting



Main specifications



Model	T808A	T809A
Boring diameter	50-85mm	50-95mm
Max. boring depth	170mm
Spindle speed	394 r/min
Spindle feed	0.10 mm/r
Spindle quick reset	Manual
Motor voltage	220V		380 V
Motor power	0.25 Kw
Motor speed	1440 r/min
Overall dimension	350x272x725mm
Machine weight	48 kg+25kg

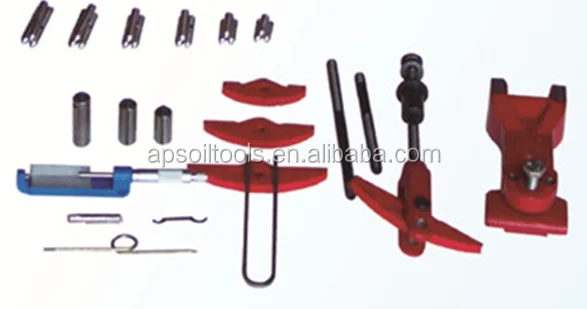

Standard accessories:

Specific micrometer, Centering rod, Tension spring, Cutter sharpening attachment, Upper cylinder packing ring, Lower cylinder packing ring, cylinder press ring, Boring sleeve, Centering device, specific spanner for micrometer, Hex. Socket wrench, Boring cutter, Spring(for cutter)



Optional Accessories:
1.Cutter Sharpener

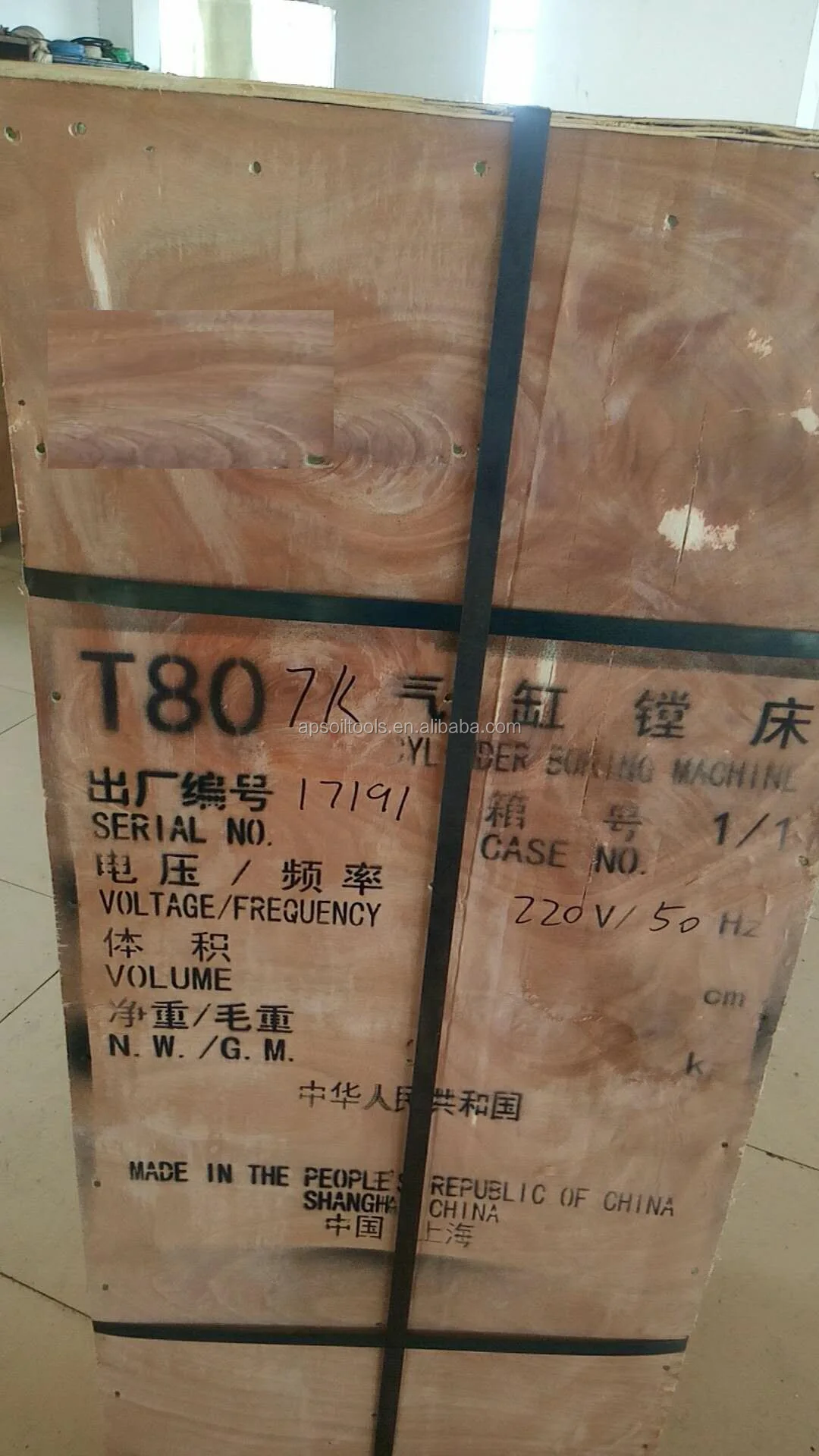

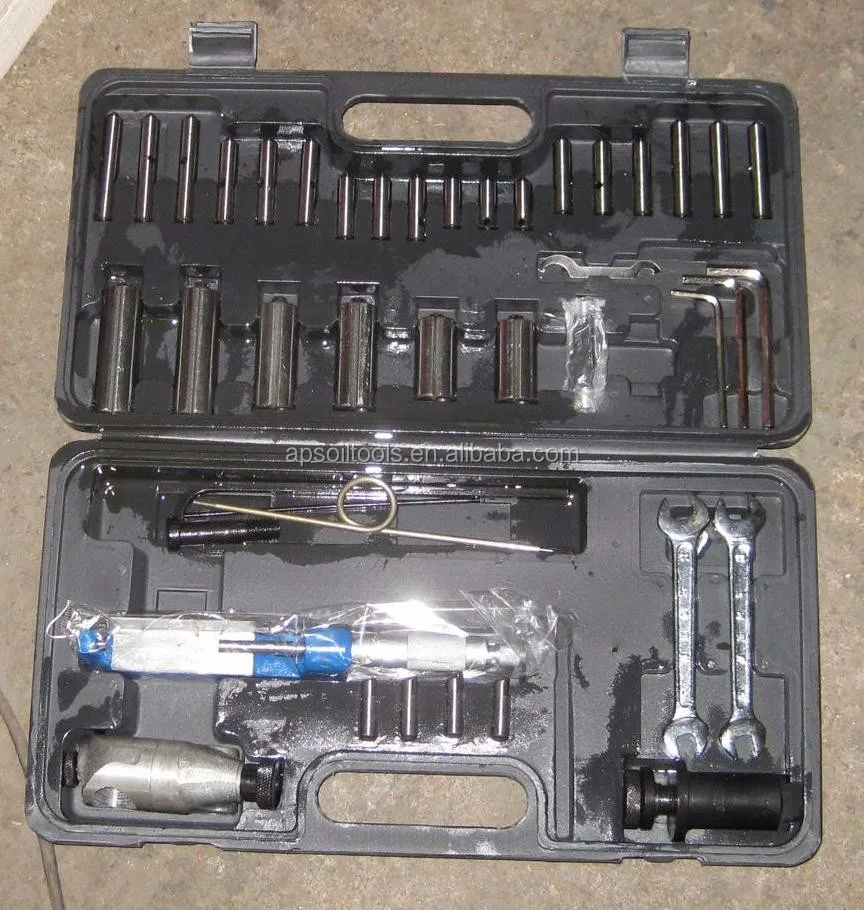

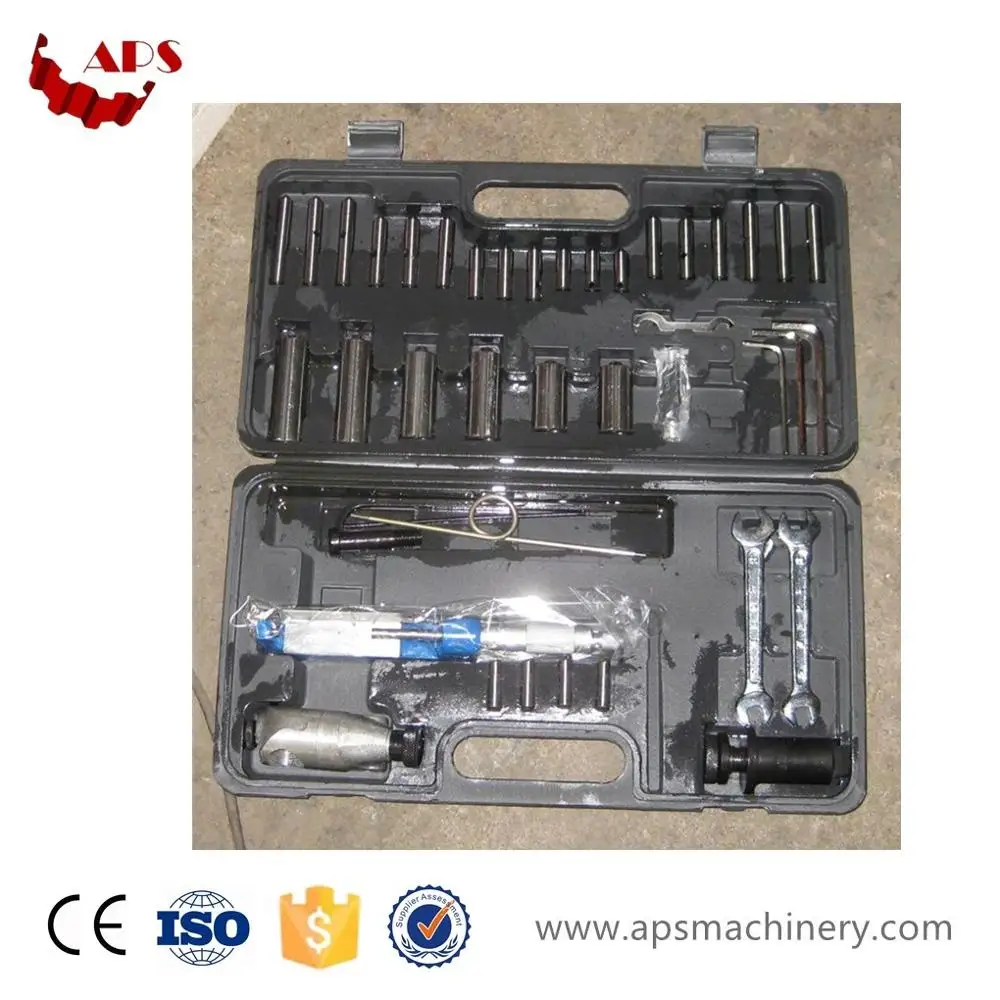

Packing List
NO Accessories(T807) Specification Quantity
1 Specific micrometer 35-70 1 pcs
2 Centering rod 3pcs.each 4 sets
3 Tension spring 1 pcs
4 Cutter sharpening attachment By option 1 set
5 Upper cylinder packing ring 50,60,70 3 pcs
6 Lower cylinder packing ring 50,65,75 3 pcs
7 Cylinder press ring 42,52,62,72 4 pcs
8 Boring sleeve 1 pcs
9 Centering device 1 set
10 Specific spanner for micrometer 1 pcs
11 Hex. Socket wrenches S=3 1 pcs
12 Boring Cutters 4 pcs
13 Multi-wedge belt 1 pcs
14 Spring (for cutter) 4 pcs

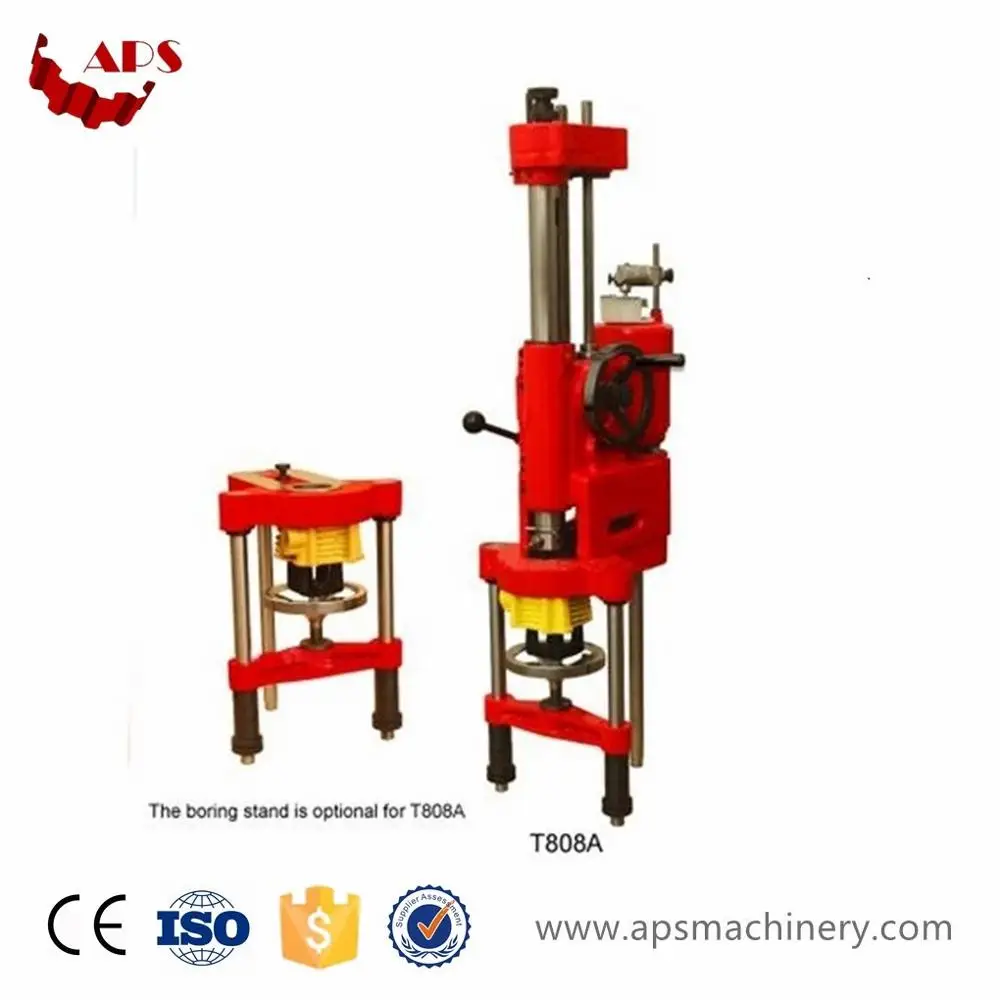

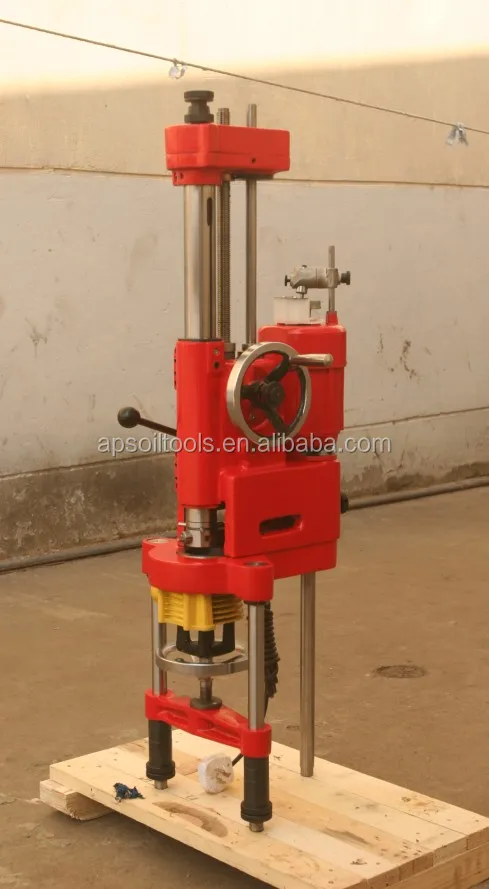

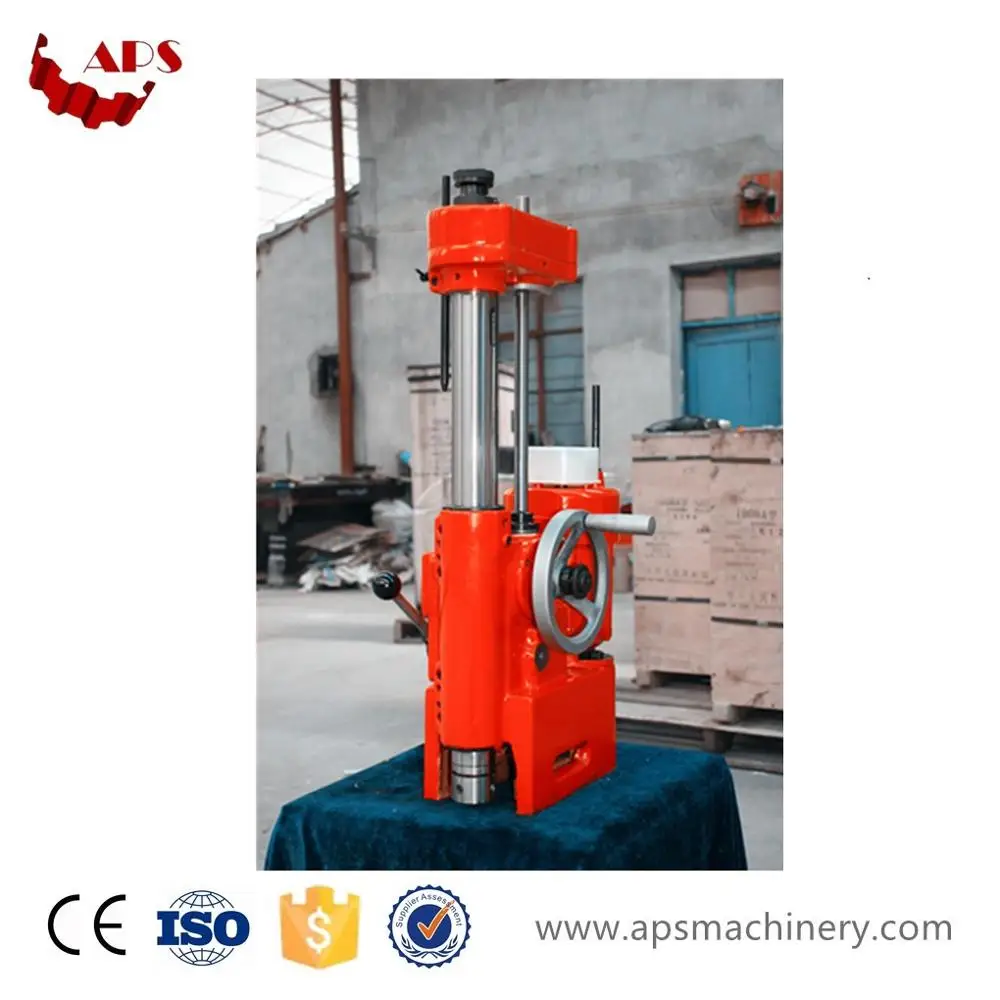

Machine photos:
