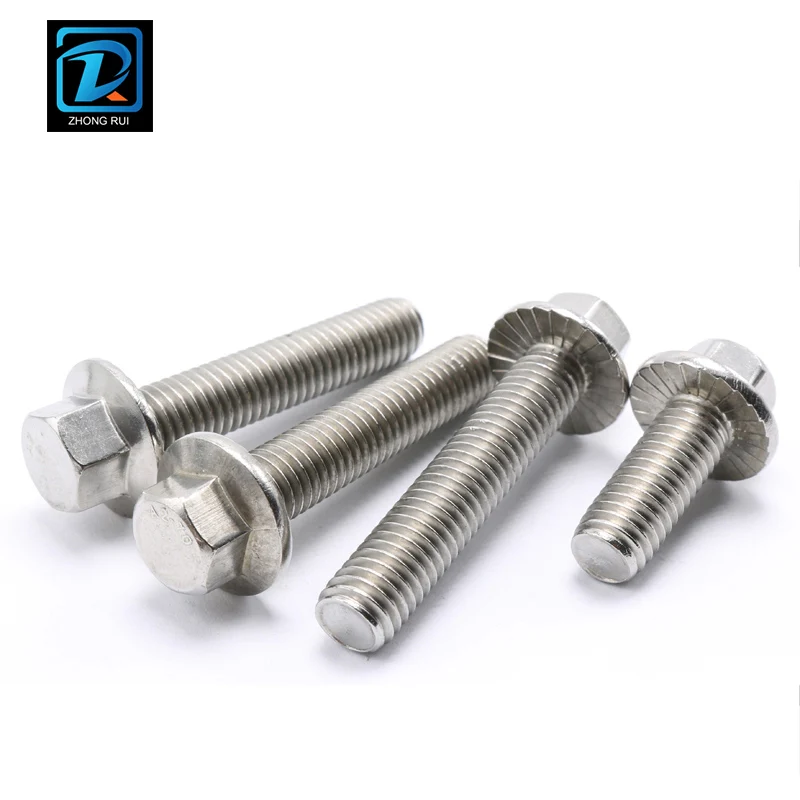

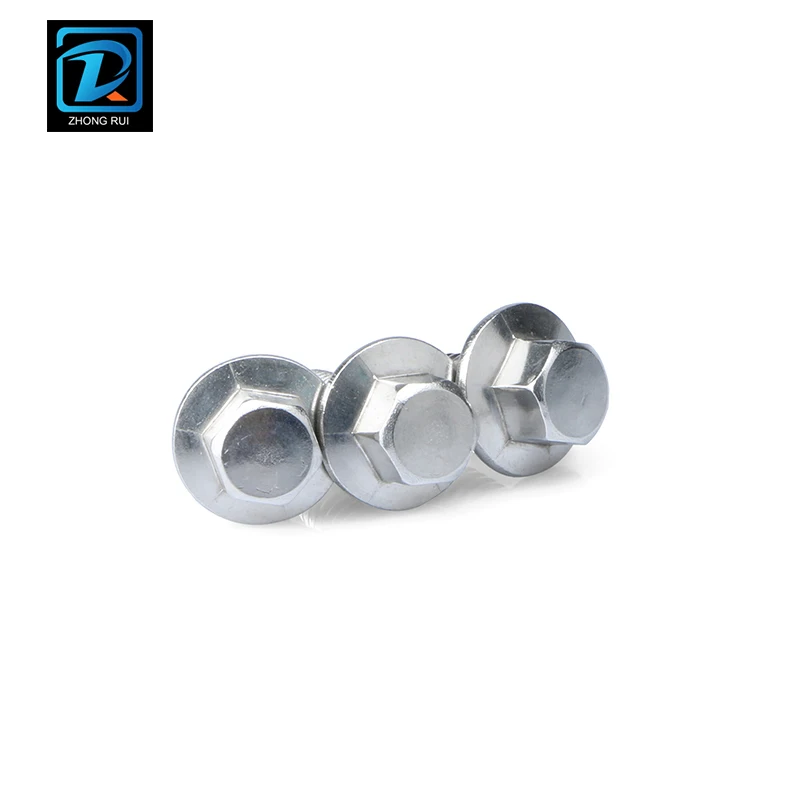

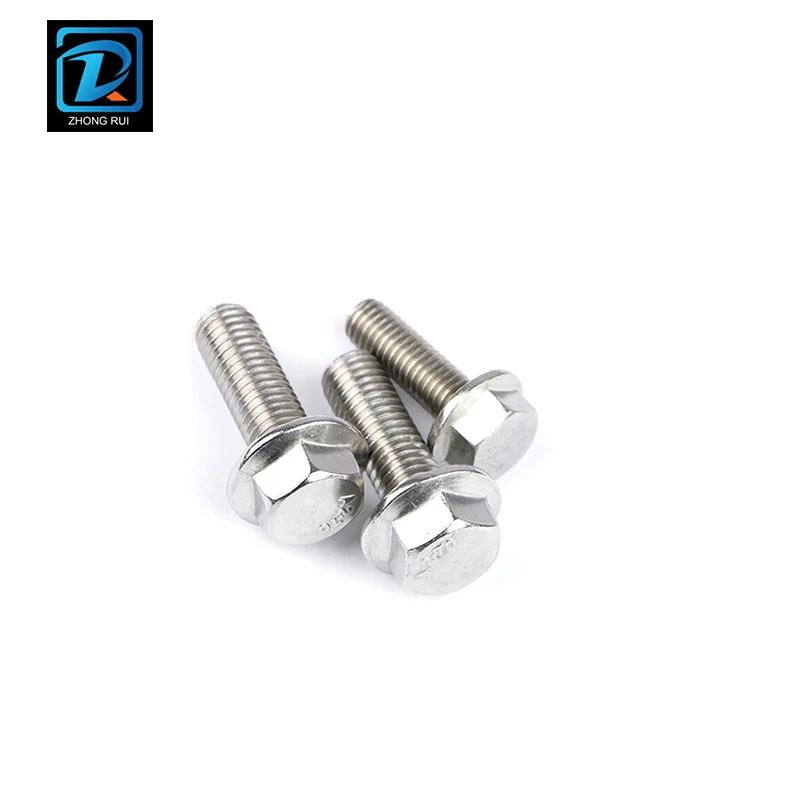

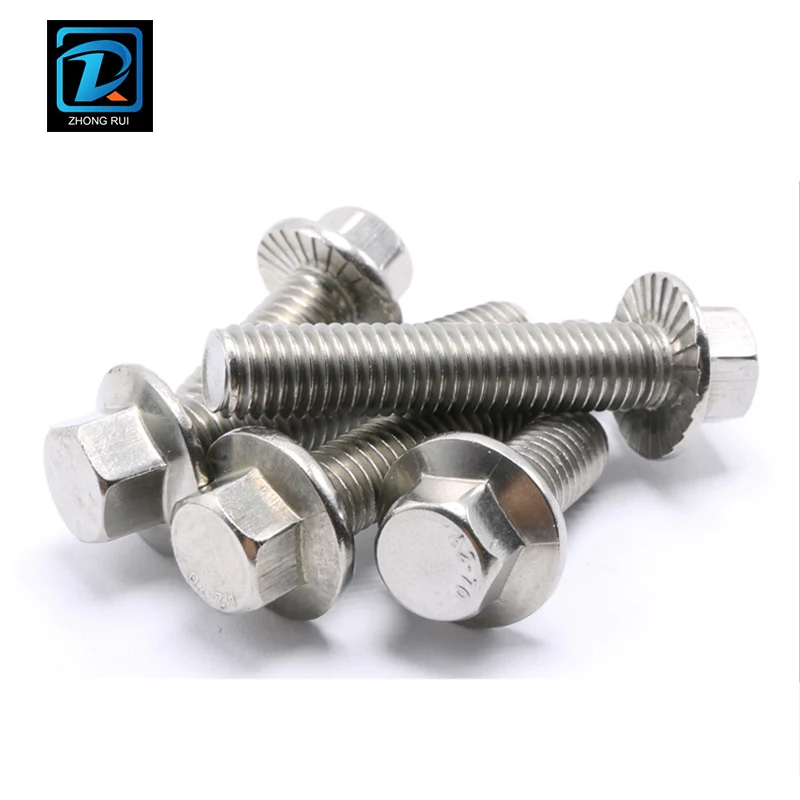

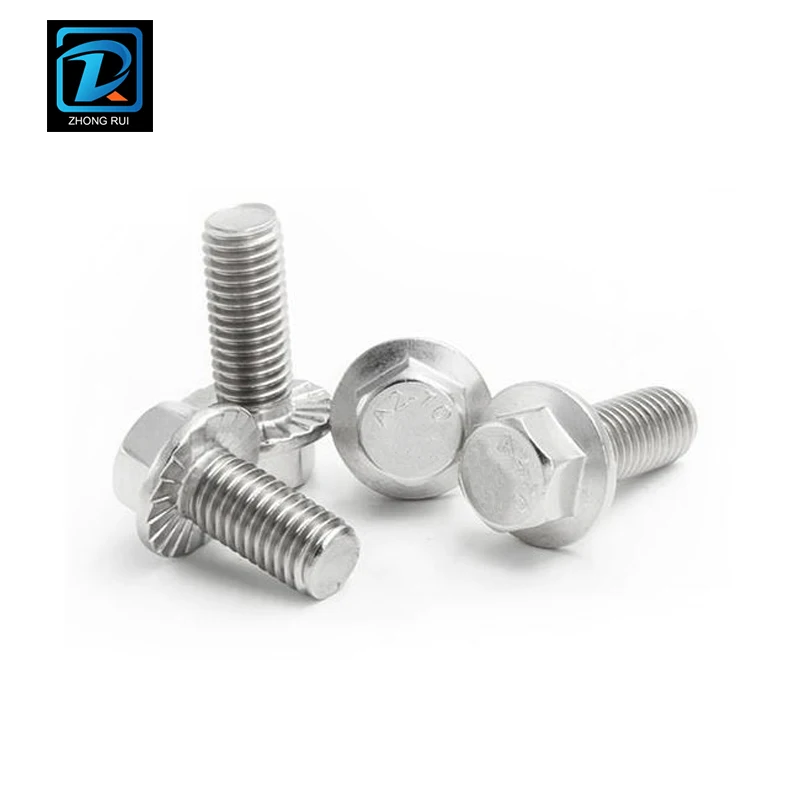

DIN 6921 304 Stainless Steel Hex Flange Bolt
- Category: >>>
- Supplier: Xinghua Zhongrui Stainless Steel Co. Ltd.
Share on (60569890704):
Product Overview
Description
| Product Name | DIN 6921 304 Stainless Steel Hex Flange Bolt |
| Material | 304 Stainless Steel |
| Size | M5 - M20 |
| Surface | Bright |
| Packaging Details | Cartons + Plywood cases Also can be packed as clients' requirements. |
| Delivery | Within 15 days |
| OEM/ODM | Available |
| Sample | Available, 3-5 days after receiving payment |
Product Description
| DIMENSION OF DIN6921 Flange Bolt | |||||||||
| D | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | |
| P(mm) | 0.8 | 1 | 1/1.25 | 1/1.25/1.5 | 1.25/1.5/1.75 | 1.5/2 | 1.5/2 | 1.5/2.5 | |
| b(mm) | L≤125 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 46 |
| 125<L≤200 | / | / | 28 | 32 | 36 | 40 | 44 | 52 | |
| L>200 | / | / | / | / | / | / | 57 | 65 | |
| dc max (mm) | 11.8 | 14.2 | 18 | 22.3 | 26.6 | 30.5 | 35 | 43 | |
| ds(mm) | max | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
| min | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 19.67 | |
| k max (mm) | 5.4 | 6.6 | 8.1 | 9.2 | 11.5 | 12.8 | 14.4 | 17.1 | |
| s(mm) | max | 8 | 10 | 13 | 15 | 16 | 18 | 21 | 27 |
| min | 7.78 | 9.78 | 12.73 | 14.73 | 15.73 | 17.73 | 20.67 | 26.67 | |
COMPARISON SHEET FOR STAINLESS STEEL MATERIAL (CHEMICAL COMPOSITION)

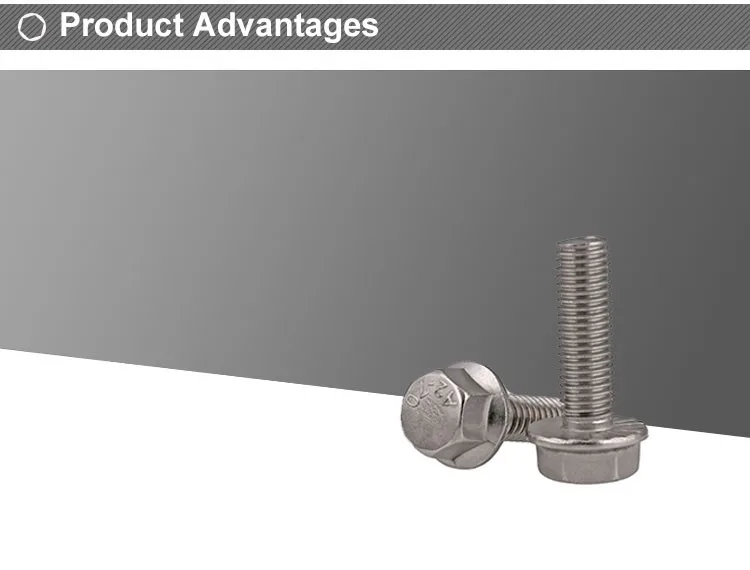

Product Advantages
STAINLESS STEEL FASTENER

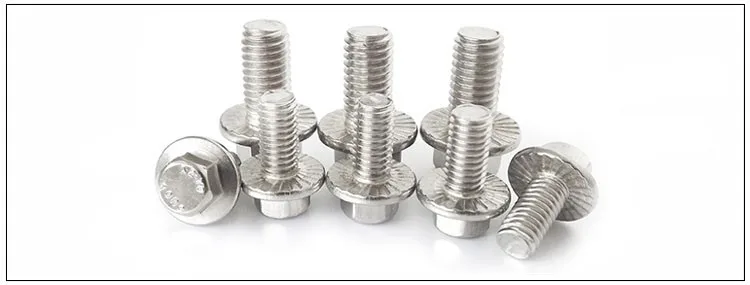

Flange Bolt
Our company is a manufacturer, with 9 years experience
in producing stainless steel fasteners.
BEAUTIFUL
The bright surface of stainless steel can maintain
10-20 years.
DURABLE
Stainless steel is a kind of sturdy material with
good anti-corrosive and anti-rust properties.
NO POLLUTION
Stainless steel does not release toxic substance,
it’s really environmental and nontoxic.
Material
Source
Quality
Assurance
Stock
Available
High quality raw materials
purchased from well-known
factory such as BAOSTEEL
and TISCO.
High quality raw material=
high quality products. Our
products can strictly meet the
relevant standards.
We have a dedicated team
in charge of quality
inspection. Each product
should be tested by them
before delivery.
As a veteran manufacturer,
we have sold our products
to many foreign countries in
the past years . We have
large quantity of stocks ,so
that clients can receive their
goods as soon as possible.
Drawing
Screw
heading
Thread
rolling
Nut
heading
Polishing
Thread
tapping
Clean the
passivation
Inspection
BY SEA
BY AIR
BY EXPRESS(DHL)

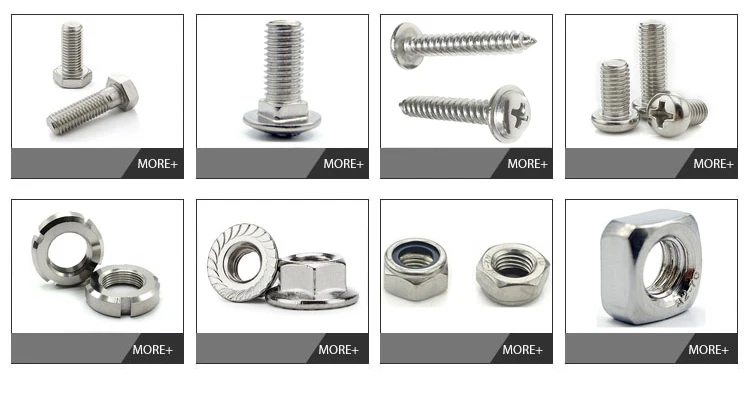

Hex Bolt
Carriage Bolt
Round Washer Head
Tapping Screw
Cross Recessed
Pan Head Screw
Slotted Round Nut
Flange Nut
Nylon Nut
Square Nut
