Product Overview
Description
: baseline;">1, We supply Original Pressure Transmitter with very competitive price .
2, We well know the pressure transmitter is used for the very dangerous area, for the first coorperation , sample for testing is welcomed .
3, we have reliable forwarder who can deliver your goods safely and promise you low freight cost
4, We will help you to avoid expensive tax.
5, Should you have any questions, please feel free to ask us any time !
Product Description

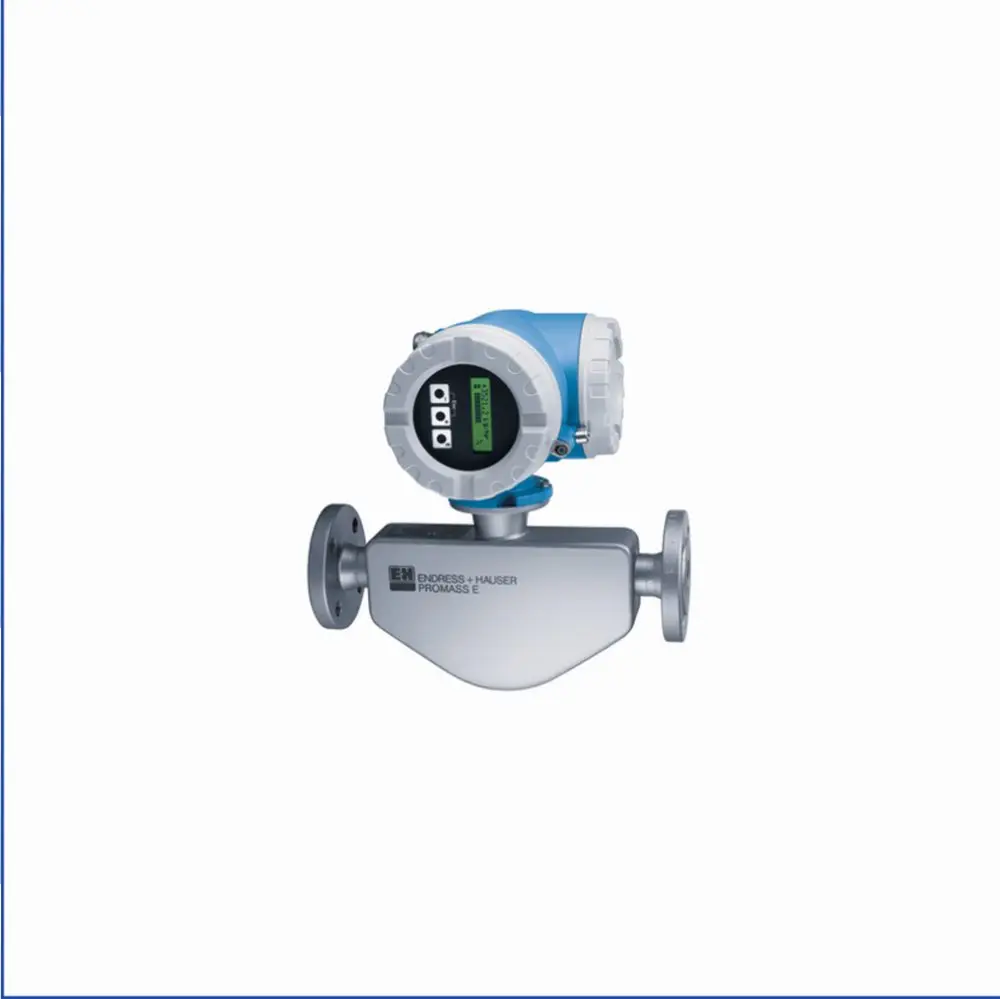

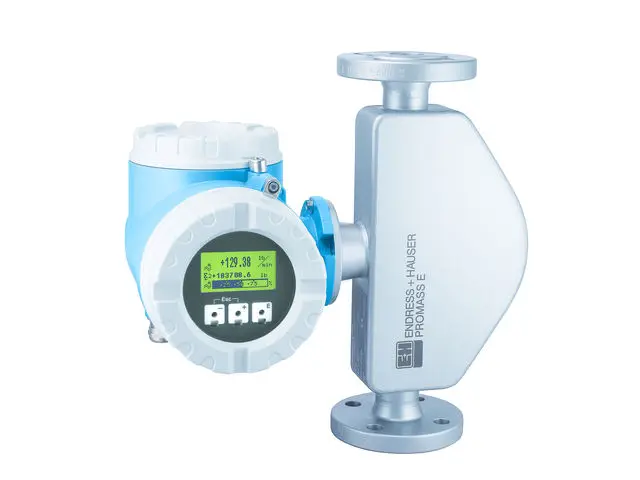

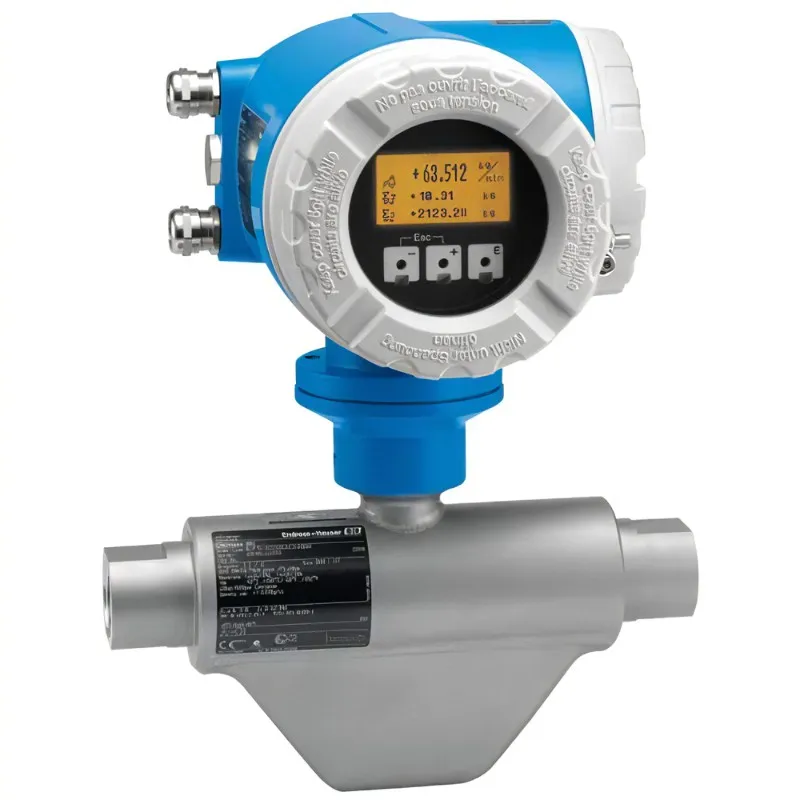

E + H Proline Promass 83E Coriolis Flowmeter
Product Description:
Promass E has a long standing reputation as a cost efficient solution for Coriolis applications. Combined with the Promass 83 transmitter with touch control, four line display and extended functionality like software options for filling and dosing, concentration measurement or advanced diagnostics, Promass 83E offers highly accurate measurement of liquids and gases for a wide range of applications.
Benefits
Cost-effective-multi-purpose device; an alternative to conventional volumetric flowmeters
Fewer process measuring points-multivariable measurement (flow, density, temperature)
Space-saving installation-no in/outlet run needs
Quality-software for filling & dosing, density & concentration, advanced diagnostics
Flexible data transfer options-numerous communication types
Automatic recovery of data for servicing
Field of application
Measuring principle operates independently of physical fluid properties such as viscosity or density
Highly accurate measurement of liquids and gases for a wide range of standard applications.
Device properties
Compact dual-tube system
Medium temperature up to +140 °C (+284 °F)
Process pressure: up to 100 bar (1450 psi)

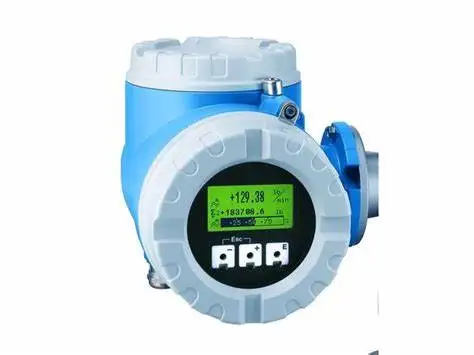

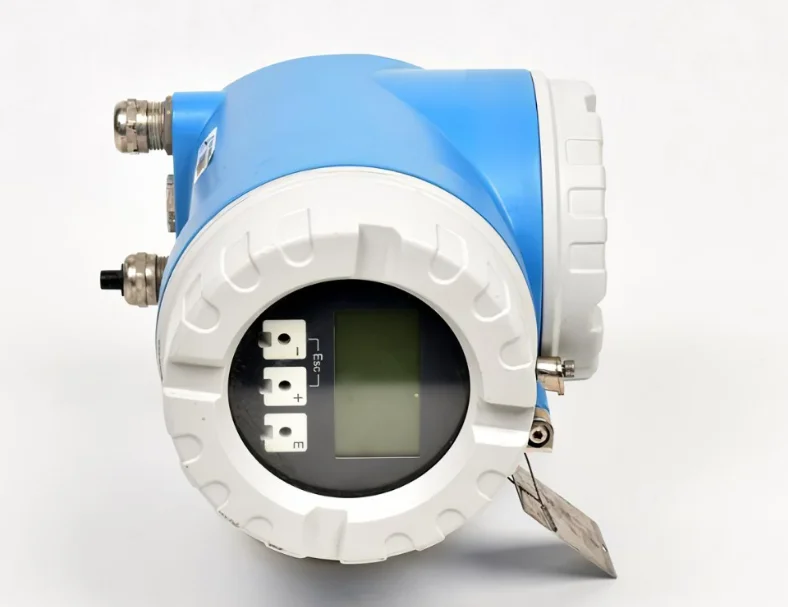

4-line backlit display with touch control
Device in compact or remote version
HART, PROFIBUS PA/DP, Modbus RS485, FF, EtherNet/IP
Performance characteristics
| Reference operating conditions | • Error limits following ISO/DIN 11631 • Water, typically +15…+45 °C (+59…+113 °F); 2…6 bar (29…87 psi) • Data according to calibration protocol • Accuracy based on accredited calibration rigs according to ISO 17025 |
| Maximum measured error | The following values refer to the pulse/frequency output. Measured error at the current output is typically ±5 μA.
Mass flow (liquids) Promass 83E: • ±0.15% o.r. • Calibration option: ±0.10% o.r. Promass 80E: • ±0.20% o.r.
Volume flow (liquids) Specification under reference operating conditions
Promass 83E: • ±0,15% o.r. Promass 80E: • ±0,20% o.r.
Mass flow (gases) Promass 83E, 80E: ±0.75% o.r.
Density (liquids) • Reference conditions: ±0.0005 g/cm³ • Field density calibration: ±0.0005 g/cm³ (valid after a field density calibration under process conditions) • Standard density calibration: ±0.02 g/cm³ (valid over the entire temperature and density range
Temperature ±0.5 °C ± 0.005 · T °C (±1 °F ± 0.003 · (T - 32) °F) |
| Repeatability | Base repeatability Design fundamentals o.r. = of reading; 1 g/cm³ = 1 kg/l; T = medium temperature
Mass flow and volume flow (liquids) Promass 83E: • ±0.075% o.r. • Calibration option mass flow 0.1%: ±0.05% o.r. Promass 80E: • ±0.10% o.r.
Mass flow (gases) Promass 80E, 83E: ±0.35% o.r.
Density (liquids) ±0.00025 g/cm³
|
