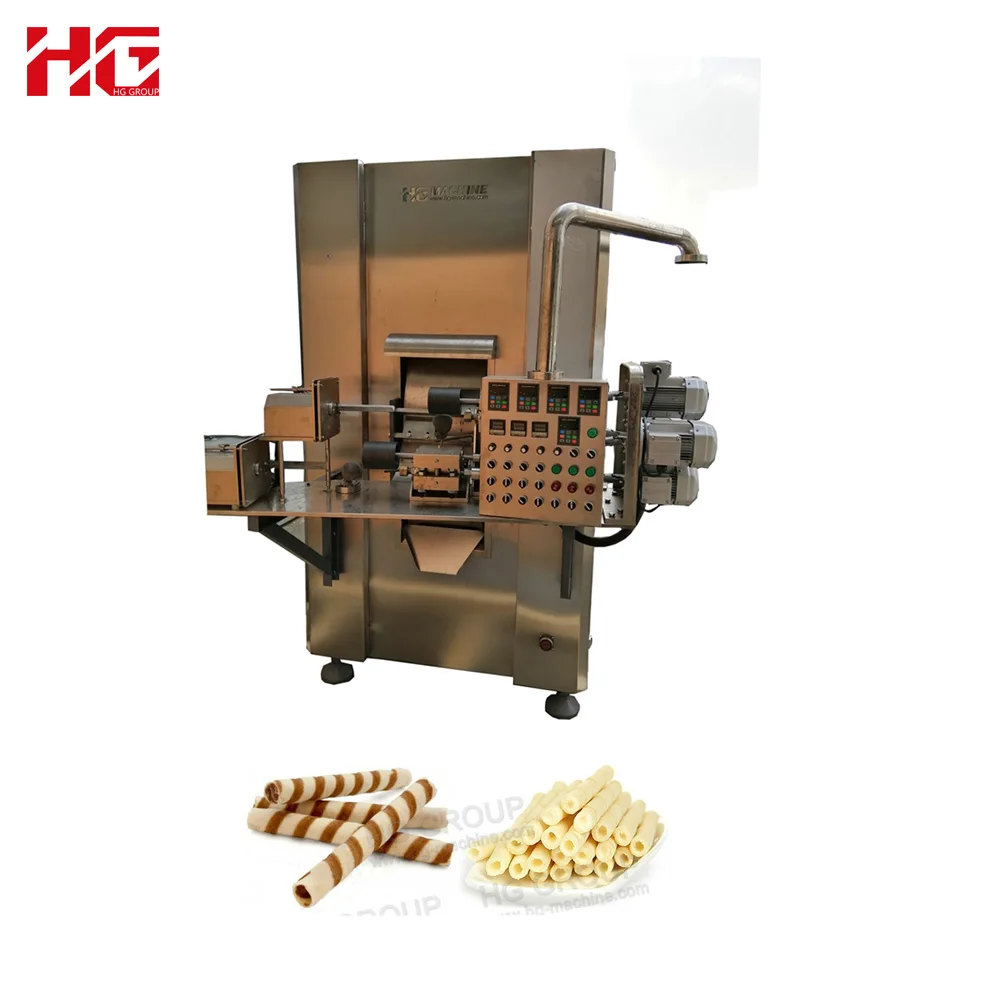

HG SWB60 full automatic wafer roll making machine/wafer stick machine price
- Category: >>>
- Supplier: Shanghai HG Food Machinery Co. Ltd.
Share on (60570104372):
Product Overview
Description
Machine Description
This model HWB wafer stick machine is a domestic new-generation and fully-automatic production line, it can produce crispy and high quality hollow or center filled wafer stick with different shapes and size. The technology of HG wafer stick machine come from japan and germany. After re searched and developed by ourself, this machine is the project with the most investment value at home and abroad.
The main assistant parts
Baking main machine: baking and rolling flour sheet
Feeding machine and fiing machine: feeding the mixed flour on the gear of oven. Filling machine is used to fill cream and chocolate jam
Raw material beating machine: mixing flour. Adopting blade to stir makes sure he mixing time is shorter and the flour be mixed more evenly.(Volume:30L)
Ball mill machine: adopting blade stirring that guaranteeing the mixing time is shorter and the flour be mixed more evenly
Cooling conveyer: cooling and conveying the finished products
Main technical parameters
Model | Nature gas heating | Electric heating |
Total power | 8kw | 40kw |
Gas consumption | LPG: 4.5kg/h Nature gas: 8-9m3/h | / |
Prouduction capacity | Hollow: 25-30kg/h Filled: 50-60kg/h | Hollow: 25-30kg/h Filled: 50-60kg/h |
Wheel diameter | 1800mm | 1800mm |
Weight | 4T | 4T |
Main machine size | 3400*1700*2250mm | 3400*1700*2250mm |
Advantages
1) the machine have two head, gain high capacity.
2) The oven can be baked by gas/electricity, the heating system adopts automatic ignition technique,
3) The thickness of sheet is adjustable
4) The length of stick is also changeable.
5) The diameter of stick is changeable, just to change the winding shaft.
2) The oven can be baked by gas/electricity, the heating system adopts automatic ignition technique,
3) The thickness of sheet is adjustable
4) The length of stick is also changeable.
5) The diameter of stick is changeable, just to change the winding shaft.

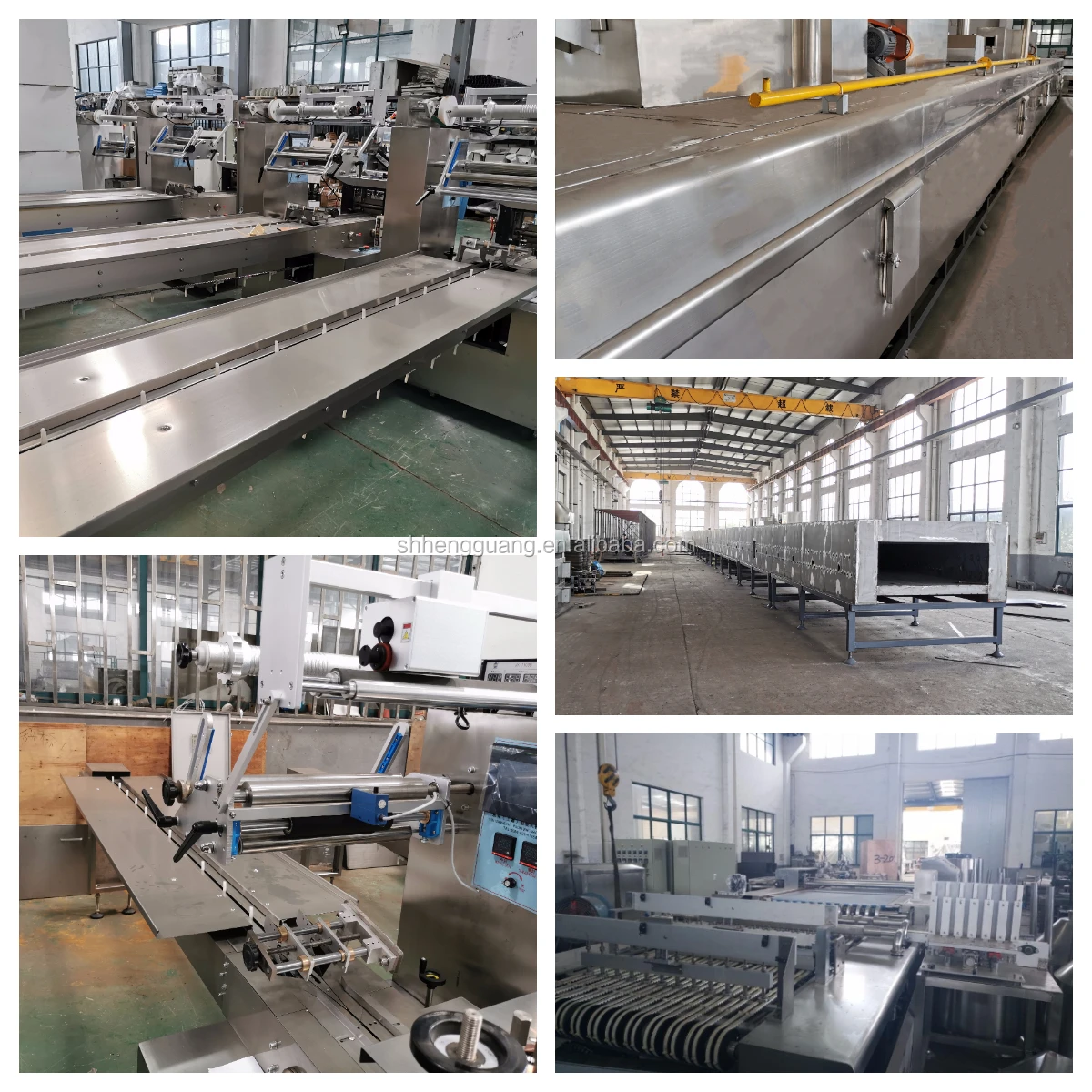

Manufacture Workshop
Exhibition
Customer Photos
Don't hesitate my friend, Come and contact us
Our HG Group concentrated on the foodstuff machinery for 40 years. our products have been sold all over the world market .
Our self-confidence derived from profession, the profession derived from our concentration.
Your early reply will be highly appreciated!!!
Our self-confidence derived from profession, the profession derived from our concentration.
Your early reply will be highly appreciated!!!
