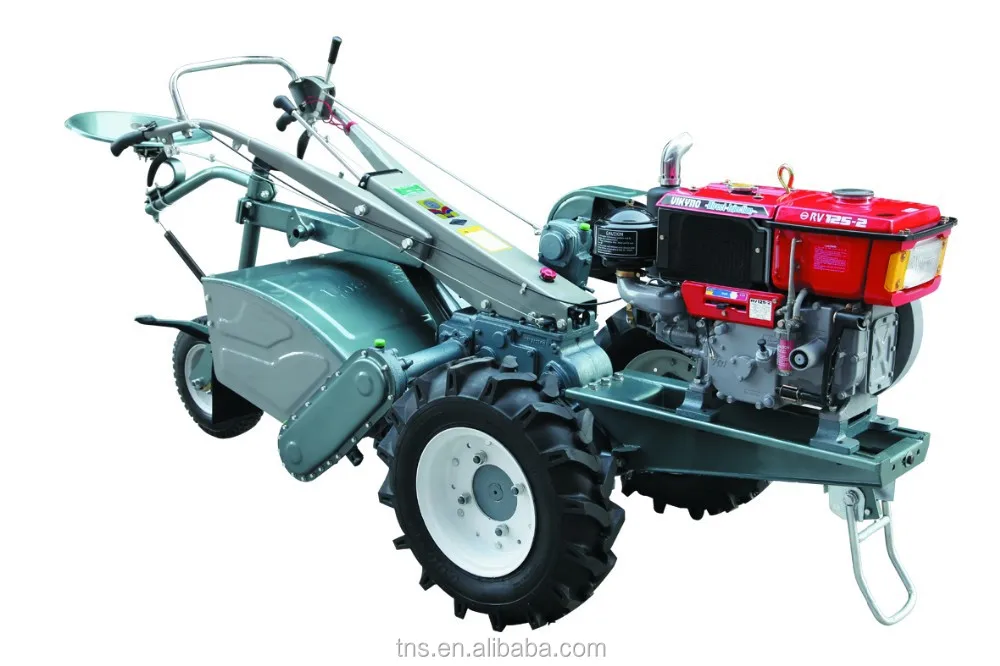

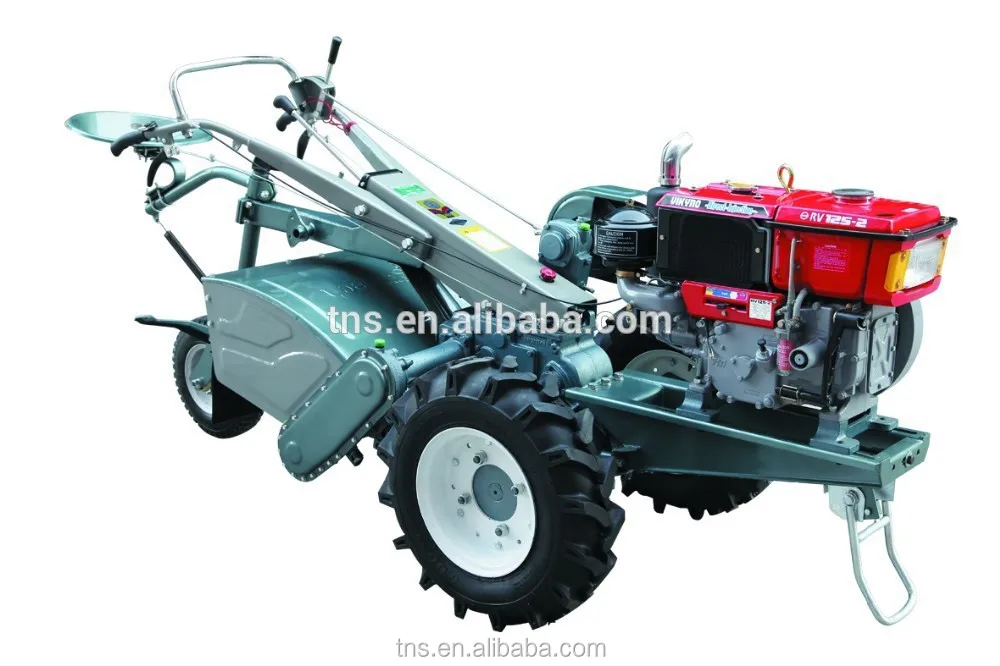

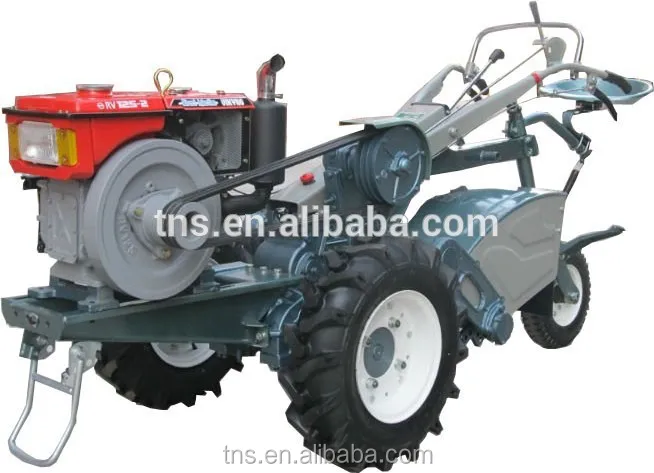

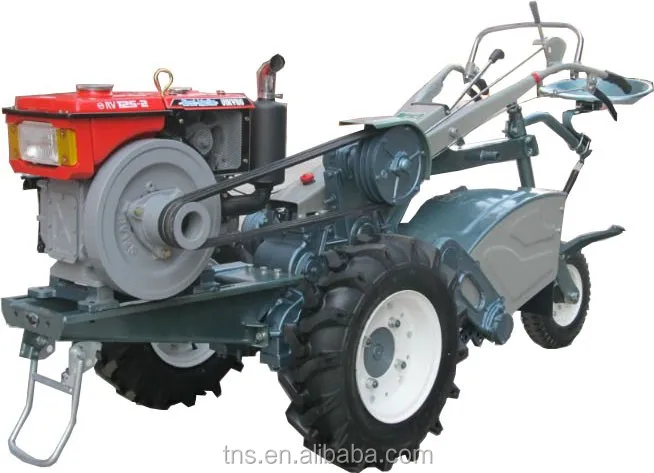

TNS125 POWER TILLER

Product Overview

Description









Model:TNS125 POWER TILLER
Chasis Information
Overall Dimensions:(L*W*HV)	2950*980*1240mm
Wheel TreadHGJB	570,630,690,750,810mm
Tyres	Front 6.00-12
	Rear 4.00-8
Skid wheels	2 Nos.42kg
Ground Clearance	210mm
Working Weight(with rotary tiller)	330kg
Speed(km/hr)	Forward 1.41,2.51,4.21,5.22,9.27,15.56
	Revrse 1.11,4.12
Rotary Tiller	Model :1GL-60
	Whole weight:118kg
	Width:600mm
	Transmission type:chain drive
	Turning speed:1st:low200;high251                       2nd:low233;high291
	Number of blades:18pieces

Engine Information
Model	Origial Vietnam VIKYNO model
Type	Single cylinder,4-stroke,horixontal,water-cooled
Bore*Stroke(mm)	90*94
Displacement(cm3)	624
Continuous output(HP/r.p.m)	10.5/2200
Maximum output	12.5/2400
Fuel	Diesel oil
Fuel tank capacity(L)	9.5
Specific fuel consumption	185(g/HP/hr)
Combustionsystem	Direct Injection
Starting system	Handle Starting
Lamp	6V-25W
Cooling system	Condenser(Radiator)
Weight(kg)	105
Container Load
20'FCL	22PCS(20PCS,mud wheels outside the packing)
40'FCL	48PCS(40PCS,mud wheels outside the packing)

Other FAQ Parts

1.      How about your after-sale system?

Our company provides perfect after-sale service, if there is any problem that you can not solve by yourself, please contact with our salesman, and they will try to help you together with our engineers.

2.      How to order spare parts? Is that available?

For each TNS125 POWER TILLER, there is one tool bag, inside it there are three copies of catalogue, one of them is spare parts catalogue, if you want to order some spare parts, please refer to it. If you can not match the real parts to the reference number, please contact with our salesman, they will help you. All of those spare parts are available. It is easy to purchase from us.

3.      How to decide packing?

There are ONE way for the packing. Our salesman will illustrate it for you . And if you want to do the outside marks, please inform our salesman in advance, and leave them enough time to do the preparation.

4.      About orders

Generally there are two seasons in the whole year, are March to April and September to October. But different areas still depend. Anyway, if you are interested in our machine, please try to contact with our salesman in advance so that there is enough time for manufacturing.

5.      If there is something unclear for you, please feel ease to contact with us, all the staff are convenient for you.



This information will be updated from time to time, so please pay attention to us. Our company reserves the final rights to explain anything that is unclear.
