SDS8102 100MHz 2GS/s 8 inch display digital oscilloscope
- Category: >>>
- Supplier: Xiamen Wellzion Electronics Technology Co. Ltd.
Share on (60570414774):
Product Overview
Description
We are authorized distributor with product quality and after-sales service guaranteed.
3 years warranty!
With standard export package and full accessories!
Firmware upgrade is available when needed
SDS8102,100MHz 2GS/s 8 inch display digital oscilloscope
Contact Us Directly
For quick reply
For more discounts
For update info : www.weLLzion.com
Function & Benefits
- 100 MHz Bandwidth, 2GSa/s Real-time Sample Rate
- 8 inch TFT LCD display
- Saving of measured values and graphics directly onto the USB-stick
- VGA-output port for external monitor
- Autoset and autoscale function for easy operation
- LAN connection for remote acces via network

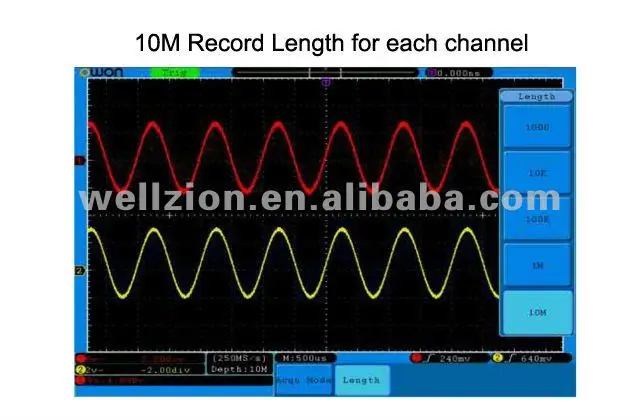

- Internal memory of 10 million points per channel or 15 waveforms
- 20 automatic measurement modes and FFT function

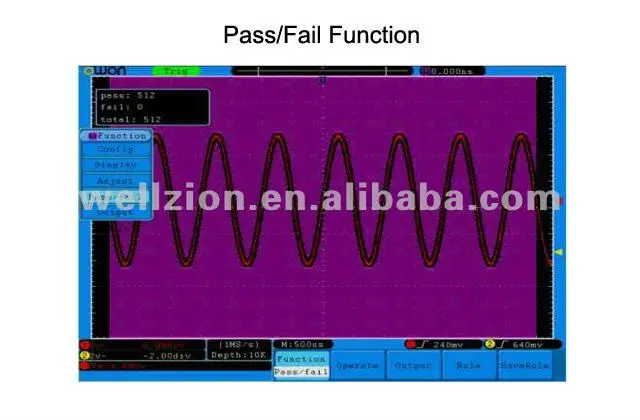

- PASS/FAIL function
- Safety: CAT II
Applications
- Design and Debug
- Circuit function test
- Mixed signal circuit test
- Identified signals
- logic information
- Education & Training
Specifications
| Model | SDS8102 | ||
| Bandwidth | 100MHz | ||
| Sample rate(Real time) | 2GS/s | ||
| Horizontal Scale(S/div) | 1ns/div~100s/div,step by 1~2~5 | ||
| Rise time (at input, typical) | ≤3.5ns | ||
| Channels | Dual | ||
| Vertical System | Vertical resolution (A/D) | 8 bits Resolution (2 channels simultaneously ) | |
| Vertical sensitivity | 2mV/div~10V/div(at input) | ||
| Displacement | ±1V(2mV~100mV), ±10V(200mV~1V), ±100V(2V~10V) | ||
| Analog Bandwidth | 100MHz | ||
| Single bandwidth | Full bandwidth | ||
| low frequency | ≥ 5Hz | ||
| Rise time (at input, typical) | ≤3.5ns | ||
| DC gain accuracy | ±3% | ||
| DC accuracy(Average) | Average>16: ±(3% rdg + 0.05 div) for delta V | ||
| Measurement | Cursor measurement | delta V and deltaT between cursors | |
| Automatic measurement | Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time,Fall Time, DelayA→B , DelayA→B , +Width, -Width, +Duty, -Duty | ||
| Waveform Math | +, -, ×, / ,FFT | ||
| Waveform storage | 15 waveforms | ||
| Lissajou’s figure | Bandwidth | Full bandwidth | |
| Phase difference | ±3 degrees | ||

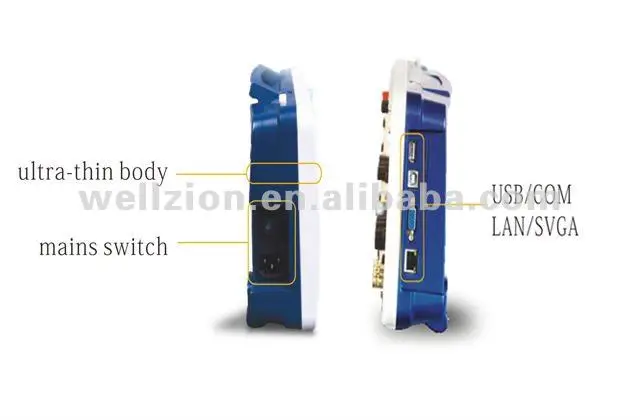

| Communication interface | USB, support USB flash disk storage, SVGA | ||
| Trigger | Trigger level range | ±6 divisions from screen center | |
| Trigger level accuracy | ±0.3div | ||
| Horizontal Trigger displacement | Pre-trigger: 655 div,Post-trigger: 10 div | ||
| Trigger Holdoff range | 100ns~10s | ||
| Edge trigger | Rising,Falling | ||
| Pulse Trigger | Trigger condition | Positive pulse:>,<,= negative pulse:>,<,= | |
| Pulse width range | 24ns~10s | ||
| Video Trigger | NTSC,PAL,SECAM | ||
| Slope Trigger | Trigger condition | Positive pulse:>,<,= negative pulse:>,<,= | |
| Time setting | 24ns~10s | ||
| Alternate Trigger | Edge, Pulse, Video, Slope | ||

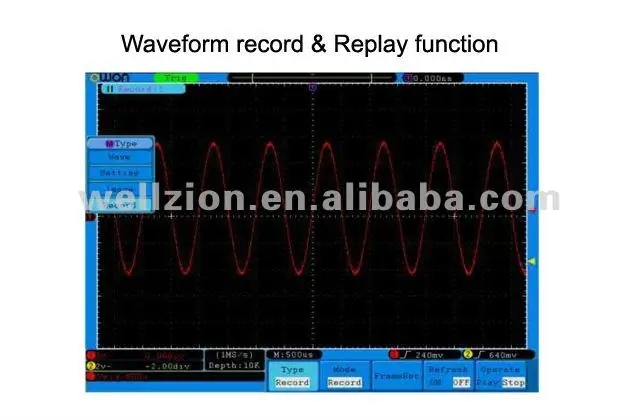

| Waveform record | Waveform quantity | 1~1000 | |
| Interval time | 1ms~1000s | ||
| Display | 8" color LCD,TFT display, 800x600 pixels,65535 colors | ||
| Power Supply | 100~240VAC RMS, 50/60Hz, CAT II | ||
| Power consumption | < 18W | ||
| Dimension Weight | 340mm(L)×155mm(H)×70mm(W) 1.8kg (without battery) | ||
Advanced Performance
Selection Guide
| Model | SDS1102CML | SDS1102CNL | SDS8102 | DSO5102BMV | SDS1152CML |
| Channels | 2 | 2 | 2 | 2 | 2 |
| Bandwidth | 100MHz | 100MHz | 100MHz | 100MHz | 150MHz |
| Sample-rate | 1GSa/s | 1GSa/s | 2GSa/s | 1GSa/s | 1GSa/s |
| Memory Length | 2Mpts | 40Kpts | 10Mpts | 2Mpts | 2Mpts |
| Auto Measurment | 32 | 32 | 20 | 32 | 32 |
| Vertical Sensitivity | 2mv-10v/div | 2mv-10v/div | 2mv-10v/div | 2mv-5v/div | 2mv-10v/div |
| Horizontal Range | 2.5ns-50s/div | 2.5ns-50s/div | 1ns-100s/div | 4ns-40s/div | 2.5ns-50s/div |
| Trigger types | Edge, Pulse, Video, Slope, Alternative | Edge, Pulse, Video, Slope, Alternative | Edge, Pulse, Video, Slope, Alternative | Edge, Video, Pulse, Slope, Over time, Alternative | Edge, Pulse, Video, Slope, Alternative |
| Display | 7 inch | 7 inch | 8 inch | 7 inch | 7 inch |
| PictBridge Print | √ | - - - - | √ | - - - - | - - - - |
| USB Interface | √ | √ | √ | √ | √ |
| VGA Interface | - - - - | - - - - | √(optional) | √(optional) | - - - - |
| LAN Interface | - - - - | - - - - | √ | - - - - | - - - - |
| SD Card | - - - - | - - - - | - - - - | 2 GB | - - - - |
