china silicone rubber matte tactile one button single keyboard membrane switch touch button with FPC
- Category: Keypads & Keyboards >>>
- Supplier: Shenzhen Yizexin Technology Co. Ltd.
Share on (60570533225):
Product Overview
Description
Product Description
Product Show
Specifications
Technical Property | Working Voltage | ≤50VDC |
Working Current/Power | ≤100mA | |
Contact Resistance | 0.5~10 Ω | |
Insulating Impedance | ≥100m Ω | |
Circuit Resistance | 10Ω-500Ω( depended on size and layout) | |
The base pressure | 1500VDC | |
Life | flat type≥1 million times | |
Operation Force | 15~750gf | |
Stroke Switch | 0.1~0.4mm (no touching);0.4~1.0mm(Tactile) | |
Recoil time | ≤6ms | |
Tail bending performance | ≤180° | |
Operation Temperature | -20°~+70° | |
Stock Temperature | -40°~+85° | |
Working Humidity | 95%±5% |
Features
1 | Item name | membrane switch |
2 | Overlay material | PET(polyester),PC(polycarbonate) |
3 | Dimension | According to customer's demand |
4 | Dimension | CorelDraw, Adobe Illustrator AI or EPS, AutoCAD Dwg or DXF |
5 | Color | Pantone and RALcolor matching system. |
6 | Printing | Screen Printing |
7 | Printing | Glossy surface or matte surface |
8 | Keys Options | Non tactile (flat key) |
Tactile with stainless steel domes | ||
Tactile with poly domes on the circuit | ||
9 | Window | clear or transparent window |
10 | Rear Adhesive | 3M467,3M468,3M9448ect |

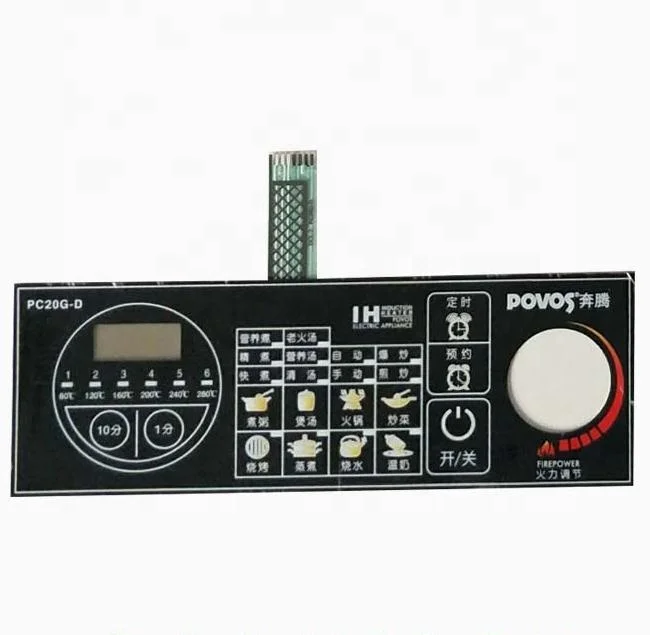

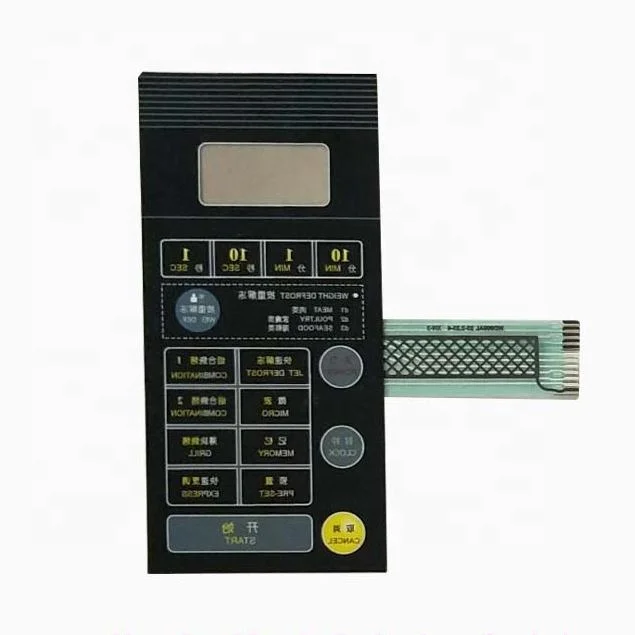

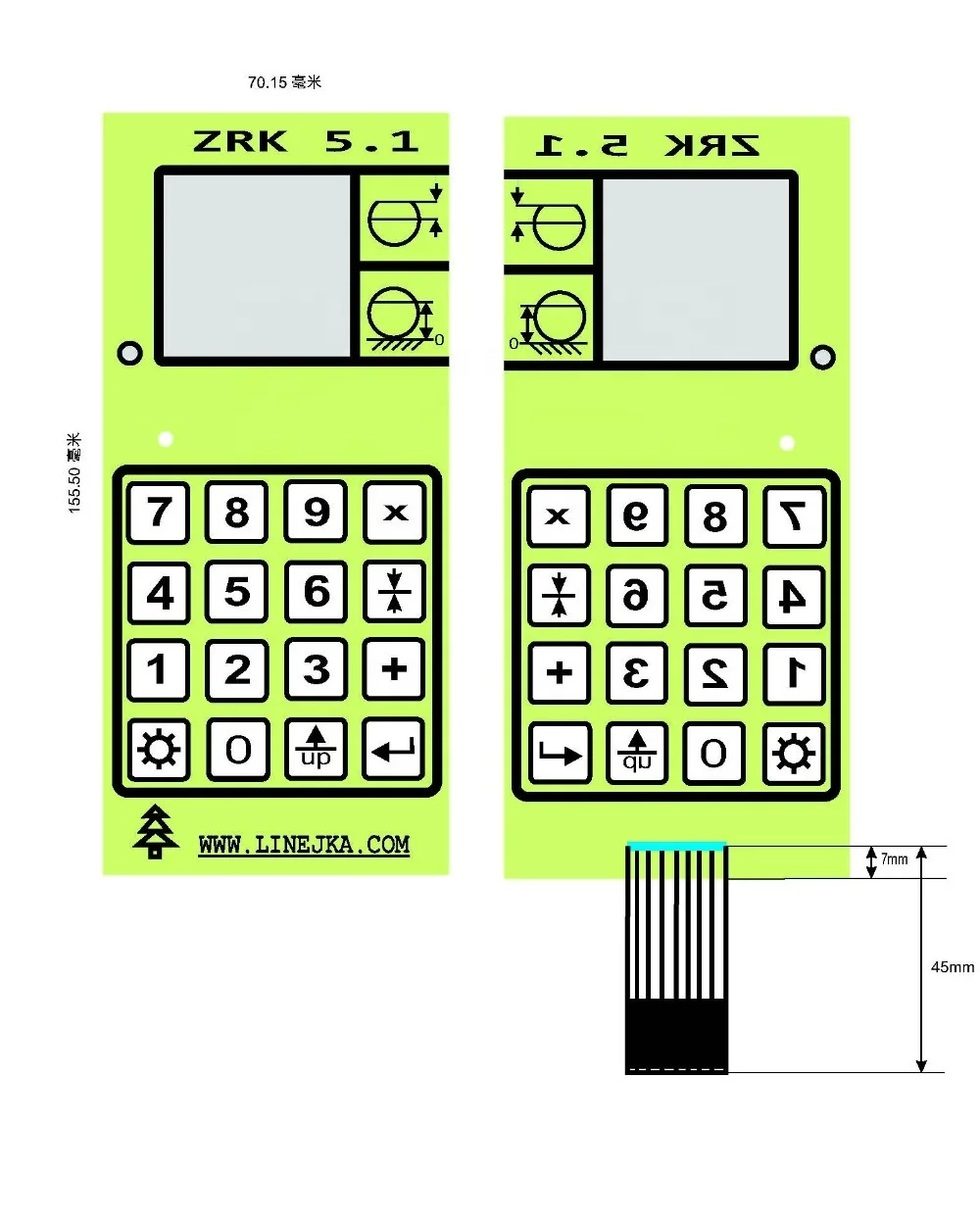

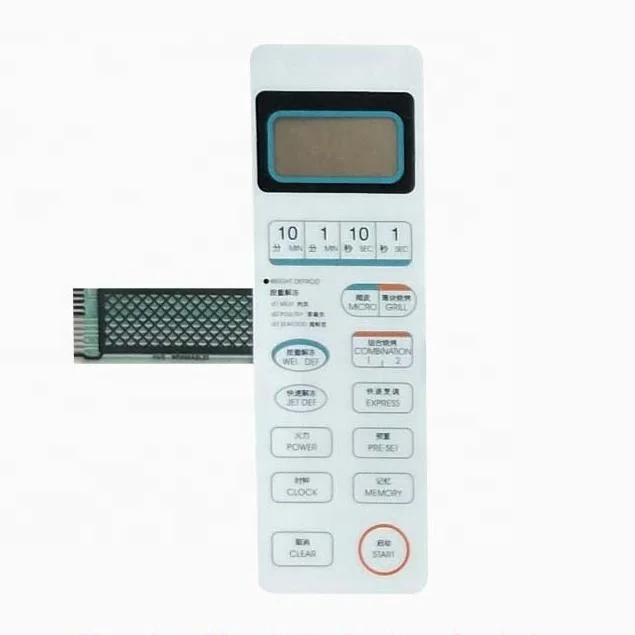

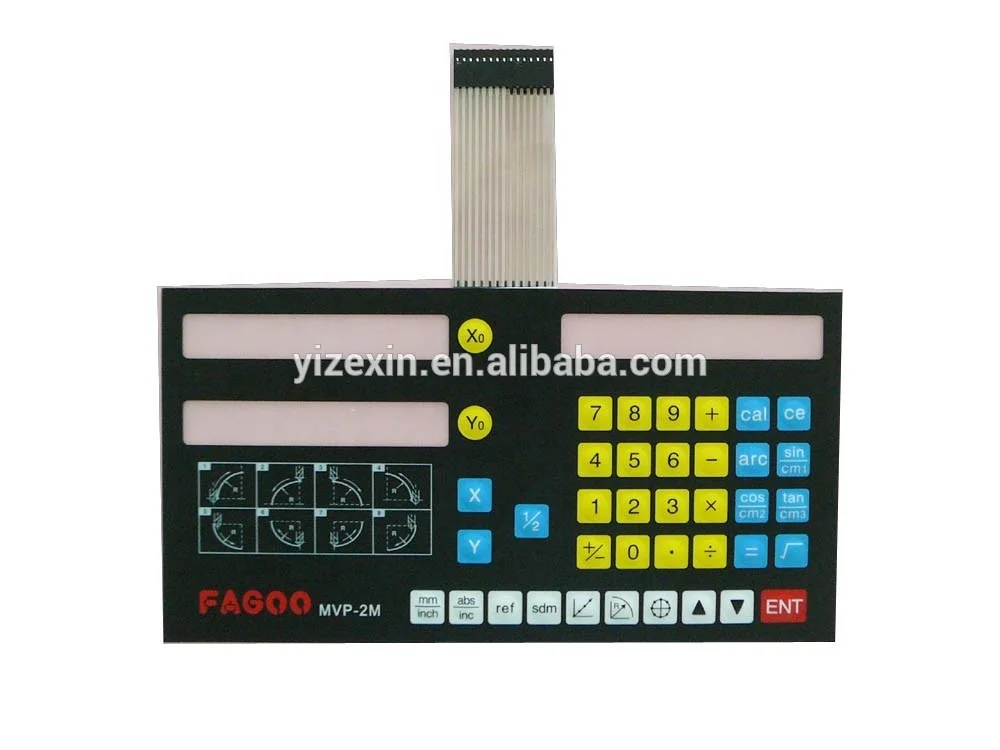

Detailed Images
Other Products
Our Company
Founded in 2004, Shenzhen Yizexin Technology Co.,Ltd has 12 years of experiences in the production and development of membrane switch (which are suitable for various applications ) and other products such as membrane panel,flexible circuit,crystal epoxy,insulation spacer,acrylic adornment name plate,lens,adhesive sticker.We provide One-stop OEM/ODM solutions for membrane switches for customers from anywhere in the world. Our factories are ISO 9001:2015, ROHS,Disney certified,ensuring production and supply-chain reliability .Foxconn assign our factory as long -term supplier.All products are 100% inspected and tested before package and shipment for zero-defect quality assurance .We have complete sophisticated facilities and laboratory with perfect testing equipments in the following pictures.Welcome to visit our factory.
Certification
Testing Equipments
Manufacture Facilities
Workshop(Included non-dust)
Our partner
Packing & Delivery
Our Service
1. OEM/ODM Manufacturing welcome
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to5days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
