LED Square Dual Face Park & Turn Light W/ Side Marker, Pedestal Mount 12v led light
- Category: Truck Lighting Systems >>>
- Supplier: Yuyao HOJA Lighting Products Co. Ltd.
Share on (60570548504):
Product Overview
Description

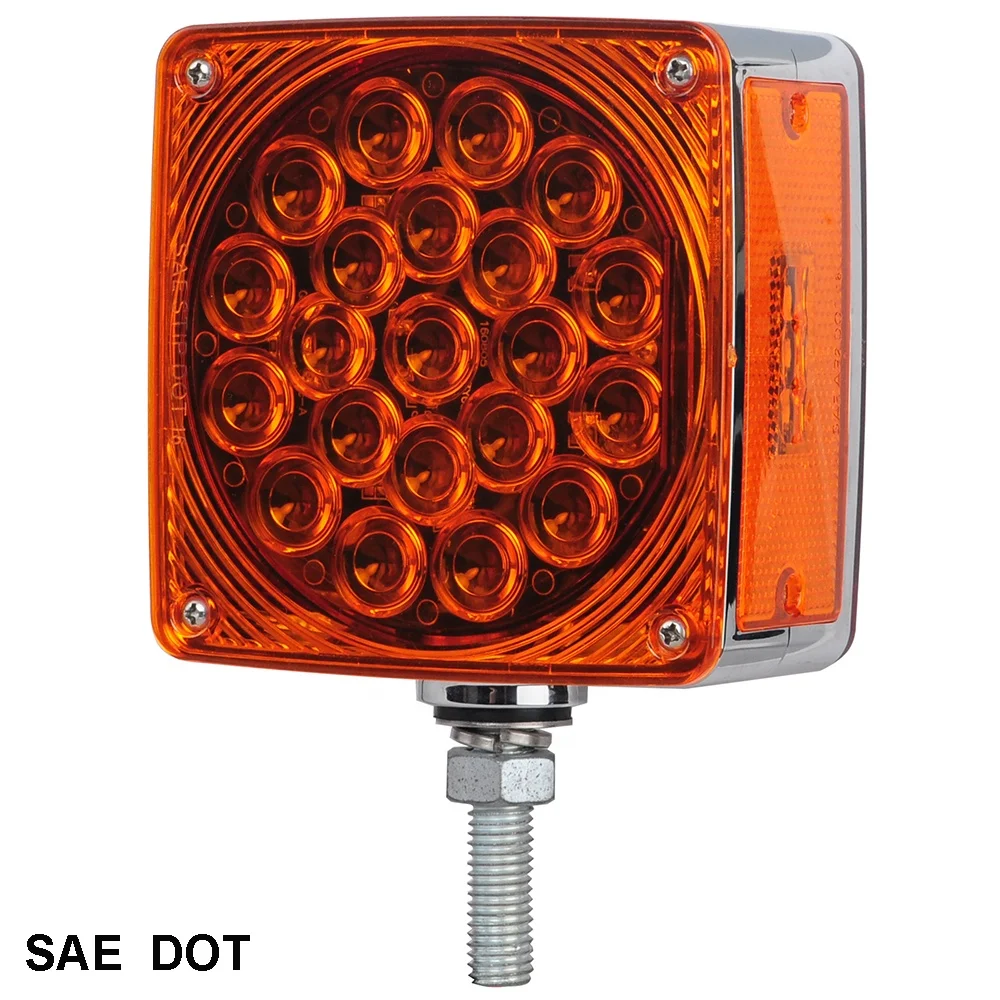

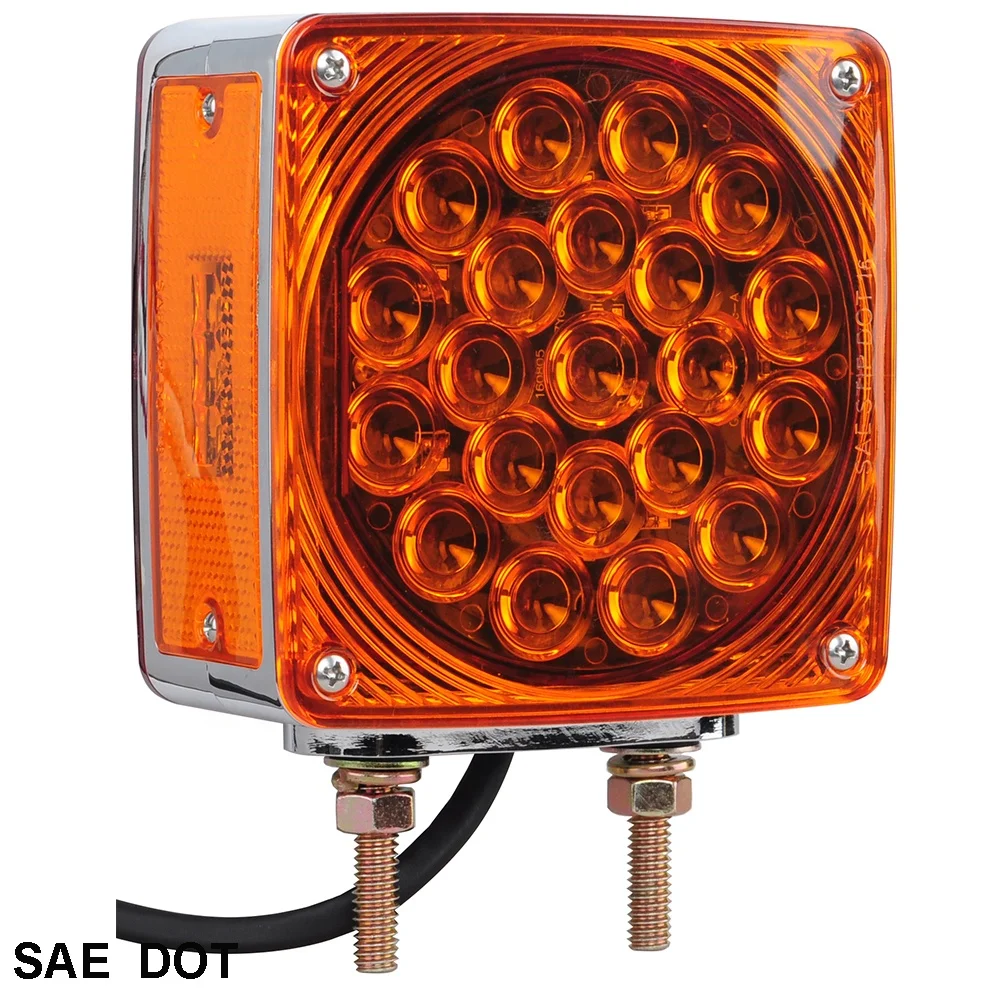

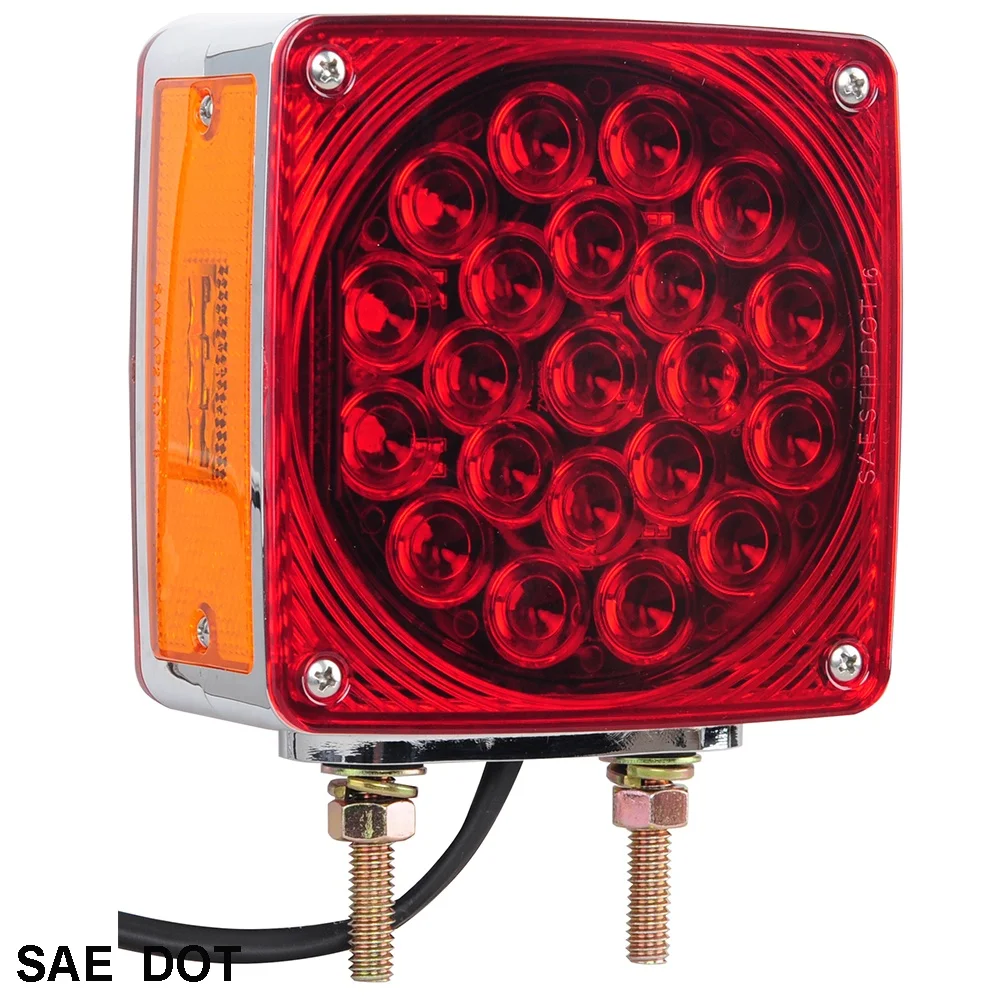

LED Square Dual Face Park & Turn Light W/ Side Marker, Pedestal Mount 12v led light
• LED dual face park and turn light with built-in amber side marker with reflex
• Available in single post or double posts models, pedestal mount
• 21 LEDs each face, amber lens facing the front of vehicle and red lens facing to the rear, 3 LEDs for side marker, available in driver side and passenger side models
• Chrome plated plastic housing and PC lens
• Hard-wired, 3-wires with protective sleeve
• Meets SAE/FMVSS requirements, lens marking STIP, and AP2 on the side marker
• Rated for 12V, tested to 13.8V
• Also available in multi-voltage 10~30V operating range, or 24V (by special order only – minimum may apply)
Product Show:
Specification:
Part No. | Description | Input Voltage | Nos. of LEDs & Lighting Color | LED Type | Current Draw (A) at 13.8V |
128142AR-L | Single Post Dual Face Amber/Red, Driver (Left) Side | 12V | 21 Amber+21 Red+3 Amber | SMD | Stop/Turn: 0.4A Tail: 0.07A |
128142AR-R | Single Post Dual Face Amber/Red, Passenger (Right) Side | 12V | 21 Amber+21 Red+3 Amber | SMD | Stop/Turn: 0.4A Tail: 0.07A |
128142AA-L | Single Post Dual Face Amber/Amber, Driver (Left) Side | 12V | 21 Amber+21 Amber +3 Amber | SMD | Stop/Turn: 0.4A Tail: 0.07A |
128142AA-R | Single Post Dual Face Amber/Amber, Passenger (Right) Side | 12V | 21 Amber+21 Amber +3 Amber | SMD | Stop/Turn: 0.4A Tail: 0.07A |
128142ARM-L | Single Post Dual Face Amber/Red, Driver (Left) Side, Multi-volt | 12~24V | 21 Amber+21 Red+3 Amber | SMD | Stop/Turn: 0.4A Tail: 0.07A |
128142ARM-R | Single Post Dual Face Amber/Red, Passenger (Right) Side, Multi-volt | 12~24V | 21 Amber+21 Red+3 Amber | SMD | Stop/Turn: 0.4A Tail: 0.07A |
128342AR-L | Double Post Dual Face Amber/Red, Driver (Left) Side | 12V | 21 Amber+21 Red+3 Amber | SMD | Stop/Turn: 0.4A Tail: 0.07A |
128342AR-R | Double Post Dual Face Amber/Red, Passenger (Right) Side | 12V | 21 Amber+21 Red+3 Amber | SMD | Stop/Turn: 0.4A Tail: 0.07A |
128342AA-L | Double Post Dual Face Amber/Amber, Driver (Left) Side | 12V | 21 Amber+21 Amber +3 Amber | SMD | Stop/Turn: 0.4A Tail: 0.07A |
128342AA-R | Double Post Dual Face Amber/Amber, Passenger (Right) Side | 12V | 21 Amber+21 Amber +3 Amber | SMD | Stop/Turn: 0.4A Tail: 0.07A |
128342ARM-L | Double Post Dual Face Amber/Red, Driver (Left) Side, Multi-volt | 12~24V | 21 Amber+21 Red+3 Amber | SMD | Stop/Turn: 0.4A Tail: 0.07A |
128342ARM-R | Double Post Dual Face Amber/Red, Passenger (Right) Side, Multi-volt | 12~24V | 21 Amber+21 Red+3 Amber | SMD | Stop/Turn: 0.4A Tail: 0.07A |
