China manufacturer Double Sided FPC with CE certificate

Share on (60570549039):


Price:RUB 37.91 - RUB 606.55

Quantity:


Product Overview

Description

range cooker hood001

***Functions:

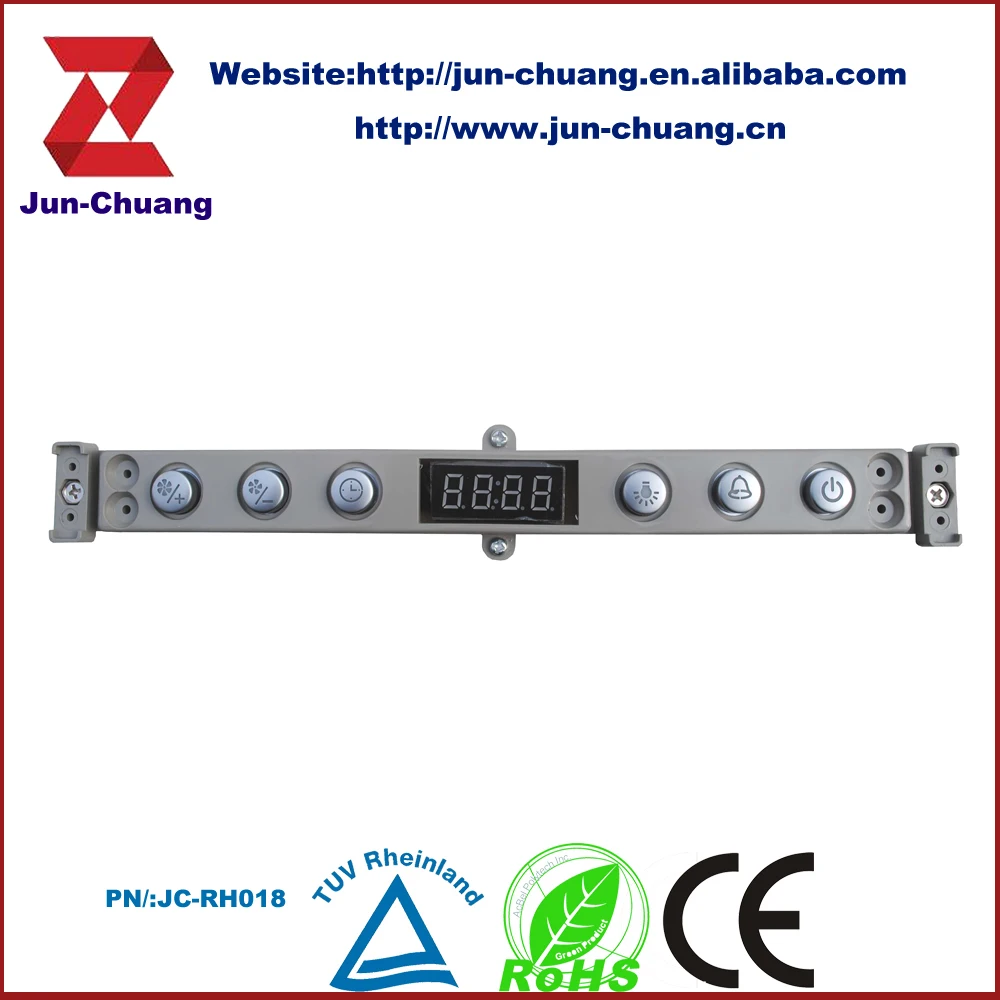

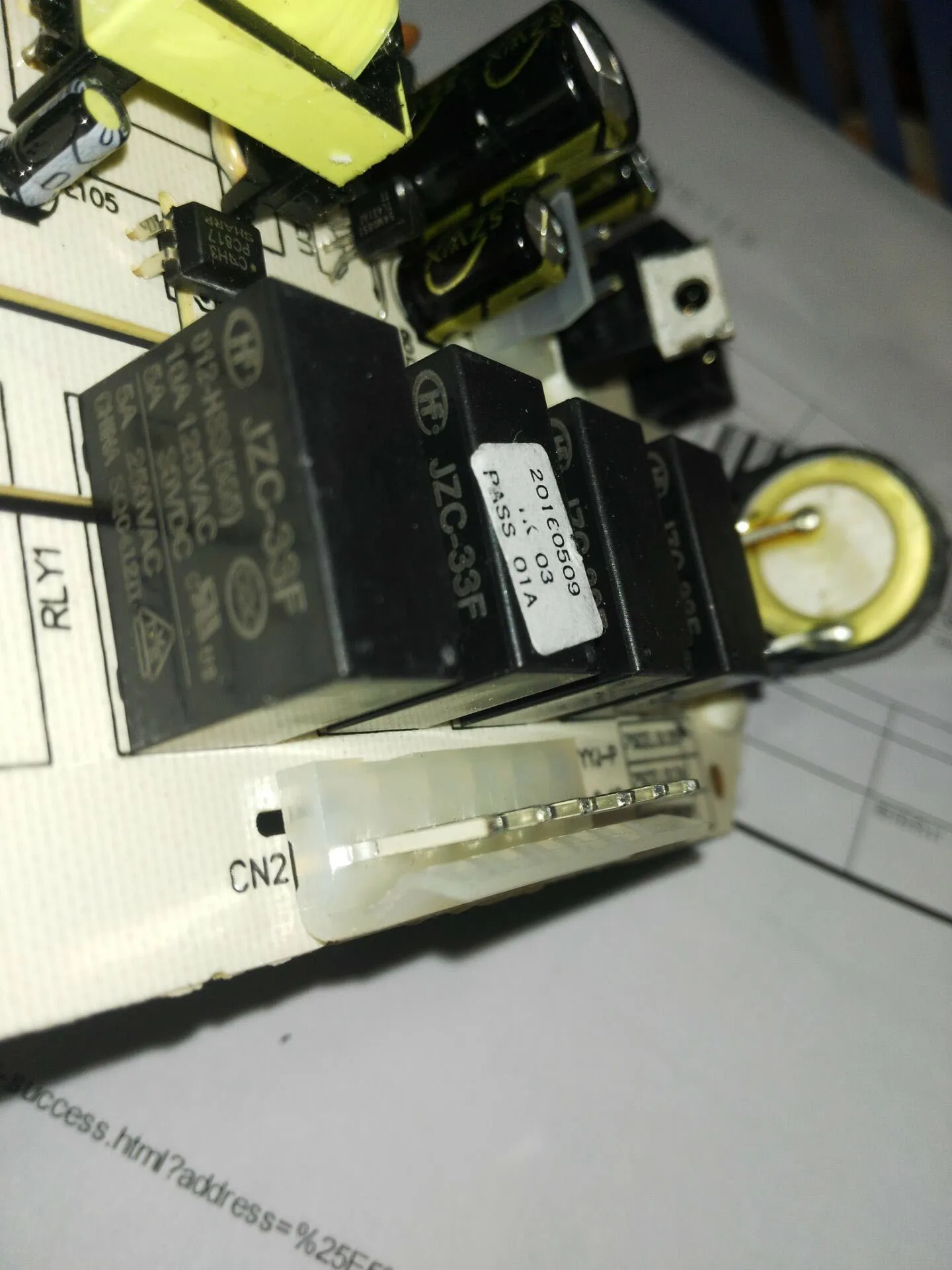

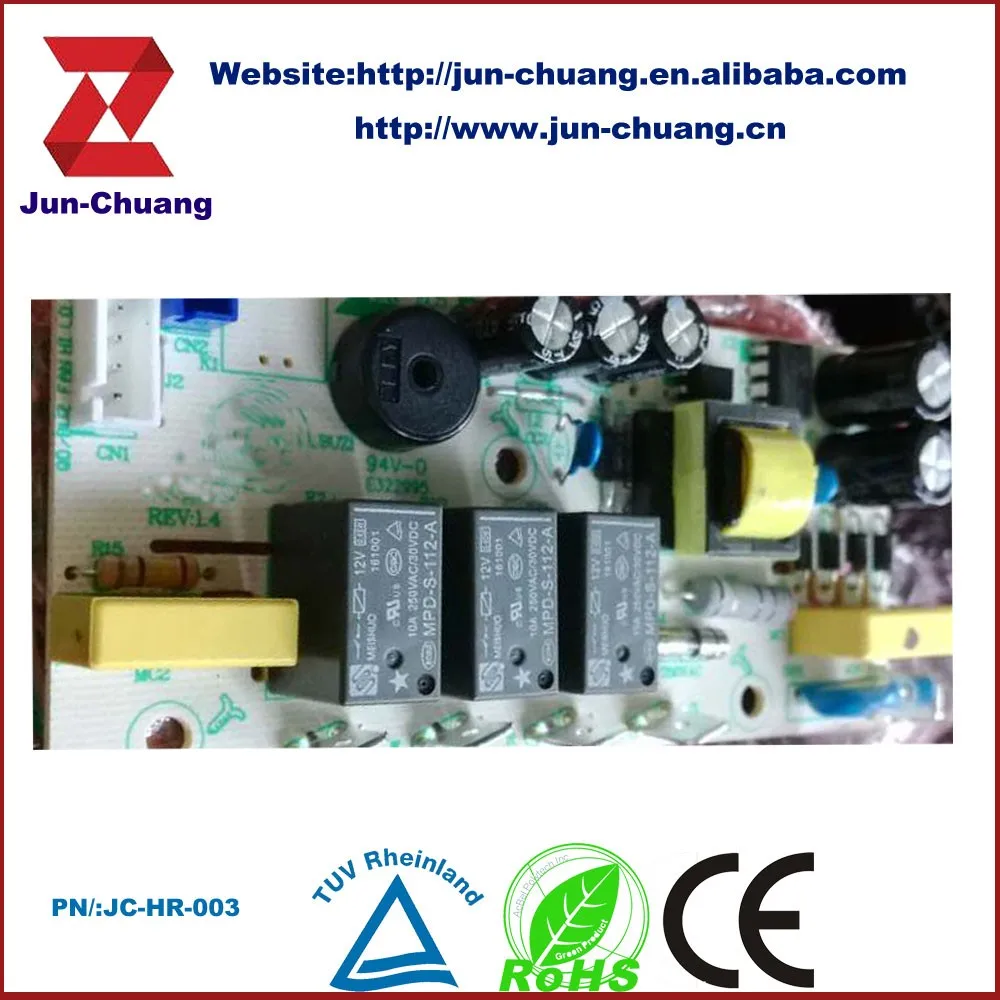

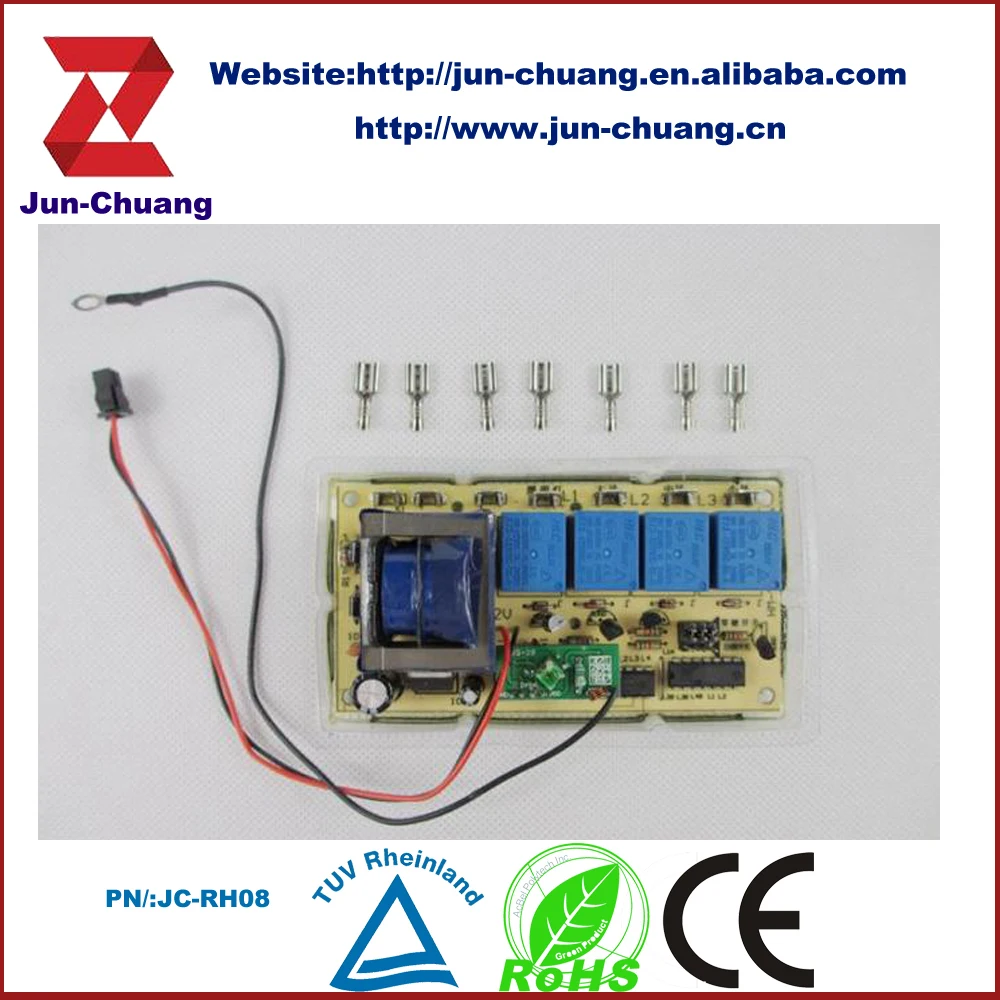

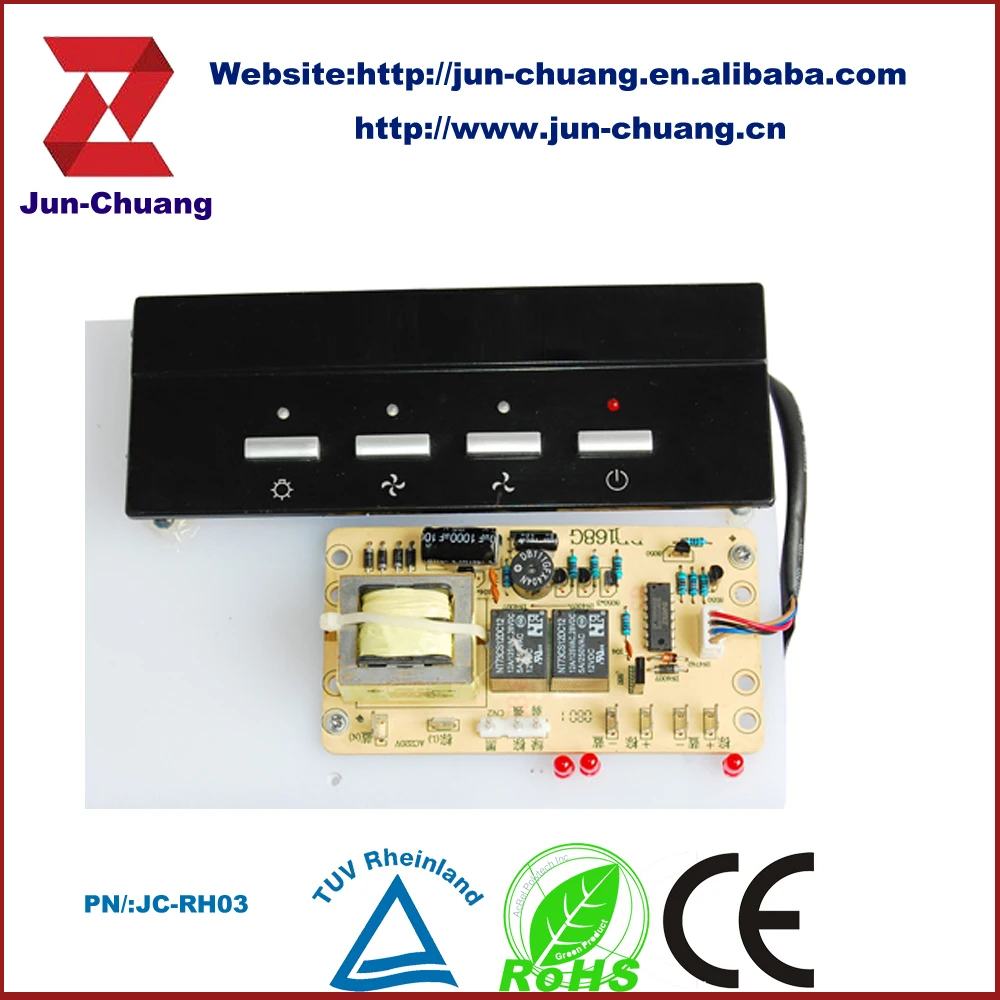

PCB Controller for Range hood

1: Control Board for cooker hood/Chimney hood; SMT,PCB Assembly


2:LED Display

3:Three speed, four speed,and five speed are available.

5:Lighting ON OFF switch (manual / digital)

6. Push button

7:Time setting and display

8:Energy save mode

9:Conforms to all North America, South America, Middle East and European Standards (UL, SGS, ROHS,REACH)


****PCBA datails:
Surface Coating
HASL/ plating gold /immersion gold/ Ni/Au plating gold finger/OSP processing/immersion Tin (Sn)
Layers
Single-sided,double-sided
PCB Color
White, yellow, black and red available
Copper Thickness
1 OZ; 2.0OZ available
Board Thickness
1.2 mm-1.6mm
Min Hole Size
0.2mm-0.7mm
Min Line Width
0.1mm-0.3mm
Min Line Spacing
0.1mm-0.3mm
Max board size
flexiable,depends on the water heater plastic panel design
Solder mask type
Green/yellow/black/red/white/blue or transparent photosensitive solder mask and peel off blue glue.
Silk legend color
White/ yellow /black
Data file format for OEM
GERBER file and corresponding drilling file,PROTEL series,PADS2000,POWERPCB series,
Data file format for ODM
Need product specification or datasheet,
Electricity performance & Reliability tests
EMC(Voltage dip test, EFT test, Withstand high voltage test, Current leakage test, Surge test), High & Low chamber test, Humidity test,Salt spray test,and life test.
Various types base material
High TG board, high frequency board(ROGERS,TEFLON) halogen-free board (FR-4,CEM-1,CEM-3)
Certifications
ISO9001:2008,ISO14001,SGS,ROHS; Products comply with REACH & RoHs.
