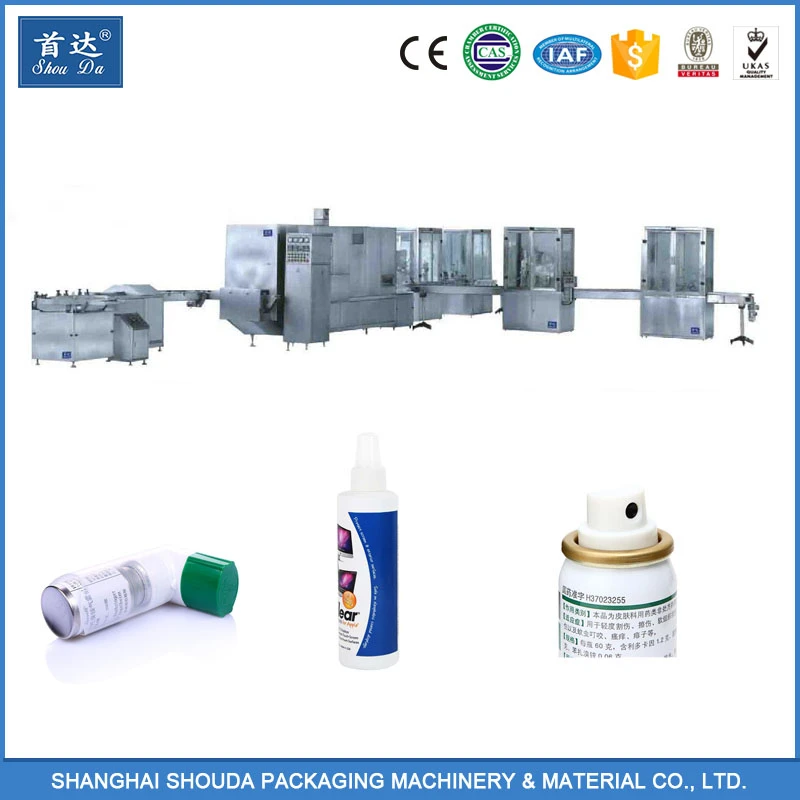

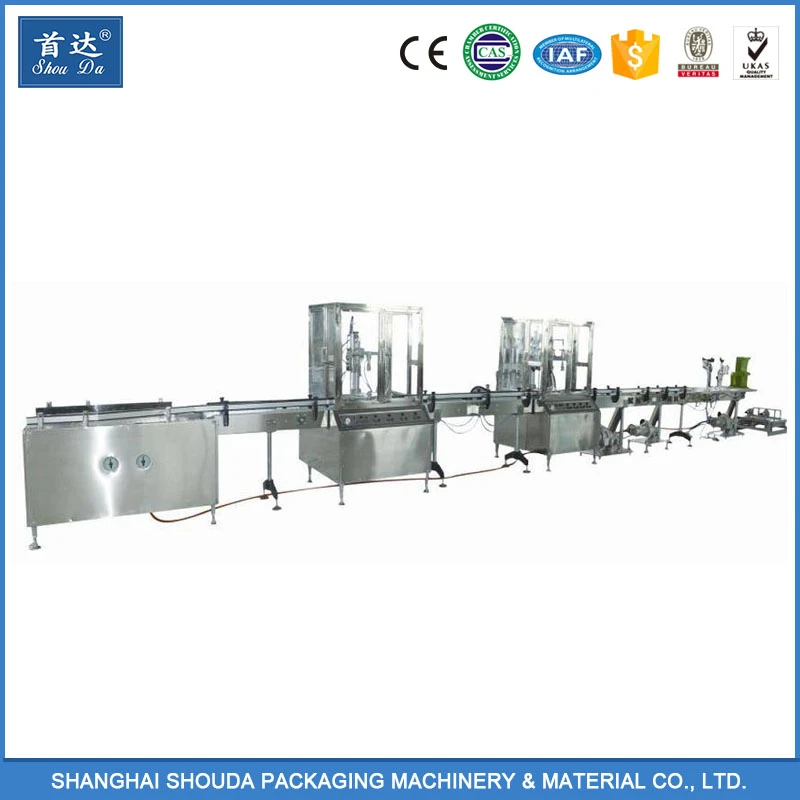

Deodorant Gas aerosol filling machine with Explosion proof function Production Line Machine

Product Overview

Description

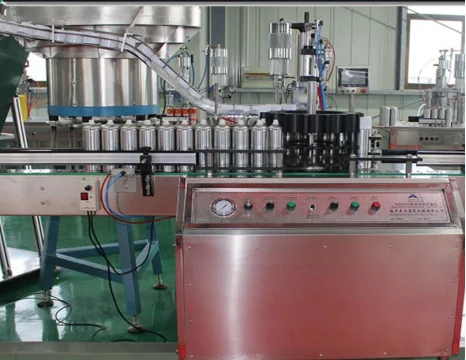

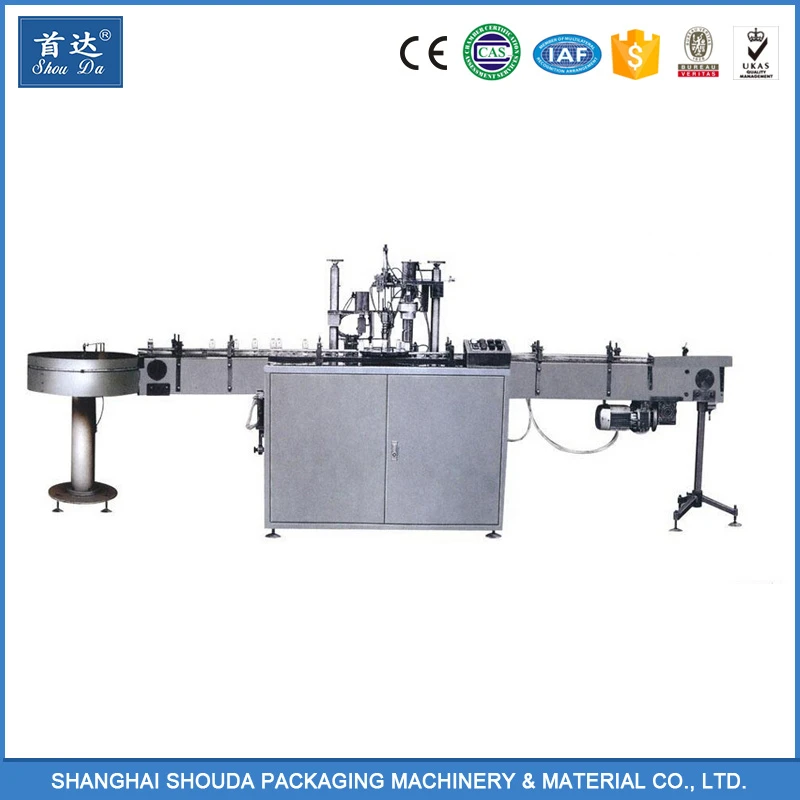

Deodorant  Gas aerosol  filling machine with Explosion-proof function Production Line Machine



Function:

     This bottler is mainly used to fill propane, butane, Freon, dimethyl ether, carbon dioxide,

nitrogen, oxygen, compressed air and 134a, etc. The main seals are made of imputed material. Filling can be made with various valves. A large capacity booster pump is used for bidirectional  pressurization. Therefore, filling is quick and metering is accurate.

 Feature:

This machine combines the liquid filling, crimping and gas filling into one single working table. It saves working space and labor cost, only one operator is needed.All the pneumatic valves are international Metalwork brand from Italy, result in an stable and reliable running, the liquid dosing and gas metering parts are all stainless steel 316 manufactured by CNC machine process. This machine is an ideal option for aerosol products new beginners, laboratory purpose or R&D for new products research and formulation optimization.

Parameter:



Filling volume(ml)	20-750ml(specification can be made by request)
Filling accuracy	≤±1%
Gas volume(ml)	20-450ml
Gas accuracy	±1%
Sealing accuracy	≤±1%
Working Pressure	0.65-1.0MPa
Available valve	1”(25.4mm)
Production capacity	Depends on the operator proficiency
Maximum air consumption	0.8(m3/min)

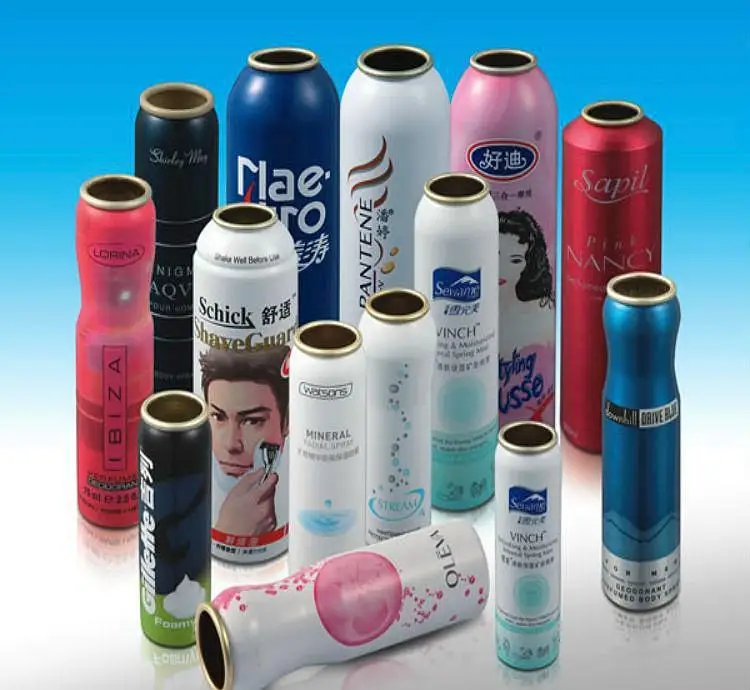

Applicable aerosol can diameter	35-65 (mm)
Applicable aerosol can height	80-350(mm)
Filling machine :1000*590*1590mm 180KG
Booster pump : 500* 450*600mm 38KG
