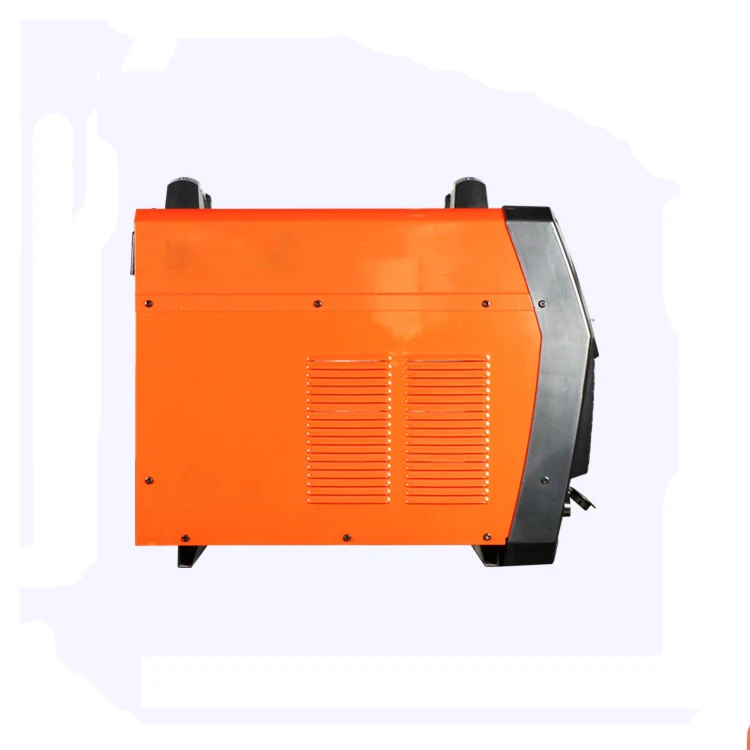

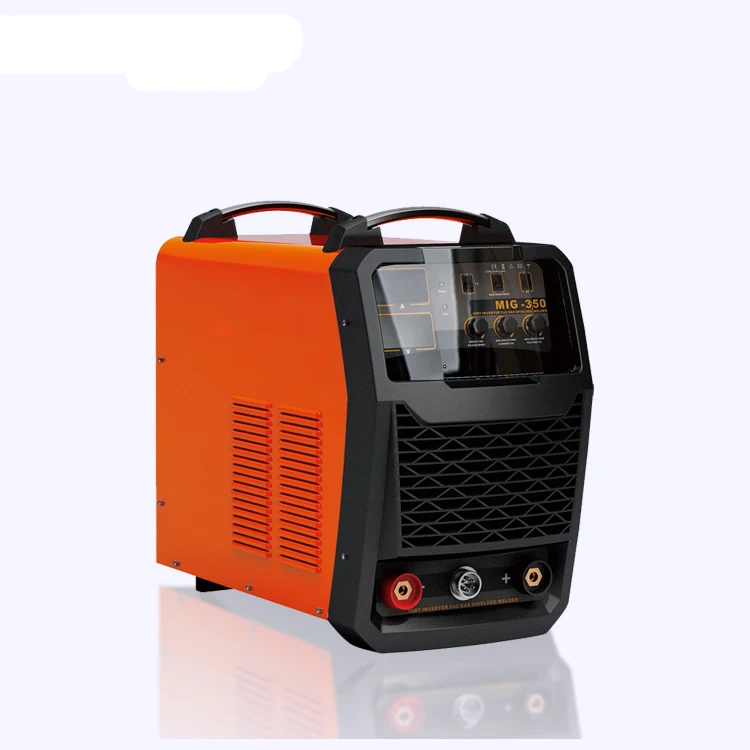

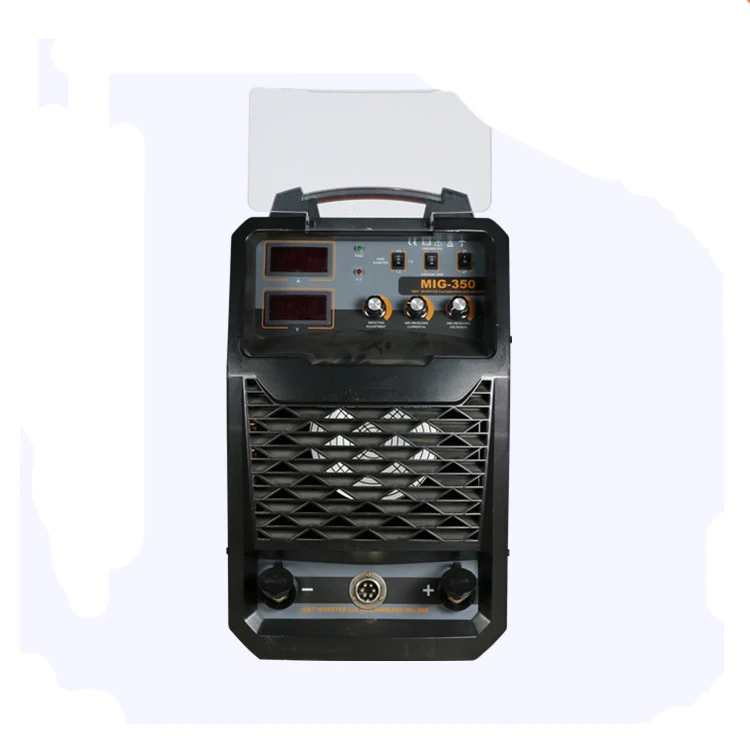

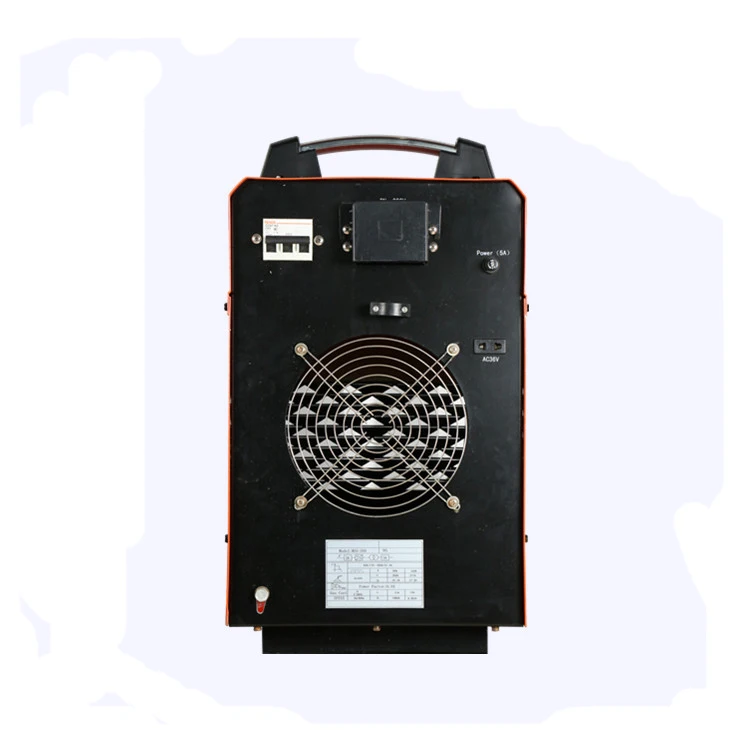

MIG 350 High efficiency igbt mig CO2 inverter mig welding machine
MIG-350 High efficiency igbt mig CO2 inverter mig welding machine
MIG-350 High efficiency igbt mig CO2 inverter mig welding machine
MIG-350 High efficiency igbt mig CO2 inverter mig welding machine
MIG-350 High efficiency igbt mig CO2 inverter mig welding machine
MIG-350 High efficiency igbt mig CO2 inverter mig welding machine

MIG 350 High efficiency igbt mig CO2 inverter mig welding machine

Share on (60570768013):


Price:$522.00 - $538.00

Quantity:


Product Overview

Description





Product Description


* Support: MIG, TIG (Lift TIG) and MMA
* Wire: 1.0-1.2mm solid cored wire and flux-cored wire
* Protection: over-heat and over current.
* Material: Stainless steel, Carbon steel and so on






Technical data


Model
MIG-350
Input voltage(V)
3PH AC380V±15%
Input power(KVA)
13.8
Input current (A)
21
Rated output
31.5V/350A
Output current(A)
60-350
No-load voltage (V)
54±5
Duty Cycle% (40℃ 10min)
350A 60%
271A 100%
Efficiency (%)
80
Protection grade
IP21
Insulation grade
F
Net weight (KG)
34
Gross weight (KG)
37
Dimension of WF package (mm)
550*425*415
Dimension of machine (mm)
690*335*575
Dimension of package (mm)
740*400*630


Welding Instructions


Material
Sheet thickness (mm)
Stick diameter (mm)
Current range(A)
Model




Carbon steel
Stainless steel
Low alloy steel
≥0.8
0.8/1.0
50-200
MIG-200
≥0.8
0.8/1.0
50-250
MIG-250
≥0.8
1.0/1.2
60-350
MIG-350
≥0.8
1.0/1.2/1.6
60-500
MIG-500

Carbon steel
Stainless steel
Low alloy steel
Aluminum
≥0.8
0.8/1.0
5-185A
MIG-200P
≥0.8
2.5/3.2/4.0/5.0
25-350
MIG-350H
≥0.8
5.0/6.0/8.0
25-500
MIG-500H

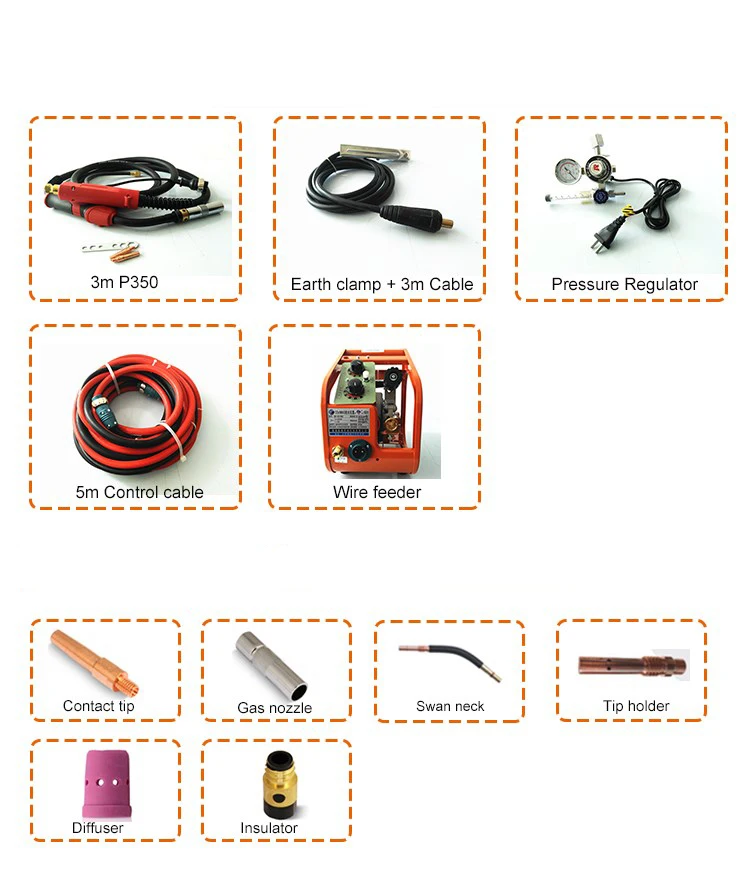

Accessories

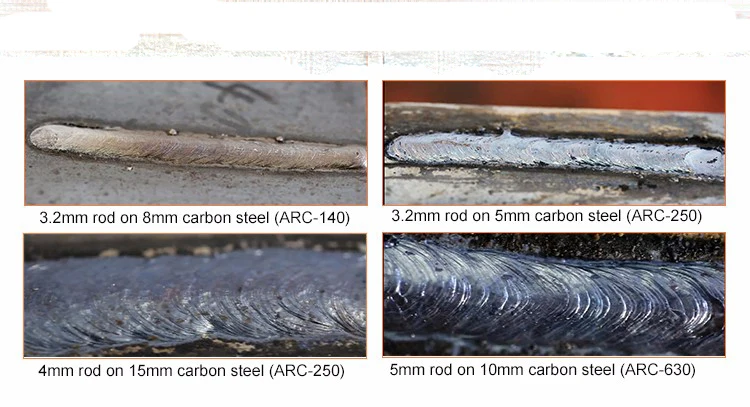

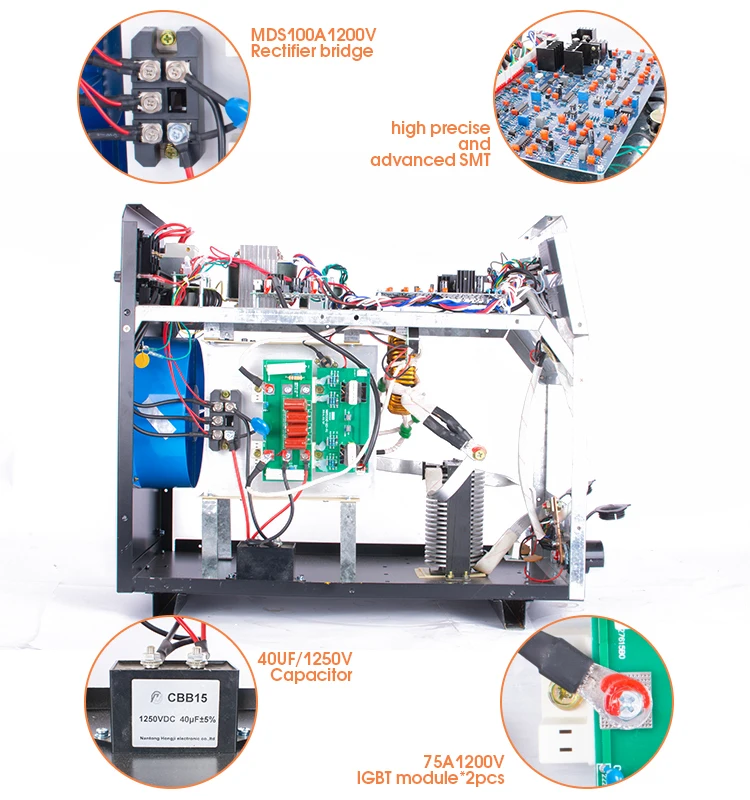

Performance
