XINGYUAN NONWOVEN FABRIC NEEDLE PUNCHING MACHINE IN TEXTILE FINISHING MACHINE
- Category: Textile Finishing Machines >>>
- Supplier: Wuxi City Xingyuan Machinery Manufacture Co. Ltd.
Share on (60570782848):
Product Overview
Description
Product Description
Equipped with 16,000 needles, this machine is suitable for producing non-woven fabric or knitted fabric of high-density, high-performance, high-tension and high quality. Including non-woven fabric like, PU leather substrate, internal car ceiling fabric, high-density filtering material, etc.
Feature
1.Equipped with touch screen interface, PLC control, speed controlled by multiple inverters simultaneously.
2.Equipped with fully German Schneider electrical configuration, including PLC, touch screen, inverter and contactor.
3.Equipped with front and rare traction rollers.
4.16,000 needles equipped, provides higher density, more efficiency and better quality.
5.The PLC controller allows 500 technical parameters storage.
6.Zero point start, automatic guiding fabric system, four error alarm diagnosis function.
7.Adjustable fabric speed and needle punching frequency.
8.Each machine can work individually, and combined machine can also work as a whole production line.
9.Auto Leaser Centering Device& Metal Detector.
Detail
TECHNICAL DATA | |
TOTAL INSTALL POWER | 19 KW |
NEEDLE FREQUENCY | 1,260n/min |
NEEDLE EQUIPPED | 16,000 |
NEEDLE DENSITY | 8,000-8,300n/min |
NEEDLE STROKE | 25-60mm |
TOUCH SCREEN CONTROL | YES |
OVERALL DIMENTION 2000mm | 3300x3000x2800 |
MACHINE WEIGHT | 8 TONS |

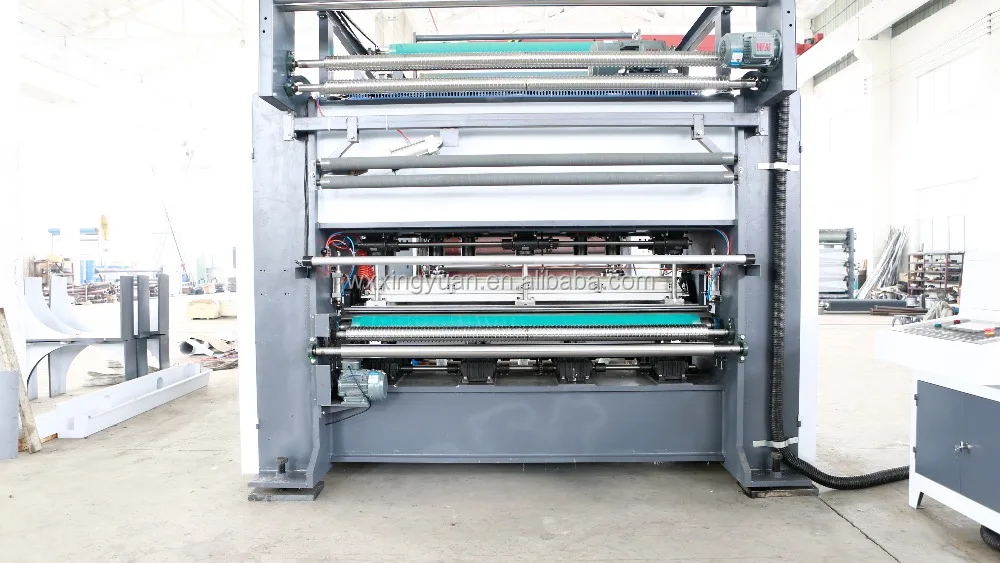

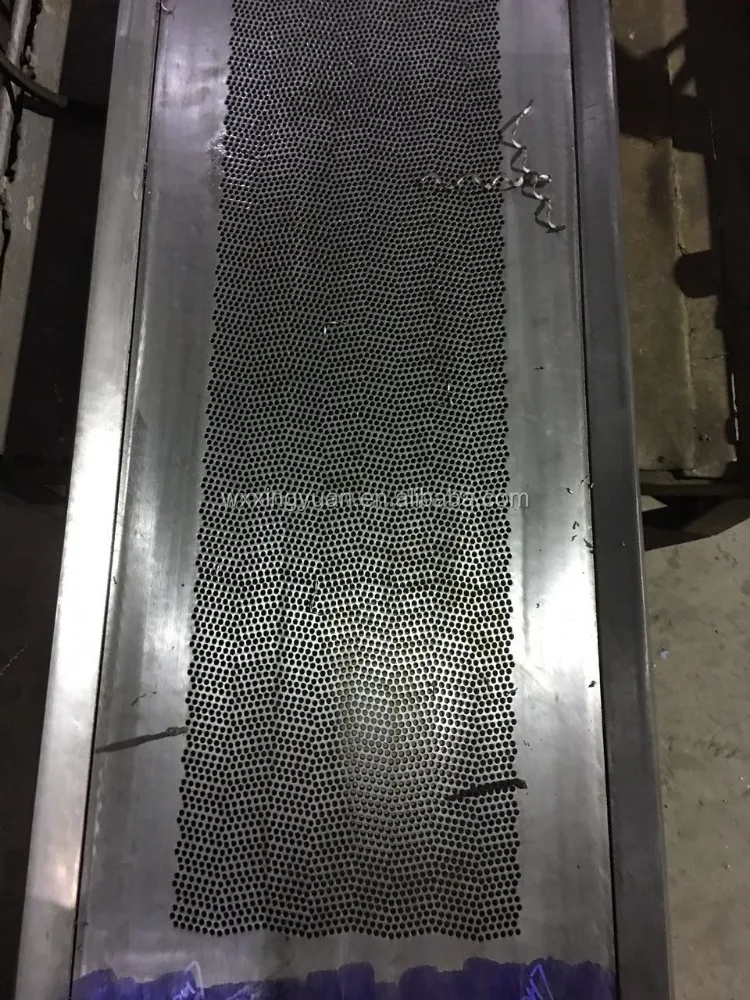

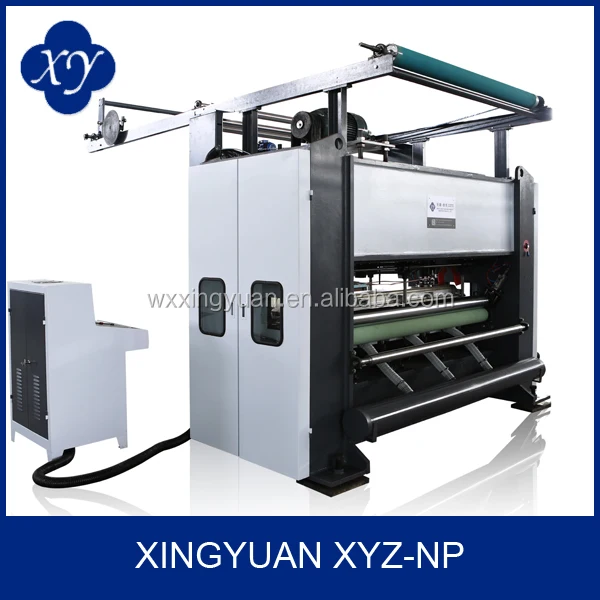

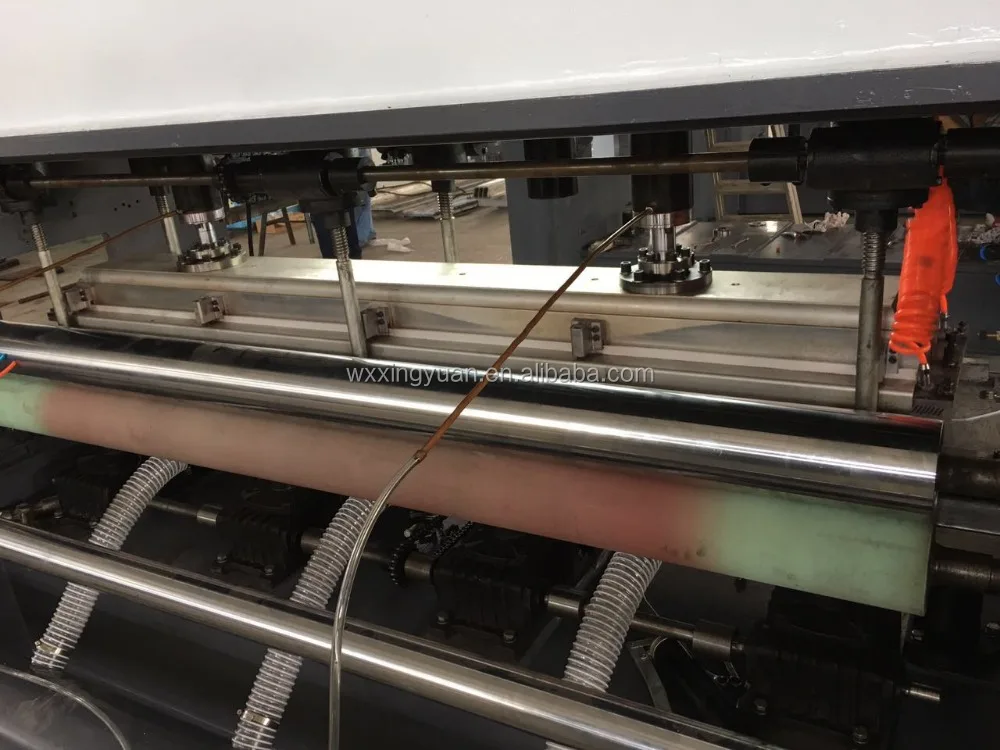

Machine Pictures
