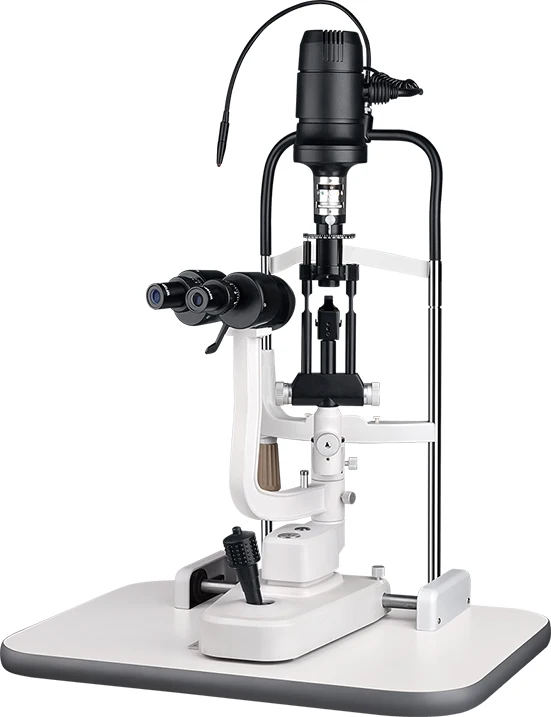

chinese BOLAN optical Slit lamp BL 66B with 2 maganifications Made in China

Property of   slit lamp

Microscope Type

Converging Stereoscope

Magnifications

2 Steps magnification

Eyepiece

10x

Magnification Ratio

(Field of View)

16×(φ14.5mm),10×(φ18),

PD adjustment

52mm ~ 80mm

Diopter adjustment

+5D ~ -5D

Base

Left and right move

110mm

Forward and back move

90mm

Up and down move

30mm

Chin rest

Up and down move

80mm

Fixation Lamp

Red LED

Property of illumination

Slit width

0 ~ 10mm  continuous(at10mm,slit becomes circle)

Slit height

1 ~ 10mm continuous

Slit angle

Light spot diameter

0~ 1800 continuous

10 ,7, 5 , 3, ,1 ,0.2mm

Filter

Heat absorption ,Grey ,Red-free ,Cobalt Blue

Illumination Bulb

12V 50W halogen lamp

Power

Input voltage

Frequency

Power consumption

220V

50H

68VA

Weight and size

G.W

N.W

18kg

16kg

Main dimension

680mm(L)× 440mm(W)× 420mm(H)
