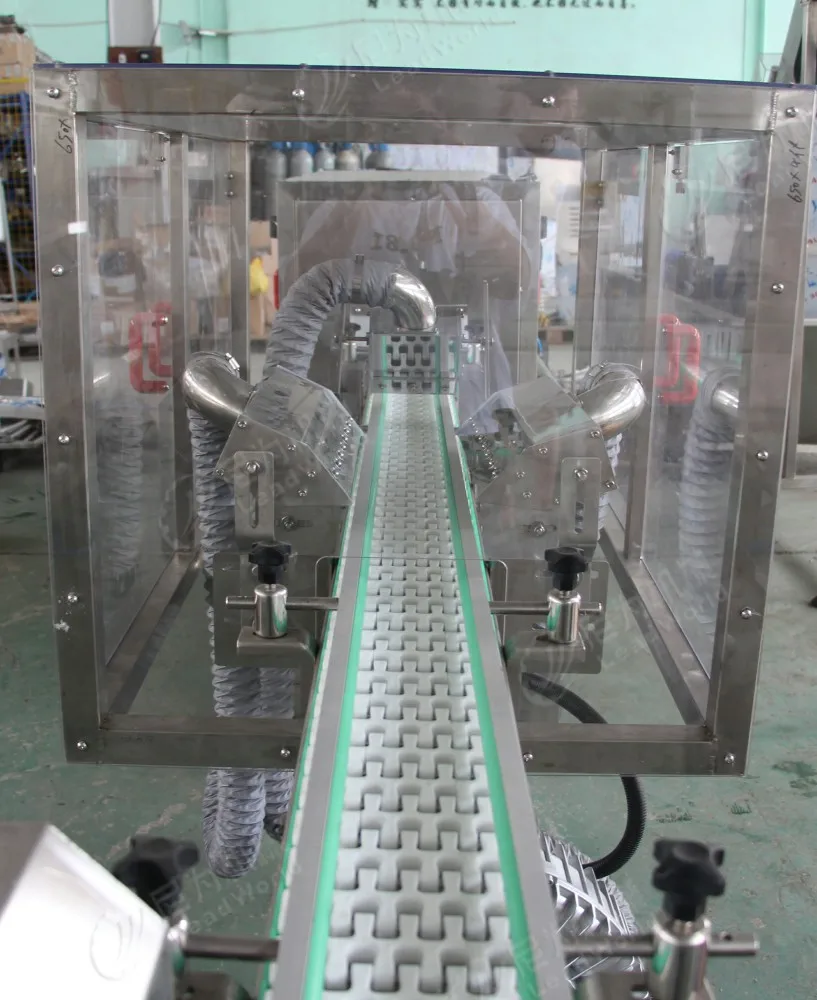

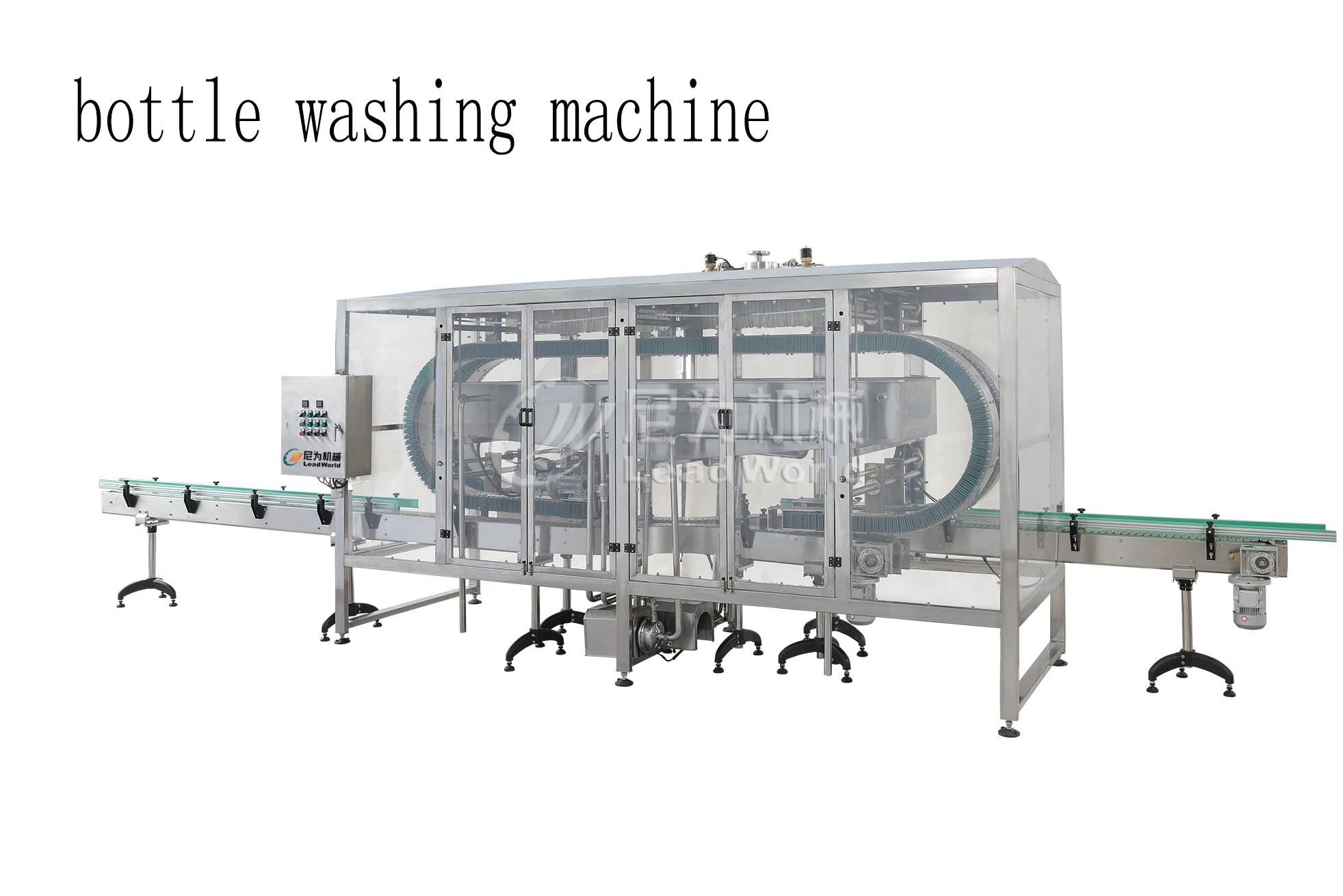

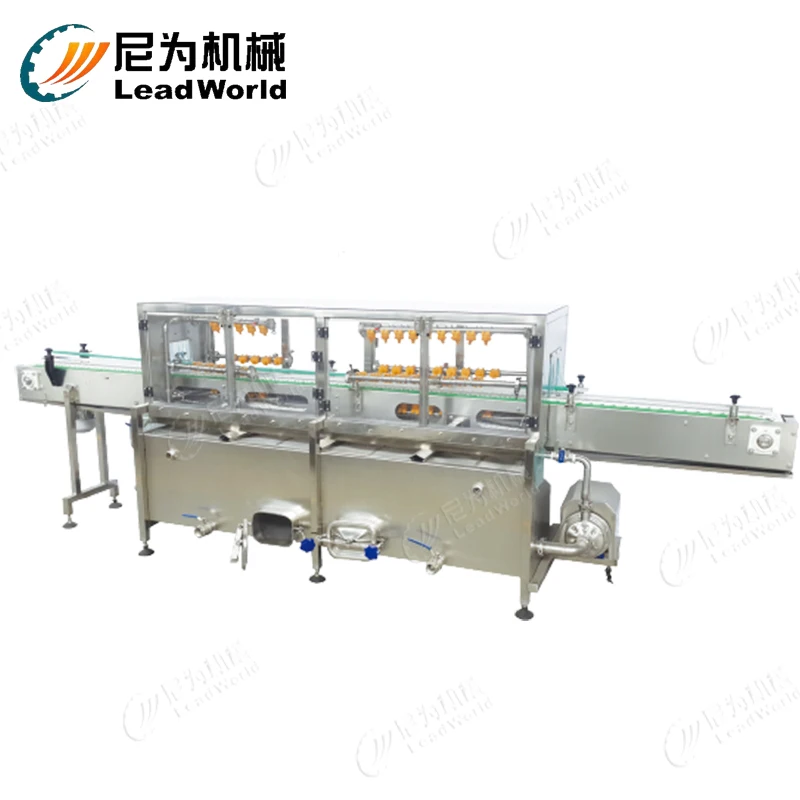

clamping bottle washing machine

Product Overview

Description

High Pressure Flushing Bottle Washing Machine includes



machine fram

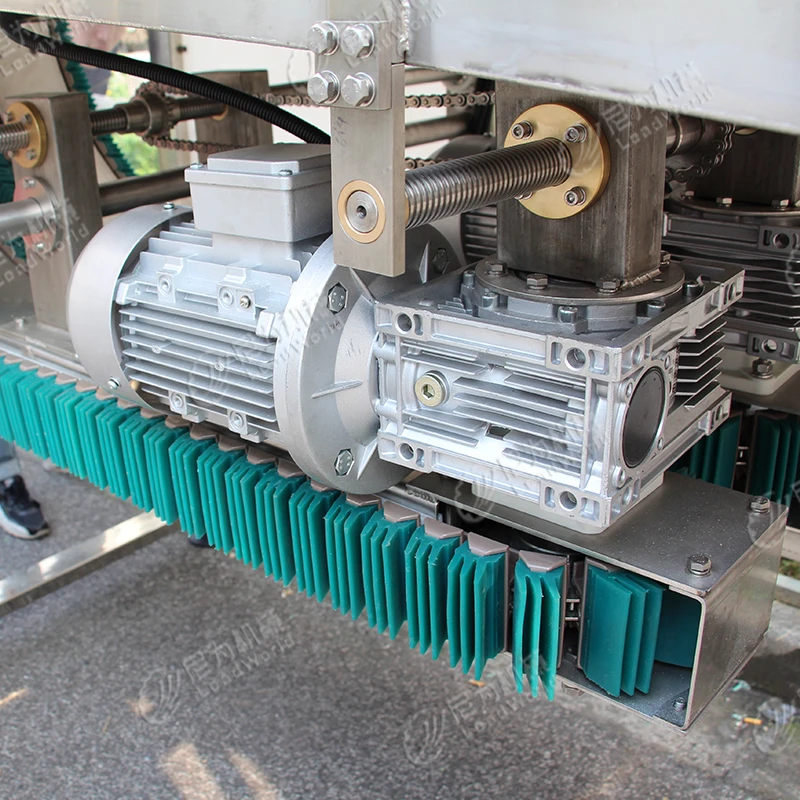

power system

regulating system

conveying chain board
high pressure shower

automatic controlling device

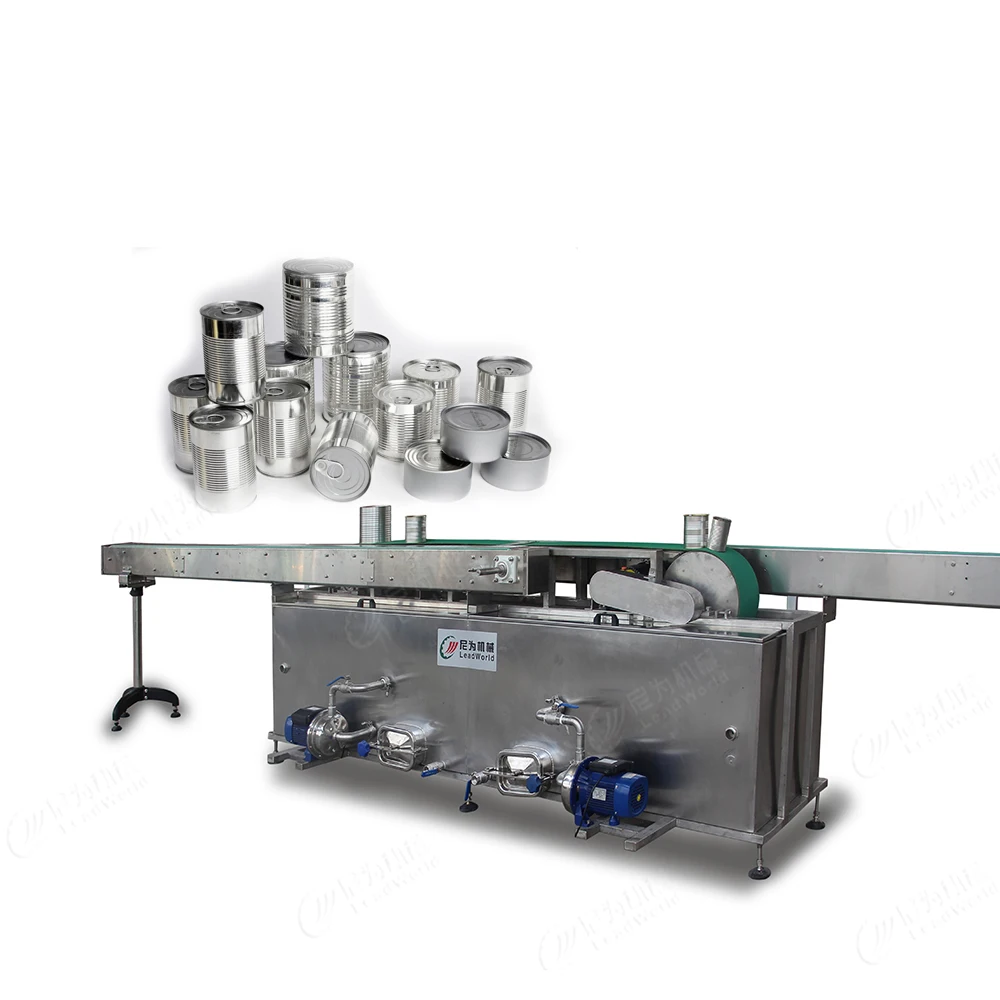

 High Pressure Flushing Bottle Washing Machine mainly applies to glass bottle and canned container washing, temperature can be adjusted by machine automatically;

 It adopts circulating hot water,warm water preheating,cold water cleaning as well as other methods. It has water and energy saving functions





Parameter



 Diameter of bottles:50-200mm

Height of bottles:50-310mm

Capacity of washing:150bottles/min

Water injection power:0.2-0.4MPa



Water temperature >75°C

Washing time:1.5 seconds

Drain time:4 seconds

Consumption of water 2-4T/H

Weights:1500Kg

Size:3800×1300×2030 mm

Power:7.4kw
