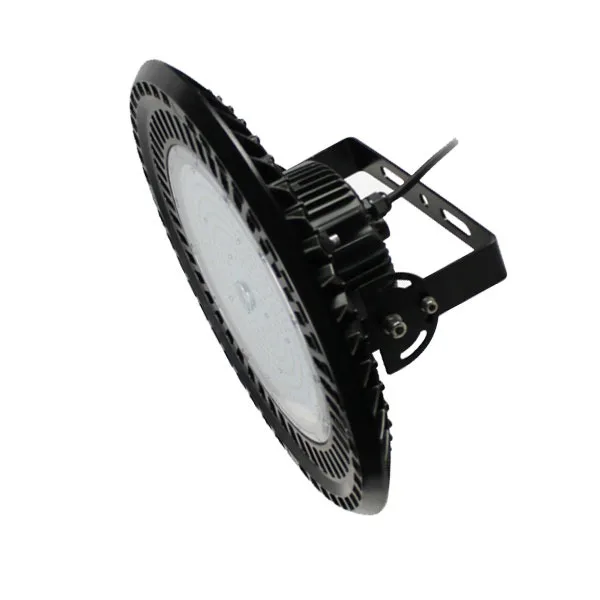

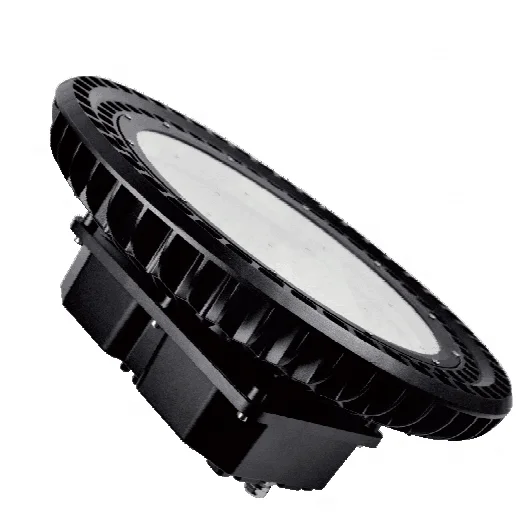

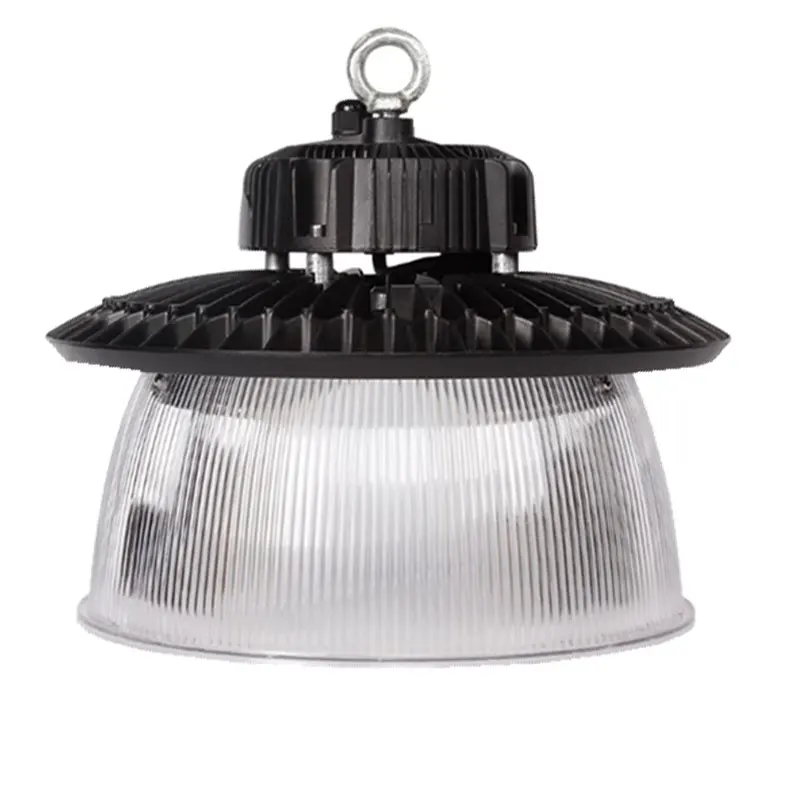

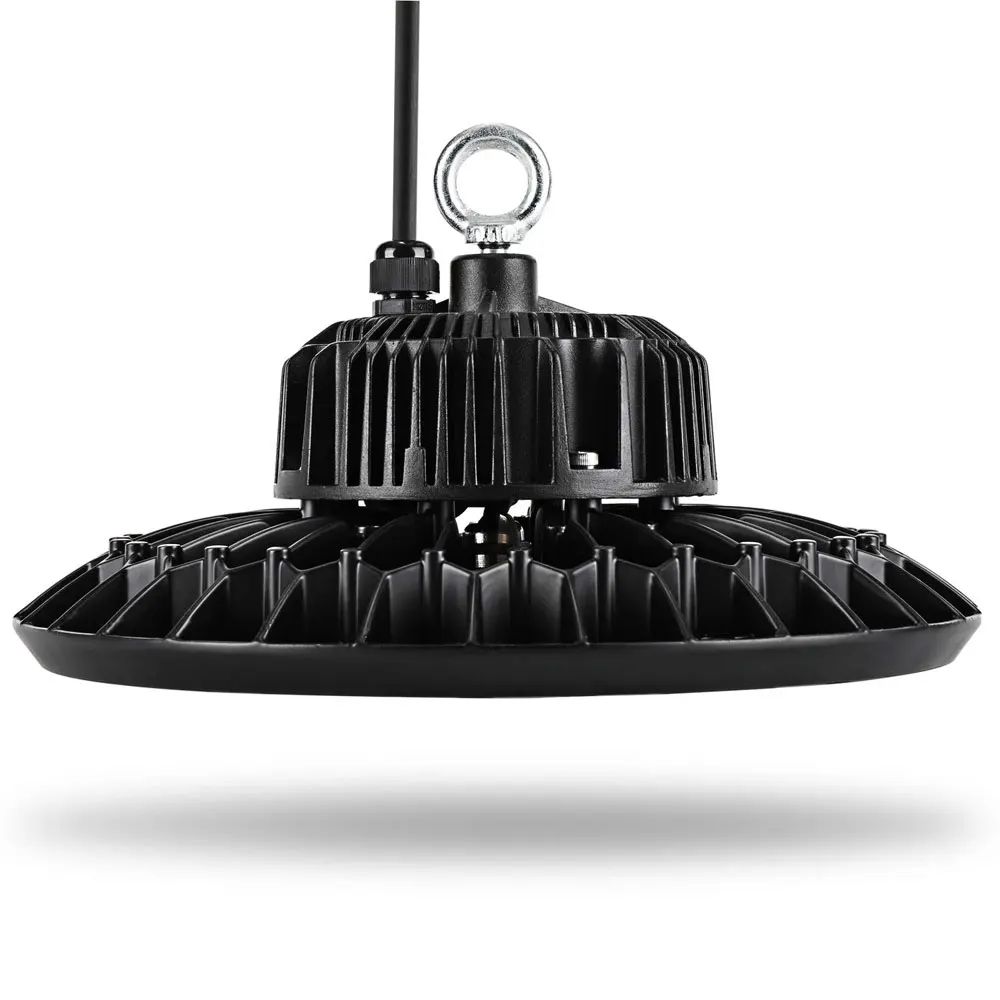

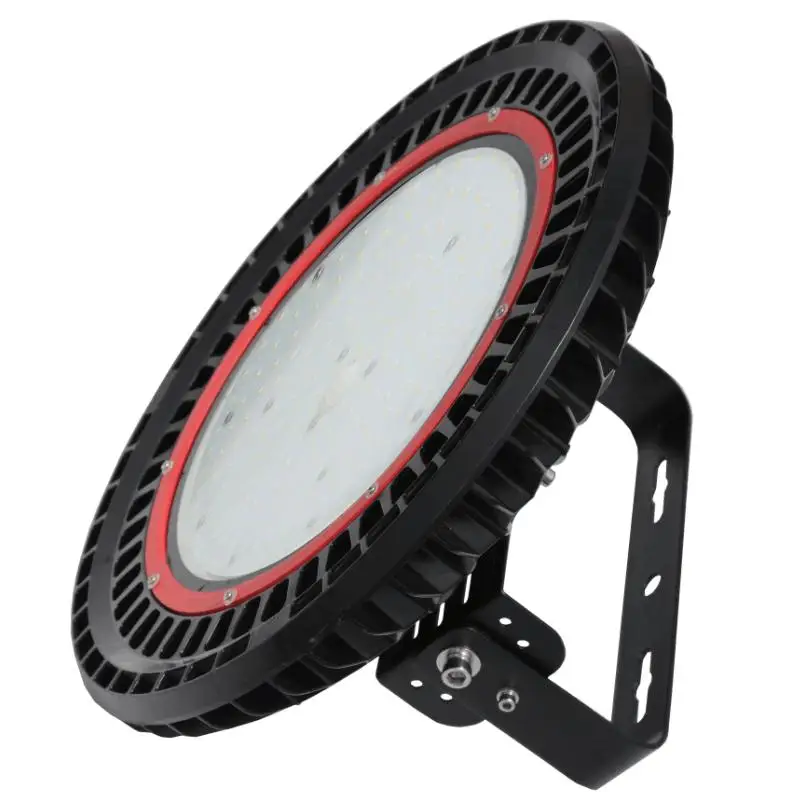

TUV Approved UFO LED High Bay 200W Daylight Sensor Led Highbay Light with MW Driver 5 Years Warranty

Product Overview

Description

TUV Approved UFO LED High Bay 200W with MW Driver 5 Years Warranty

Industrial LED High Bay Light With 5 Year Warranty (30-500W )

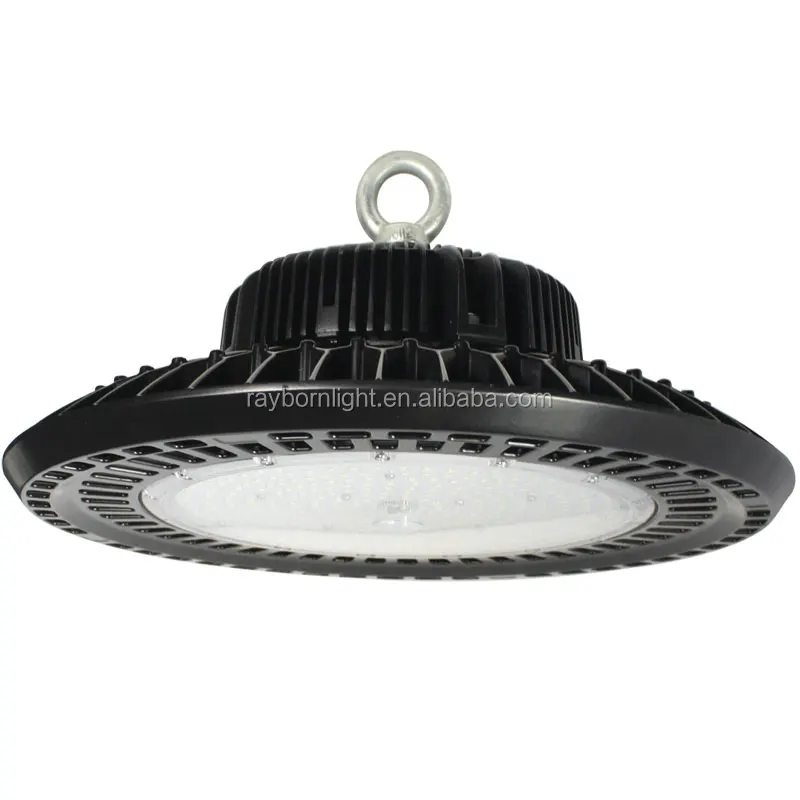

200W UFO LED HIGH BAY Light
Item No.:		RB-HB-200WU2
Input Voltage:		AC 100-277V
Freqency Range:		50Hz~60Hz
LED Chip:		Epistar Chip
Size :		Ø400*H186mm
Power Factor:		>0.98
Power Efficiency:		>92%
Luminous Efficiency:		140LM/W
LED Power		200W
LED QTY:		252pcs
LED Working Voltage:		DC 42~48V
System Consumption:		205W
LIGHT Luminous Flux	Warm White	26000LM
	Pure White	27500LM
	Cool White	28000LM
Viewing Angle:		120/90/60 degree
Center Luminance	Height 6M	338LUX
	Height 8M	190LUX
	Height 10M	122LUX
Illuminance Area	Height 6M	Dia.731CM  points visible
	Height 8M	Dia.973CM points visible
	Height 10M	Dia.1219CM points visible
Illuminance Uniformity:		>0.6
Color Temperature	Warm White	3000K~3500K
	Pure White	4000K~5500K
	Cool White	6000K~6500K
Color Rendering Index		Ra>80
Light Distribution:		LED points visible
LED Junction Temperature:		≤115℃
Working Temperature:		–40℃~50℃
IP Grade:		IP65
Working Life-span:		50000 H
Power Line:		1.0 mm three line
Connect Wire	Brown	L
	Blue	N
	Yellow / Green	G
Certificate		CE/SAA/ROHS
IP Rate:		IP65
Net Weight:		5.5KG
Packaging:		47*47*21cm
Get price :		Contact us get price



UFO LED High bay light Features:
1. UFO design LED High Bay light ,60W/100W/150W/200W all are avaliable ;
2. Samsung ,Lumileds ,OSRAM ,Epistar led chip all are available ;
3. The luminous efficacy of whole lamp can reach 135-160LM/W with high brightness ;
4. LED High bay light are adopted Metal plate pure aluminum heat sink and heat conduction by copper cylinder ;
5. Difference beam angle 60/90/120 degree distribution design as optional ;
6. Reflective rate >90%, CRI is more high,and Lighting is more comfortable ;
7. 304 Stainless steel,high quality, easy install,good rust prevention and durable ;
8. The welding spot high temperature of LED Chip is 70ºC, the high temperature of heat sink is 55 ºC,with excellent heat dissipation capacity and low Light decay ,greatly improves the life of lamps ;
9. Installation ways :rings with chains or other installation accessories ;
10. Waterproof IP65 design ,widely use for indoor and outdoor ,suitable for warehouse ,industrial ,cold storage ,steel workshop etc .

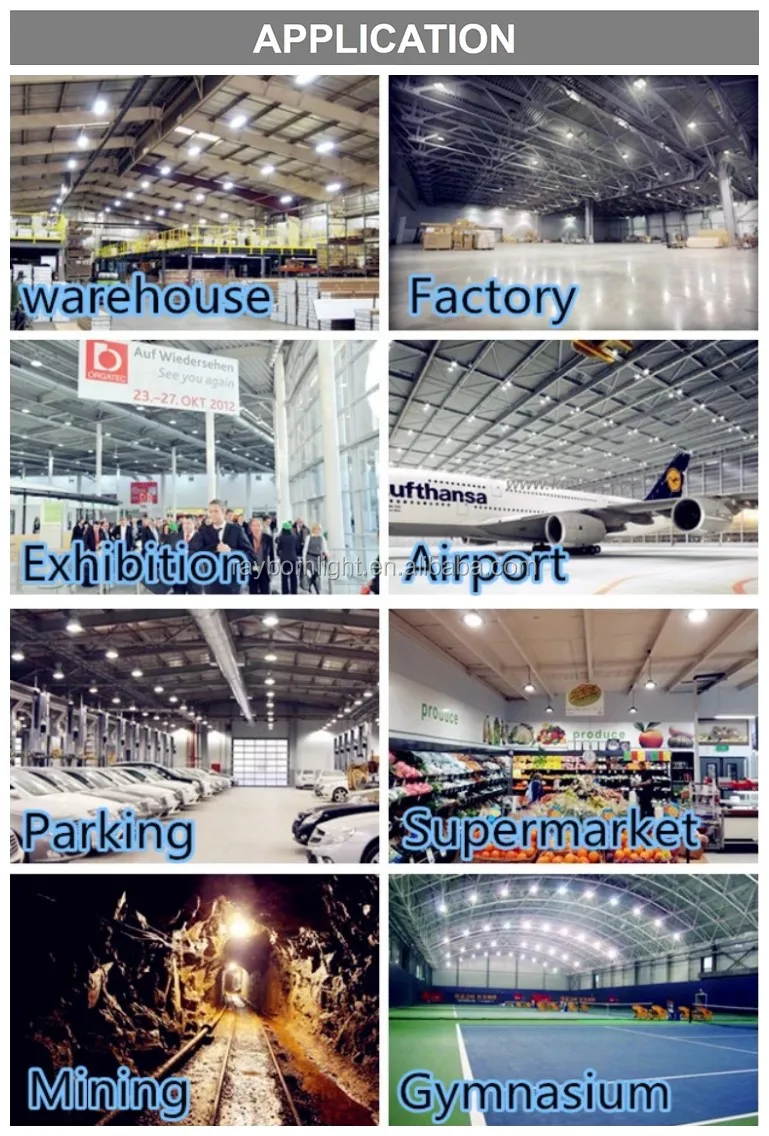

1. Workshop and factory lighting.
2. Shopping mall lighting.
3. Museum, stadium and gymnasium lighting.
4. Highway toll station and gas station lighting.
5. Warehouse and smeltery lighting.

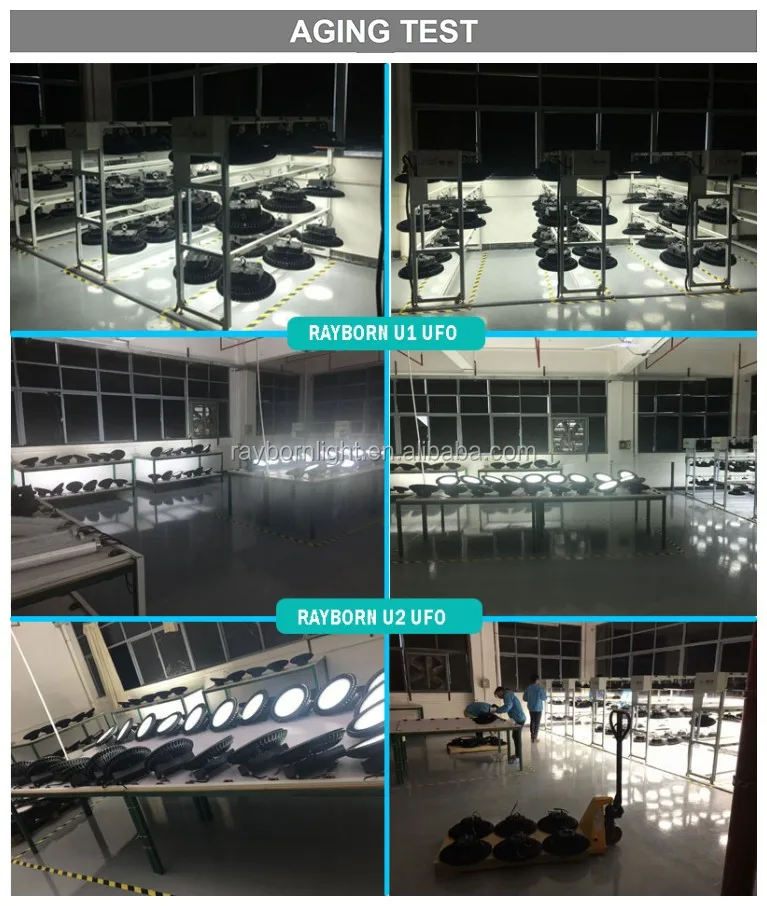

All LED lights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , highVoltage test , waterproof test , ground connection test and so on, defective rate is controlled  less than 0.1%. Quality is ensured, you can be assured.



Shipment & Packing of LED High Bay light  :

  Our individual package maximize protecting the LED lights from transfer damage in transit.
1. Label on backside of each LED lights and your required label is available.
2. One piece led Light per carton.
3. This is our regular packing ,if you need,we can also custom color packing  and put your logo on it.



  We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.

     As a big led manufacturer with years of experiences,we Rayborn led lghting would very like to be your reliable lighting specialist. We ensure that:

1.Offering you the lowest price with good quality led lights.

2.Delivery the goods to you with speed and precision wherever you are.

3.Reply your inquiry and request in 8 hours during workdays.

4.Keep on researching and developing news prodcuts to satisfy your various needs.

Payment terms :
1. Payment: T/T, L/C at sight, Western Union ,Paypal available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port:Shenzhen , China
5. Discounts are offered based on order quantities

        Rayborn Lighting Industry Co.,Ltd is a professional manufacturer ,focus on Industrial LED lights and commerical LED lights research ,devolopment ,production,sales ,on service,was in High-end operation and service provider in High-power led .Under the country "saving "polics,we are striving to create environment protection ,energy saving ,long life lighting and earned a reputation of being a quality supplier of LED lighting .

1. What is the general business process?
Answer : Send Inquiry to Rayborn. → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service
2. What is the warranty?
Answer : 5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.
3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable
4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.
5. I don't know how many UFO Led High bay Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.
