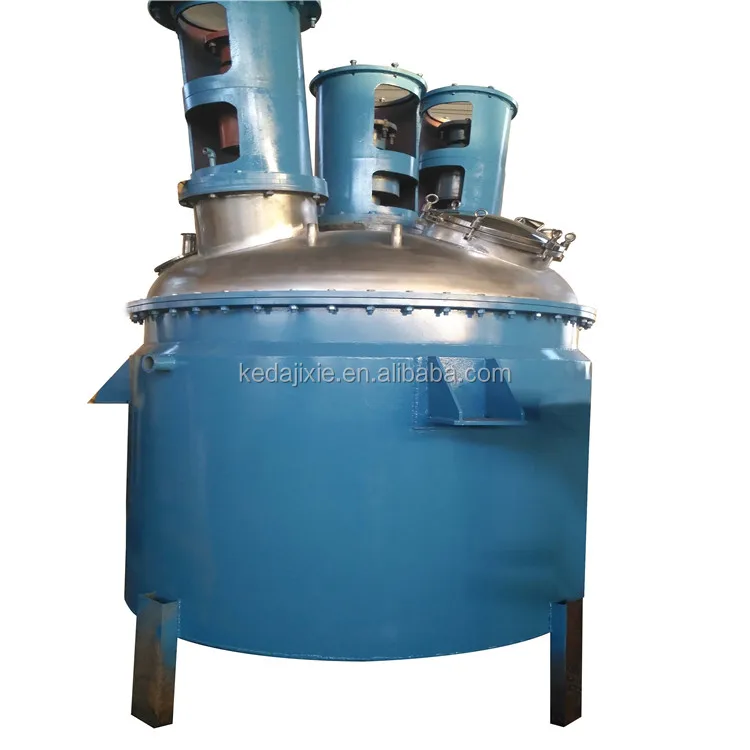

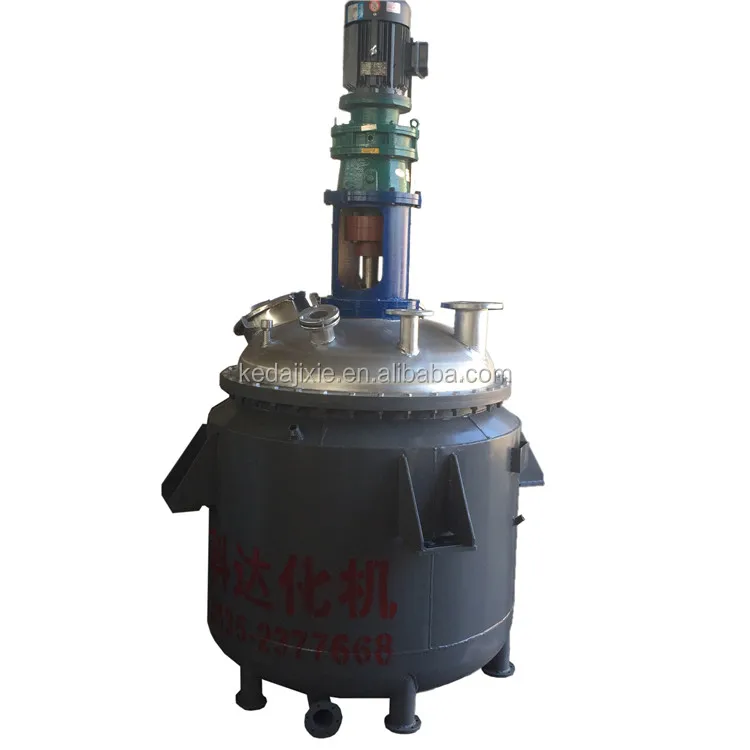

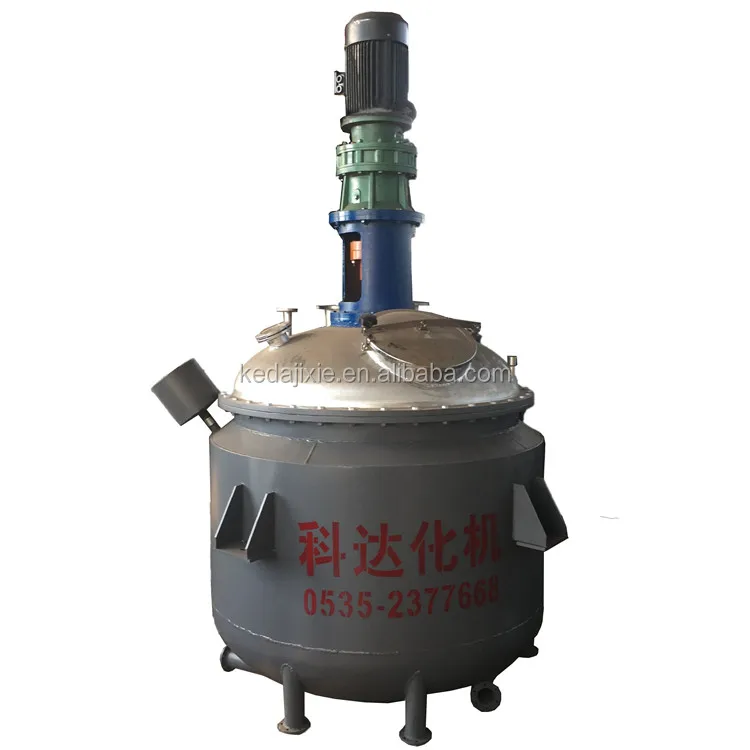

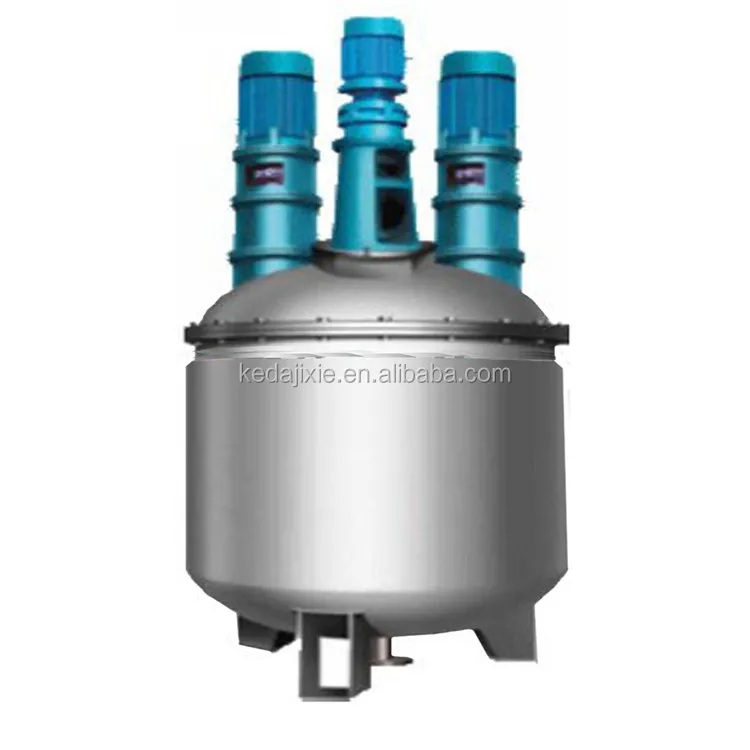

China Bach chemical reactor price with heating or cooling

Product Overview

Description

Factory sale stainless pesticides mixing reactor 3000l price

1). Resin:alkyd resin,epoxy resin,phenolic resin,acrylic resin,unsaturated polyster resin,polymer resin.....

2). Glue/ Adhesive:Hot melt glue/adhesive,white glue,silicon glue,PVC glue,PVA,PU glue....

3). Others:Paint,pigment,other latex,emulsion and liquid glue and adhesive.

Advantage and specification:

1.Material: a) kettle and cover: SUS 304 or SUS 316; b) jacket: SS304 or carton steel

2.Heating way: Electric heating, oil heating, steam heating or firing heating. optional.

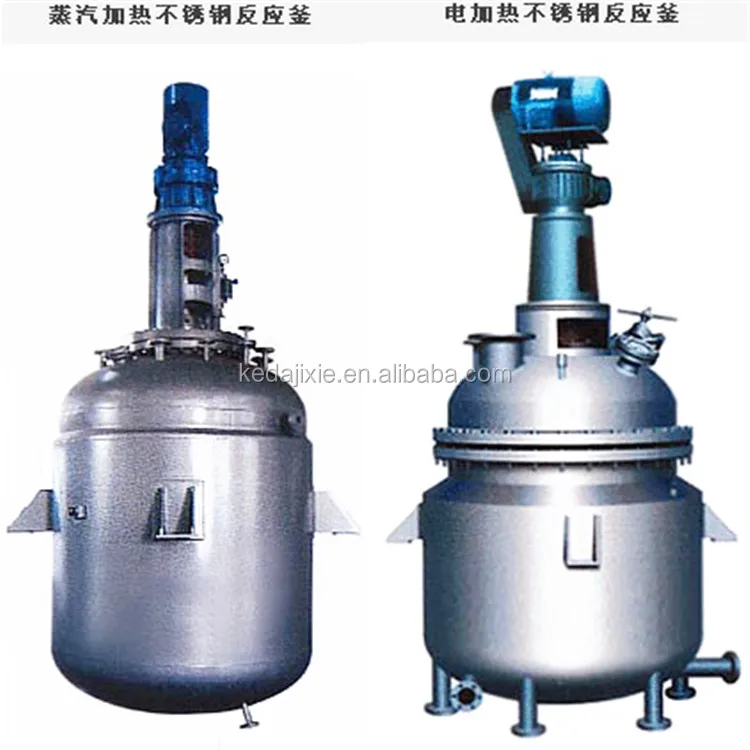

3.Structure type: Outer coil heating reactor, Inner coil heating reactor, Jacket heating reactor.

Structure and Features:

Reactor consists of the reactor body, tank cover, jacket, agitator, transmission, shaft seal device and supporting.

Technical Parameter

Capacity(L)	Actual Volume(L)	Heating Power kw*pcs	Jacket Volume(L)	Inner Dimension(MM)	Jaket Dimension(MM)	Expander Capacity( L)	Power motor(KW)	Striring Speed	Weight(kgs)
50	78	2*4	96	Φ400	Φ600	10	1.1	63 85	270
100	127	2*6	127	Φ500	Φ700	15	1.1	63 85	340
300	327	4*6	218	Φ800	Φ1000	20	2.2	63 85	700
500	509	4*9	269	Φ900	Φ1100	25	3	63 85	930
1000	1017	4*12	400	Φ1200	Φ1400	40	4	63 85	1610
2000	2154	4*15	850	Φ1400	Φ1600	80	5.5	63 85	2010
3000	3201	5*15	1015	Φ1600	Φ1750	100	7.5	63 85	2590
4000	4020	5*15	1226	Φ1600	Φ1750	120	7.5	63 85	3160
5000	5170	5*18	1400	Φ1800	Φ2000	140	7.5	63 85	4000
