AUO G151EVN01.0 15.1 inch IPS stretched bar lcd with resolution 1280*248

Name: AUO G151EVN01.0 15.1 inch IPS stretched bar lcd with resolution 1280*248
SKU: 60571540740
Availability: InStock

Price:

Quantity:

product features

AUO G151EVN01.0 15.1 inch IPS stretched bar lcd with resolution 1280*248

Module number	G151EVN01 V0
Type	a-Si TFT LCD
Display size	15.1 inch
Resolution	1280X248
Width:Height	> 5:2
Pixel Pitch	0.294×0.294(mm)
Active Area	380.32×75.90(mm)
View angle	R/L/U/D 89/89/89/89 (Deg)
Mode	MVA, normally Black, transmissive
LCD Surface	Anti-glossy, Hard coating(3H)
Number of Colors	16.7M(8 bit)
Electrical Interface	LVDS(2ch, 8 bit)
Brightness	300 cd/m2
Contrast ratio	2000:1
Panel Weight	700g(Typ.)
Outline dimension	396x100.8x17.3mm(Typ.)
Backlight	WLED
Power Consumption	10.85W
Supply Voltage (V)	5.0V(Typ.)
Response time	15/5(ms)
Backlight lifetime	50K hrs(Min.)
Operate temperature	0~50 (°C)
Storage temperature	-20~60 (°C)
Product features	-- Bar lcd;
	-- WLED backlight & Led Driver integrated;
	-- Full view angle;
	-- Long Backlight life more than 50k hrs(Min.);
	-- Anti-glossy surface.
Application	Special for industrial grade use.

We also can provide total set such as lcd panel + touch +ad board +osd board + cables, quality promised.

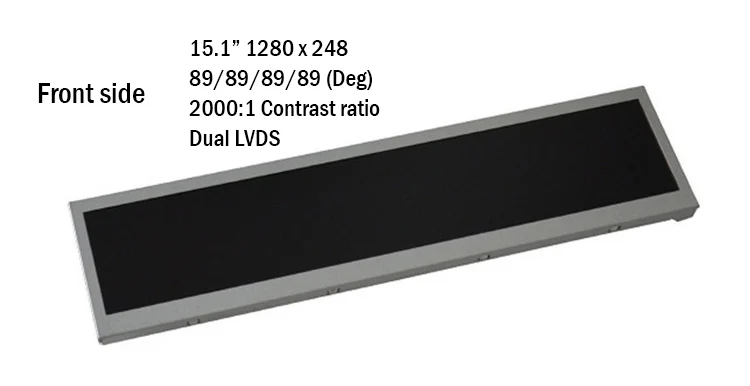

G151EVN01-F

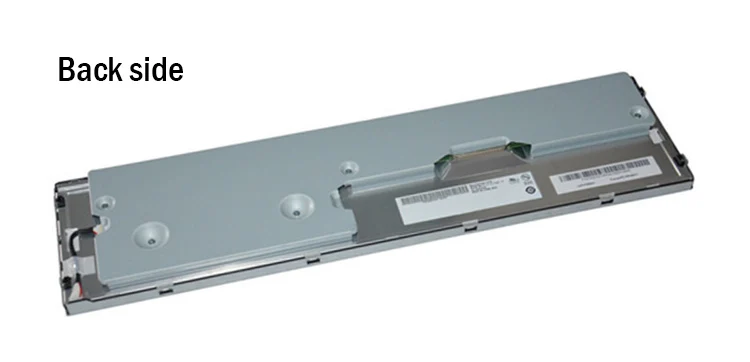

G151EVN01.0-B

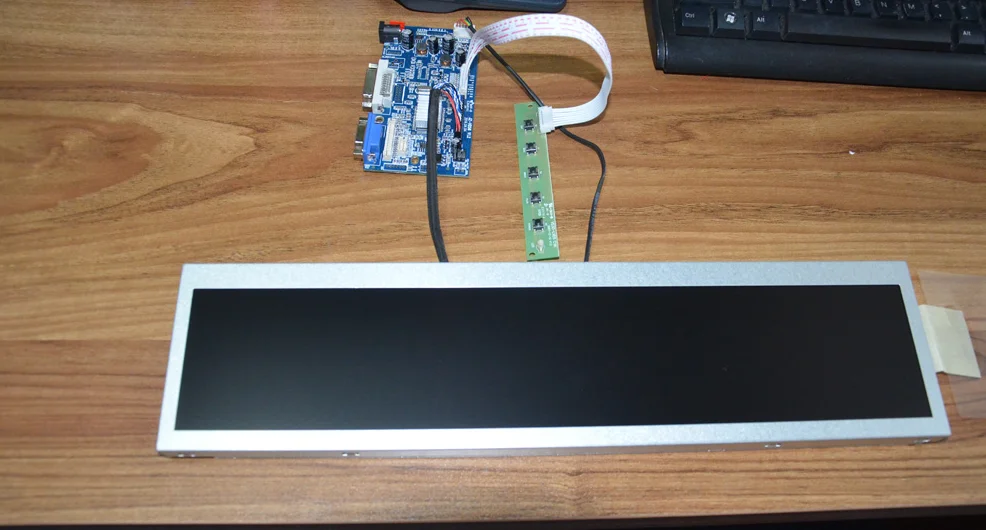

Matched ad board available

stretched bar lcd
