Water cannon vineyard pesticide sprayer mist nozzle fog machine for pest control

Product Overview

Description

!!! Safety First !!! Beware of Copy !!!



Water cannon vineyard pesticide sprayer mist nozzle fog machine for pest control





Features of Product:

1.  Novel design, well-knit structure ,remote/electronic control, safe & convenient operation, applicable to various truck mounted, simple assembly & disassembly.


2. High pressure,wide coverage area,uniform fog droplet. The gas-liquid mixture can turn the leaves of plants effectively, so that the pesticide can be sprayed to both sides of the leaves evenly. Wide range, micro fog droplets are ultra-fine, and it can achieve precise volume spraying.


3. For the strong penetration and liquid adhesion, it can effectively save the pesticide and reduce the pollution.


4. High efficiency, wide application, spraying fast.



Scope of Application:



Forest protection, urban gardening, pest control of wind erosion forest, orchard, flowers & trees along the road, grassland, pasture and etc.;



Mist spray for dust removal and cooling at the ore yard, docks, steelworks and etc., disinfection at public sites and refuse dumps.



It can be carried by variety kinds of vehicles, e.g.: light truck, agricultural tractor.



Main configuration



Main material: Steel(Stainless steel, other material according to order requirement)



Fog cannon



Engine: Gasoline engine

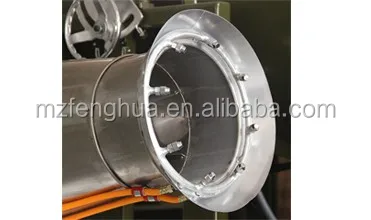

Fan: axial fan with special nozzles



Pump Type: Three cylinder plunger pump



Motor



Electric control box

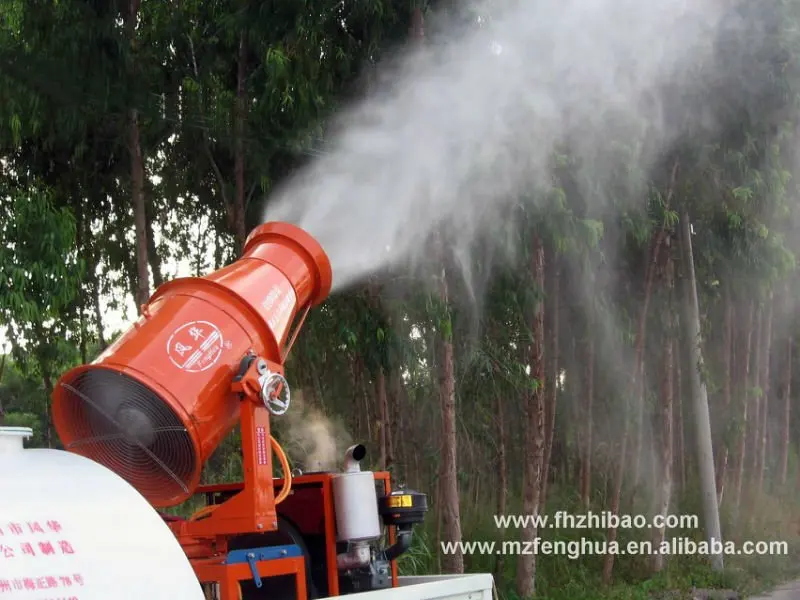

Start System: Remote control



Control Device: pitching angle adjustment



400 liters water tank(adjustable)



Main technical parameters



Fog droplet size: 50~150um



Pump pressure: 1.5~3.0MPa



Motor RPM: 2900



Spraying volume: 9-18L/min



Horizontal throw distance: ≥35m



Rising throw height: ≥20m



Mechanic system for rotation(Horizontal) : 3600



Pitching angle: -10~45



Overall Dimension: L1300*W1420*H1720mm



Noisy: <90db



Warranty: one year

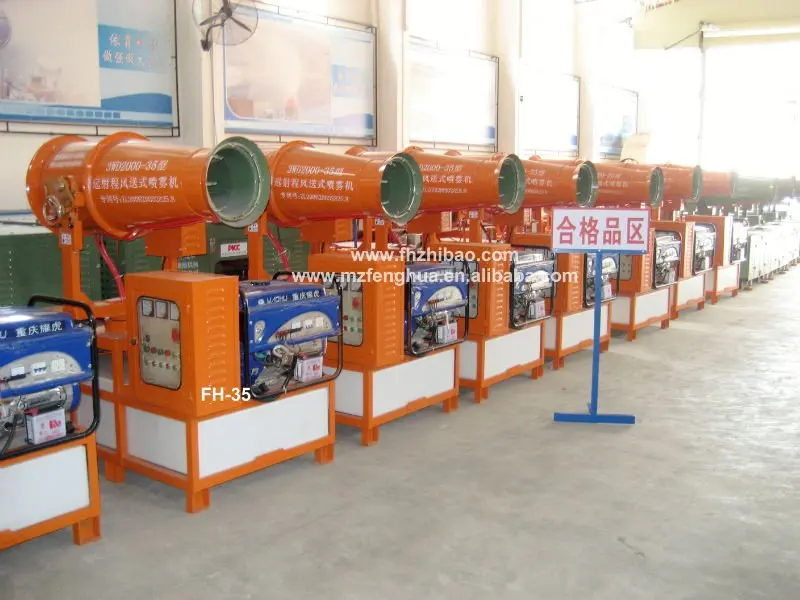

DS-35  Automatic Control Sprayer with  400L  PVC water tank, gasoline generator and electric control system
