Каталог Camozzi: цилиндры, клапаны, электромагнитные клапаны, фитинги, поршневой цилиндр воздушного компрессора
- Category: Pneumatic Cylinders >>>
- Supplier: Guangzhou Vilop Pneumatic Co. Ltd.
Share on (60571679346):
Product Overview
Description
Products Description
Why US
1: Various style for completely series pneumatic products for you to choose
2: High quality with competitive price
3: Sample order & small quantity order is ok
4: Provide free products information.
5. Reliable quality assured and active after-sell service 13 months for warranty.
1: Various style for completely series pneumatic products for you to choose
2: High quality with competitive price
3: Sample order & small quantity order is ok
4: Provide free products information.
5. Reliable quality assured and active after-sell service 13 months for warranty.
Brand Name | Vilop |
Model | SC/SU Series |
Structure | Piston Cylinder |
MOQ | 20 PC |
Product Feature
1.Free lubrication
Adapt the bearing with oil, lubrication is not required for the piston rod.
2.Cushion
Not only the fixed cushiion, the adjustable cushion is also optional in the end of the cylinder, so that it will be calm when changing the directions.
3.Heat resistance performance
With anti-heat material, the working temperature of the cylinder could be up to 150℃
4.Multi Installation Method
Mluti installation accessories are available
5.With magnet
A magnet is installed on the piston, by switching the button to check the operation position of the cylinder
1.Free lubrication
Adapt the bearing with oil, lubrication is not required for the piston rod.
2.Cushion
Not only the fixed cushiion, the adjustable cushion is also optional in the end of the cylinder, so that it will be calm when changing the directions.
3.Heat resistance performance
With anti-heat material, the working temperature of the cylinder could be up to 150℃
4.Multi Installation Method
Mluti installation accessories are available
5.With magnet
A magnet is installed on the piston, by switching the button to check the operation position of the cylinder
This type of cylinder took the square aluminum alloy tube as the main feature, also called National standard square pneumatic
cylinder,which is the derivative products of the EC series of the European standard light cylinder.
cylinder,which is the derivative products of the EC series of the European standard light cylinder.
SC Specification
Bore(mm) | 32 | 40 | 50 | 63 | 80 | 100 | |||||
Action type | Double Acting | ||||||||||
Working Medium | Air(To be filtered by 40um filter element) | ||||||||||
Mounting type | SC | Basic FA FB CA CB LB TC TCM1 | |||||||||
SCD,SCJ | Basic FA LB TC TCM1 | ||||||||||
Operating pressure | 0.1~1.0MPa(15~145psi)(1.0~10.0bar) | ||||||||||
Proof pressure | 1.5Mpa(215Psi)(15bar) | ||||||||||
Temperature Range | -20~80 | ||||||||||
Speed Range mm/s | 30~800 | ||||||||||
Stroke tolerance | 0~250(+1.0~0);251~1000(+1.4~0); 1001~1500(+1.8~0) | ||||||||||
Cushion type | Variable cushion | ||||||||||
Adjustable cushion stroke mm | 21、28、29 | ||||||||||
Port size(1) | 1/8" | 1/4" | 3/8" | 1/2" | |||||||

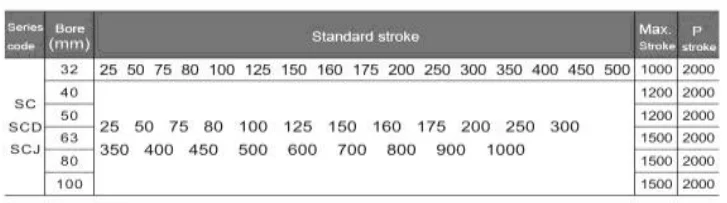

Stroke

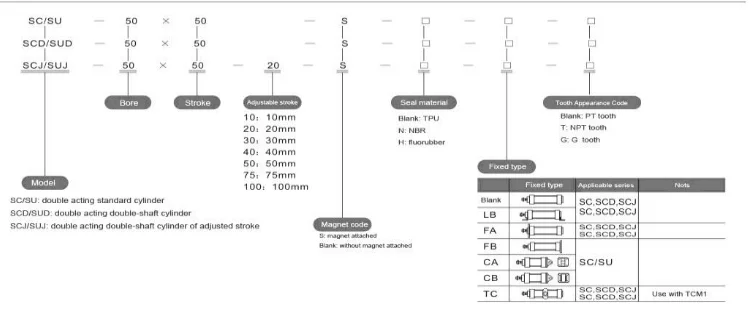

Ordering code
