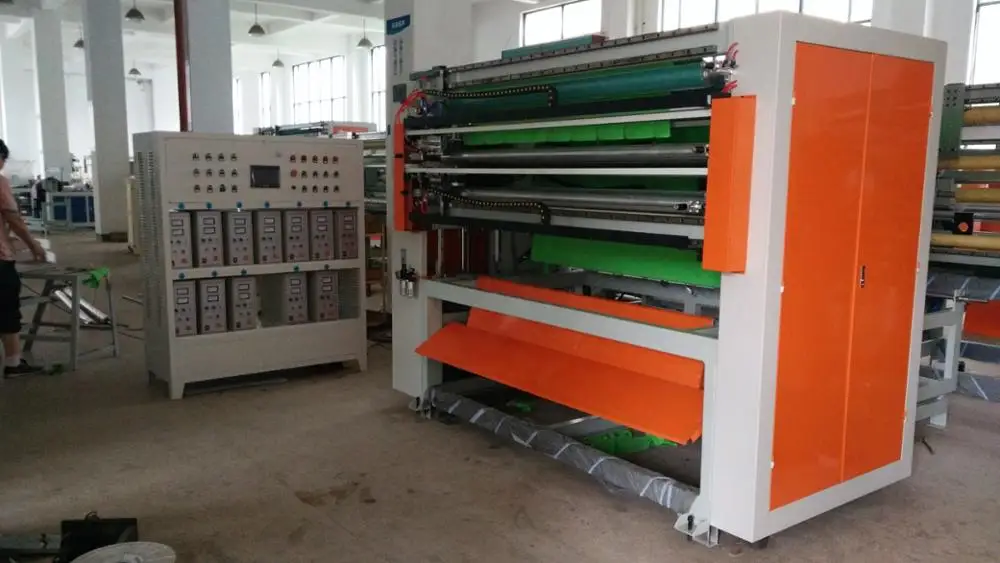

ultrasonic non woven fabric cutting machine
- Category: >>>
- Supplier: Changzhou Shuangchao Ultrasonic Technology Co. Ltd.
Share on (60571765447):
Product Overview
Description
Product Description

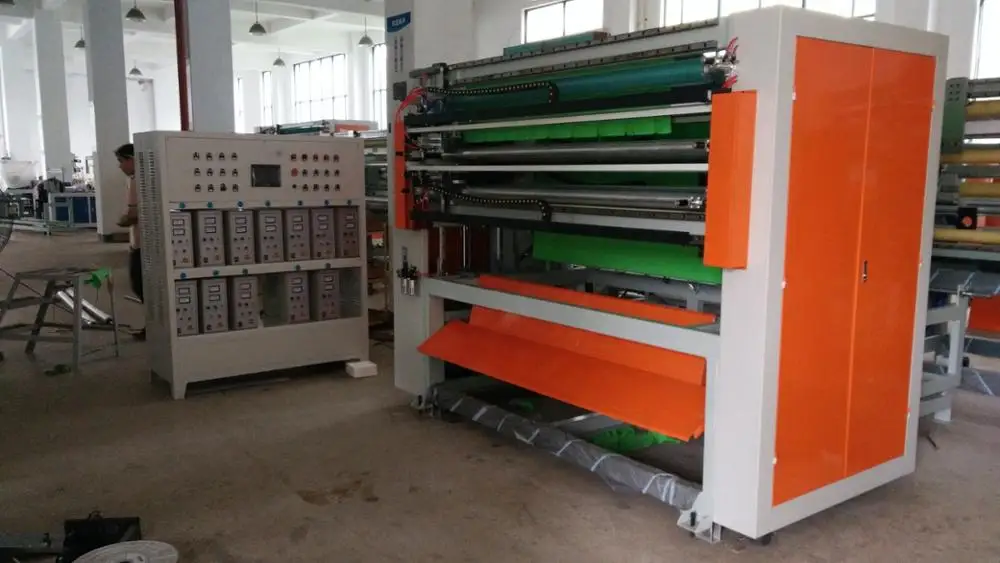

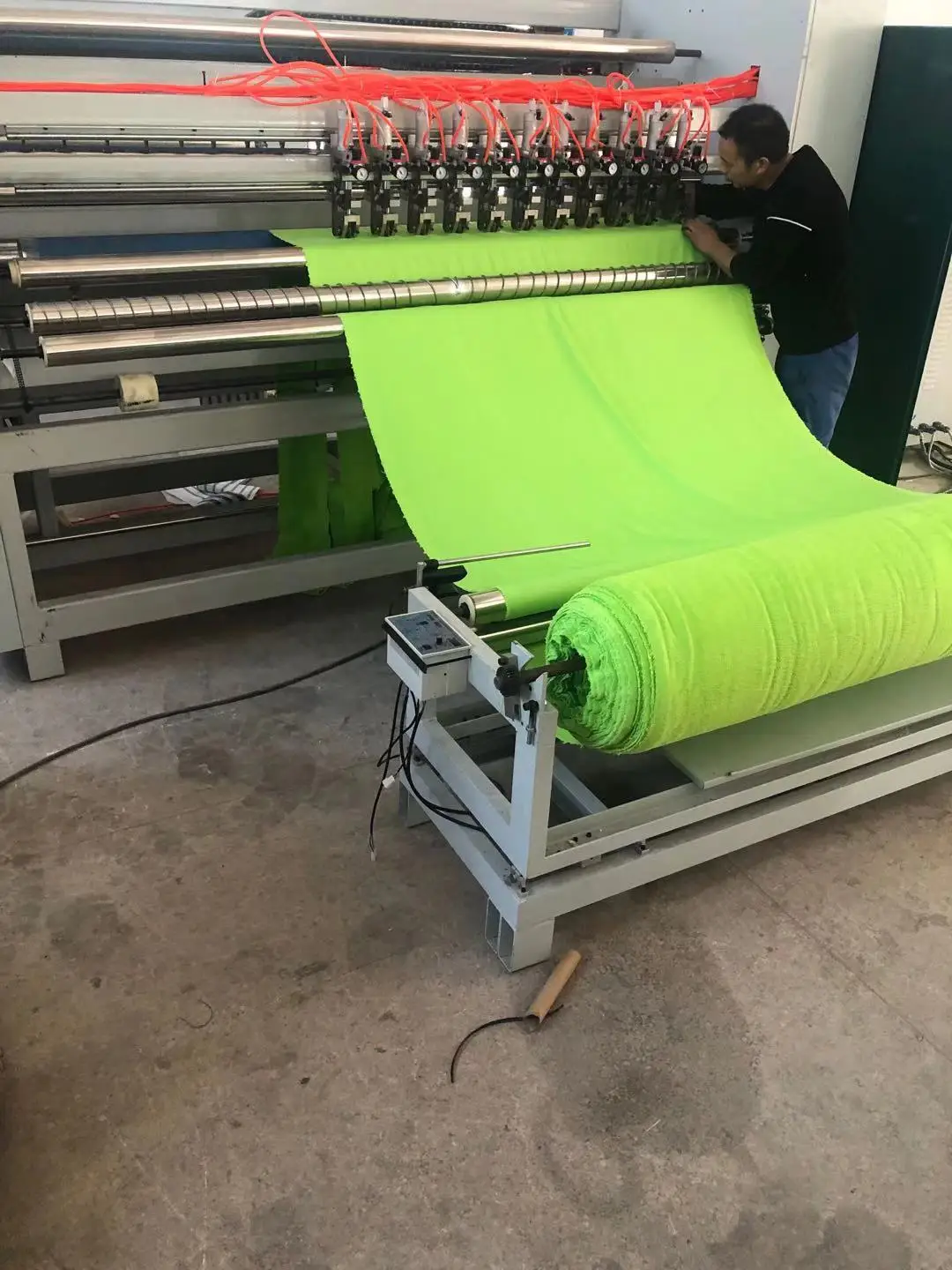

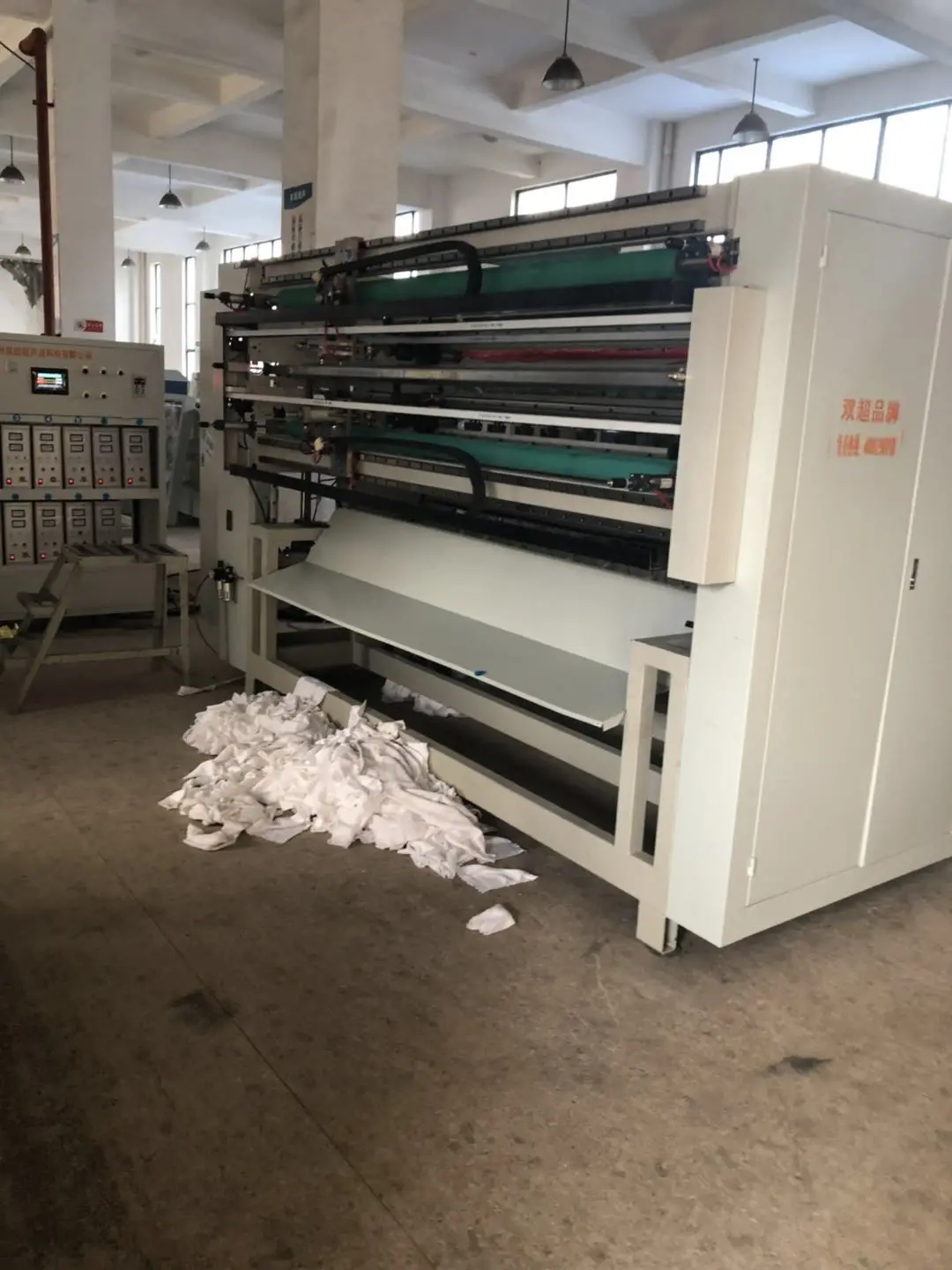

This machine is an automatic equipment that combines cutting and cross-cutting. It uses ultrasonic cutting to make the product form at one time. High technical content, greatly reduced labor and high efficiency. This machine adopts microcomputer operating system with touch screen display and PLC program control system servo drive system. With automatic fixed length, automatic counting, automatic alarm, automatic cross-cut embossing, automatic discharge correction system.
Voltage | 220V |
Speed | 0-15m/min |
Power | 8000W |
Frequency | 20kzh |
Size | 3400*1300*2000mm |
Weight | 2000kg |
Applicable industry
适用行业

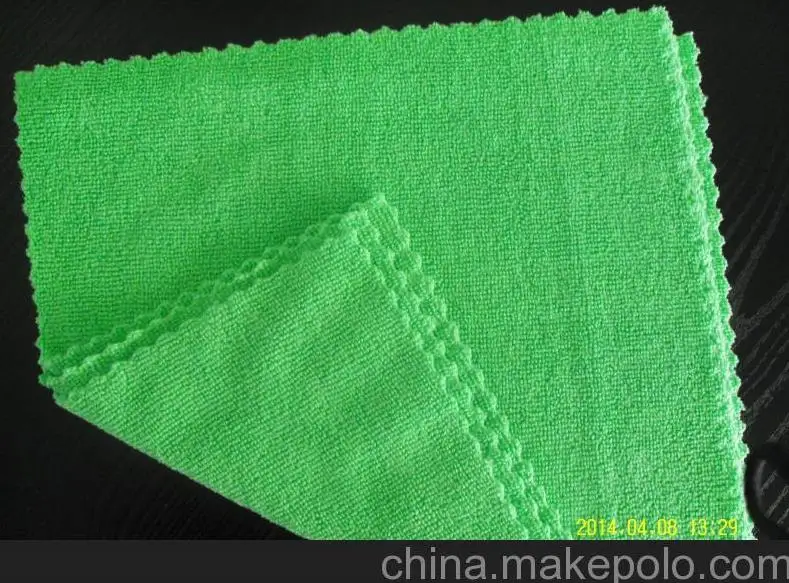

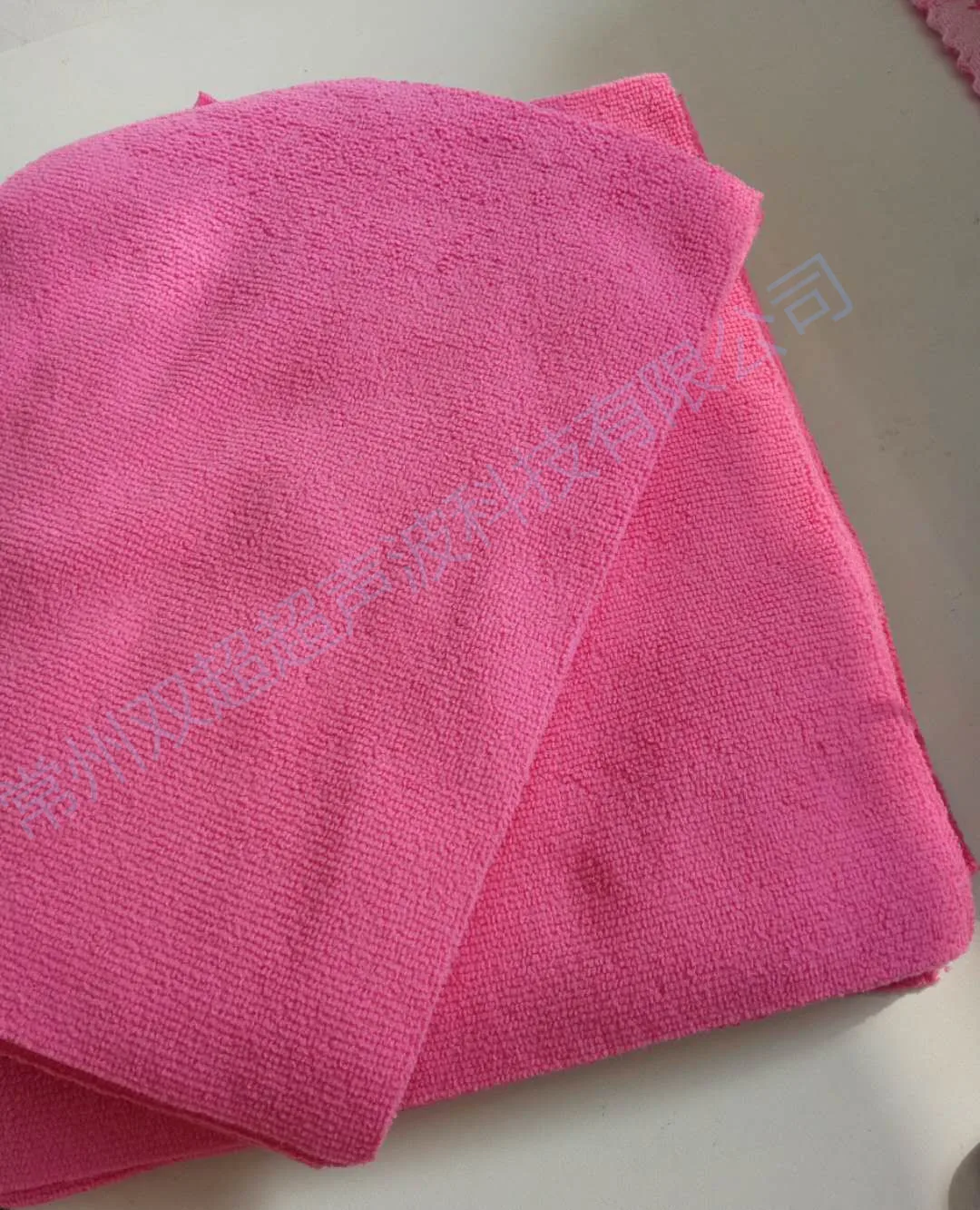

The terry cloth slitting and cross-cutting machine is a new type of slitting machine for slitting and cross-cutting synthetic microfiber fabrics by using ultrasonic principle technology. Mainly used in textile, home textile, clothing and other industries.
suitable fabric: latitude, oxford, microfiber, clean cloth and so on.
working principle
工作原理

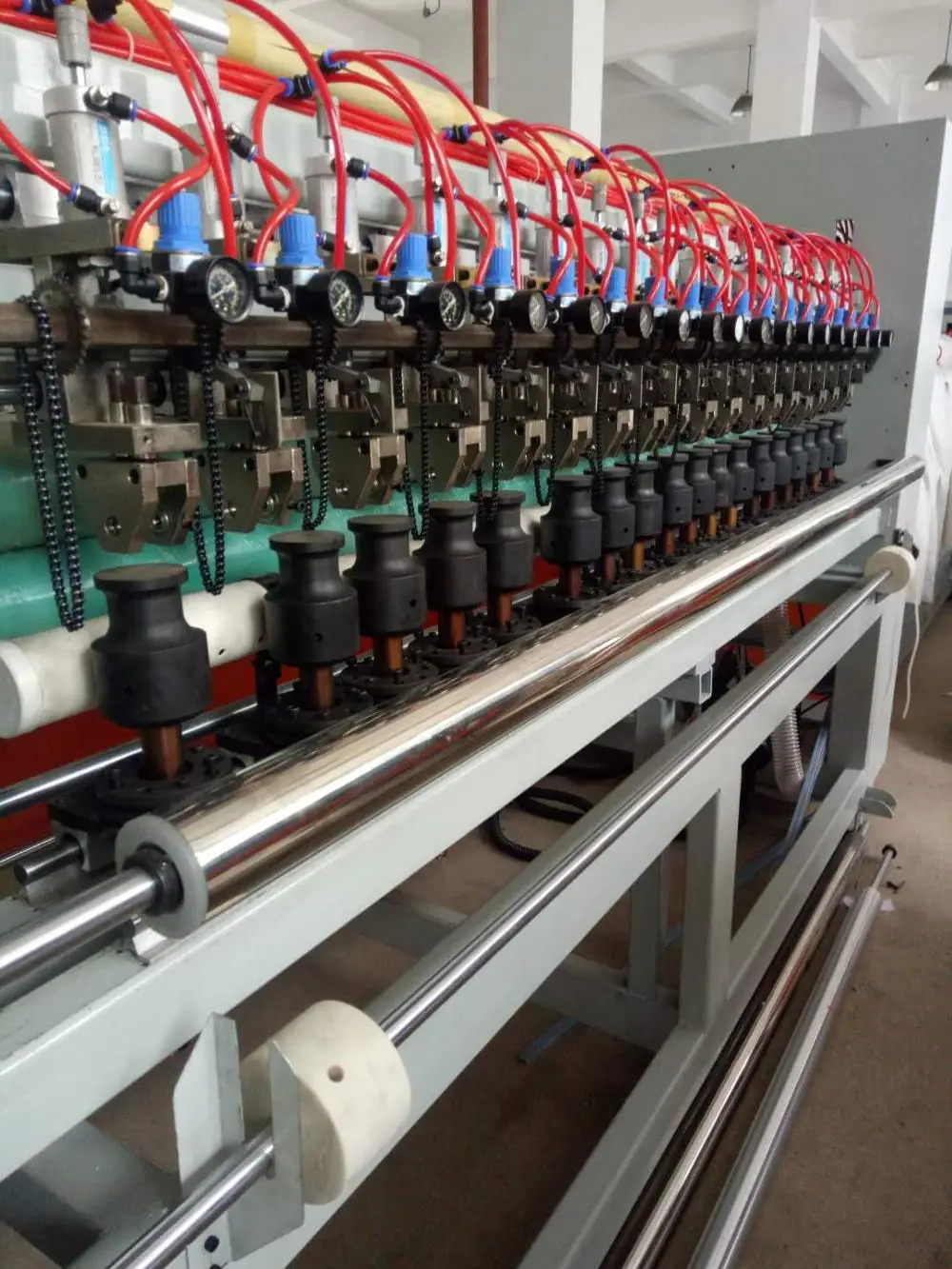

Through the vibration generated by the ultrasonic vibration unit (vibrator) (converting electrical energy into mechanical energy), energy is transmitted through the welding head, and a flower wheel (mold) is used to create a gap between the mold and the fabric and to quickly seal the edge! The whole machine is fully automated, controlled by PLC program, the speed is faster, the trimming is soft and free of burrs, and it does not yellow, which greatly reduces the labor and improves the production efficiency.

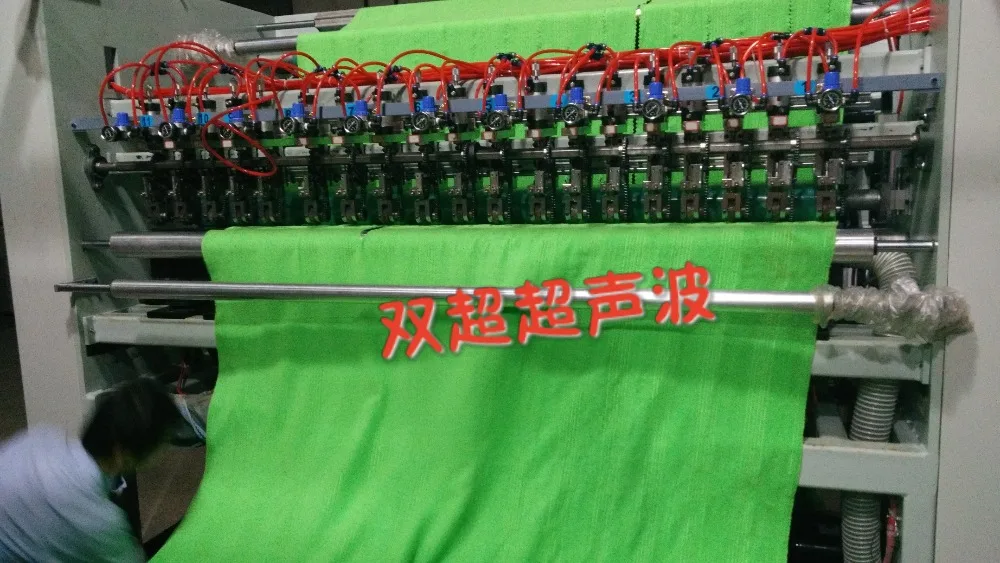

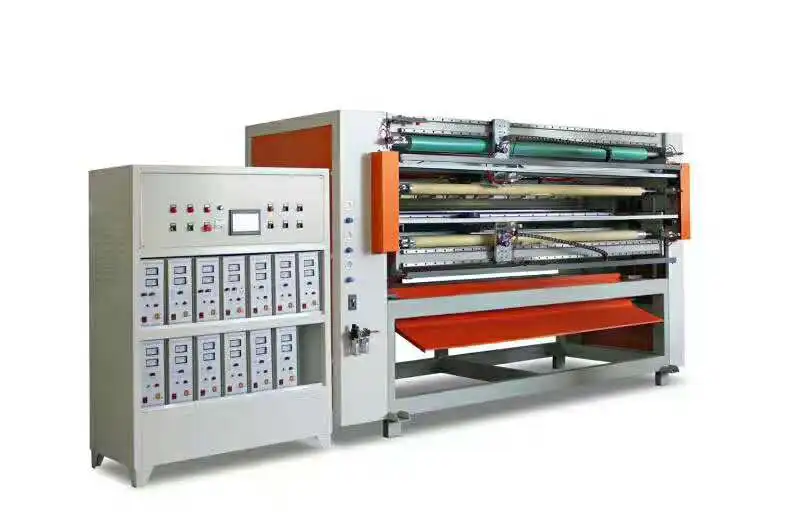

Detailed Images
Features
This machine is an automatic equipment that combines cutting and cross-cutting. It uses ultrasonic cutting to make the product form at one time. High technical content, greatly reduced labor and high efficiency. This machine adopts microcomputer operating system with touch screen display and PLC program control system servo drive system. With automatic fixed length, automatic counting, automatic alarm, automatic cross-cut embossing, automatic discharge correction system.
This machine is an automatic equipment that combines cutting and cross-cutting. It uses ultrasonic cutting to make the product form at one time. High technical content, greatly reduced labor and high efficiency. This machine adopts microcomputer operating system with touch screen display and PLC program control system servo drive system. With automatic fixed length, automatic counting, automatic alarm, automatic cross-cut embossing, automatic discharge correction system.
Size Information
Machine Size
Model | rosscut single knife | Cross cut double knife | Cross cut three knife | Cross cut four knife | |
Size | 33400*1300*2000mm | 3400*1300*2000mm | 3530*1300*2000mm | 3530*1300*2000mm | |
Related Products
Packing&Shipping

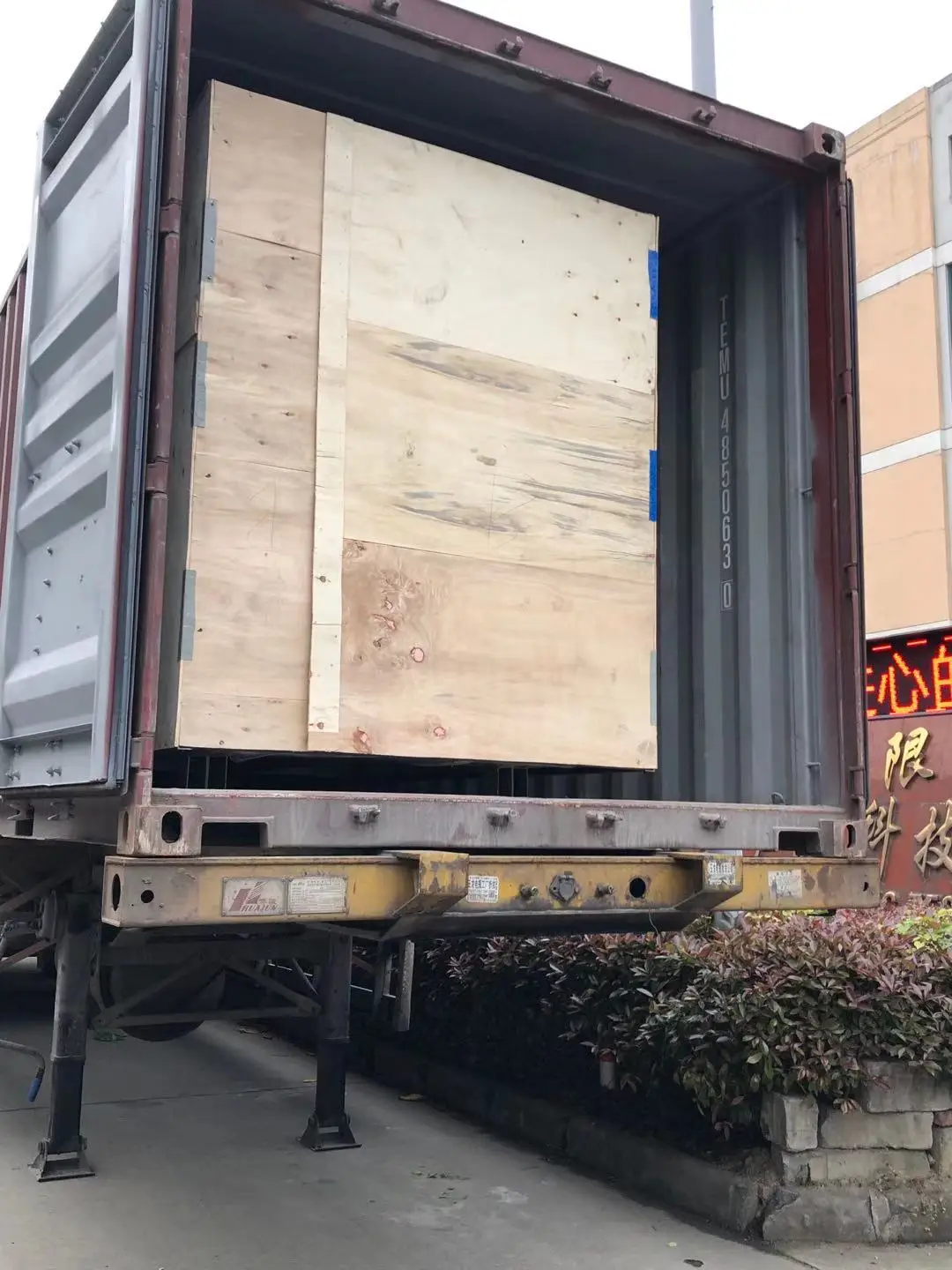

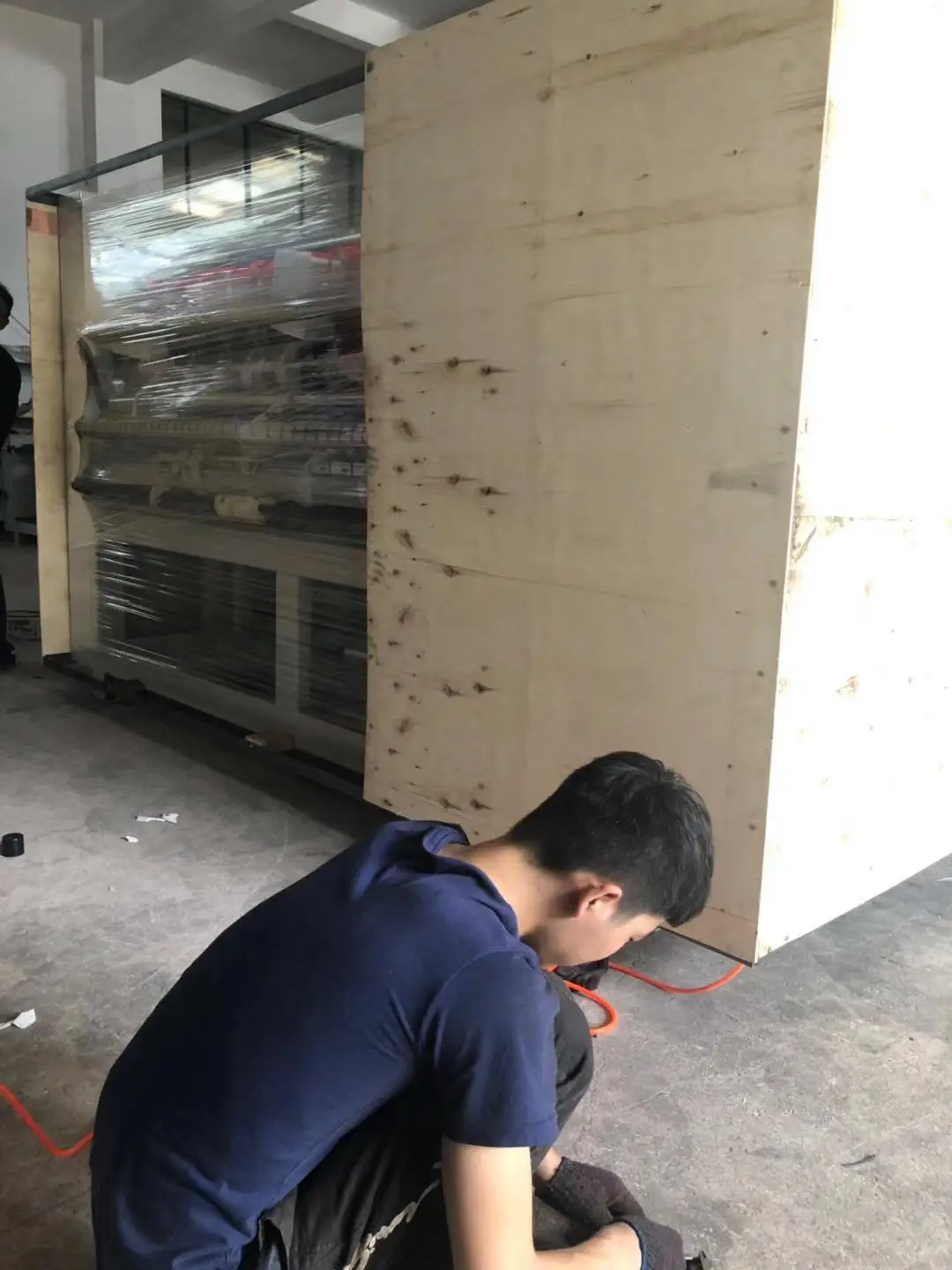

The exported machines are packed in composite wood box
After Sales Service
Installation and training

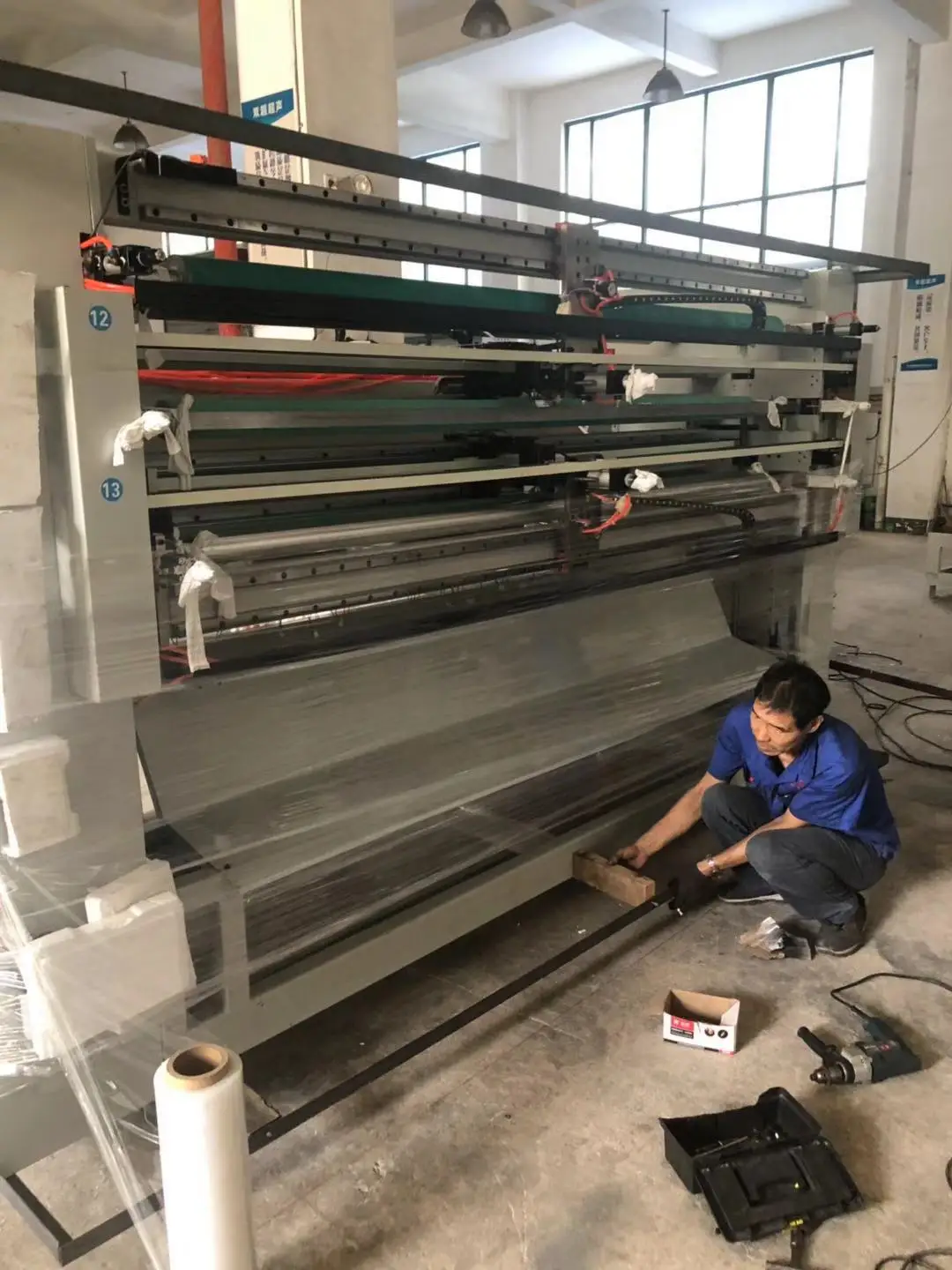

We will send our engineer to customer factory for installation and training after machine for standard one week.Customer will cover the flight tickets and visa cost.And the buyer have to prepare enough labor,electric wire outside the control panel and tools for installation.
Warranty time: 1 year.
Warranty items: Ultrasonic producer, ultrasonic energy converter, amplitude.
The following items are not included in the warranty policy:
1)Pattern mold;
2)Pneumatic components;
3)Bracket of machine.
The following situations are not included in the warranty policy:
1)Man-made damages;
2)Knock down the machine;
3)Change parts of the machine without authorization.
Warranty time: 1 year.
Warranty items: Ultrasonic producer, ultrasonic energy converter, amplitude.
The following items are not included in the warranty policy:
1)Pattern mold;
2)Pneumatic components;
3)Bracket of machine.
The following situations are not included in the warranty policy:
1)Man-made damages;
2)Knock down the machine;
3)Change parts of the machine without authorization.
Company Introduction
Changzhou Shuangchao Ultrasonic Technology Co., Ltd. specializes in producing all kinds of ultrasonic machinery for more than 18 years. Now the company covers an area of over 7,000 square meters.
The company's main products are: microfiber slitting machine; ultrasonic compound machine; non-woven slitting machine; slitting machine; non-woven bag making machine; ultrasonic shoe cover machine; ultrasonic glove machine; ultrasonic mask machine; Ultrasonic lace machine series; carbon bag sewing machine; woven bag sewing machine; ultrasonic spot welding machine series; point drilling machine; plastic welding machine series; ultrasonic flowering machine series; high speed elastic band point machine; sleeve machine; surgical clothing sewing machine More than a dozen varieties, at the same time the company can be customized according to customer requirements for a variety of ultrasonic non-standard equipment, a variety of mold welding head, and undertake a variety of processing business.
