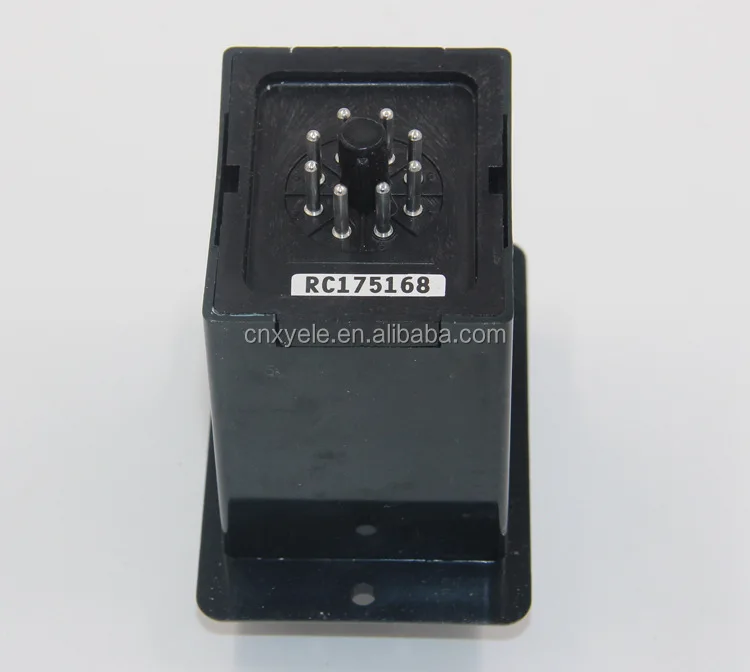

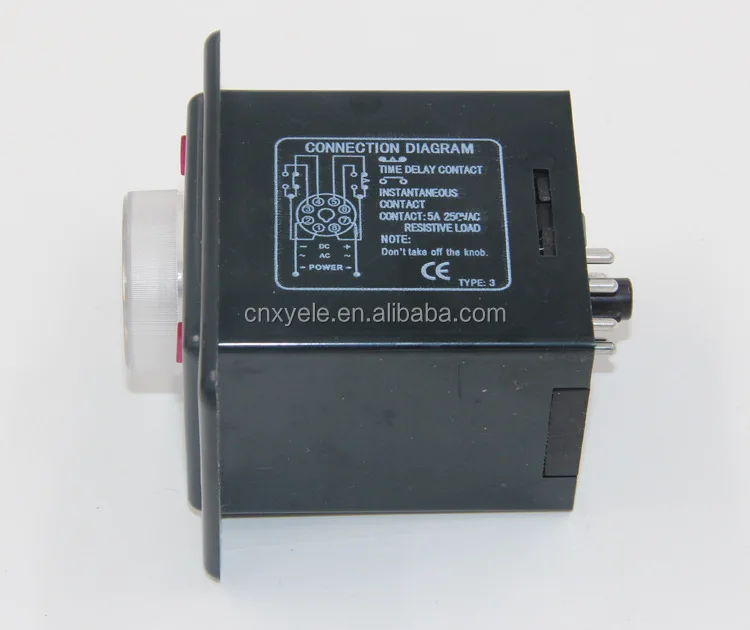

AH2-N time relay / timer (220Vac 110Vac 24Vdc 12Vdc alternative)

Product Description






Model numberAH2
Supply voltage24, 36, 48, 110, 220 or 380 Vac; 12 or 24 Vdc
Tolerance-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
Power consumption3W max
Setting methodKnob
Indication methodLED
External dimensions93x58x88 mm
Perforate dimensions61 10x50 10 mm
Contact rating3A@250Vac, 5A@28Vdc
Repeat accuracy±0.3%, ±0.05 sec
Setting error±0.5%, ±0.05 sec
Power frequency50...60 Hz
Termination8 pins
Matched socketPF083A
Mechanical life1x106
Electrical life1x105
Operating temperature0 to 50 °C (32 to 122 °F)
Operating humidity95% RH max, non-condensing
Alias nameAH2 timer
