Low Voltage 3.7V 5V Ceramic 96%Alumina MCH Heater PTC

Product Overview

Description

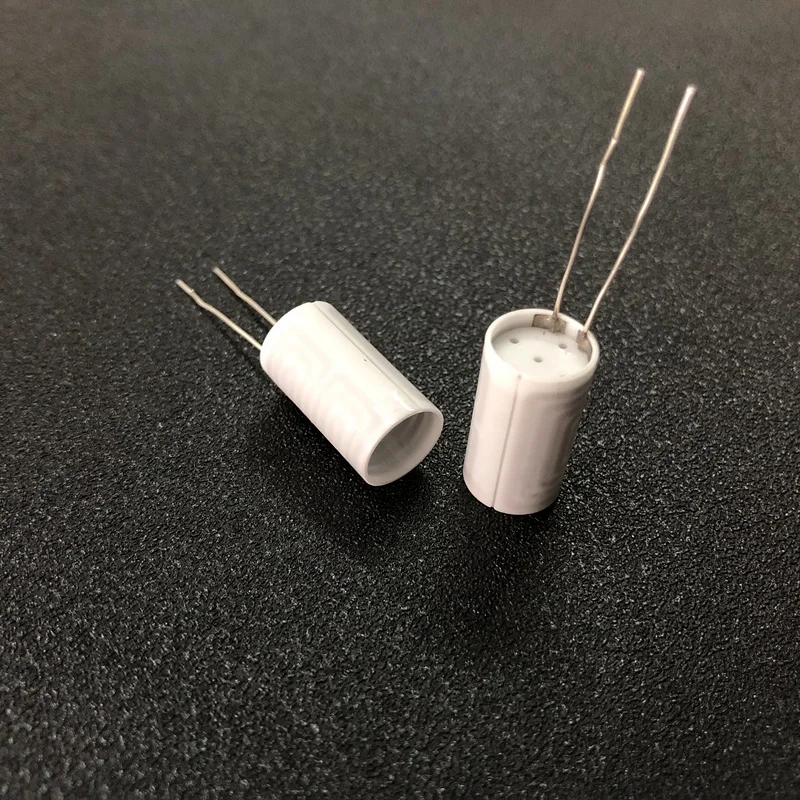

Ceramic cup heating element



Model Number	G020112100
Electrode	Positive and negative (universal)
Cable	Copper or Nickel
Resistance	All Available

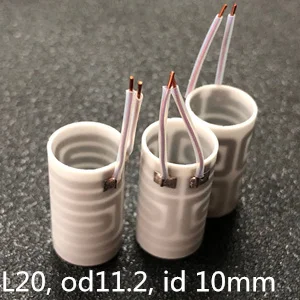

Dimension	L:20mm;OD:11.2mm;ID:10mm
Material	Alumina+Ceramic
Type	MCH
Certificate	RoHS,SGS
Application	Widely Used
Advantage	Energy-saving,Superior Thermal Properties,High Reliability
Color	White
Shape	Tube



Product List -

For heat not burn shisha, wax, weed





Item	Test condition	Unit	Property
color		/	white, compact
Main materials		/	≥96% Al2O3
Density		g/cm3	>3.7
Camber		mm	<0.2
Leads tension strength		kg	horizontal pull ≥2
Flexure strength		Mpa	>300
Hardness	Load 4.9	Gpa	≥15
Thermal conductivity	25±1℃	W/(mk)	≥20
Withstand voltage strength	25±1℃,4200v/s	/	Leakage current <0.62mA
Insulation resistance	DC=500V	MΩ	>100
Resistance tolerance	25±1℃	Ω	Middle value ±10%
Coefficient of linear expansion	(40-800℃)	/	7.5*10-6/℃
