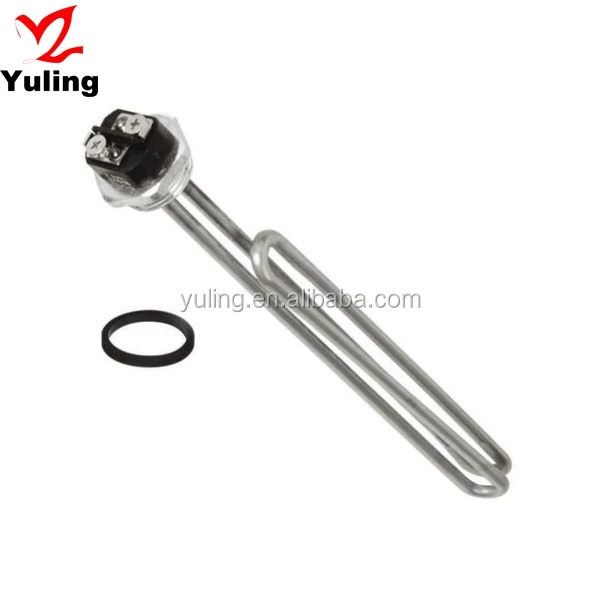

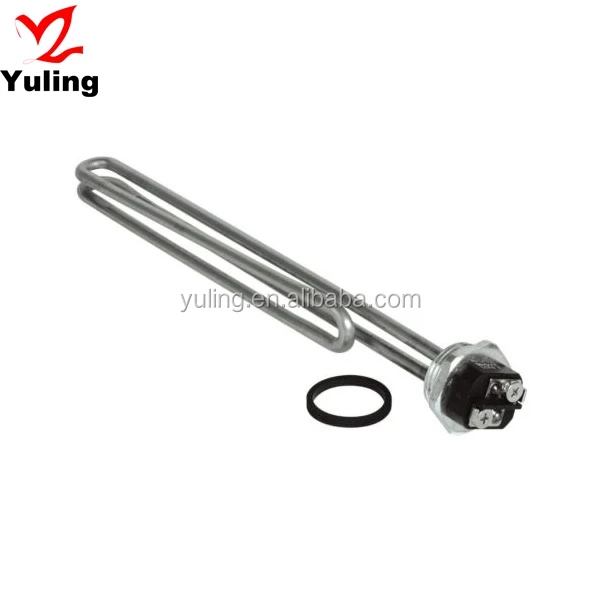

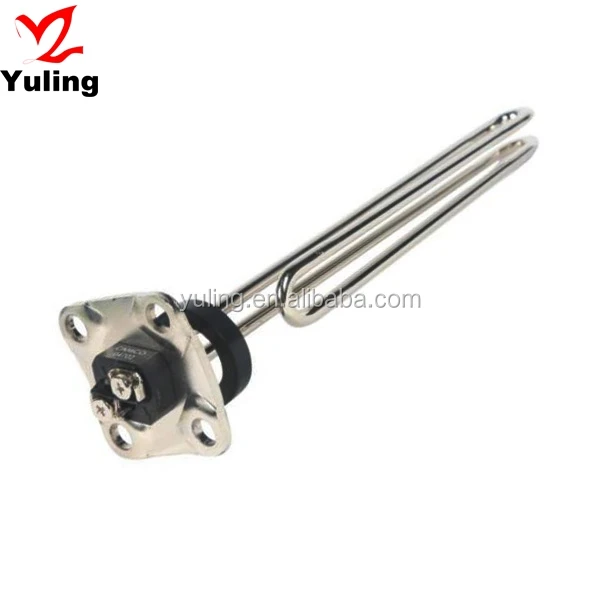

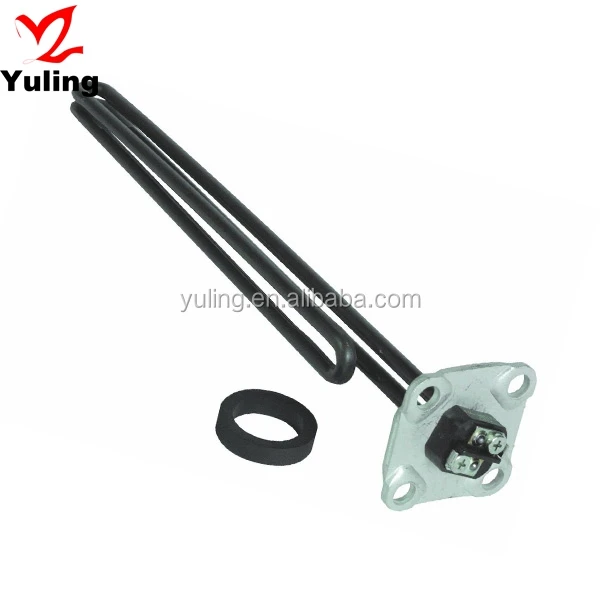

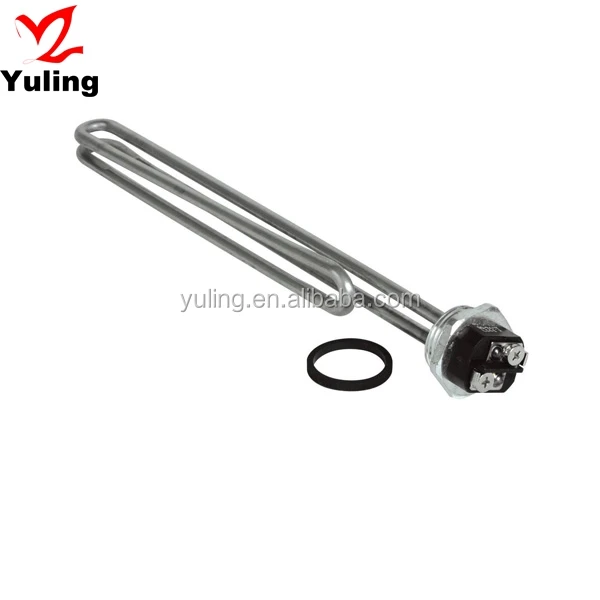

4.5kw flange heaters immersion electric heating tube
Specificationparameter
Detail
Remark
Sheath Material
SUS304
Materialscan be changed to be copper,sus321,sus316L,incoloy804,incoloy800 as requested
Voltage/wattage
240v/4500w
Voltage/Wattage/Tolerance can be customized as required,and Wattage tolerance(cold condition)+5%-10%

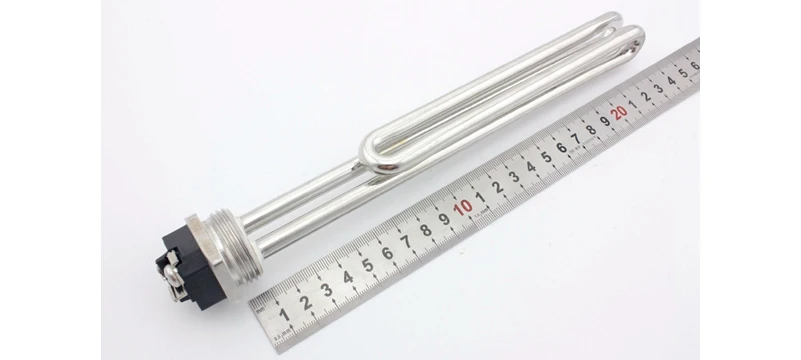

Tube Diameter
8.5mm/0.33"
Tube diameter can be customized as required
Weight
310g
Screw thread
1"
Other thread can be made if required
MgO
A
We can use other powder if requested
Resistance wire
Ni80Cr20
Or OCr25Al5
Plastic shell
Nylon
Temperature resistance 160℃
Leads
Stainless steel
Materials of terminal piece could be stainless iron,stainless steel if required
Faston Terminal
Nickel plated iron
Material of terminal housing could be stainless iron,stainless steel if required
Insulation resistance
≥1000MΩ(cold condition)
Leak current
≤0.5mA
Density
6.6W/CM2

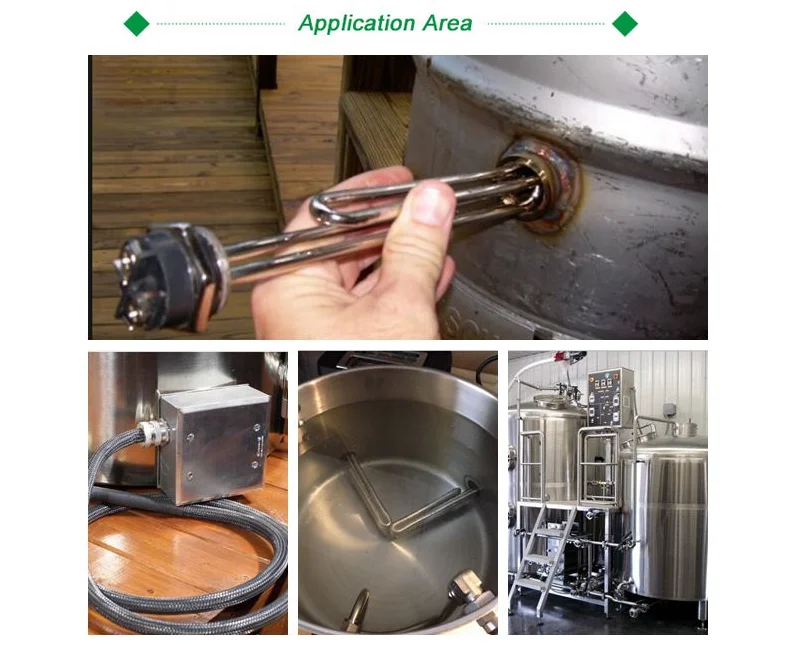

Usage
electric water heater, brewery
Warranty
3-5 years
About Factory
Taizhou Yuling Electrical Appliance Co.,LTD (named Jiangyan Yuling Electric Equipment Factory)is one of the professional manufacturers engaged in tubular electric heating elements.and havenearly 40 years’ experience in this field.YuLing is founded in 1996,located in Jiangsu Province, Taizhou City,JiangYan District, QinTong Industrial Part.
