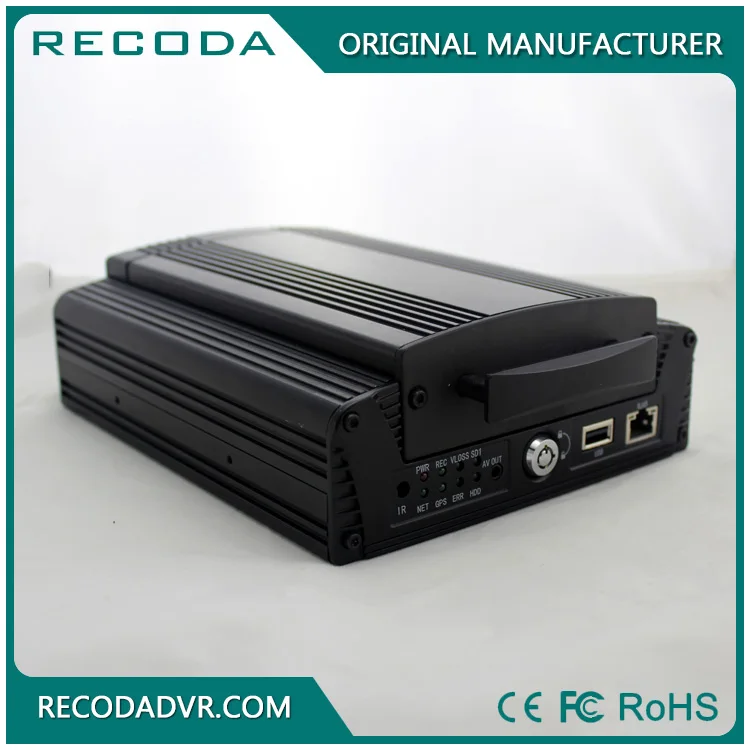

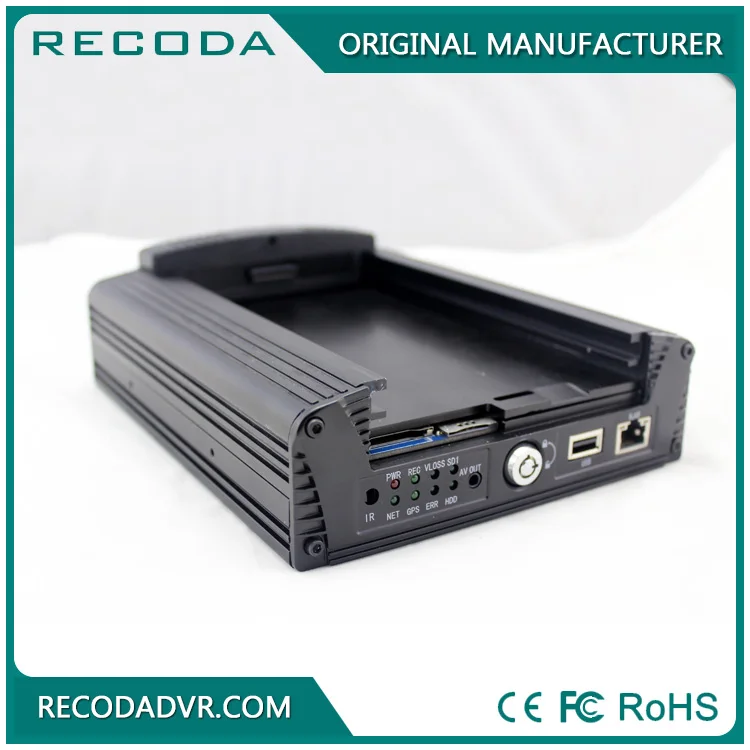

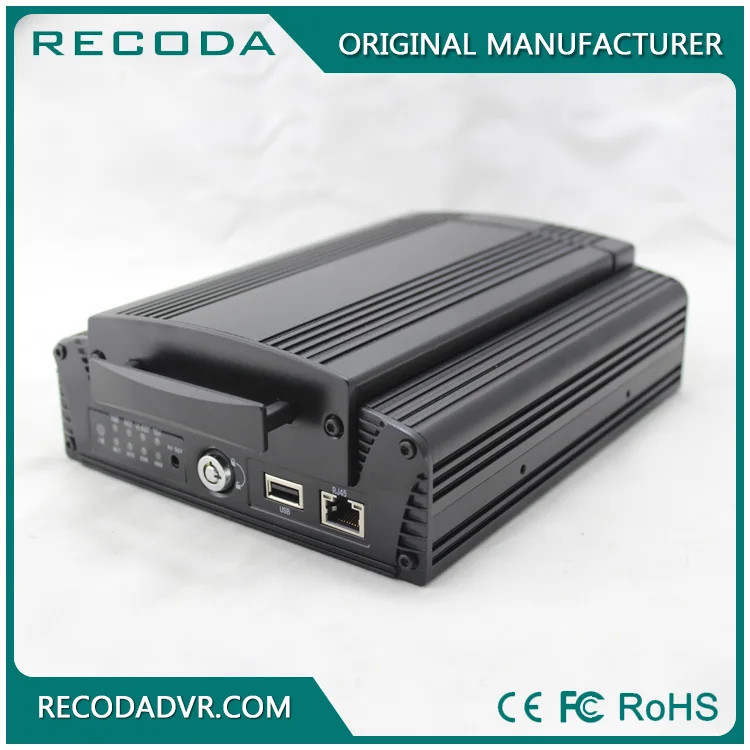

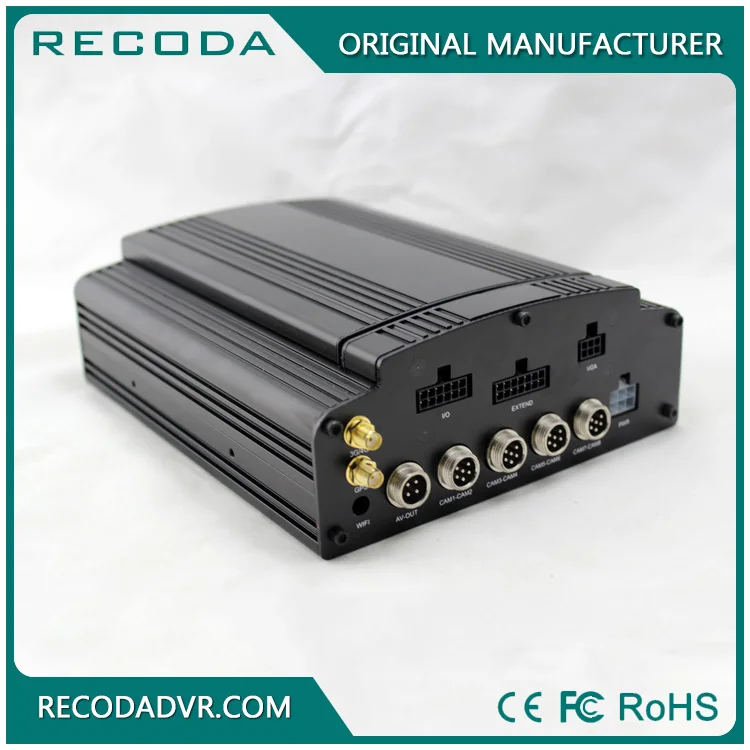

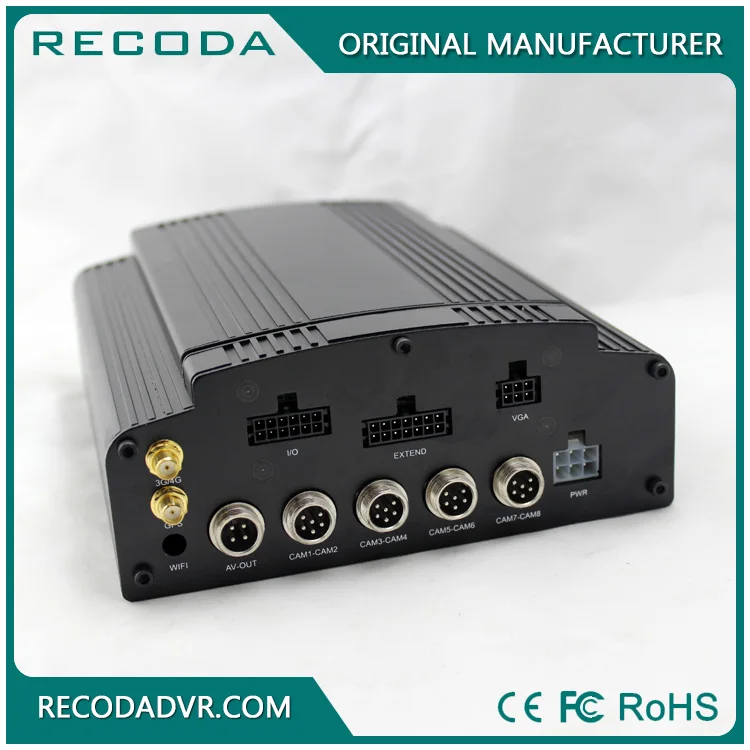

RECODA 1080P 4CH HDD DVR 4G GPS WIFI Live streaming Monitoring Car Black Box Mobile dvr
- Category: >>>
- Supplier: Shenzhen Recoda Technologies Limited
Share on (60572347940):
Product Overview
Description
Main Feature:
- Support HDD heating functions,can work in harsh environment;
- Support GPS/BD/G-Sensor Extension module;
- Realize real time monitor through 3G/4G;
- Support to connect OBD on the vehicles;
- Support IOS/Android Phone Remote monitor;
Specification:
Language: | English/Chinese/Customized |
OS: | Support Linux |
Graphical User Interface:
| Setup system parameters with the remote control. |
Video Compression: | H.264 Compression |
Video Input: | 4CH AHD input,CVI,TVI or CVBS aviation connector, 1.0Vp-p, 75Ω |
Video Output: | 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view |
Preview: | Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview |
Resolution: | 1080P/720P/D1/HD1/CIF, MAX:4 channels of 1080P |
Video Standard:
- PAL: 100f/s , CCIR625 line,50field;
- NTSC: 120f/s, CCIR525 line,60field;
- CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;
- HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;
- D1: 800Kbps ~ 3Mbps, 8 level video quality optional;
- 720P: 4Mbps-6Mbps, multi level video quality optional
- 1080P:4Mbps-8Mbps,multi level video quality optional
Record Mode:
| The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. |
Audio Input: | 4CH Aviation Plug Input |
Audio Output: | 2CH,headphone connect at front panel, BNC Connect on Back panel |
Audio Compression:
| G.726 compression, 8KB/s speed |
Alarm Input:
| 6CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage |
Alarm Output: | 2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off |
Image Quality: | 0-7 levels, 0 is the highest level. |
Interface: | 2CH RS232 to connect OBD, POS/Fuel Sensor/LED Advertisement Connection; 1CH 485 Interface,Connect PTZ Camera |
Wireless Transmission:
| Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE; Built in 4G module optional, TDD-LTE, FDD-LTE |
GPS Position:
| Support Built GPS/BD Module |
Storage:
- HDD : Max 2.5” 2TB HDD
- SD Card: Max 128GB SD Card Mirror Recording Keep Data Safety
- Update: Support USB Updating, SD Card Updating,OTA Remote Updating
- File Format: H.264
- File System: Special FAT32 File System
- USB: USB Interface on Front Panel for data back up by U Disk,Hard Disk
Record Replay: |
Video Search: | Search By Record Time/Record Type etc |
Playback:
| Max support 4CH Replay /Stop/Fast/Slow at same time; | |
Support forward and backward play at the speed of: x 2,x4,x8,x16. |
Security: |
User/Admin 2 Level Different Password
|
Voice Call:
| Support voice call each other |
TTS Voice Broadcast:
| Support TTS voice broadcast function. |
Serial Expand: | Support LED Advertisement Panel,Oil Sensor,POS,Bus Station Broadcaster,Car OBD,ect.external device |
Power Manage men
| Wide Voltage.Support Timed/Delay off |
Input Voltage: | DC:+10V - +36V |
Output Voltage: | +12V~1.5A,+5V~1.5A |
Power: | Working <5W |
Temperature:
| -20℃ - +70℃ |
Humidity:
| 20% - 80% |
Size: | 218 (D)* 161(W)* 65(H) mm |
Net Weight: | 2.2 Kg |
Image:
RECPDA On Fair:
