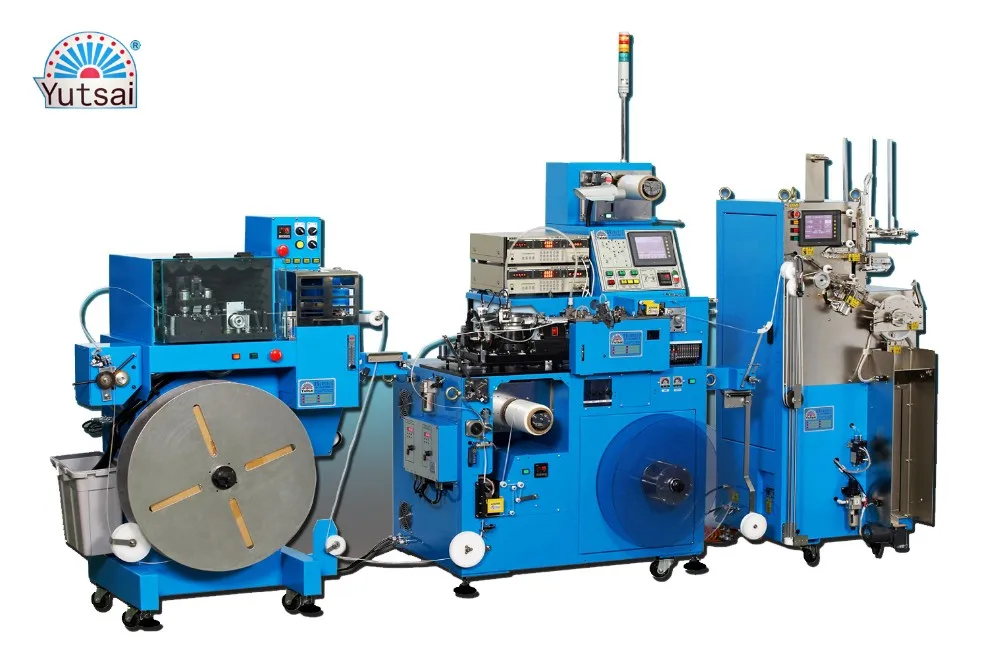

Wooden packing automation measuring punch tape handle three in one device after the chip

Product Overview

Description



Item	Specification
	Modle	SATM6601 Measuring packaging machine
	Size	1220(L)*760(W)*2000(H)
	Speed  of service	AC220V  OR  AC380 V
	Output speed	2200 grain/min
Dimensions	Packaging bag	132000 / Hour
	Blanking film	8(Width) ,0.4(Thickness)
	Upper Feed film	5.4(Width),  0.042 (Thickness)
	Down Feed film	5.4(Width),  0.55 (Thickness)
	chip size	0402R
	heating element	Temperature up to 200 degrees
	Wafer implantation rate	2200 / minute
	Wafer feeding unit	Abnormal automatic discharge system
	Upper membrane stripping force	10 to 60 Gf
	Tape support	With support ,Can be connected to each other
	Test bench and test instrument	With support ,Can be connected to each other

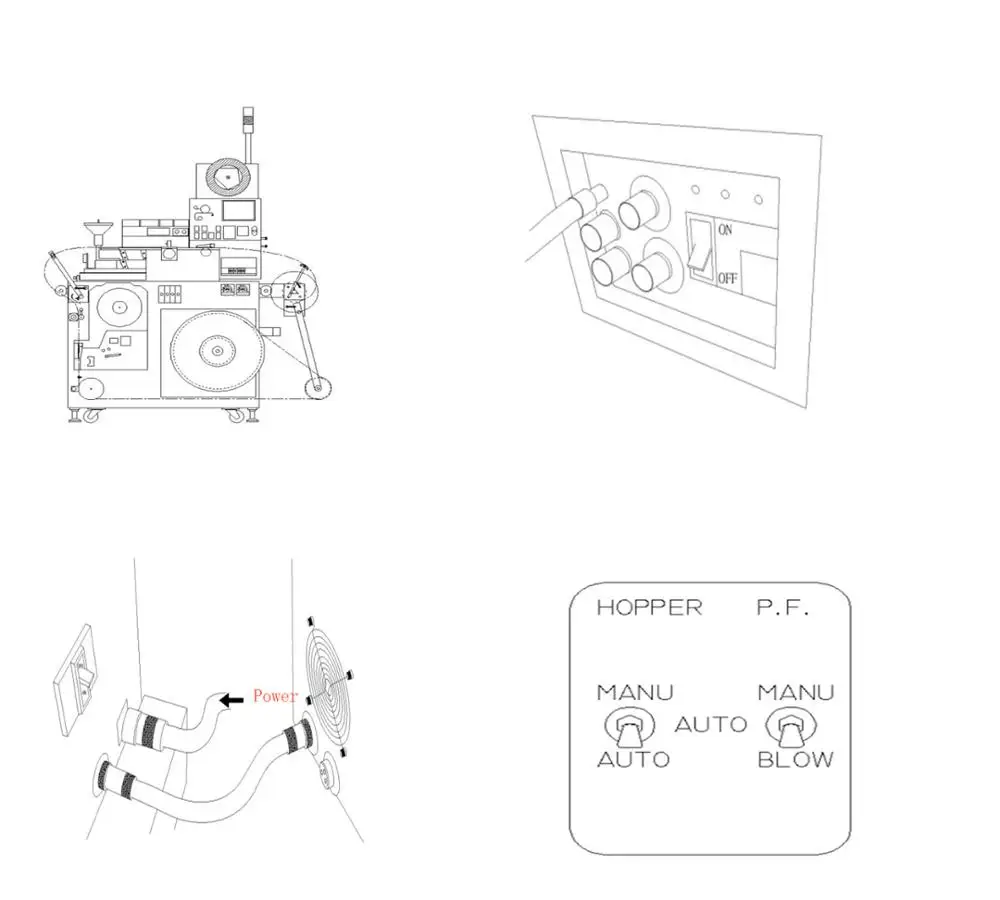

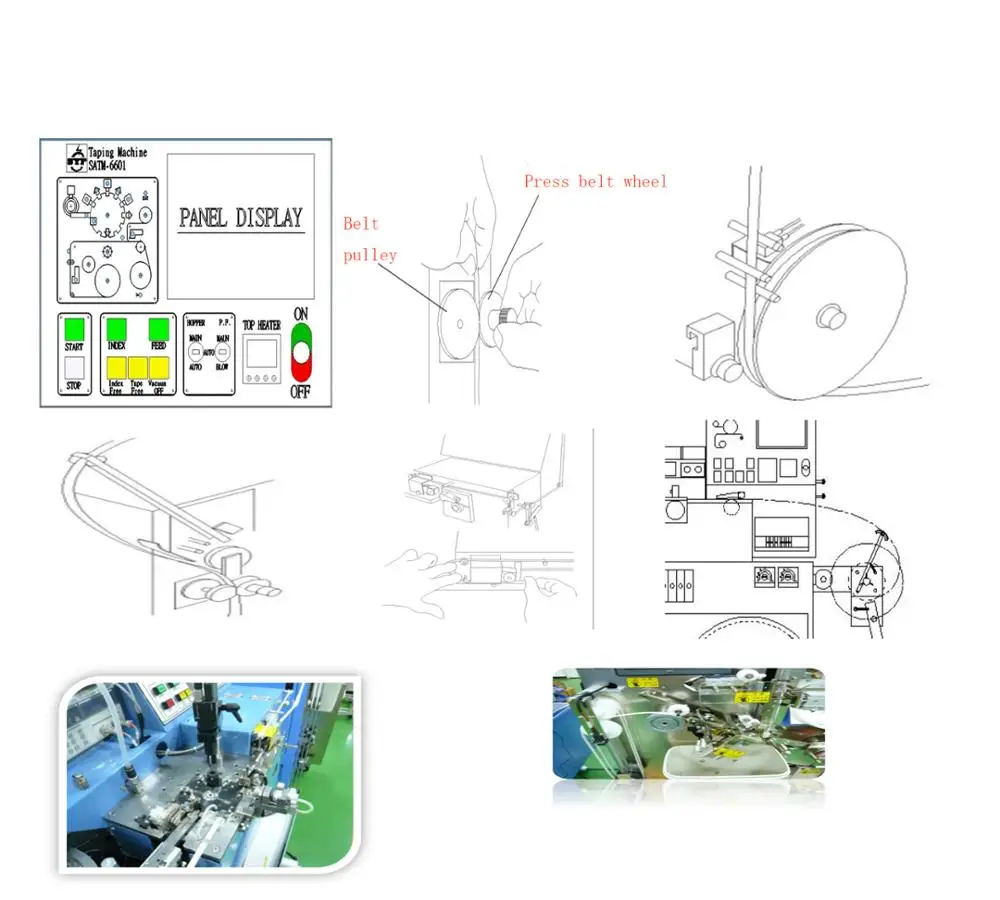

Automatic start

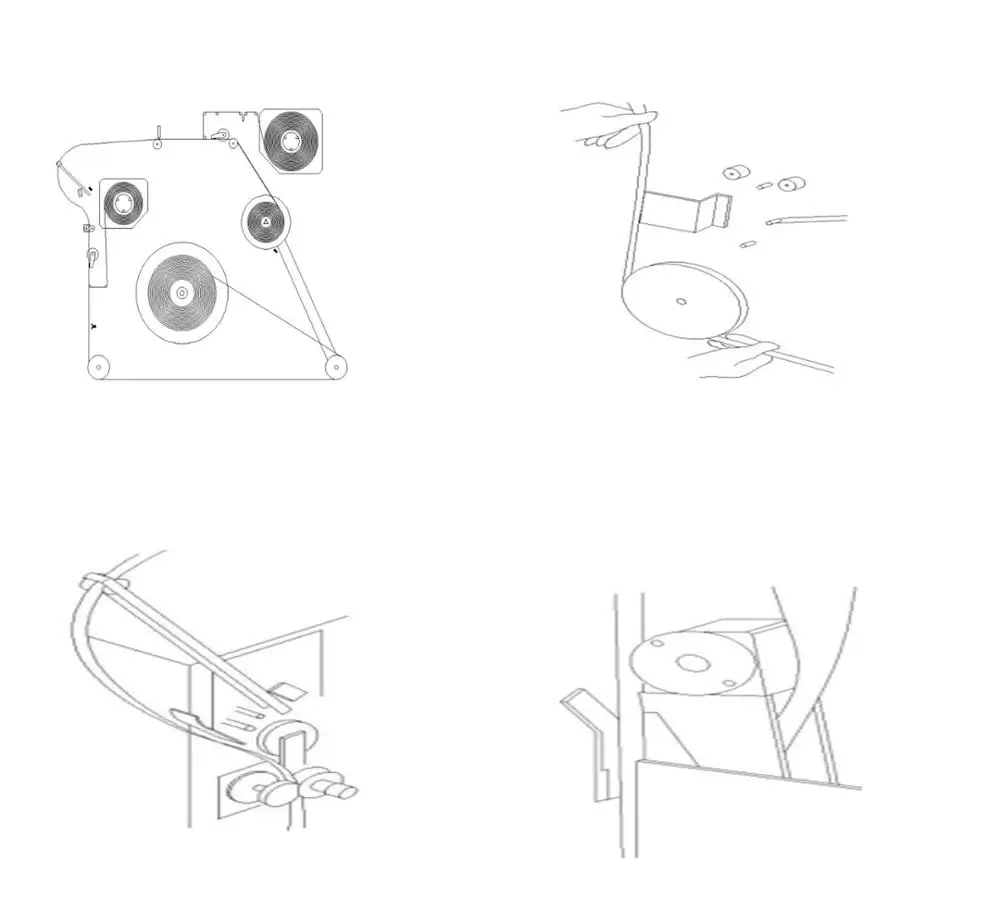

(1) the carrier tape and the upper and lower sealing film are indeed imported

(2) the chip is put into the funnel

(3) funnel switch (HOPPER) plate to auto

(4) P.F. switch to MANU, so that the chip runs into the material, and then P.F. to AUTO.

(5) press the "turntable inch" chip to continue the transfer but not packaging

(6) press "stop" to end the operation, the test results meet the requirements

(7) press start to start automatic packaging

(8) press "stop" to end the operation and check the results to meet the requirements

(9) automatic packaging can be performed without error

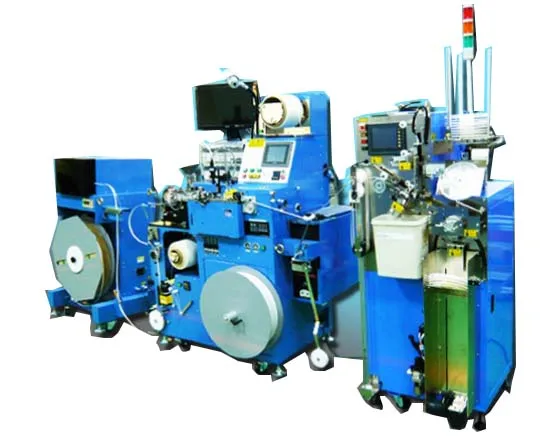

The other hot sale modles in the world:



   We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.



After-sales service support:

   After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.



Technological support;

   Yutsai has been largely adopting new technologies, new techniques and high-tech equipments. And Yutsai also has strict and effective quality control system.

   The component we use is our own design products.

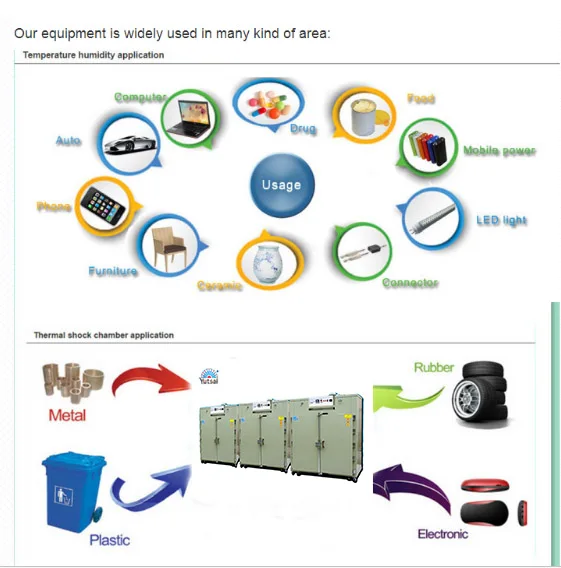

Our equipment is widely used in many kind of area:

Package and shipping and work shop :

About Us

DongGuan City Jinyao Precision Equipment CO., LTD is one of enterprise combining develop, produce and sale. Established in 1980, already have 30 years experience to produce: precision Hot-air drying oven; IR/UV deliver drying equipment; environmental test equipment; printing machine; automation industrial equipment etc.



Our company always keep the aims that provide high quality product; quick service attitude and the great design. We keep the company spirit that has advance technology and high quality team. Our product receive a lot of client trust, and stand firmly front of others.



Dong Guan Yutsai Precision Device Enterprise LTD. is registered capital achieve ten million RMB. It has 4800 square meters factory. More than three million RMB fixed assets. Value of output achieve 24million RMB each year.



We has the steady domestic clients such as: Foxconn, HuohYow, Fu Brothrt industrial company, HuaXin technology company, PuYao group etc. It's all about more than 500 company include domestic ,foreign and military enterprises. We also has the long-term relationship with Thailand, India and England.



The company toward higher, farther, more perfect operating system. the Taiwan Head Company as the axis, and we make efforts in mainland market development.









Hot air circulation oven is our original product, with carefully designed and continuously update,it have reach the international advanced level.
The device is a kind of oven, and can be installed, divided into CT type (centrifugal fan)
CT-C (axial fans) series products, it is the use of steam, electricity and gas as heat source,
through the heater heating,a large number of hot air will circulate in the oven, and then continue to dehumidify from the outlet,increase the heat transfer effect, and keep reducing the moisture.
The oven equipped with low noise and high temperature proof axial flow fan and automatic temperaturecontrol system, the circulatory system fully closed, the thermal efficiency of the oven is from the traditional drying room 3 - 7% increase to the current 35 - 40%, the highest thermal efficiency up to 70%.
The device named SAO series is according to the National Pharmaceutical Administration released the industry standard.

Advantage
1.Strong durability: As the haater is sealed in the housing,the contact area with air is small,it is difficult be oxidized.
2.Heated air circulation: Baked good is heated uniformly
Accurate and reliable electrical control:reasonable structure,effective working area,full-function,simple operation,easy to maintenance and adjustment,low noise,high reliability,low cost,low energy consumption and high production efficiency.

Application
Apply for baking of food and goods with chemical gas ,removal of the substrate,curing of the lnk and drying of film and so on. Widely used in the precision baking,drying,tempering,preheating,stereotypes and processing of electronics,electrical,communications,plating,plactics,metal,chemicals,food,printing,pharmaceutical,PC board,power,dipping,spraying,glass,ceramic and building materials and so on.
 With the help of our experienced professionals, we offer a comprehensive range of Hot Air Oven that gives accurate control over
temperature setting. These are provided with double walled insulation, which keeps the heat in and conserves energy. To assure
optimum performance and durability, we manufacture these ovens using superior quality raw material such as sheets and structural
steel, blowers and motors, burners, insulation , heat exchanger and Control systems.
VITECH manufactures the following type of ovens
Dry Off Ovens for moisture removal after Pretreatment or any wet process
Industrial Drying Oven for any drying application
Batch / Conveyorised Ovens for paint or powder curing
Hot Air Generators - Electrical / Oil /Gas
Heat Exchangers
