920MHz 925MHz UHF RFID long range Desktop Reader Writer USB interface support ISO18000 6C, EPC G2 6B Provide SDK
- Category: >>>
- Supplier: Guangzhou Taihe Dahua Intelligent Technology Co. Ltd.
Share on (60572558798):
Product Overview
Description
Product Description

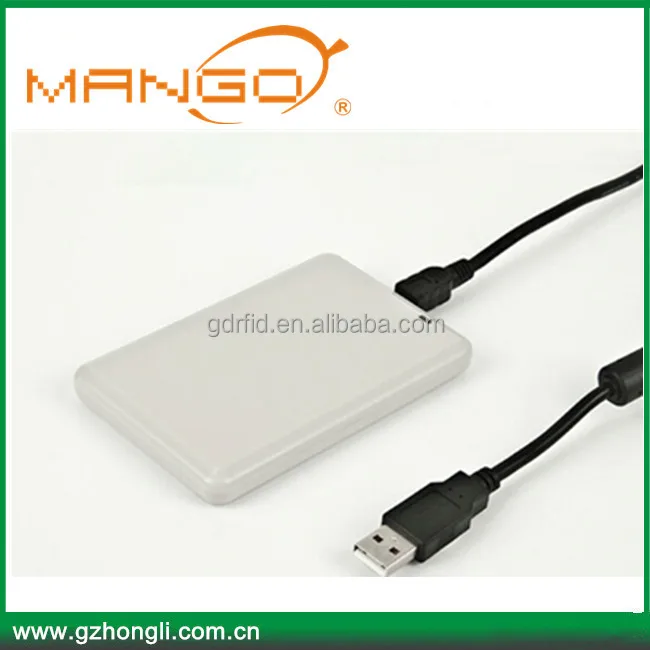

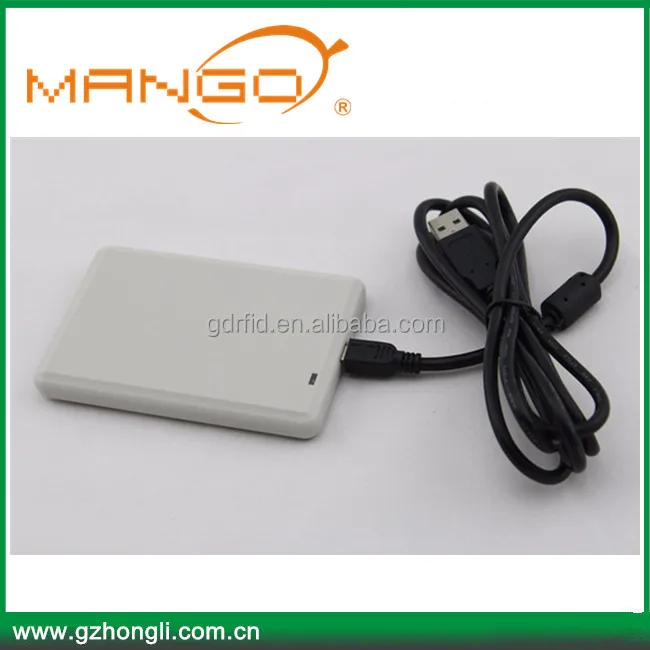

UHF Desktop Reader and writer
GENERAL DESCRIPTION
DH9809USB-L is a high performance UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.
FEATURES:
Self-intellectual property;
Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
860~868MHz, 902~928MHz frequency band(frequency customization optional);
FHSS or Fix Frequency transmission;
RF output power up to 13dbm(adjustable);
No external power source needed;
Built-in antenna with effect distance up to 200mm*;
Support USB2.0 interface with VSP(Virtual Serial Port) or HID mode;
Slim outline;
Provide SDK and demo software to facilitate further development.
* Effective distance depends on protocol, tag and environment.
Products Show
About our company
Since 2000,we have provided billions of pieces RFID products to domestic and international users, which are widely used in security,transportation,tourism,anticounterfeiting,financial,produton and other fields.
We provide RFID contactless smart tags,including a various specification cards,non-standard tags;different protocol interfaces reader circuit modules;customized smart card and tags.
Welcome to visit our company!
