complete feed pellet production line/poultry feed manufacturing machine/small animal feed pellet line

Product Overview

Description

Complete feed pellet production line/poultry feed manufacturing machine/small animal feed pellet line

Tel/whatsapp/wechat:+86 18615687606 Skype:pelletmchine06

Application:
raw biomass materials can be biomass waste from sawdust, rice husk, agricultural stalk,
straw, peanut shell, sun flower, paper ect ,animal feed materials can be grain, soybean, maize
ect, fertilizer materials can be animal manure ,chemical and so on .

Description:

1. wood pellet mill for sale can press high density pellets , for biomass , pellet density can reach 1.1-1.4ton/m3, pellet diameter can be 2-8mm , the knives installed nearby pellet machine outlet door can adjust the pellet length.

2. wood pellet mill for sale adopts Germany high technology ,which is our national
patent machine.it has the unique advantages to enlarge inside flat die diameter, so roller
assemble and bearings are both enlarged too, which can produce higher pressure than ring
die pellet press.ring die pellet press inside ring die is restricted by diameter, its roller can not
be enlarged enough, so the assemble bearings are not strong enough to bear large pressure.

3. especially for crude fiber wood pellet mill for sale its adhesive is very low, needs
high pressure to press high density pellets, for biomass, the small wood pellet making machine is more fit .

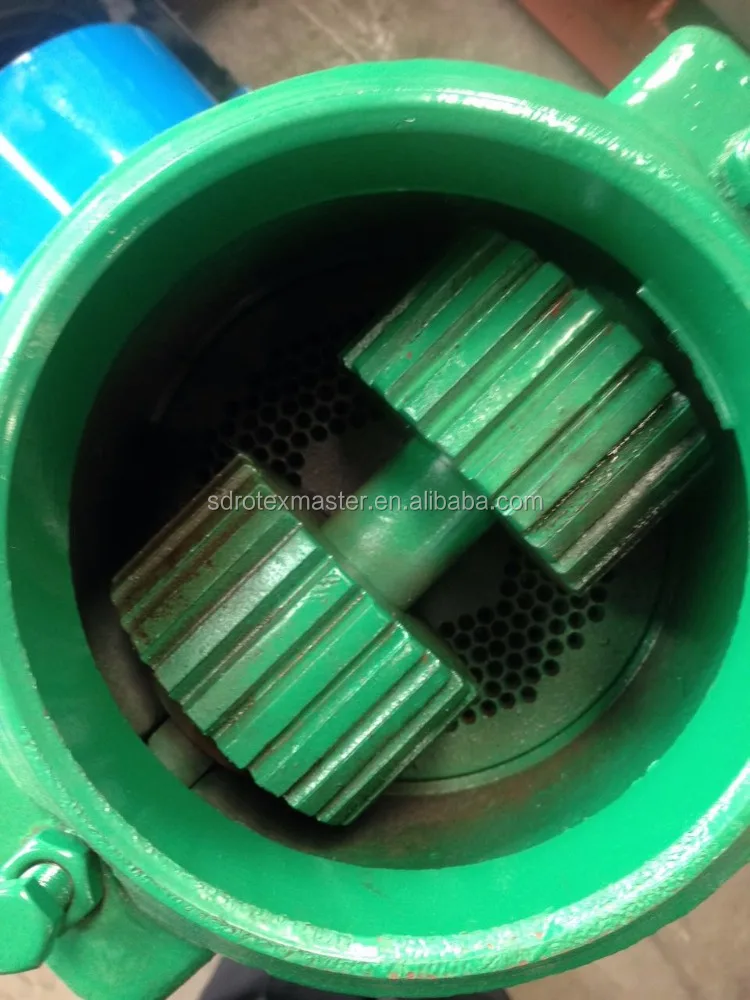

4. When wood pellet mill for sale works, it is flat die take rotates and then take
rollers work, but the whole roller assemble keeps stable . in this way will keep all materials piles
up in the center of flat die , increase capacity and pelletizing efficiency .

5. wood pellet mill for sale can make biomass pellets for burning and make
animal feed pellets to feed animal, fertilizer pellets for farm use. the engine can be installed
by both electric motor or diesel engine or work connect with PTO tractor .very easy
to operate .

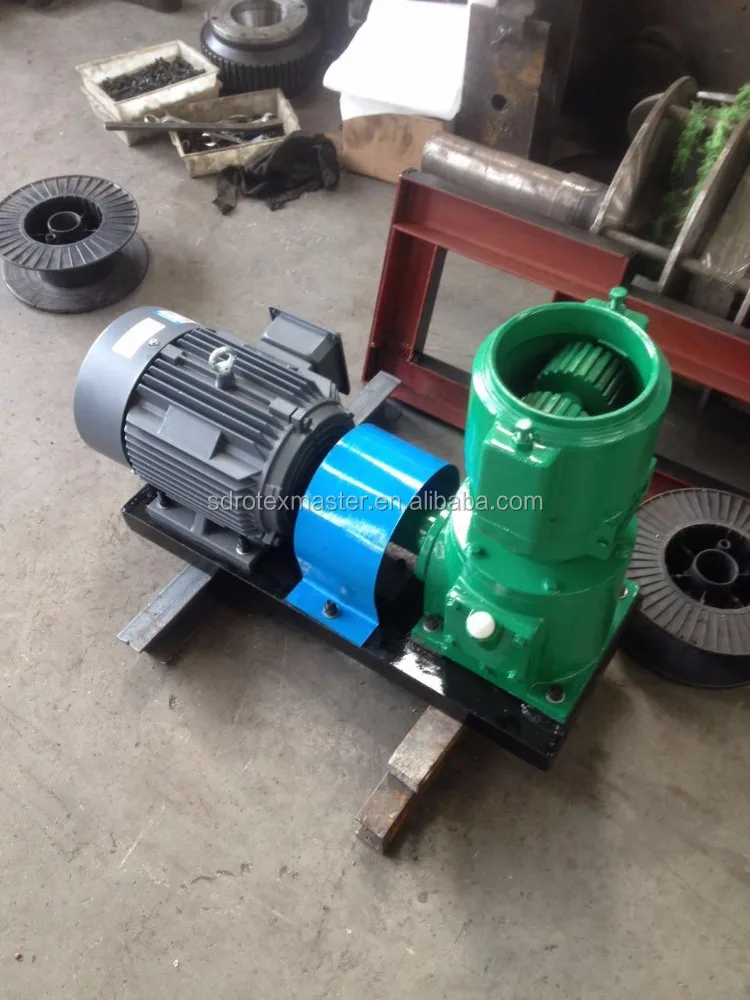

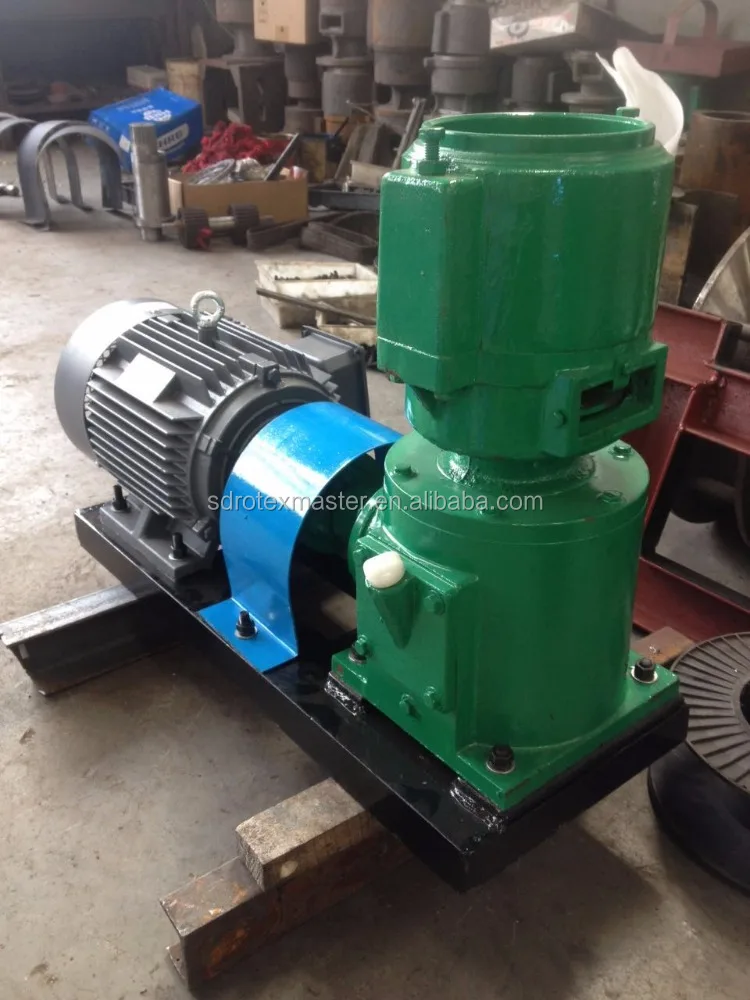

Technical details of small pellet machine

Model	Powder (kw)	Diameter (mm)	Capacity (kg/h)	Measurement (mm)	Weight (kg)
YSKJ-200	11/15	2.5-8	150-200	1150*530*750	300
YSKJ-250	18.5/22	2.5-8	200-300	1250*600*850	400
YSKJ-300	22	2.5-20	250-350	1300*600*900	580

The pellets of the machine making

Desiel engine pellet machine
