Laboratory Wool Carding Machine Price
- Category: Carding Machines >>>
- Supplier: Qingdao Yisun Machinery Co. Ltd.
Share on (60572764542):
Product Overview
Description

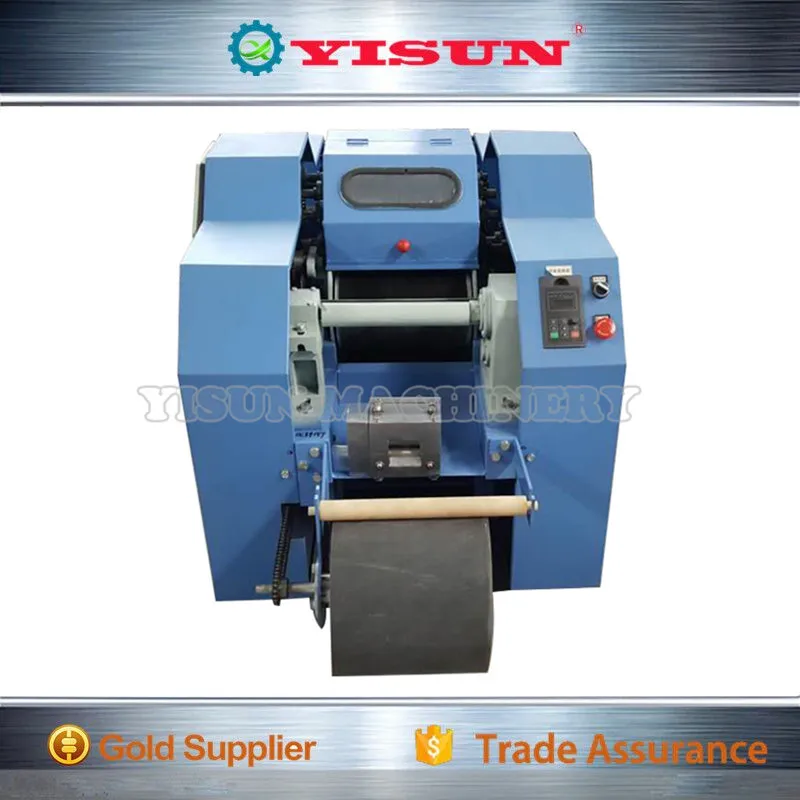

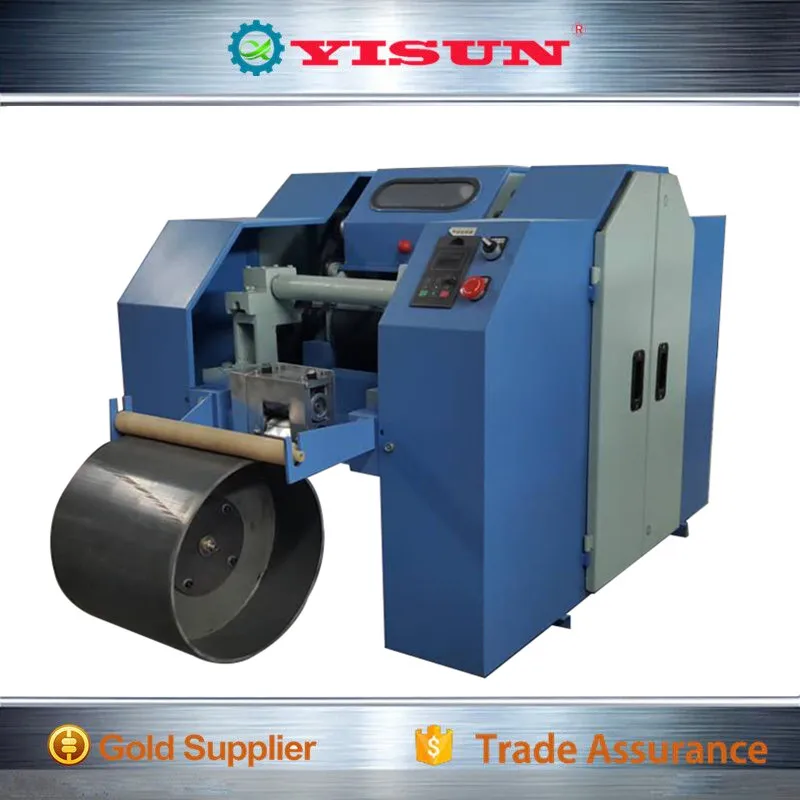

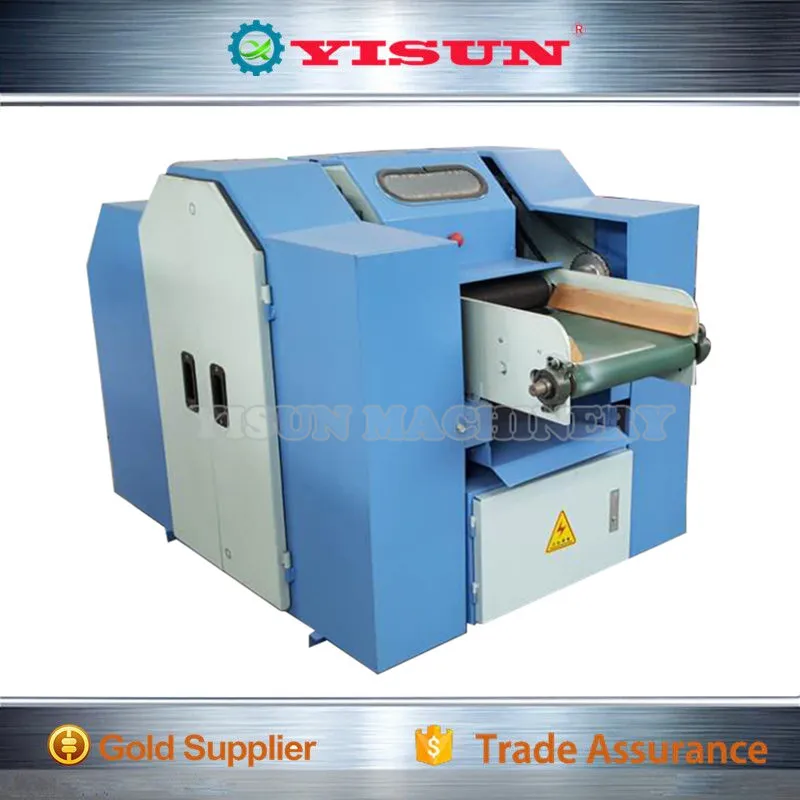

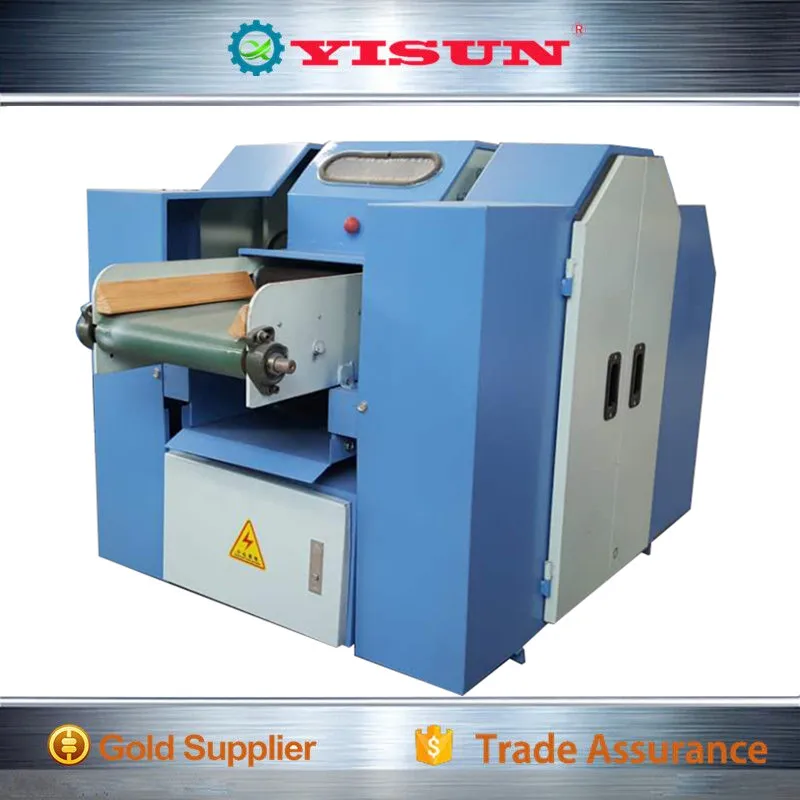

YX107 Laboratory Wool Carding Machine Price
Producing web and slivers in one carding machine.
Product Overviews
1) Driven by a grade motor of 2.2kw, equipped with a set of electric cabinet and a inverter
2) Fully protective cover made by transparent organic glass and fram made in aluminium alloy
3) Cutting knife stripping, wooden roller revolving cotton
4) Double rollers feeding
| Position | Right hand(Facing doffer) |
| Feeding curtain(mm) | length:400/1000 |
| Cylinder width(mm) | 360 |
| Cylinder working diameter(mm) | Φ450 |
| Doffer working diameter(mm) | Φ220 |
| Lincker-in working diameter(mm) | Φ165 |
| Working roll working diameter(mm) | Φ110 |
| Stripping roll working diameter(mm) | Φ90 |
| Motor power | 4 grade 2.2kw |
| Dimension(L*W)(mm) | 1500*900 |
| Weight(kg) | 500 |

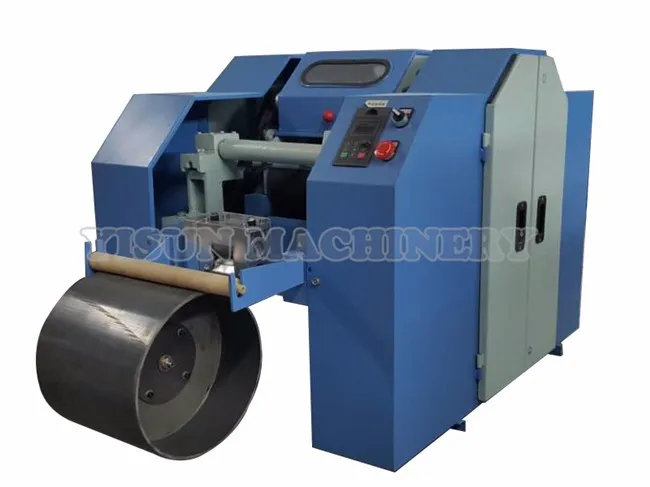

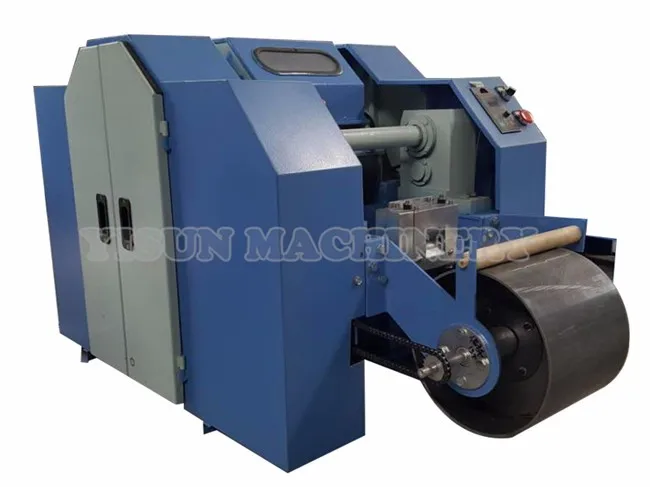

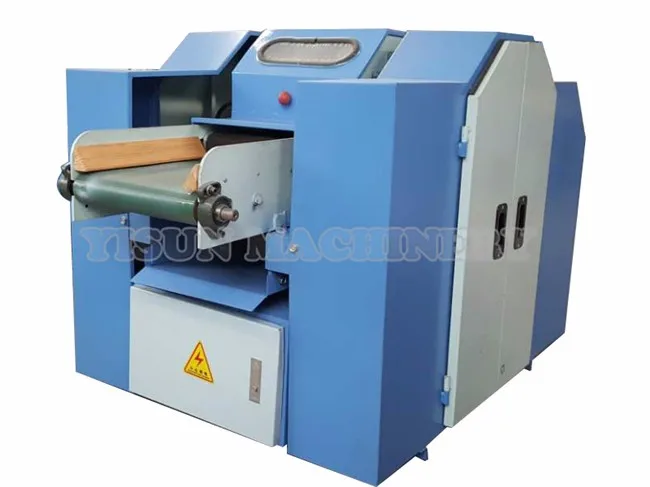

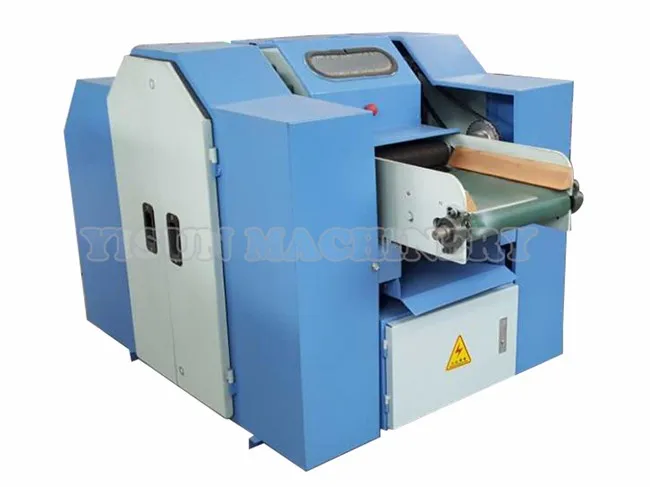

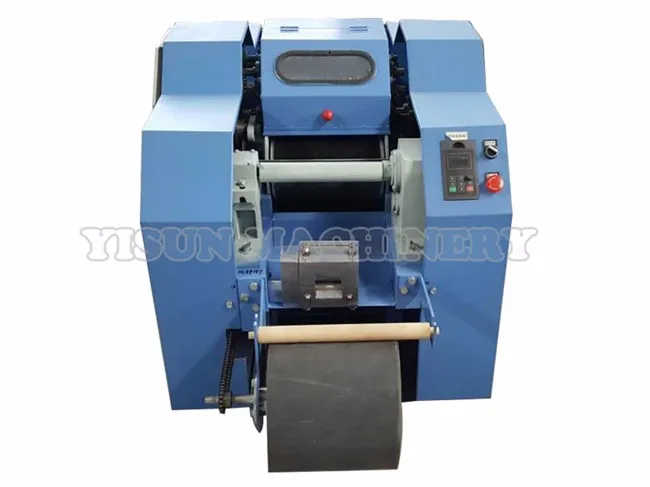

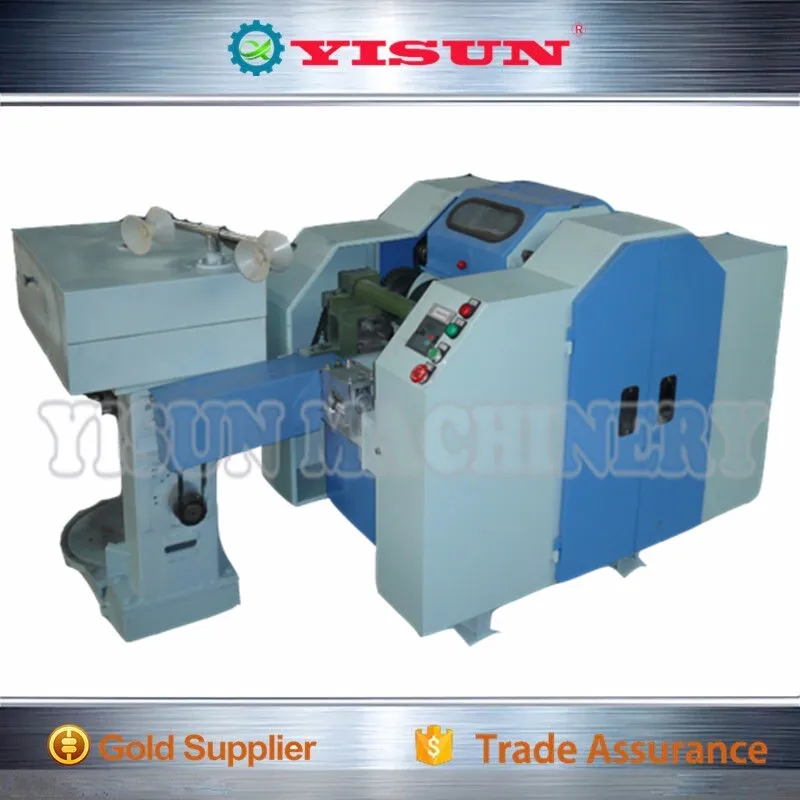

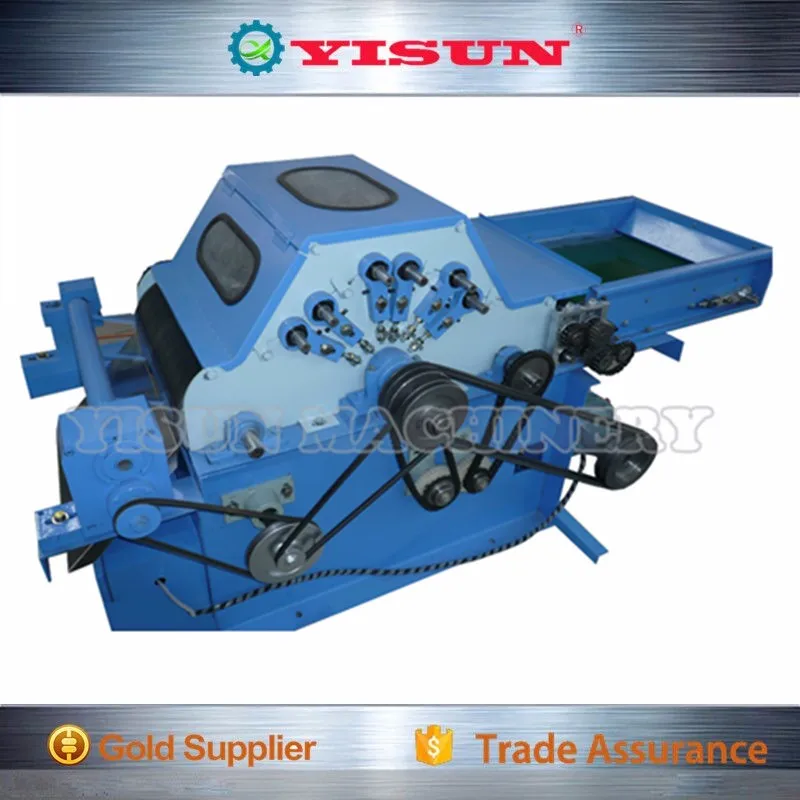

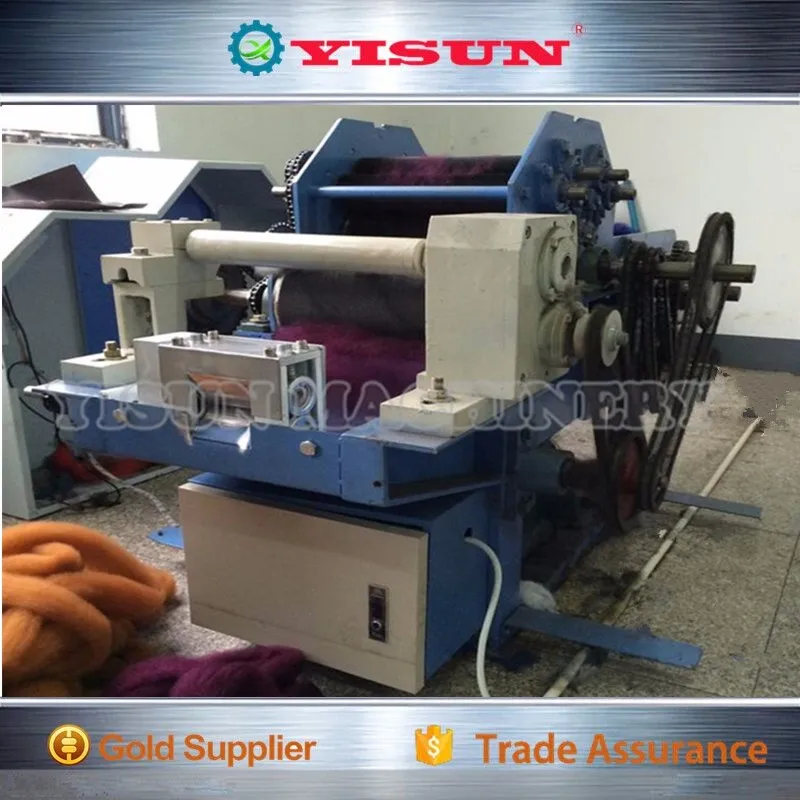

Detailed Images
