Deutz HND TBD234 Series marine diesel engine V6 V8 V12
- Category: >>>
- Supplier: Xiamen Sitaiqi Industry & Trade Co. Ltd.
Share on (60572854980):
Product Overview
Description
Deutz HND TBD234 Series marine diesel engine V6 V8 V12

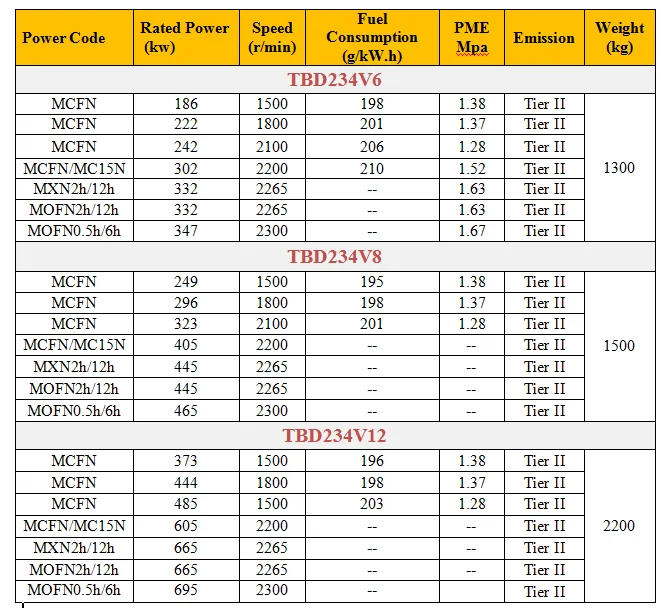

Main Technical Data
Main Technical Data | |
Bore / Stroke (mm) | 128/140 |
Cylinder Arrangement | V-60° |
Number of Cylinder | 6 / 8 / 12 |
Unit Cylinder Volume (dm³) | 1.8 |
Compression Ratio | 15:1 |
Max. Combustion Pressure (MPa) | 15 |
Min. Speed at Full Load (r/min) | 1000 |
Min. Steady Speed (r/min) | 650 |
(20℃) Ignition Speed (r/min) | 115 |
Direction | Anti-clockwise rotation (from flywheel end) |
Lub. Oil Consumption (g/kw.h) | ≤1.4 |
Company Information
HND Engine Power Coverage 116~2336KW
Model | POWER KW 200 400 600 800 1000 1200 1400 1600 1800 2000 2200 | |||||||||||
TBD234V6 |
|
|
|
|
|
|
|
|
|
|
|
|
TBD234V8 |
|
|
|
|
|
|
|
|
|
|
|
|
TBD234V12 |
|
|
|
|
|
|
|
|
|
|
|
|
TBD314 |
|
|
|
|
|
|
|
|
|
|
|
|
TBD604BL6 |
|
|
|
|
|
|
|
|
|
|
|
|
TBD620L6 |
|
|
|
|
|
|
|
|
|
|
|
|
TBD620V8 |
|
|
|
|
|
|
|
|
|
|
|
|
TBD620V12 |
|
|
|
|
|
|
|
|
|
|
|
|
TBD620V16 |
|
|
|
|
|
|
|
|
|
|
|
|
MAN L16/24 |
|
|
|
|
|
|
|
|
|
|
|
|
MAN L12/31 |
|
|
|
|
|
|
|
|
|
|
|
|
| 200 400 600 800 1000 1200 1400 1600 1800 2000 2200 POWER KW | |||||||||||
