Product Overview

Description

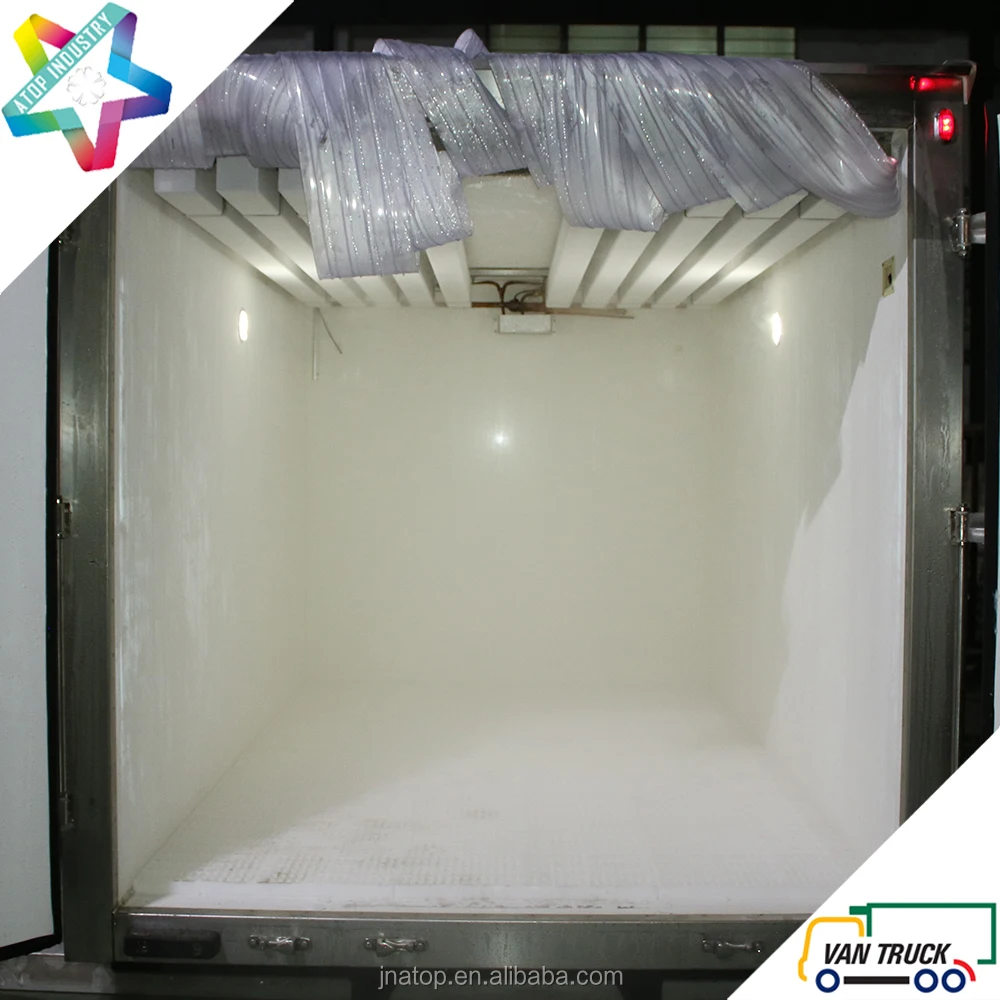

Ice Cream Truck Body
\t

Ice Cream Truck Body
Key Features

\t
ColdKing ice cream truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
\t
Truck Body Outer Size
\t
3.2m(L)x1.9m(W)x1.9m(H) ice cream truck body
\t

Truck Body Inner Size

\t
2.99m(L)x1.69m(W)x1.69m(H)
mini ice cream truck body
\t
Roof/Floor Panel
\t
105mm Thickness
\t
Side Wall Panel
\t
105mm Thickness
\t
Front Wall Panel
\t
105mm Thickness
\t
Rear Door Panel
\t
105mm Thickness
\t
Panel Structure
\t
All Closed Sandwich
\t
Panel Insulation
\t
FRP + PU Foam + FRP
\t
Side Door Quantity
\t
Without Side Door
\t
Side Door Location
\t
None
\t
Side Door Type
\t
None
\t
Side Door Size
\t
None
\t
Rear Door Type
\t
Full Size Triple Opening Rear Door,  Middle Rear Door Open First
\t
Truck Body Flooring
\t
Reinforced Floor Covered With Removable PVC Grating mini ice cream truck body reefer truck body  mini ice cream truck body reefer truck
\t
Cargo Control System
\t
None Ice Cream Truck Body
\t
Ceiling Light ice cream truck body
\t
2 (Two) Sets of 12/24V Multi-Voltage LED
\t
Marker Light  ice cream truck body
\t
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
\t
Ceiling Light Switch  ice cream truck body
\t
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
\t
Insulating Curtain
ice cream truck body
\t
European Standard -40C PVC Strip Curtain System For Rear Doors
\t
Refrigeration Unit
Service Ladder
\t
None/Optional
ice cream truck body
\t
Refrigeration Unit
Service Platform
\t
None/Optional
ice cream truck body

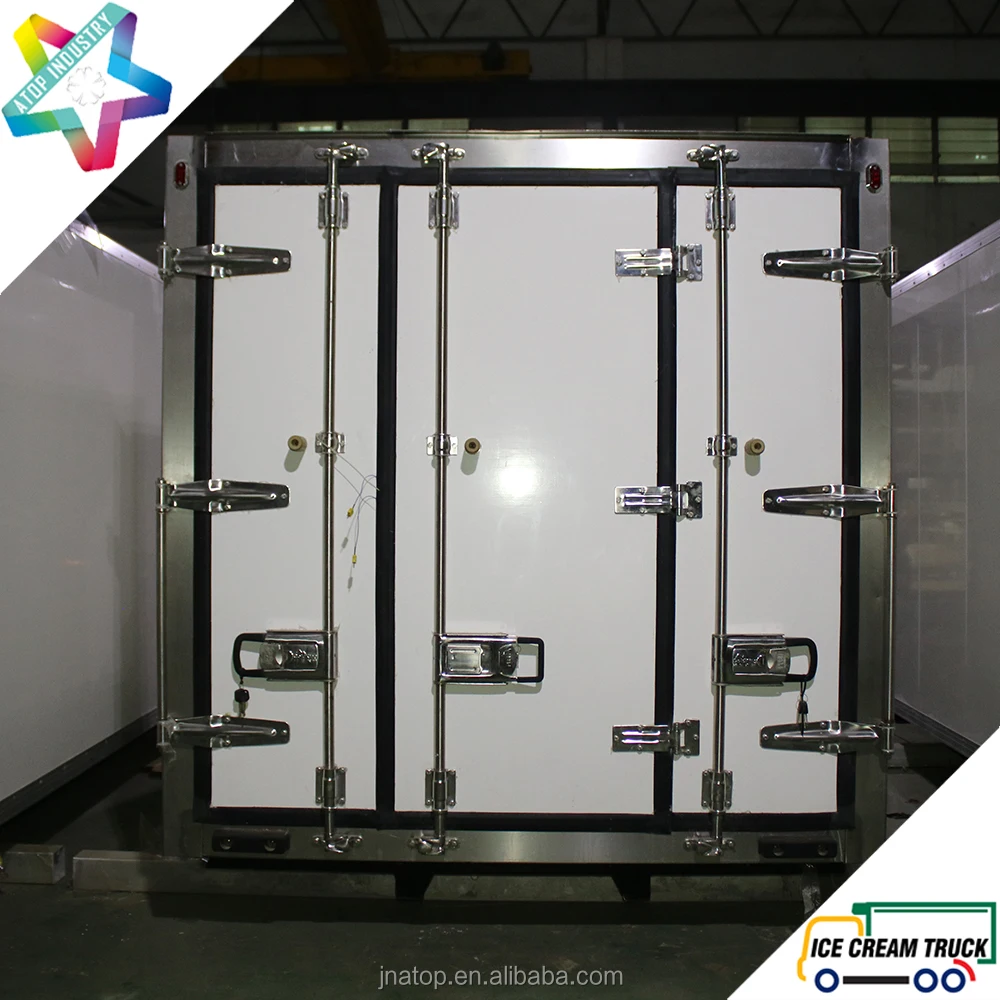

Full Size Triple Opening Rear Door

With Full Sets of Stainless Steel Lock Sets & Hinges, Sealed By Low Temperature High Quality Door Gasket

Over-Cab Condenser Mounted

Over-Cab condenser mounted to fit light duty truck chassis cab style Ice Cream Truck Body

Kooltube Eutectic

ColdKing Kooltube Eutectic System

is a holdover or latent heat storage system. It is one of the simplest refrigeration systems and has been around in its basic configuration for many years. Simply, it can be compared to a block of ice in a glass of water or to the freezer pack, which you freeze in your fridge at home and put into a cooler box to keep your drinks cold.The eutectic beams perform the same function as the block of ice or freezer pack while the condenser replaces your domestic fridge. The system is plugged into an electrical supply until the tubes are properly frozen, unplugged and then the vehicle used for its delivery round.
\t
Refrigeration Unit Model
\t
KT260-10N
\t
Refrigeration Unit Brand
\t
ColdKing
\t
Refrigeration Unit Type
\t
AC Power Driven Eutectic Solution, Condenser Split mini ice cream truck body
\t
Compressor Cooling Capacity:
\t
2,485W (@ -40C)
\t
3,335W (@ -35C)
\t
5,620W (@ -25C)
\t
Total Refrigeration Heat Exchange Rate
\t
5,980Kcal/h mini ice cream truck body
\t
Refrigerant
\t
HFC R404a
\t
Defrost
\t
Manual Warm Water
\t
Condenser Mounted Method
\t
Over-Cab
\t
Kooltube Beams Size x Qty.
\t
2.60m(L) x 10 Pcs
\t
Compressor Brand & Power
\t
Bitzer 3.0Hp
\t
Expansion Valve
\t
Danfoss
\t
Condenser Fan
\t
EBM
\t
Thermometer
\t
REFCO
\t
Power Supply Voltage/Phase/Frequency
\t
220V/3Ph/60Hz mini ice cream truck body

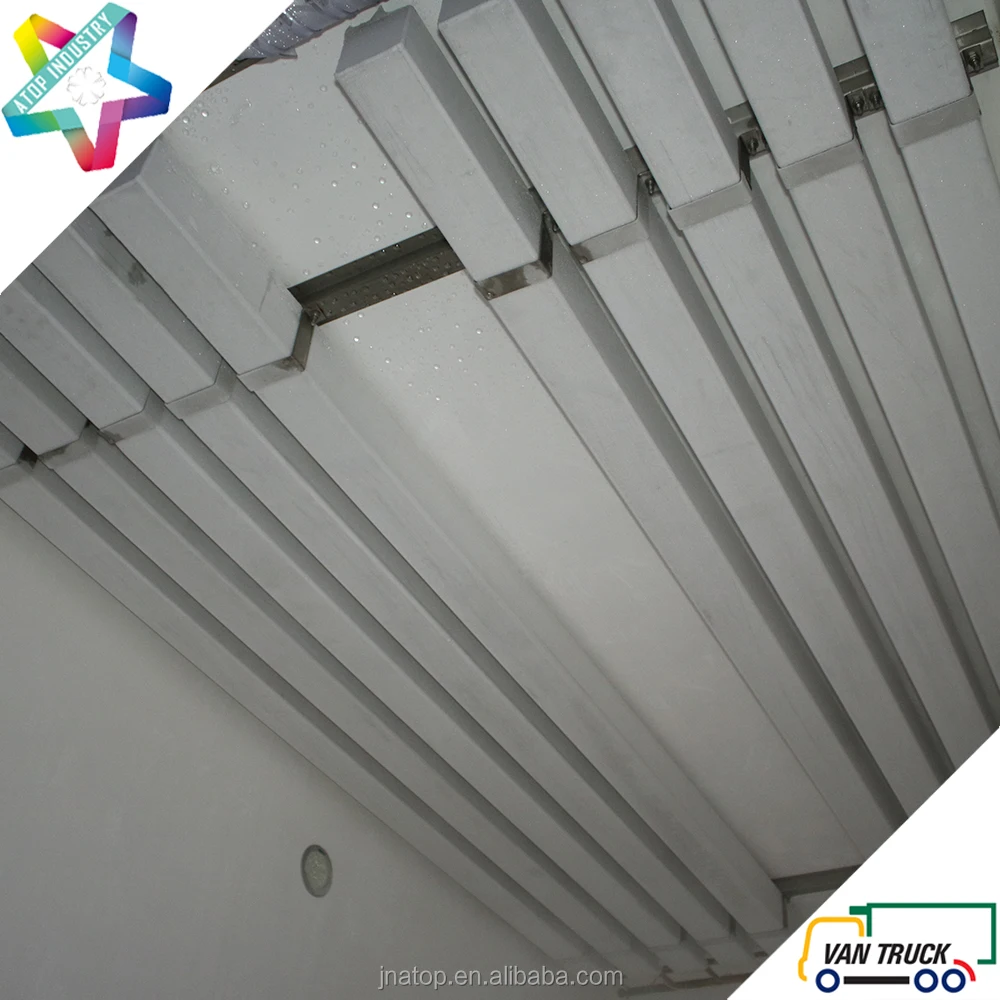

2,600mm(L)  x 10 pieces Kooltube Beams  ice cream truck body

The Kooltube beam is extruded aluminum containing a non-toxic eutectic solution. A wide range of solutions is available for various temperature applications. mini ice cream truck body

Bitzer Compressor

Germany brand BITZER compact semi-Hermetic reciprocating compressors boast an efficient suction gas–cooled motor, high-quality valve plates, wear-resistant drive gears and adjustable capacity control. This gives the BITZER compressor, which can also be used at very low condensing temperatures, a beneficial seasonal energy efficiency beyond comparison.

Danfoss Parts

Schneider Electric Control

EBM Fan

Why Kooltube
\t
The advantages of KOOLTUBE EUTECTIC refrigeration systems as opposed to other EUTECTIC PLATE refrigeration system are as following:
\t
Lighter:
\t
For same refrigeration capacity, KOOLTUBE EUTECTIC refrigeration system is15% lighter than EUTECTIC PLATES refrigeration system. It is helpful to reduce curb weight and to raise loading capacity.
\t
Better Stability:
\t
Normally, there are need 3-8 pieces EUTECTIC PLATES for usual dimension truck body, but for Kooltube EUTECTIC system is just need 8 -12 pieces tubes inside. In case of that one of them damaged or shut down,that is means Kooltube system just lost 1/8 or 1/12, but for EUTECTIC PLATES is 1/3 or 1/8. It will harm goods' quality badly.
\t
Easy installation:
\t
Due to rectangular tube structure and lighter weight (10.5kg/M), Kooltube is easier installation than EUTECTIC PLATES. It is enough to install whole kooltube system by two skilled workers. But, for eutectic plates system, the 80kg of each plate will occupy 3-4 workers to install it. And the design of each one or two eutectic plates with one expansion valve is challenge for engineer to make a symmetrical refrigeration effect. However, Kooltube eutectic just has one expansion valve for whole system. It is easy to adjust whole system at good condition.
\t
Better Efficient:
\t
Scientifically, cold Air exchange downwards. As eutectic plates is flat structure. That is means it has almost 50% performance is useless because one surface of eutectic Plate is face to roof panel.It just have 50% surface to working for body space, so they need install more eutectic plate inside body to remedy its shortage. But Kooltube eutectic system is efficient structure, it just have about 20% surface is face to roof panel; almost 80% surface is available to work.
\t
Safety & Long Life:
\t
Kooltube's eutectic solution is safe, non-toxic and non-corrosive for foods. eutectic plate’s cooling brine mixture solution is corrosive and skin irritation. And, for long time working, once rusting on iron shell, its corrosive mixture solution will erode and perforate eutectic plate easily. If so, when its mixture solution falls onto skin or foods, it is terribly.
\t
Excellent Suitability:
\t
Kooltube is tailor-made products, so we can meet any body dimension requirements. eutectic plates are standard dimension.
\t
Faster:
\t
Due to efficient structure and powerful condenser unit, at same body dimension and refrigeration capacity, Kooltube absolutely provide enough frozing power to goods, and it will take less time than eutectic plate.
\t
COMPARISON BETWEEN THE TWO SYSTEMS
\t
Item
\t
KOOLTUBE
\t
EUTECTIC PLATE
\t
Weight
\t
Light
\t
Heavy
\t
Materials
\t
Aluminum Alloy & Stainless Steel
\t
Galvanized Iron
\t
Antirust
\t
Excellent, never rust
\t
Bad, easier rust to perforating action on iron shell
\t
Safety
\t
Non-toxic, non-corrosive eutectic solution
\t
Corrosive cooling brine mixture solution
\t
Skin Irritation
\t
Non
\t
Yes
\t
Icing
\t
Difficult
\t
Easy
\t
De-icing
\t
Easy
\t
Difficult
Optional Items

Hydraulic Tail Lift mini ice cream truck body

Aluminium Alloy/Steel Platform Hydraulic Tail Lift Are Available

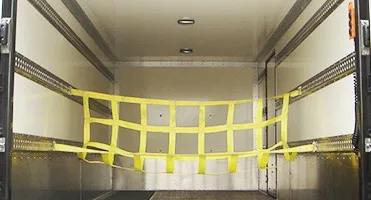

Cargo Control System mini ice cream truck body

Smart & customized cargo Loading control system

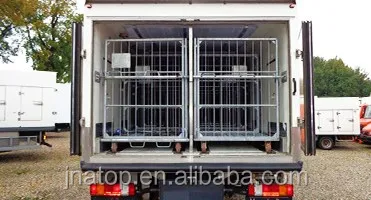

Roll Carts Ice Cream Truck Body

Roll carts for rapid and efficient loading, delivery and unloading goods mini ice cream truck body

Cargo Versatile Shelving

Offers a wide variety of cargo shelving from stainless steel to aluminum alloy ice cream truck body
Products Show

2.7m Ice Cream Truck Body

2.7m ice cream truck body fitted on Hyundai H100 truck chassis  mini ice cream truck body

2.4m Ice Cream Pickup Truck

2.4m (L) x 1.8m(W) x 1.5m(H) ice cream pickup body fitted on pickup chassis ice cream truck body

4.8m Ice Cream Truck Body

4.8m ice cream truck body fitted on Isuzu NPR truck chassis mini ice cream truck body
