Высокое качество средний долг Лидер продаж, партиями по 4 боковые мобильный защитная металлическая четыре колеса сетки провода транспорта роликовая тележка с крышкой
- Category: Cargo & Storage Equipment >>>
- Supplier: Hangzhou,E-Deck,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
High quality medium duty hot sale 4 side mobile safety metal four wheel grid wire transport rolling trolley with lid
Four sided nesting “A” frame, with top lid. Its tight mesh design makes it also the perfect anti-theft unit
Specifications of hot sale storage roll container
| Model No. | Exterior Dimension | Tube Diameter | Wire Diameter | Loading Capacity | Loaded in 1x40'HQ |
| LxWxH(mm) | mm | mm | kg | sets | |
| EDRC07 | 720x810x1650 | Φ20x2 | Φ8&Φ 6 | 600 | 450 |
| EDRC08 | 734x854x1680 | Φ19x2 | Φ10&Φ 6 | 600 | 320 |
| EDRC09 | 734x854x1680 | Φ19x2 | Φ10&Φ 6 | 600 | 320 |
| EDRC10 | 734x854x1680 | Φ19x2 | Φ3 | 600 | 320 |
| Material | Mild steel Q235 | ||||
| Available design | 1. Optional extra gates, removable shelf(each with 60kg to 80kg loading capacity) and top lid 2. Optional base - square, "A","Z" type design 3. Possible to add name plates for identification | ||||
| Application area | Warehouse, logistic, supermarket, etc. | ||||
| Finish | Zinc/powder coating | ||||
| Remark | Costomized or OEM support | ||||
| Product Features | 1.Steel frame with wire mesh in-fill 2.2 fixed and 2 swivel castors with or without brakes 3. Castors material options include nylon, pp as well as rubber | ||||
Related product design
(including storage cage, roll container, nestainer)
Product Uses
Usage:
Warehouse, logistic, supermarket, etc..

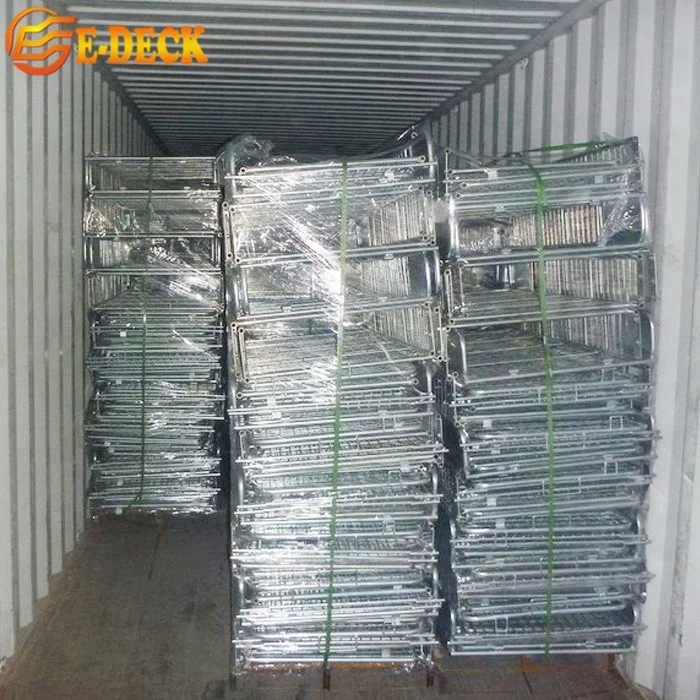

Packaging & Shipping
Packing
1. Plastic banding with wooden pallet
2. Stretch film wrapped
Delivery time
25-30 days for Wire Mesh Roll Cage after receiving 30% deposit
Payment
T/T:3-5 Working Days to The Account
Western Union:1-24 Hours to The Account
MoneyGram:1-24 Hours to The Account
PayPal:Immediately to The Account
Company Information
E-deck are specialized in material handling products/equipments, O.E.M, product development, raw materials and factory sourcing, and production planning and monitoring. In addition, we offer services in quality assurance, export documents handling and shipping coordination.
E-deck act as an extension of your own business to manage all vital aspects of your supply chain so that you can focus on your clients at ease.
• Custom-made solutions
• One-stop services
Main Product
If you have other needs, click here for more E-Deck product information
Our Services
FAQ
1, What is the material being used for your products?
---Mild steel Q235, Q195
2, How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift
truck or pallet jack.
3, What is the payment terms I can get?
---TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
---A.Electro galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galanized: it forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder(indoor/outdoor storage)
5. What is the loading capacity?
---In general, we have light duty(100~300kg) model,medium duty(400~800kg) model and
heavy duty(1000~1700kg) model available for your choice.
6. Which product can be used in cold storage?
---Mobile rack,wire container and roll cage are all widely used in cold storage.
7.I like your design, but couldn‘t find the right model from the products list, is custom size available?
---Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
9 I don'thave drawing or picture available for th custom products, could you design it for
me?
Yes, we can make the best suitable design for you but do need to know the details,such as a) dimension b) loading capacity c)stackability d)operation environment.
10 What is the minimum quantity I can order?
--1x20'GP - qty is variable depend on the size
11 What is your average production lead time?
--2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
-3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zn plated and powder coated proucts, no limitation for hot dip galvanized).
