SHG450 HDPE pipe workshop fitting butt welding machine
- Category: >>>
- Supplier: Rothenberger (Wuxi) Pipe Technologies Co. Ltd.
Share on (60573062647):
Product Overview
Description

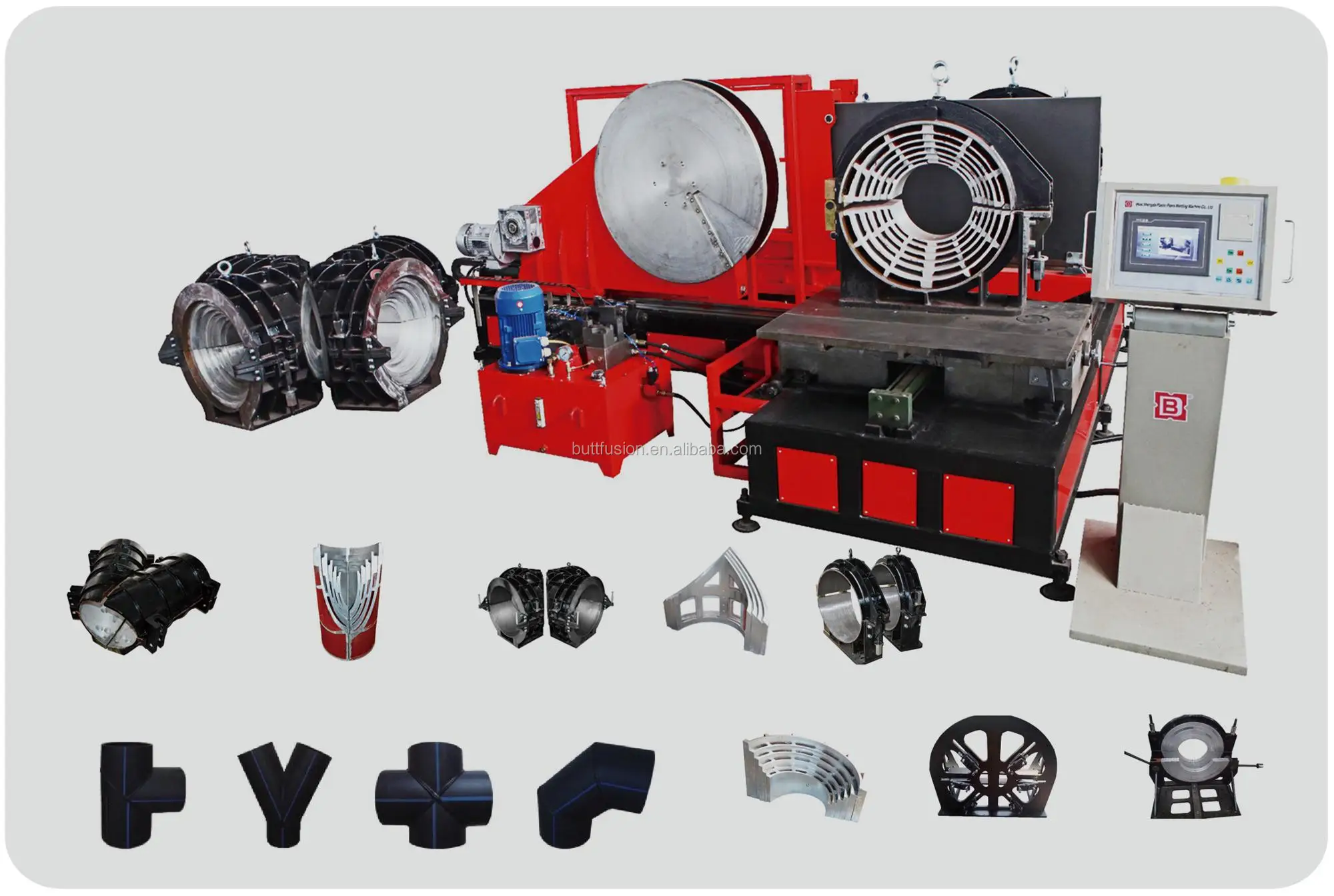

HDPE pipe fitting butt welding machine SHG450/200
Product Description
Application and features :
♦ Suitable for fabricating elbow, tee, cross and Y shape (45° and 60 °) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
♦ Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
♦ Removable PTFE coated heating plate
♦ Electric planing tool with safety limit switch
♦ Low starting pressure and high reliable seal structure
♦ CNC control with data logger and printer
The main parameters:
Model | SHG450 | |
Pipe sizes (mm) | 200,225,250,280,315,355,400,450 | |
Application | 0~90°Elbow, tee, cross, 45° and 60° wyes(optional parts should be used) | |
Heating plate Max. Temp. | 270°C | |
Temp. deviation in surface(170~250°C) | <±7°C | |
Pressure adjustable ranges | 0~16MPa | |
Working voltage | 380V,50Hz | |
Heating plate power | 12.2KW | |
Hydraulic unit power | 2.2 KW | |
Planing tool power | 3.0 KW | |
Total power | 17.4KW | |
Weight | 2850KG(Don`t include optional parts ) | |
Volume | 14.66 CBM | |
Optional parts:
♦ Special clamps for welding flange stub
♦ Special clamps for short spigot fitting
♦Special clamps for welding Y shape (45° and 60 °) fittings
Company Information

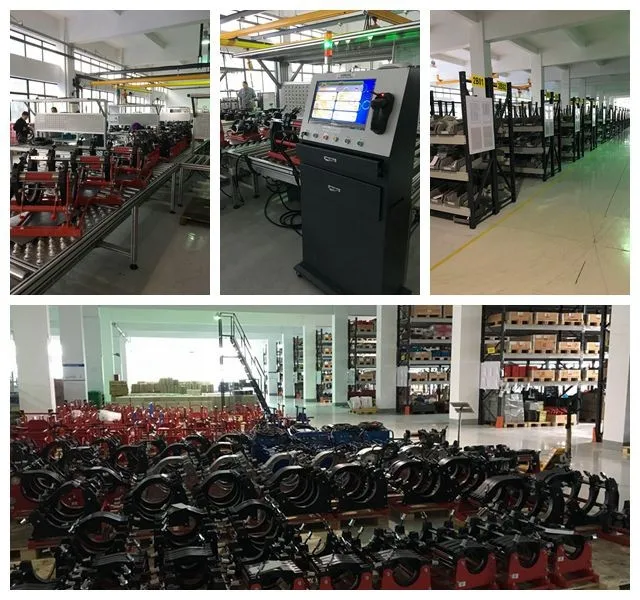

WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO., LTD is the leading manufacturer of PE pipe butt fusion equipment in China. We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment including field welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
In 2015, my company joined German ROTHENBERGER tools group, becoming one of the more than 50 companies under the first European big pipe tool production and sellers. with the German headquarters and subsidiaries throughout the world to work together, we will further development of domestic and international market.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the machines are in stock. If big worshop fitting machine or special machine, it will take about 15 to 40 days
Q: Can you design and produce special machines according to customer requirement ?
A: Yes, we have strong technical capacity, can develop any new products by ourselves totally.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
More productions
Our business scope includes as below,
1. HDPE pipe butt fusion machine(welding range:20mm-2000mm)
2. Fitting making machine to fabricate elbow,tee,cross and wyes fittings(welding range:63mm-2000mm)
3. Pipe saw to cut the pipe with different angle(cutting range: max:3000mm)
4. Saddle fusion machine to make reducing tee fitting
5. Electrofusion machine
