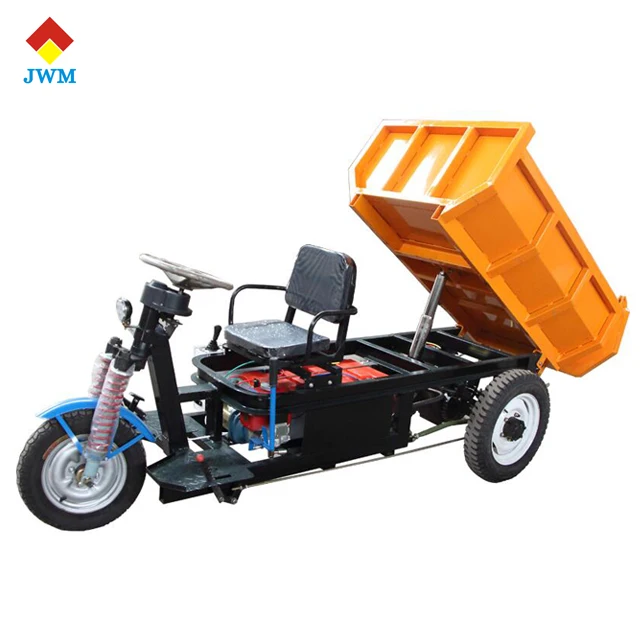

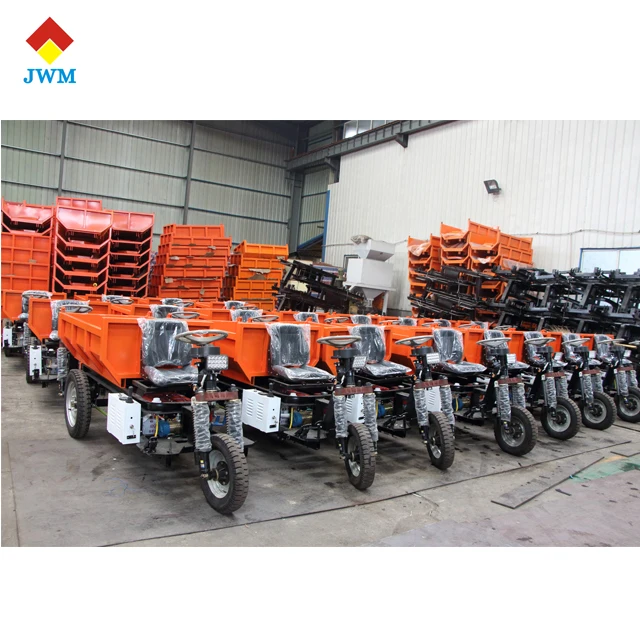

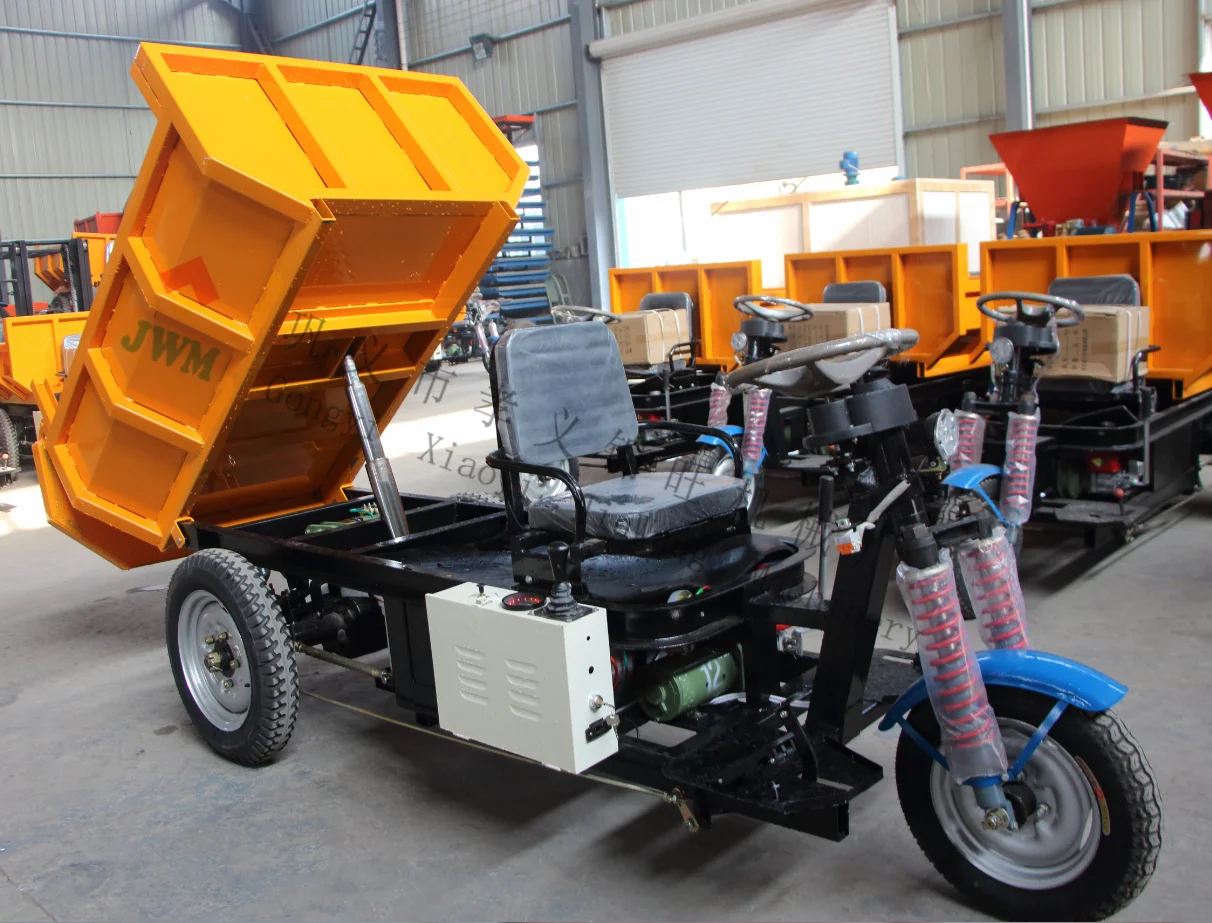

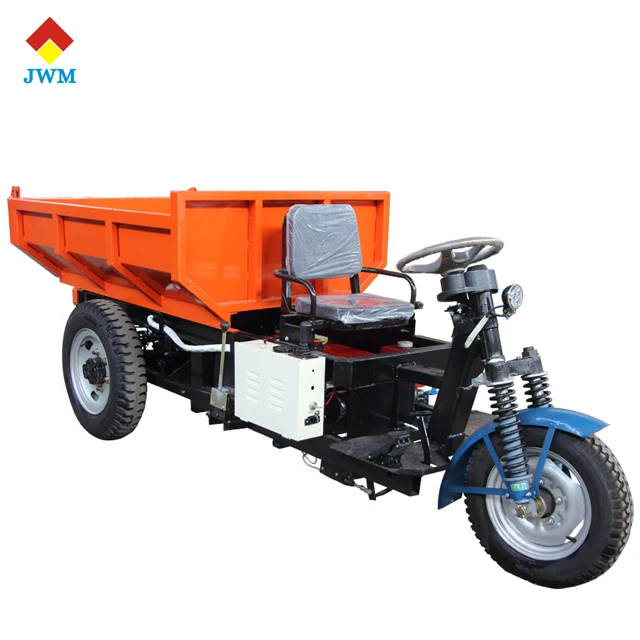

Electric mini dumper tricycle is our main product, using battery as power source in mining, brickyard, sanitation and cleaning. It has been improved many times with the advantage of large power, long work hours, heavy load and suitable for any road. We have three types of electric dumpers, ZY155, ZY165 and ZY180 for you to choose.
SPECIFICATIONS FOR ELECTRIC MINI DUMPER
Item
Technical
ZY155
ZY165
ZY180
Weight
Loading capacity
1000kg
1500kg
2000kg
Net weight
520kg
850kg
1000kg
Battery
Voltage
48V
60V
72V
Battery type
140Ah
160Ah
185Ah
Charging hour
First with 12 hours, then normal with 8 hours
Working hour
10 to 12 hours with a full charge
Motor
Lifting motor power
1000W
1000W
1000W
Driving motor power
1000W
1500W
2000W
Rotating speed
3500r/min
Tire
Front type
400-12
450-14
450-14
Rear type
450-14
500-14
600-16
Size
Overall Size(L×W×H)
2600*900*1200mm
3200*1100*1200mm
3600*1200*1400mm
Box Size(L×W×H)
1400*900*400mm
1700*1100*500mm
1800*1200*500mm
Thickness of Box
5mm
5mm
5mm
Workbench Height
600mm
700mm
720mm
Others
Operating speed
15-20Km/h
Maximun
25 degrees

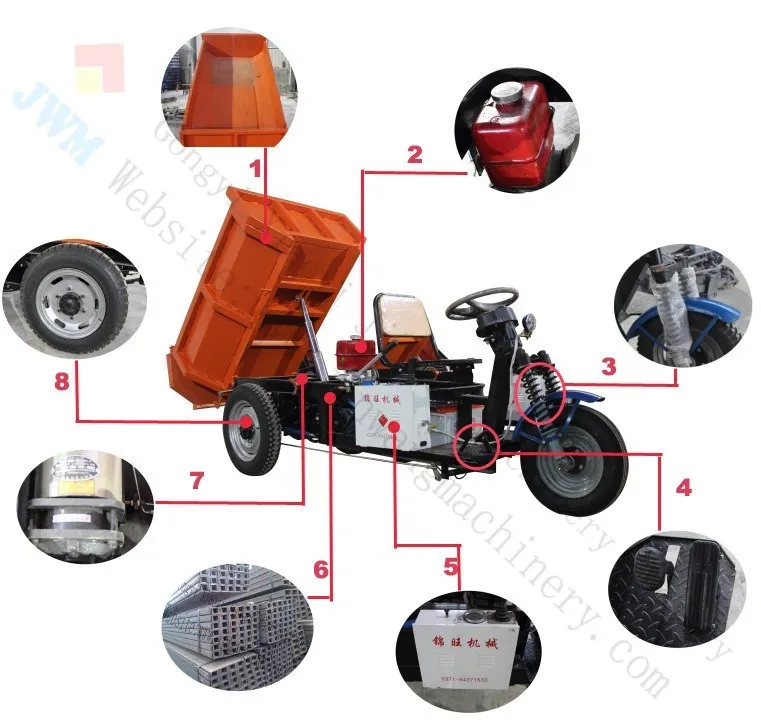

Detailed Images
1.Cargo boxes 2.Oil pump 3.Shock absorption system
4.Braking system (Accelerator pedal: control speed Brake pedal: quick and easy to touch)
5.voltameter 6.Frames
7.Motor (Lifting Motor :1000w ,Drive Motor:2000w)
8.Tires(Front tire: 400-12 Rear tire: 450-14)
Product Superiority
Main part 1

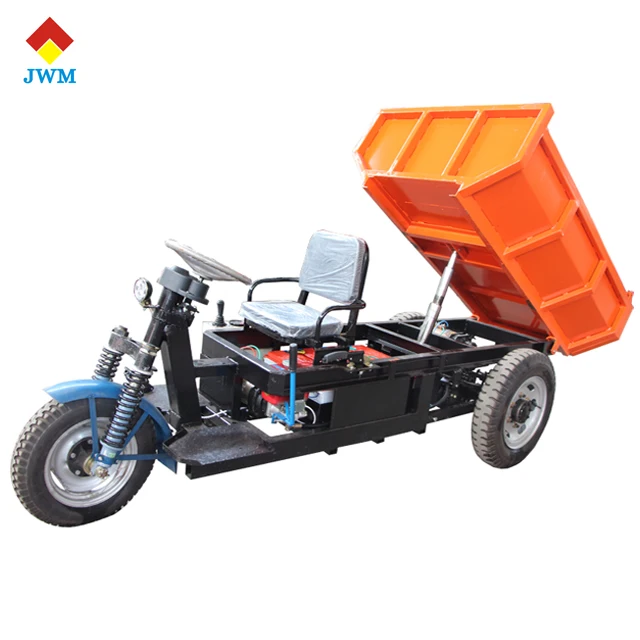

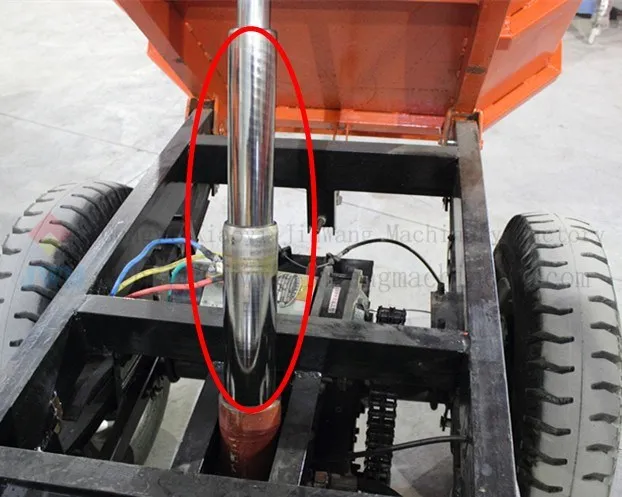

Name: Hydraulic lift system
Work quickly and efficiently
Hydraulic lift system can achieve the freedom of
dumping cargo, so that it can save time, manpower and material resource for improving work
efficiency.
Main part 2

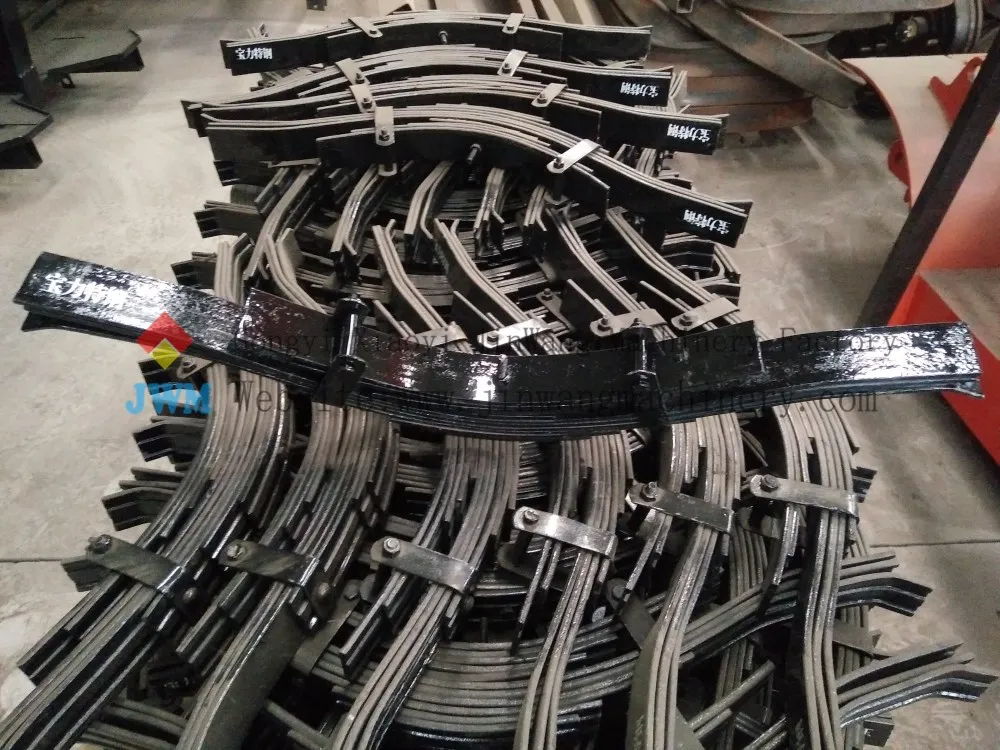

Name: Steel spring plate
Great load capacity, wide application range
Because all of them have the steel spring plate,
compared with same level of the electric dump
truck, ours' maximum load can reach 2 tons.
Main part 3

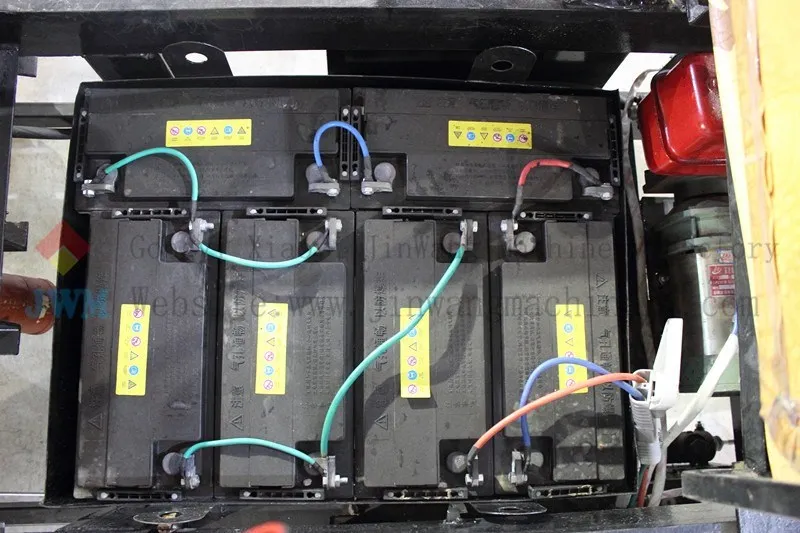

Name: Battery
No pollution, no noise, energy saving, and low cost
They use battery as power source, and an electric
charge can achieve sustained discharge 10-12
hours. Effectively reduce the cost.
Main part 4

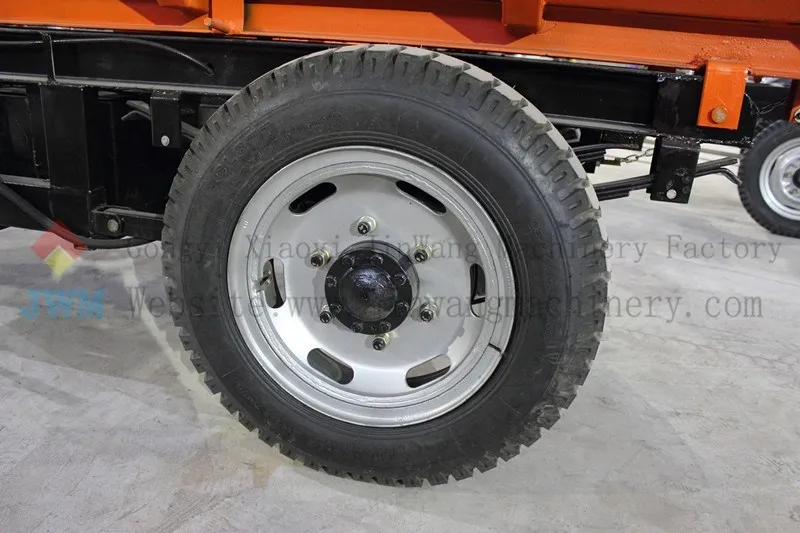

Name: Tire
As to tire, our factory adopts the high quality tire of chaoyang brand, which is heavy-duty and durable. So it can apply to any road condition.
Main part 5

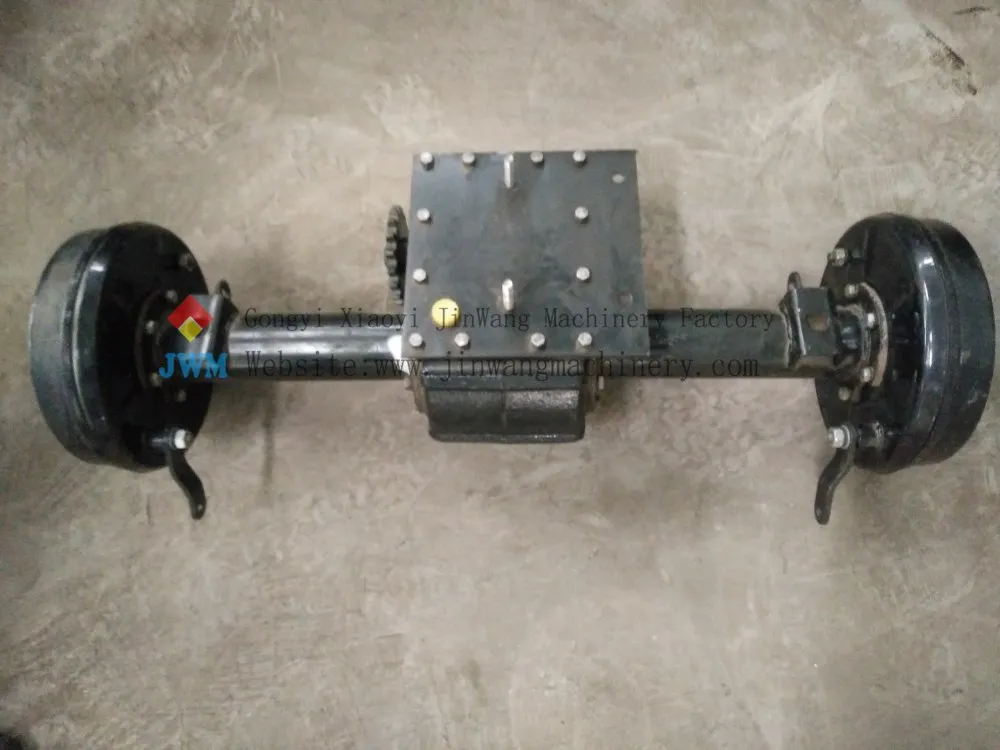

Name: Rear axle
As shown in the figure, our machines's load
capacity is very strong, so the rear axle use a very
strong material. It including the main axle; both
sides of the gearbox; two brake drum

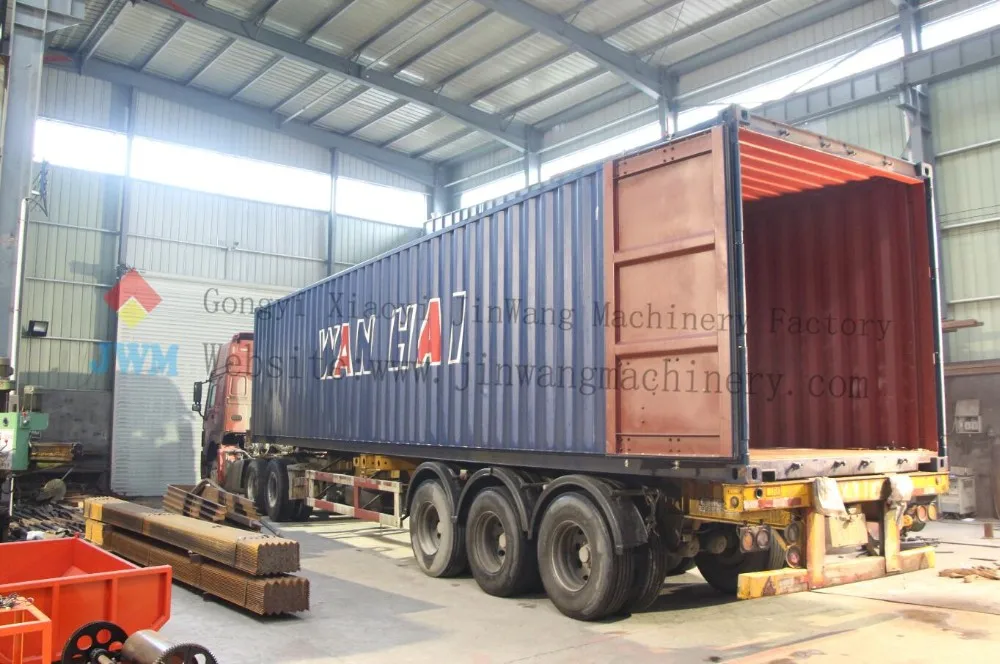

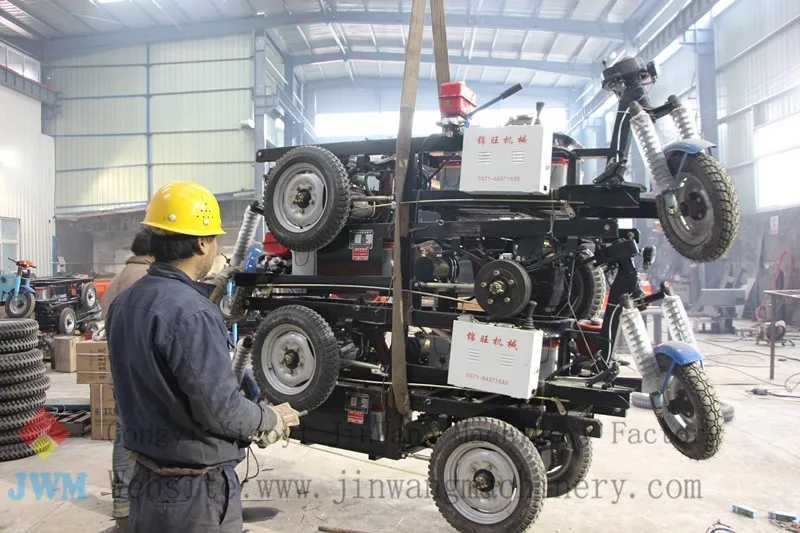

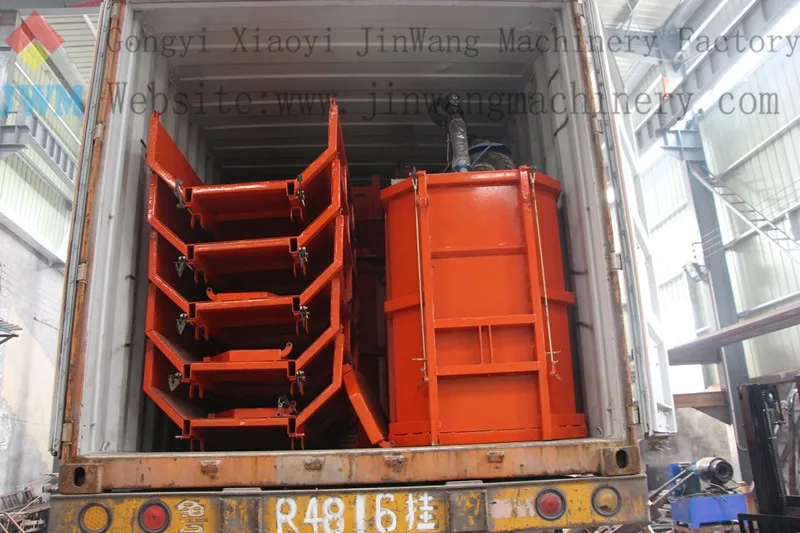

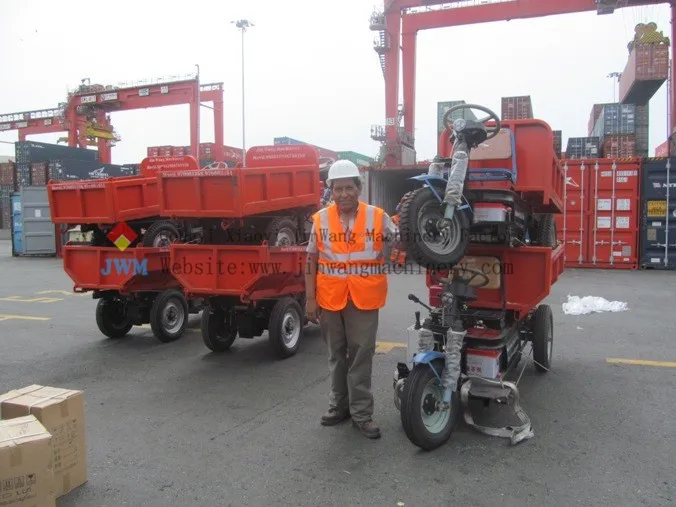

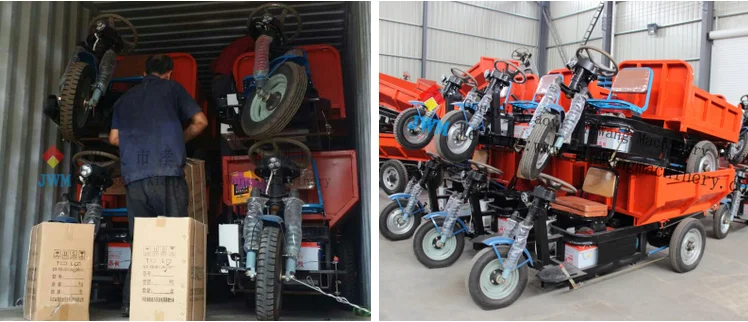

Packing&Delivery
Less than Container Load
Full Container Load
Load without Knock Down
Load with SKD(Semi Knock Down)
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to install and use the machine.
* Engineers available to service overseas.
Related Product

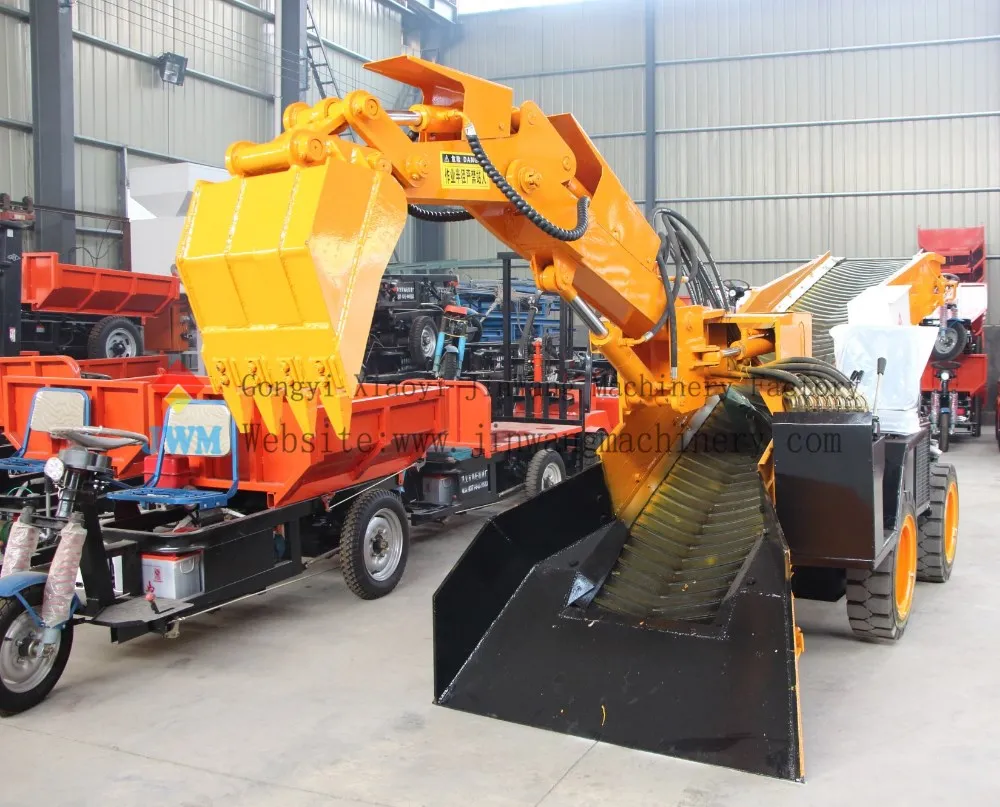

Mucking loader
