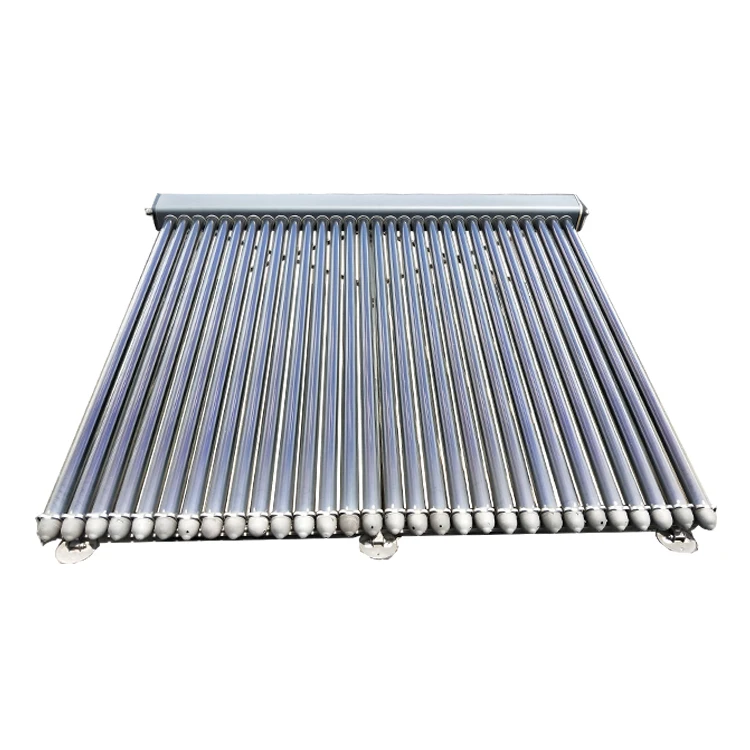

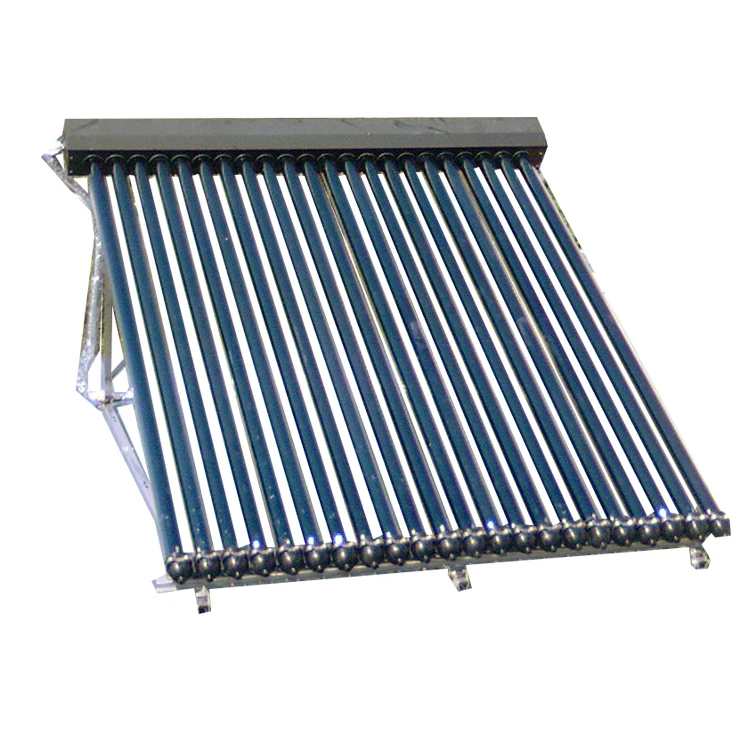

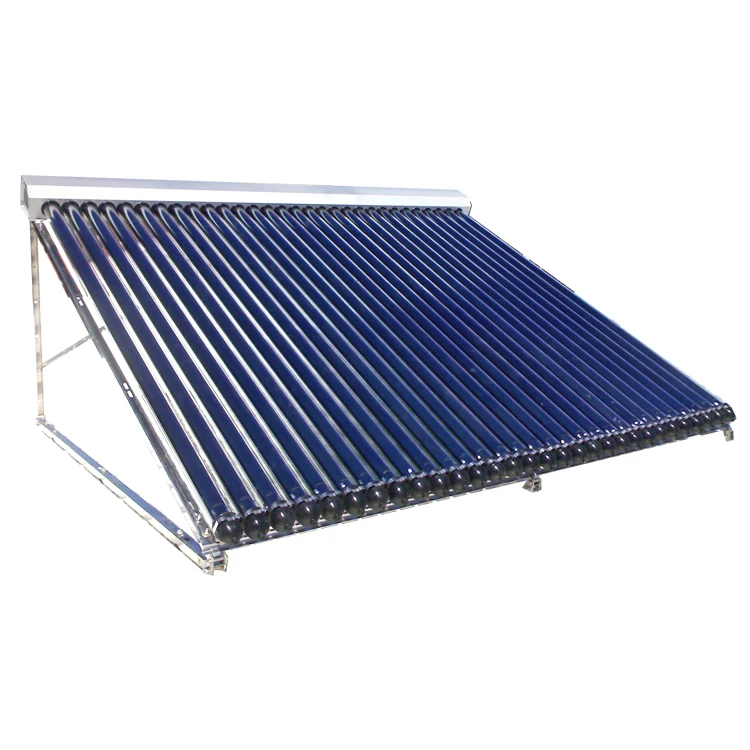

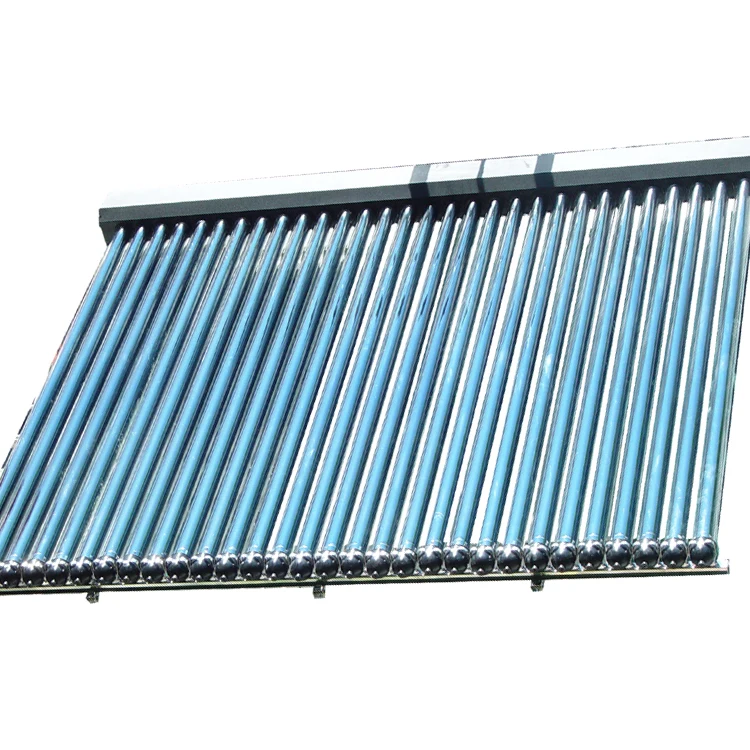

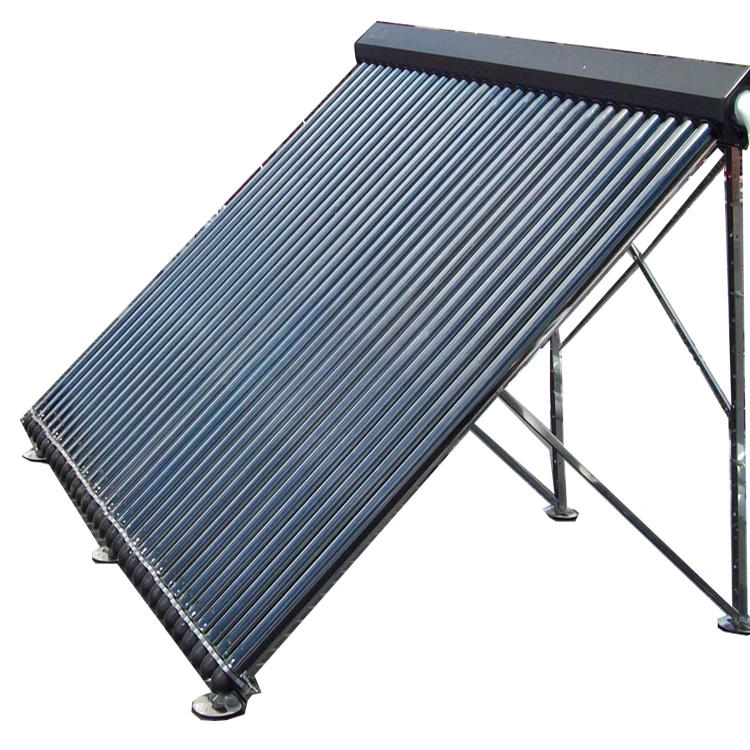

ETC-30 Solar Collector Complete is comprised of: 1 x ETC-30-KIT (Manifold and standard frame) 3 x BOX-ET/HP-10/10 (Tubes and heat pipes)

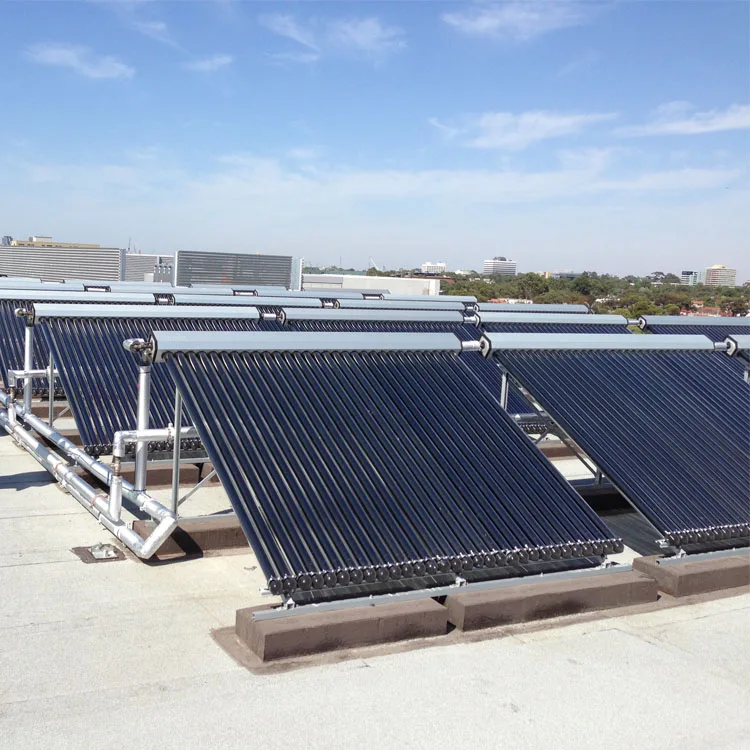

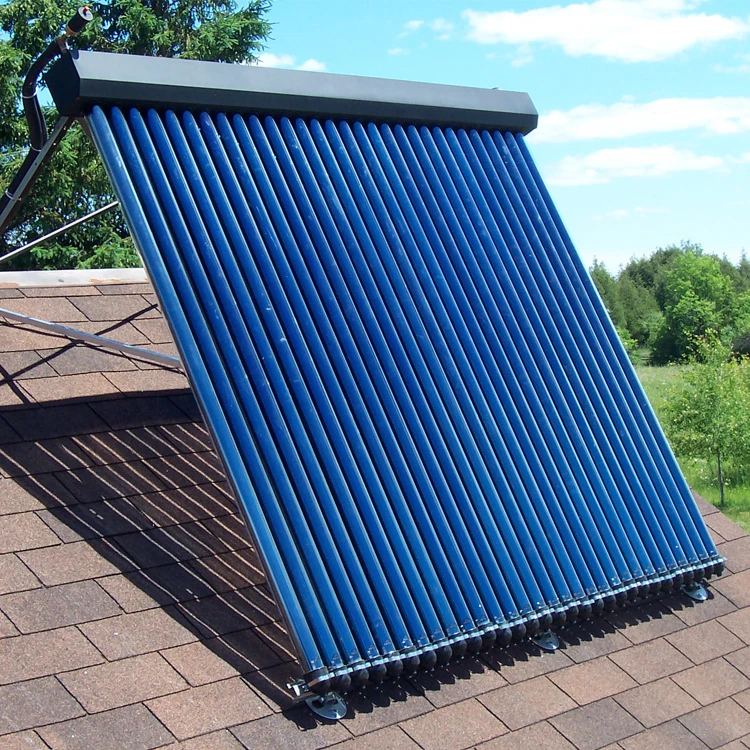

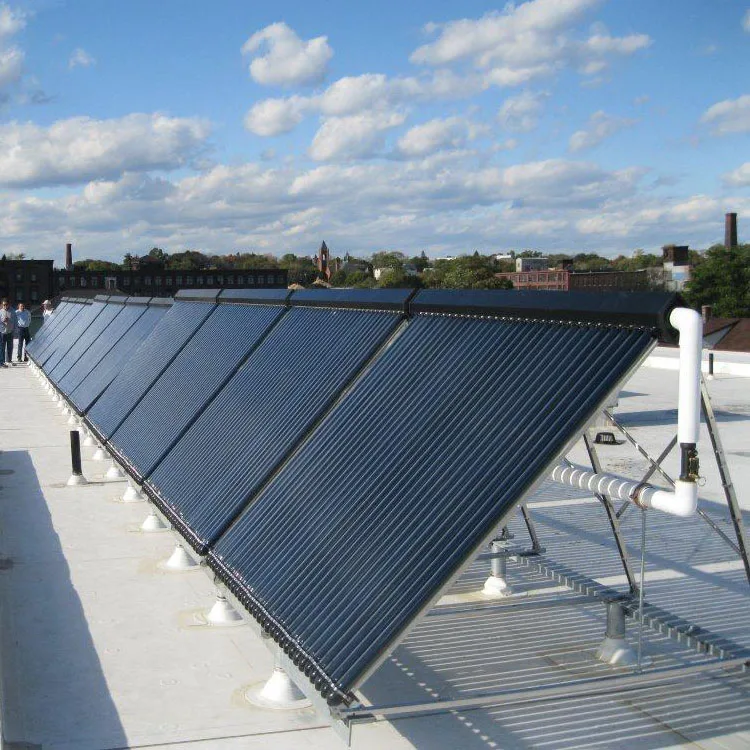

Applications The Apricus ETC-30 collector is designed to be used in a wide variety of solar thermal (heat) applications in almost any climate. The evacuated tube and heat pipe technology provides very efficient and reliable solar thermal production in a simple to install design.
Features • Twin glass evacuated tube (passive solar tracking) • Freeze resistant heat pipes • Only 4 braze points, extremely reliable header design • Steam-back and drain-back compatible • Potable water certified copper header pipe • Flared compressions fittings for reliable, leak free connections • Cyclone rated, corrosion resistant aluminium mounting frame • 10 year limited warranty on tubes and heat pipes • 15 year limited warranty on copper header and AL frame • Efficient performance at high differential temperatures
Materials of Construction
Evacuated Tubes:
Borosilicate 3.3 Glass
Absorber:
Cu-AL/N-SS
Heat Pipes:
High purity copper
Heat Transfer Fins:
Aluminium
Rubber Components:
HTV Silicone Rubber
Mounting Frame:
6005-T5 Anodized Aluminium
316 SS Fasteners
Manifold Casing:
3003 AL, PVDF coating
Performance Data
Recommended Flow Rate:
2 L/min
Max Flow Rate:
15 L/min
Peak Power Output:
2014 W
Eta0:
0.714 *
a1 (W/m2K):
1.243 *
a2 (W/m2K2):
0.009 *
* Data from TUV report 154035663 for Solarkeymark certification.
Physical Specifications
Dimensions (WxHxD):
2005 x 2195 x 136mm
Aperture Area:
2.84 m²
Gross Area:
4.4 m²
Gross Dry Weight:
95 kg
Fluid Capacity:
790 ml
Max Operating Pressure:
800 kPa
Stagnation Temperature:
228°C
Certifications
Solarkeymark:
011-7S2323R
AS/NZS 2712-2007:
100633
SRCC OG100:
10001909
USEC:
S-5995
NSF-61 Tested:
17248
Details
Company Information
Packaging & Shipping
1) Packing:
Neutral high quality box.
2) Delivery Information: SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them.
3) Shipping Method: By Express: Fedex,DHL,EMS,TNT,UPS. By Logistics: by air & sea. 4) Shipping Time: From Monday to Friday 8:00AM - 17:30PM.
5) Shipping Address: If by paypal, Please note items will only be shipped to verified users with confirmed shipping addresses. If by T/T, shipping address as communicate.
Our Services:
1) For all your inquiries about our products, we will reply you in detail within 24 hours.
2) Three - Five years warranty for all our products since shipment day.
3) Powerfull Research & Development Experience.
4) OEM & ODM Ability, We can print your own logo on product and packaging.
5) Strict QC TEST Control.
FAQ
1. Question: Are you a factory or trading factory? -----We are a factory supplier. Our office and production located in Nanjing city. Welcome to visit us.
2. Question: Can I ask a sample? -----Yes, we can send you a sample. We are in good relation ship with International courier, such as DHL, TNT, Fedex, UPS etc. 3. Question: Can you make our logo on your products? -----Yes, we accept to do OEM business. Please send us your logo design, our designer will develop your logo on your product order professionally. 4. Question: Do you have certificate, we need it to clear custom? -----Yes, 90% of our products are certified with certificate, and we have cooperation relationship with different labs. 5. Question: What is your payment, how can we pay you? -----Our company can accept T/T payment. If you have any other payment requirements, please leave massage or contact our online salesman directly.
