JZC 350 0.5 m3, 1m3, 500 litre Concrete Mixer

Product Overview

Description

Product Introduction

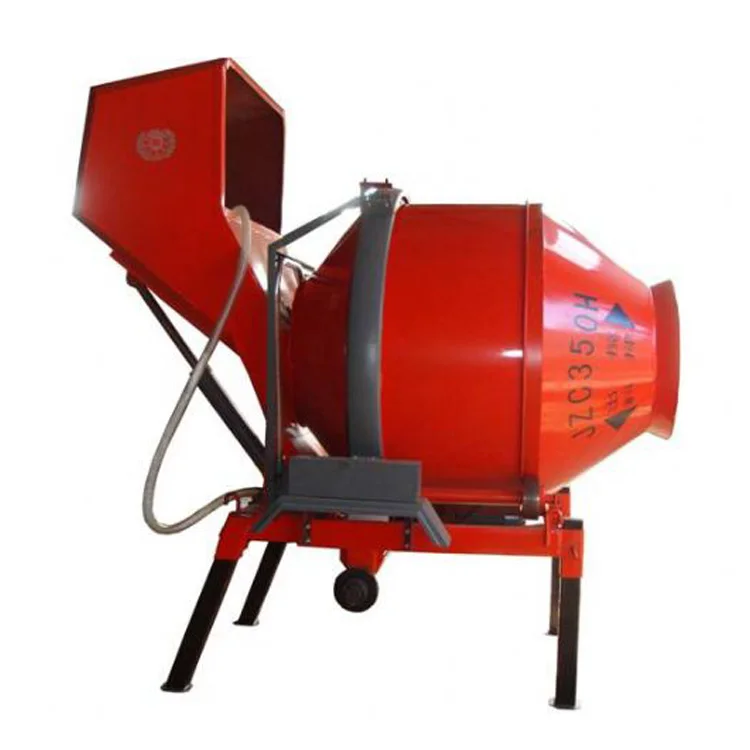

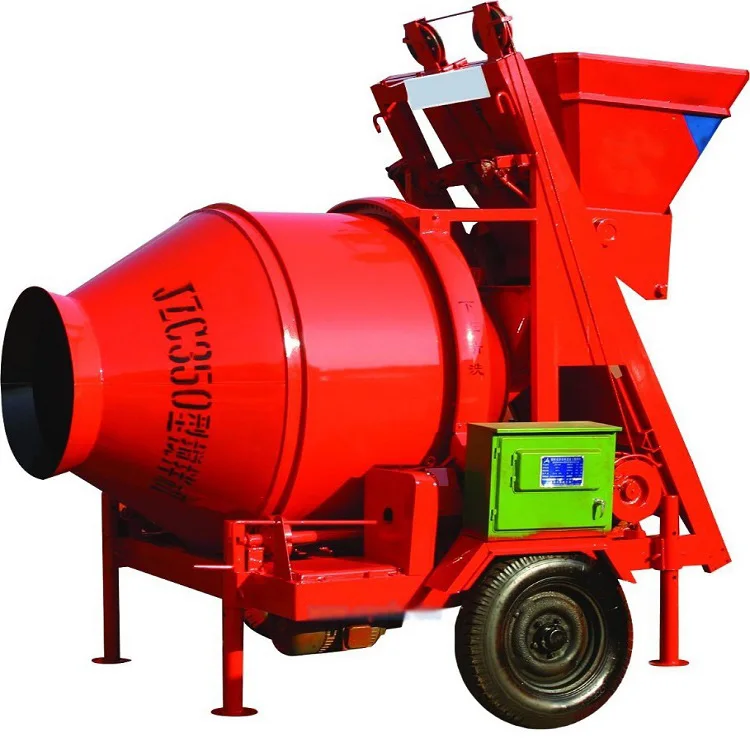

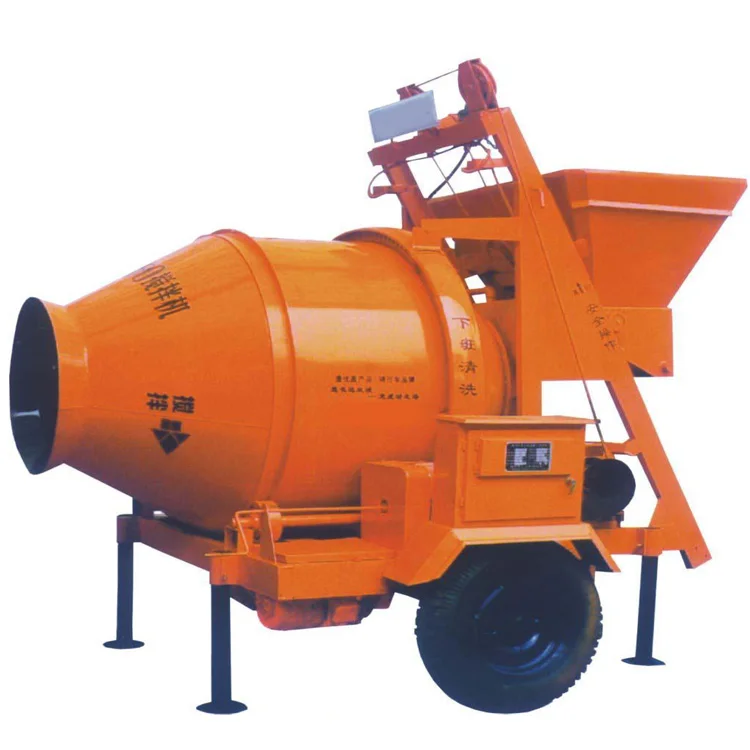

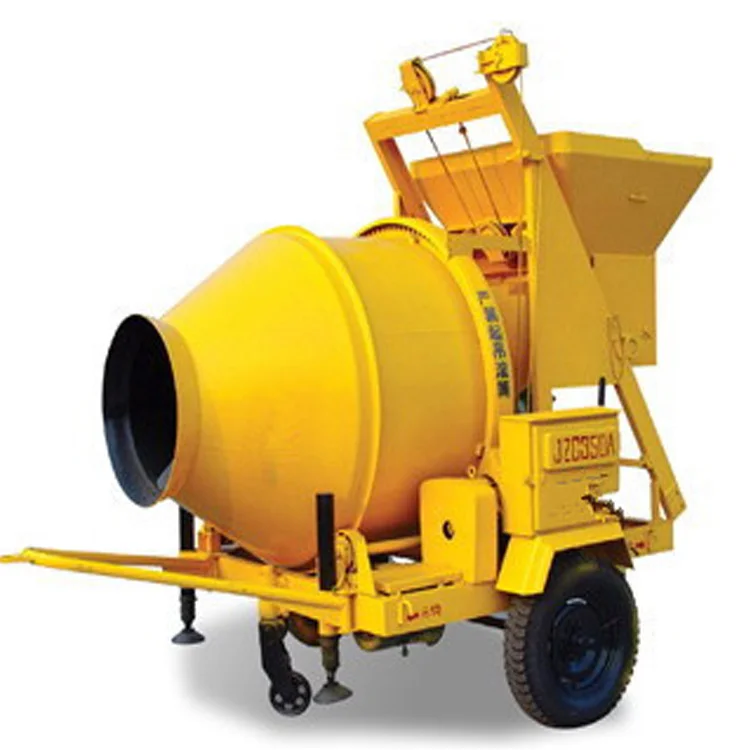

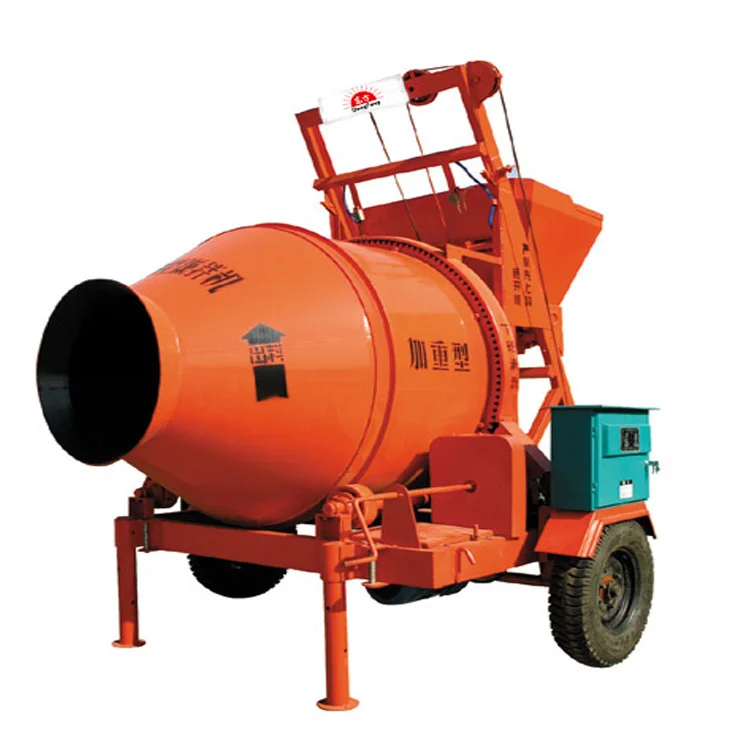

JZC 350 Concrete Mixer with Hydraulic Tipping Hopper is  mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.



 It is featured by diesel engine power, hydraulic tipping hopper, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, It is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.

Parameters



Model	JZC250	JZC350	JZC500	JZC750
Discharging Capacity	250L	350L	500L	750L
Loading  Capacity	320L	560L	800L	1200L
Productivity	6-8 m3/h	10-14 m3/h	14-18m3/h	20-22m3/h
Max diameter of Aggregate	60mm	60mm	60-80mm	60-80mm
Rated Power of Diesel Engine	4KW	5.5W	11W	15W
Power of Water Pump	0.55KW	0.55KW	0.75KW	1.1KW
Accuracy of Water Supply	Error≤2 Percent	Error≤2 Percent	Error≤2 Percent	Error≤2 Percent
Max Trailing Speed	20 km/h	20 km/h	20 km/h
Speed of Mixing Drum	17 RPM	14 RPM	13 RPM	13 RPM
Dimension in Container (L×W×H)mm	2260*1990*2750	2766*2140*3000	5226*2200*5460	6116*2056*6060
Weight	1300kg	1950kg	3100kg	4200kg

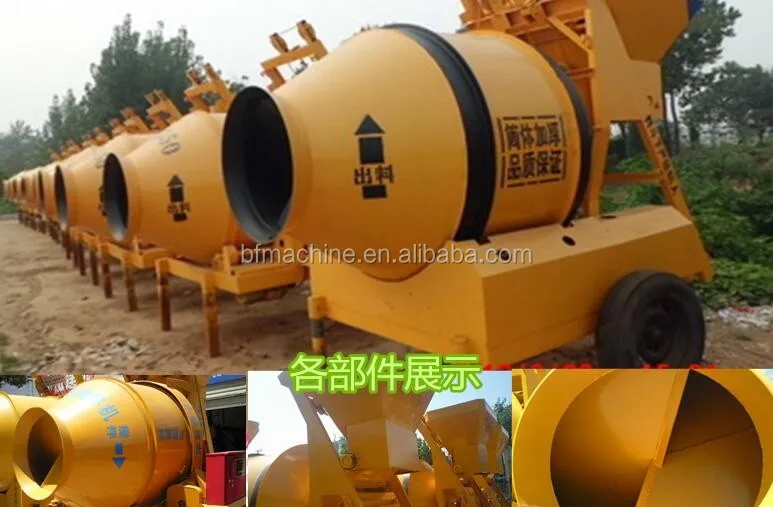

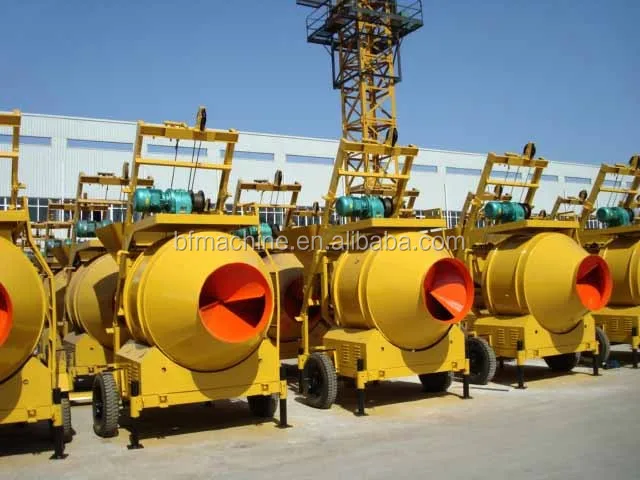

Detailed Photos
