usb rs485 to rj45 cable tester rs 485 rs485 communication cable
- Category: >>>
- Supplier: Shenzhen Ewormart Electronics Limited
Share on (60573717642):
Product Overview
Description
Product Description

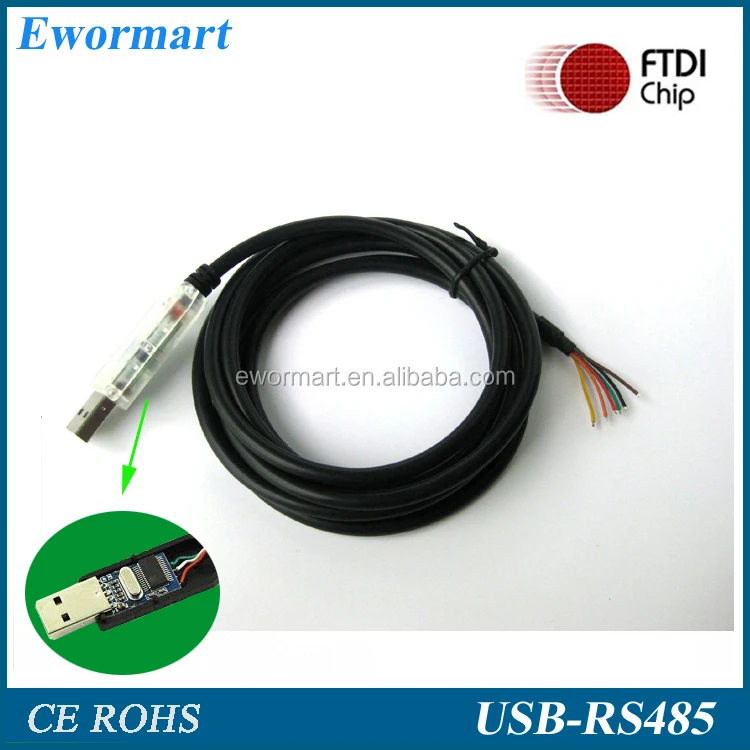

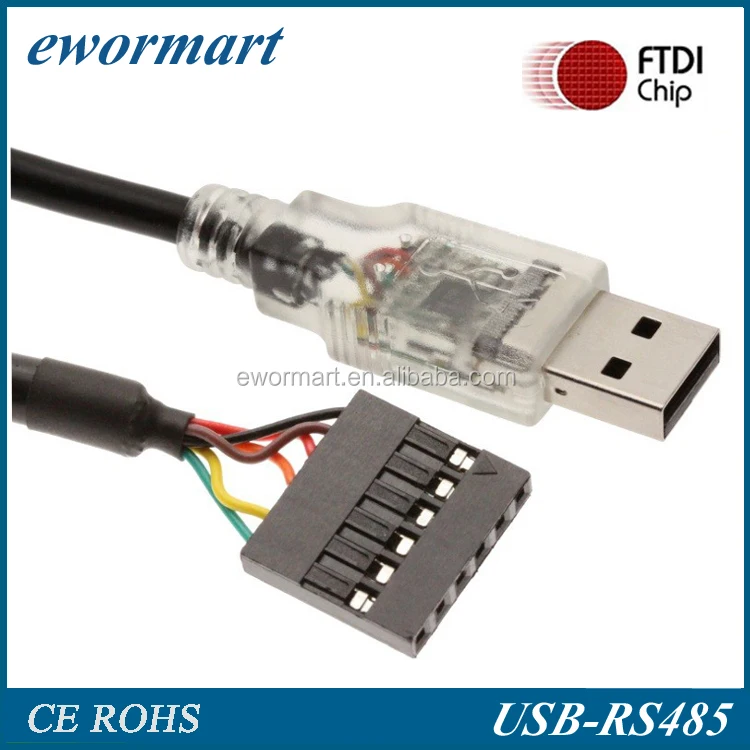

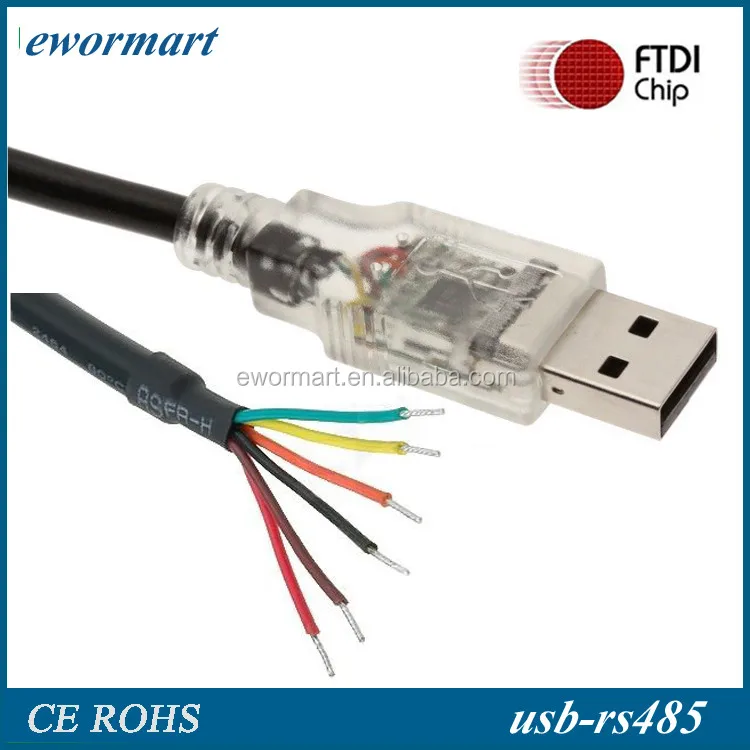

1.8M USB-RS485-WE-1800-BT, USB RS485 Converter (With LED signal transmission light)
Chip: FTDI
FT232 USB RS485 cable

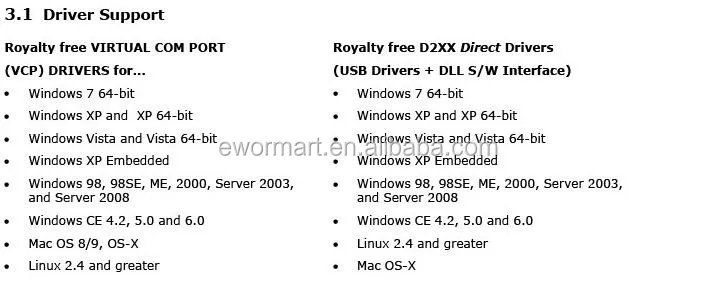

Support Android, Support Win 8, Win 7, XP, 2000, Linix, Mac OS
Support EEPROM, support Vendor ID re-write,support Mprog3.5
Support FTDI VCP driver and D2XX driver
Package: PE bag, then in carton
Chip: FTDI
FT232 USB RS485 cable
Support Android, Support Win 8, Win 7, XP, 2000, Linix, Mac OS
Support EEPROM, support Vendor ID re-write,support Mprog3.5
Support FTDI VCP driver and D2XX driver
Package: PE bag, then in carton
| SPECIFICATIONS | |
| Part number | UC-USB-RS485-WE-5000-BT |
| Operating system |
|
| Processor | FTDI FT232RL |
| Unique chipID no. | Yes, each converter has it own unique ID numberwhich can be accessed by the user with the D2XX driver programmers guide. |
| RS485 Interface | Included screw terminal header / single wires |
| Echo signal | None |
| Fail-safe bias resistors | Yes |
| USB interface | Standard Type A Male |
| Ports | 1-port available for RS485 |
| Signals | RS485, 2-wire half duplex: D+, D-, GND |
| Baud rate | 300-921.600bps (up to 3kbps by using alising) |
| Parity | None, Odd, Even, Mark, Space |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| TX / RX buffer size | 256 Byte Transmit Buffer / 128 Byte Receive Buffer |
| Adjustable USB transfer sizes for TX and RX | From 64 bytes to 4096 bytes |
| Adjustable latency timer | 1 to 255 msec |
| Adjustable read and write timeouts | 0 to 10000 msec |
| Flow Control | None, Xon/Xoff, Hardware |
| COM port accessible by | Included virtual COM port drivers or FTD2XX.DLL |
| Special features |
|
| Electrostatic (ESD) protection | 600W surge protection, 15KV static electricity protection |
| Current draw | Static: less than 80mA. Dynamic average: less than 150mA |
| Interface compliance | USB1.1,2.0,3.0, EIA/TIA RS-232 |
| Regulatory compliance | FCC, CE and RoHS |
| Working temp | -20°C to 60°C |
| Cable length | 5m |
| Size | 50 x 8 x 18mm (USB part only) |
       | 1 year limited warranty |

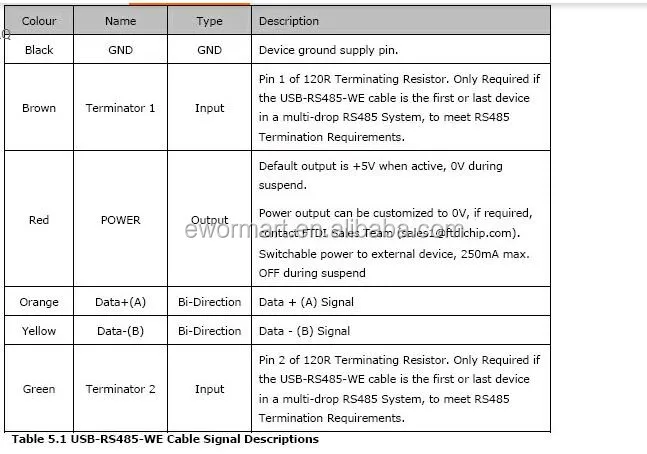

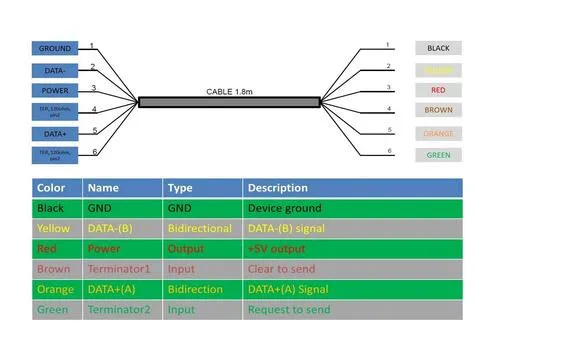

Picture Shows
Packaging & Shipping
Standard packaging size: 43.5*34*21cm
3ft Cable 250pcs in one carton
Customised packing and length based on the quantity
Our Services
What We Can Do:
1. All of our products have proceeded aging test before shipment and we guarantee to use
our products safety.
2. Support print your Logo on products and let your Logo shine anywhere.
3. OEM/OEM orders are warmly welcome!
Warranty and Return:
1. All products and accessoried have been tested by 3 times before ship out.
2. All products have 1 year warranty.If there is any man-made problem, we will replace or
repair for you freely.
3. We own the best after-sale service.If any problems happen, our team will do our best to
solve for customers.
OEM/ODM Capability

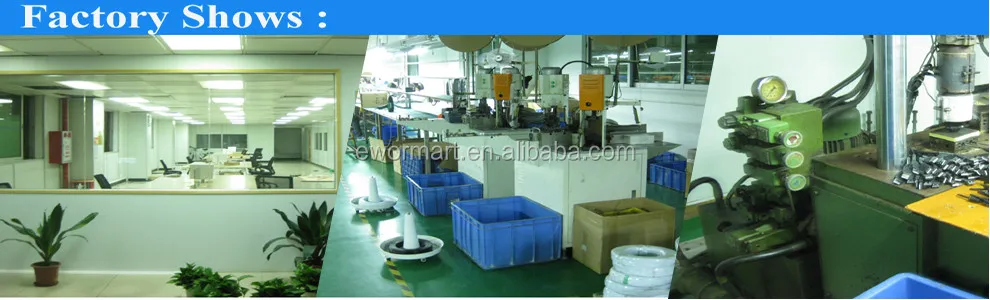

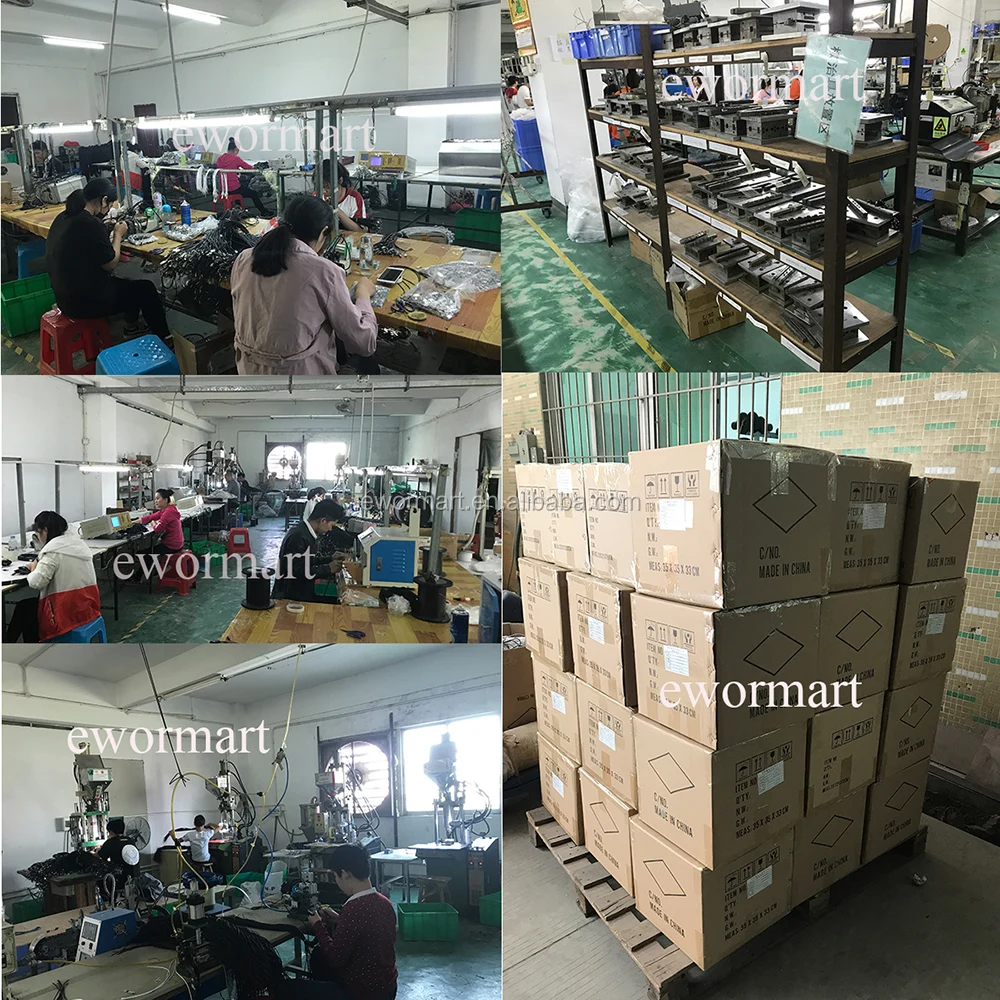

Machinery/Equipment For OEM/ODM
Our factory has also been certified as an ISO9001-2008 factory and all of our products must be}
done 100% inspection to ensure good quality!
