paper cup making machine prices/paper tea glass machine price/paper cup machine germany

Product Overview

Description

paper cup making machine prices/paper tea glass machine price/paper cup machine germany

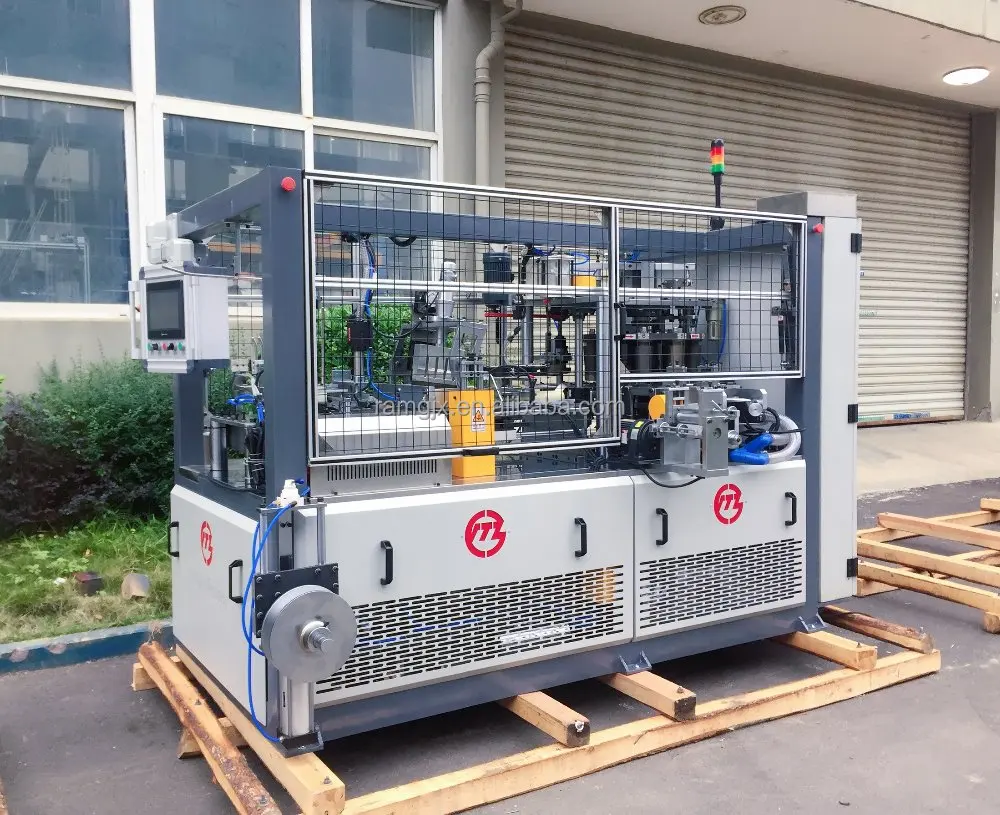

MG-C800 HIGH SPEED PAPER CUP MACHINE use the three turnplates.  The machine adopts desktop layout, insulate the transmission part and mold. The transmission part is arranged in the frame box under the machine table, lubrication spray automatically. The machine adopts open cam design, interrupted division design, gear drive, longitudinal axis design. So they can reasonably distribute each part function. On table setting each mold which makes easy clean and maintain. MG-C800 in total two course for top curling forming , first course rotate top curling ,and second that  heating and forming , thus the cup forming will be more perfectly.MG-C800 electric parts adopt PLC control, photoelectric tracking and monitoring the whole process, also the servo control feeding. Suitable for 4 to 16oz hot & cold paper cups.



MG-C800 Using CCD image detection system (optionally), it will detected the broken, tainted, and molding defects cups. without manual selection,it can reduce secondary pollution.



MG-C800 high speed paper cup machine simplifies paper cup forming process. This machine can finish paper feeding, gluing, cup-bottom feeding heating, knurling, cup-mouth curling, cup-collecting, etc .It is especially suitable for making paper cups with height of 50-135mm.



Technical specification:





Model	MG-C800
Weight	3200 KG
Dimension	2600x1600x1850 MM
Total power	12KW 380V50Hz
Air supply requirement	0.5-0.8MPa,0.4cube/min
Capacity	90-110 PCS/MIN
Paperspecification	SINGLE /DOUBLE PE COATED PAPER
Paper grams	190-350g/mm
Cup size	4-16OZ


 Features


A. The machine adopts open cam type structure, high precision, large out-put and long life.



B. Longitudinal axis gear drive. This make up the chain drive jitter and instability's weakness.



C. Whole machine is box type structures design, filling oil by spray lubrication system So that it can run fast and stably.



D. Photoelectric failure-detecting system is available. PLC control system for the whole cup forming process.



E. Servo control to send bottom paper of cup, deliver bottom when cup tube come, otherwise no bottom delivery.



F. Stretch knife uses for bottom cutting. Easy changed and more stable.

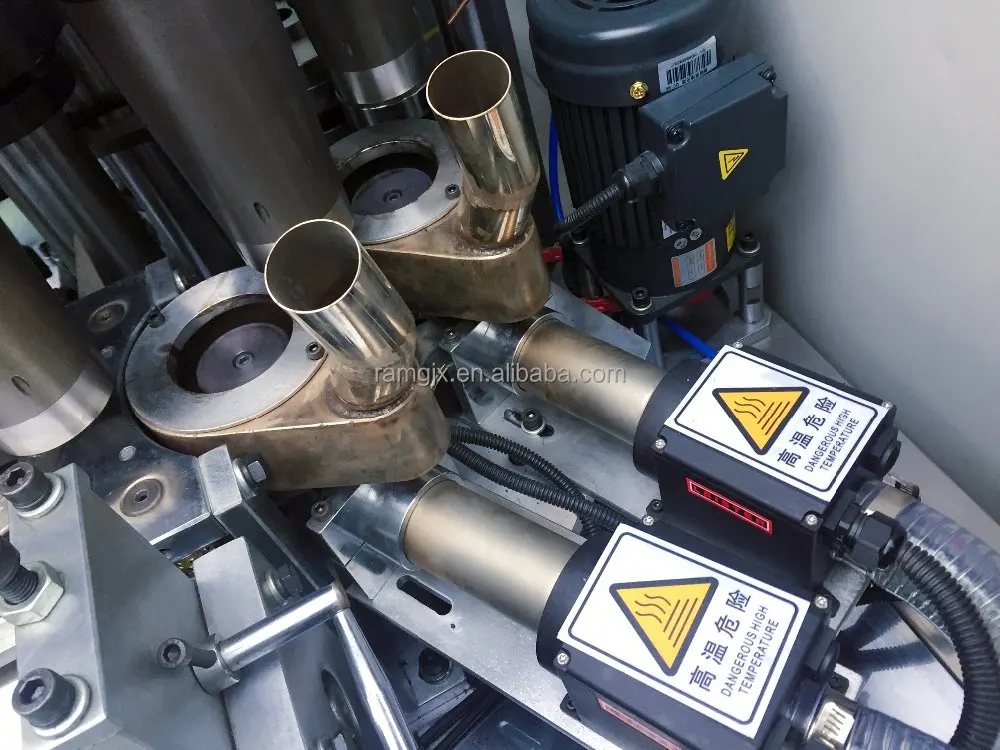

G. Switzerland Leister heating device is equipped for cup body and bottom sealing, bottom are heated at first before they are feeding, thus improving heating effect and helping guarantee knurling.



H. Curling. There are two steps of curling. The first one is curl the cup top and the second consolidate the cup curling.



I. It adopts the three-station Rotary to carry the cups. High efficiency and more stable.



J. The cup collection with take off the defective function.

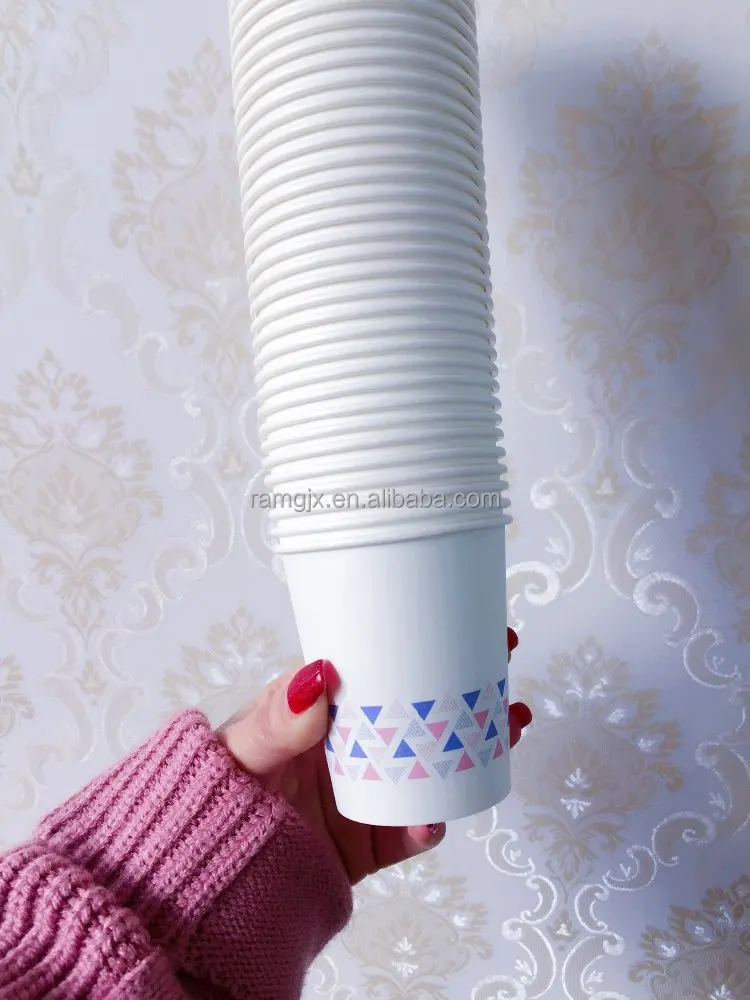

Sample





Certificate



Packing & Shipping









Company Information



Ruian Mingguo Machinery Co., Ltd got its start in 2013 and built a modern manufacturing complex in Ruian. Although we are a young firm, we are outfitted with a team of dedicated and loyal employees who put heavy concentration and focus on how to boost our product quality and competiveness. Near Shanghai Port, we enjoy a convenient location, which allows us to deliver our good condition paper converting machinery to clients in an ultra-fast fashion.  To date, we have attracted and kept countless customers both at home and abroad.



Our company, MingGuo is the best choice for paper container manufacturer.Believe your choice, believe in our company. We sincerely look forward to working with you hand in hand to create success altogether.



Office & Workshop



 Service



Our company will provide you the good after services. We can help you solve the problem through video, email, phone, 24 hours hot line. If needed, we can also let our engineer go to your country to solve the problem. We hope all the customers will be satisfied with our machines and services.



Exhibition





FAQ

1. Trade company or manufacture?

we are a manufacture of paper cup machine.



2. How to tour factory?

Some lins you can chooes. First, you can come to guangzhou air port, then by air to wenzhou air port, then we can go whenzhou air port to pick up you.

Second, you can to shanghai, then from shanghai air port to whenzhou air port or by the fast train ruian then we go air port or train station to pick up you.



3.What about the warranty?

All our machine have one year warranty. if the machine spres broken because the quality not good, then we can provide the spares for you by free.



4.What about the training?

We welcome you learn the machine use in our factory. before the machine finished you can come to our factory , we can arrange the enginner teach you the simple operate. we provide the food for you.



5. About the machine shipping?

Normal our machine send to customers by sea, port to port almost used. like FOB, CIF.



7.About the machine packing?

Our machine normal use the woodencase. if your country require fumigation, before oder you need tell us so we arrange for you.
