Product Overview

Description

Automatic Mineral Water Bottle Web Sealer Shrink Wrapping Machine

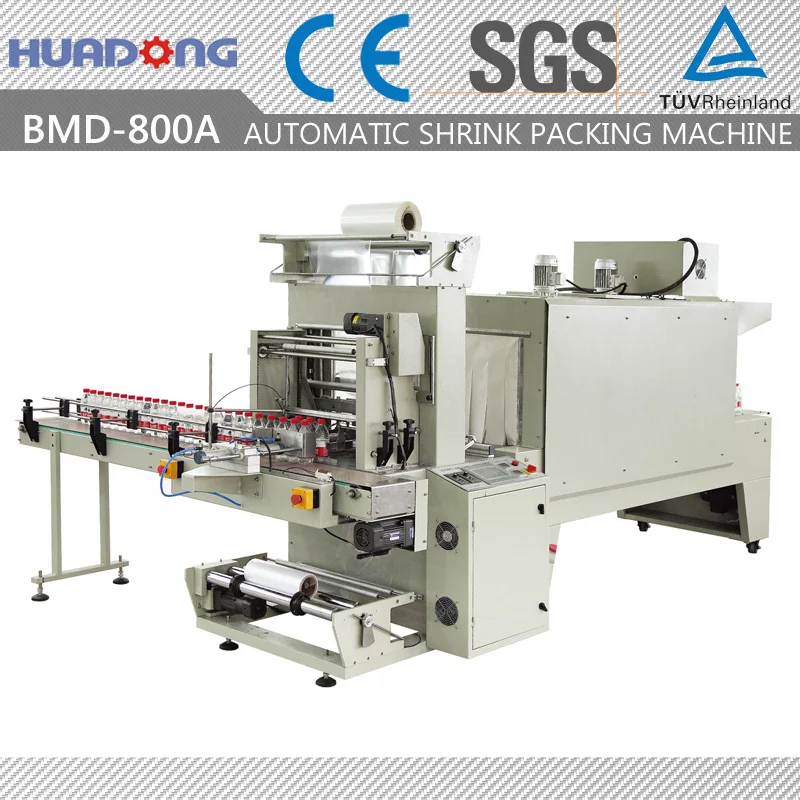

1. BMD-800A is a fully automatic shrink packaging machine including sleeve sealer and shrink tunnel which can feed products, collating, seal and cut film and shrink film bag automatically. It is widely used in food, pharmaceutical, cosmetics, printing, hardware, and other industry.

2. This machine can collate bottles (round or square), cans, gable cartons automatically. It can connect filling machine or labelling machine to make production line unmanned.

3. Bottles can be collated faster by a special faster and stable collating device and never fall down.

4. Adopt durable “u” shape alloyed sealing knife and saw teeth cutting knife with anti-stick Teflon coats supported by four columns, the sealing line is very strong and can use thicker PE film for heavy products.

5. Rows can be set on the touch screen. When product size changes only adjust packing size on the machine within a short time without changing any molds.

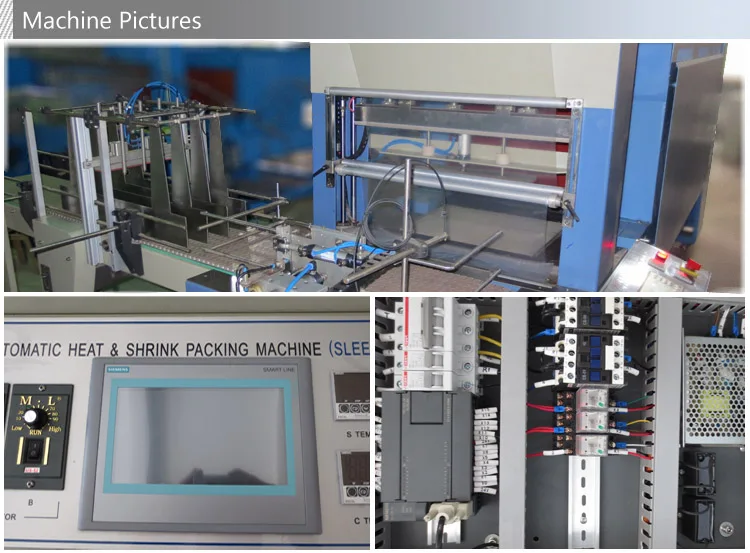

6. Adopt Siemens plc and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor.

7. Optional output roller table or conveyors are available.

8. Optional safety cover is available.



Application:

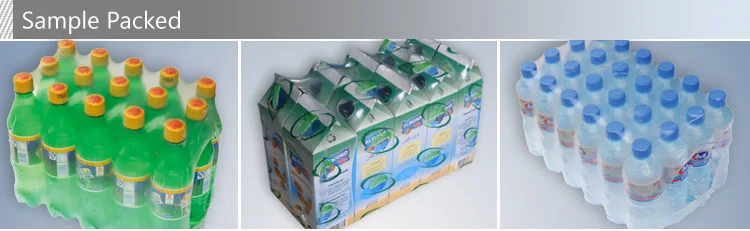

Big bottles in multi-row without trays such as drinking bottles, pure water bottles, beer bottles, etc. It can be connected and work with auto filling machine.



Automatic Mineral Water Bottle Web Sealer Shrink Wrapping Machine



Automatic Mineral Water Bottle Web Sealer Shrink Wrapping Machine

Technical data	BMD-800A
Sealing type	sleeve sealing
Power supply	380V/50-60Hz/3phase
Max product size	420(L) x 300(W) x 300(H) mm
Packing capacity	8 - 20 packs/min
Film type	polyethylene (PE) film
Max film size	630 (width) x  280mm(outer diameter)
Power consumption	max. 20kw
Shrink tunnel oven size	1800mm(L) x 700(W) x 400(H) mm
Tunnel conveyor speed	variable, 15m/min
Tunnel conveyor	silicon coated rods or stainless steel mesh conveyor
Working height	850-950 mm
Air pressure	0.5MPa (5 bar)
Sealing knife	Teflon coated "U" knife and sawtooth knife with permanently heated bar
Main control components	Siemens PLC and touch screen, Omron temperature controller, relay and sensor
Machine main material	powder coated carbon steel
Machine dimensions	4420 x 2590 x 1760mm
Machine weight	1000kgs
