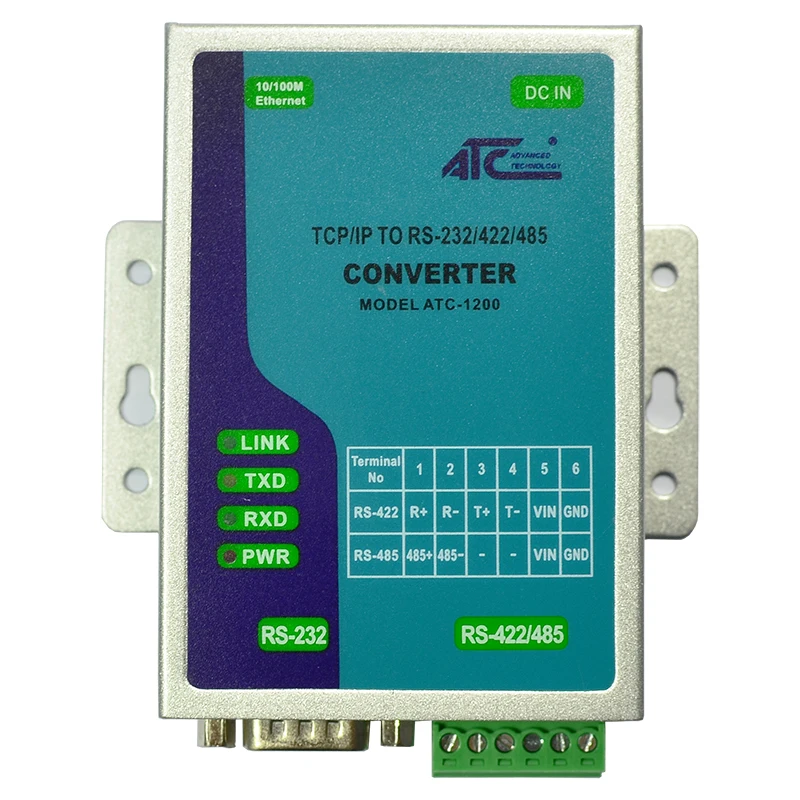

Serial to Ethernet tcp/ip to rs485/rs422 Converter (ATC 1200)

The ATC-1200 (Serial to Ethernet ) is a cost effective and highly integrated serial to Ethernet Converter. Support 10/100Mbps Ethernet and the serial port support RTS/CTS handshake control signal.Use the software kit user can easily configure and find the device,even forget the IP address.This serial server can work very well in virtual serial mode,this is very convenience for the user’s software only support com port. ATC-1200 is an industrial-strength network-based converter can help serial device with RS232/422/485 port  like CNC, PLC, weighting scale, scanner and other device access to the 10/100Mbps Ethernet network.

Product Features

        RS-232/422/485 3 in 1 interface

Support 10/100Mbps Ethernet port

Supports 4-wire and 2-wire RS-485 work mode

Automatic data direction control on RS-485

Supports 24VDC industrial power supply

Terminal block easily for RS-422/485 installation

Configure via webpage and windows utility

Supports virtual serial port,TCP Server/Client and UDP work mode

Built-in watchdog

CE, RoHS and FCC Certifications

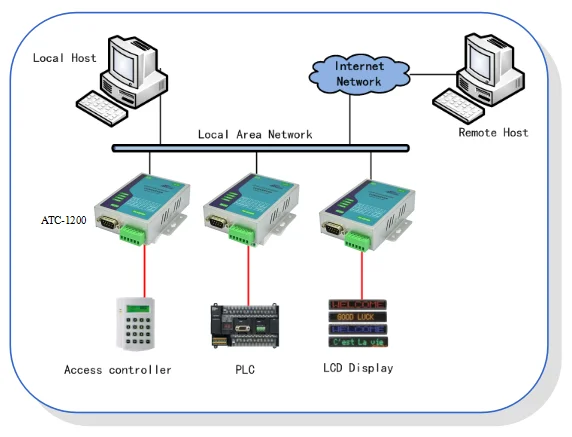

Product Connection Diagram

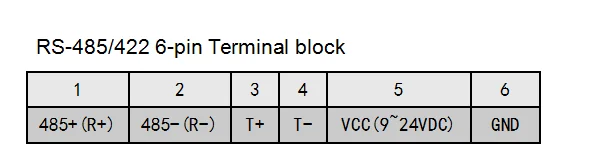

Pin Assignment

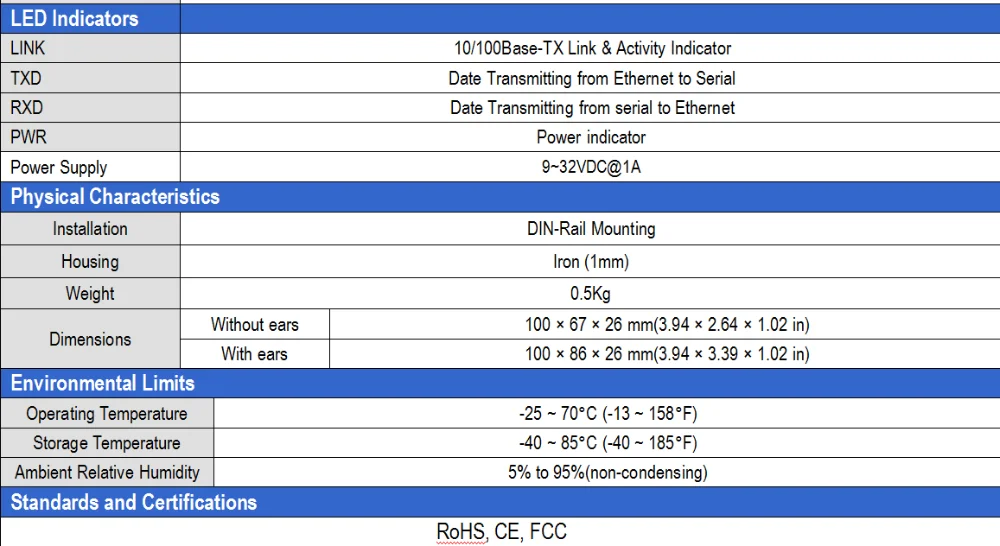

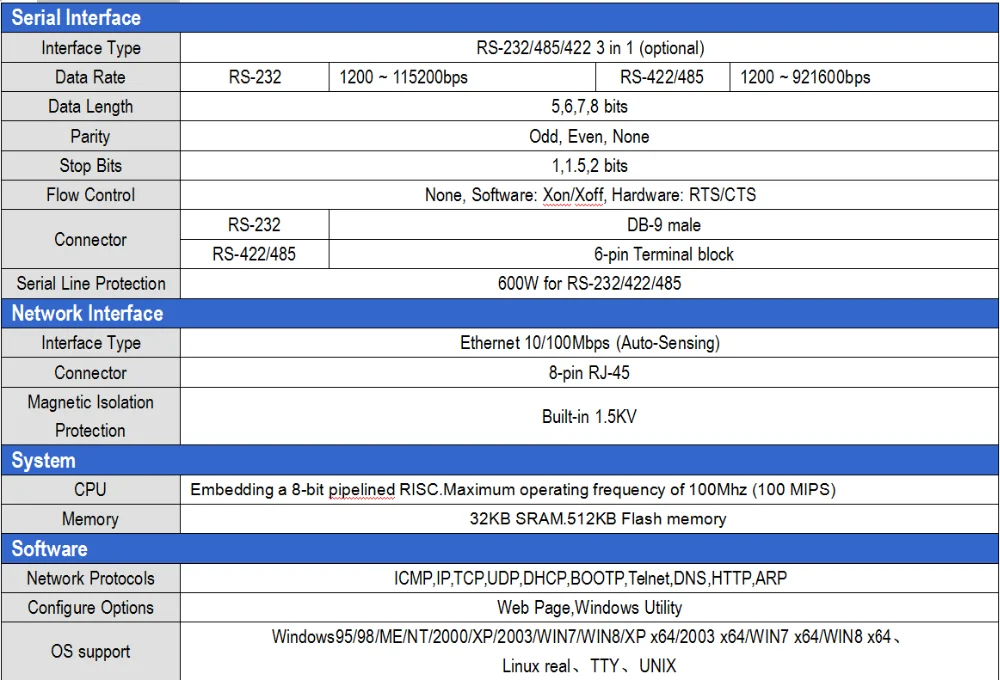

Specifications

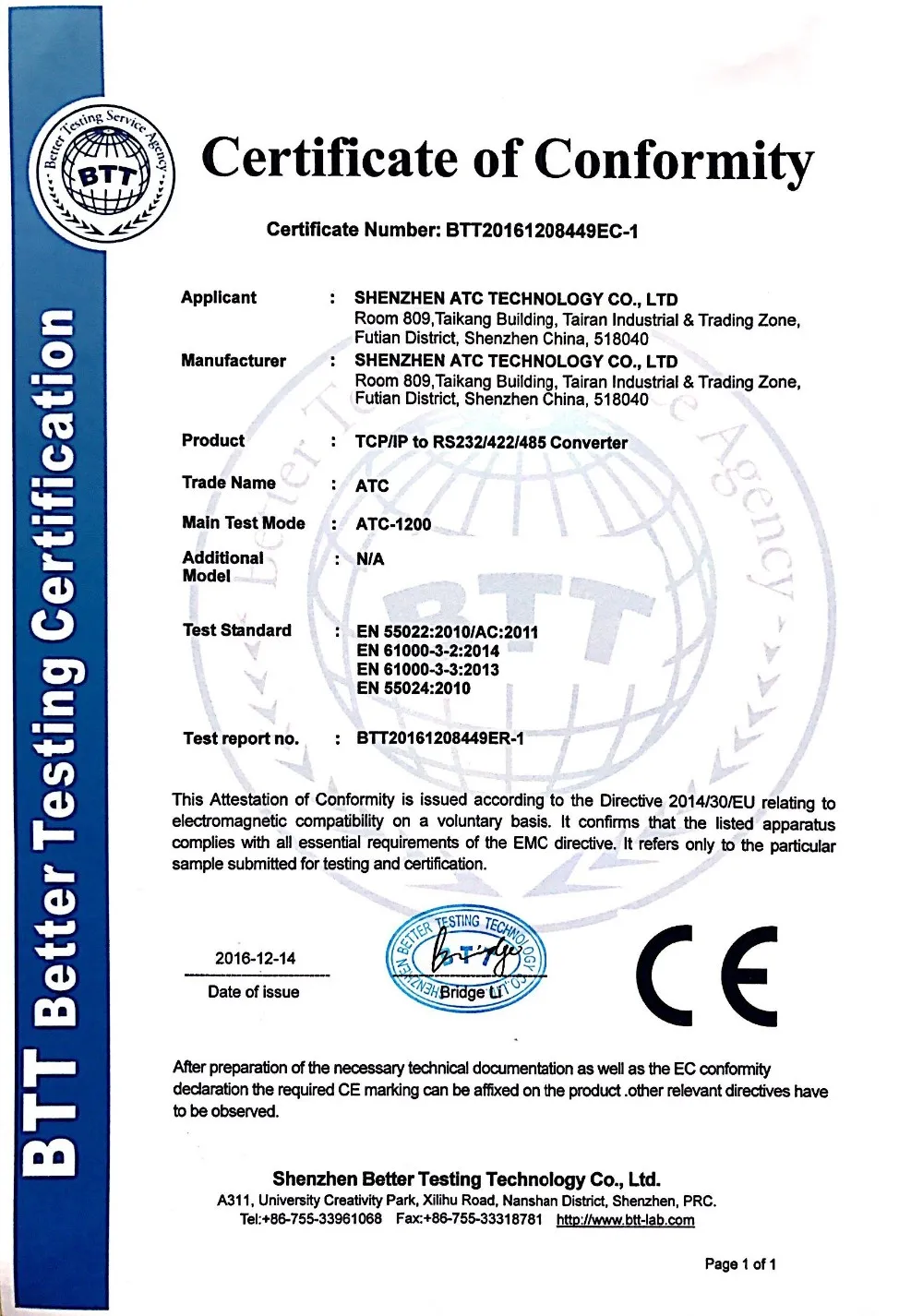

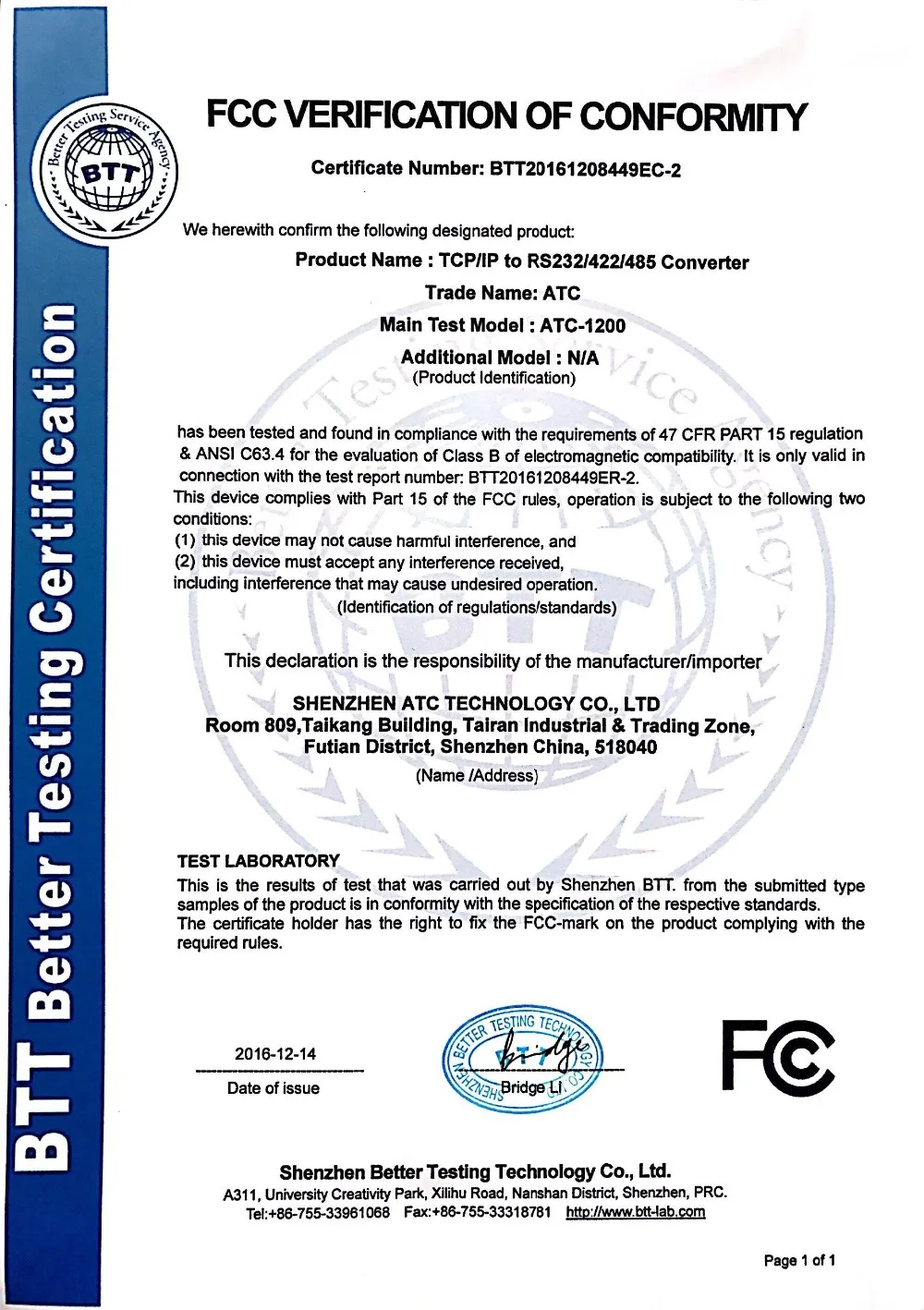

CE & FCC Certificate
