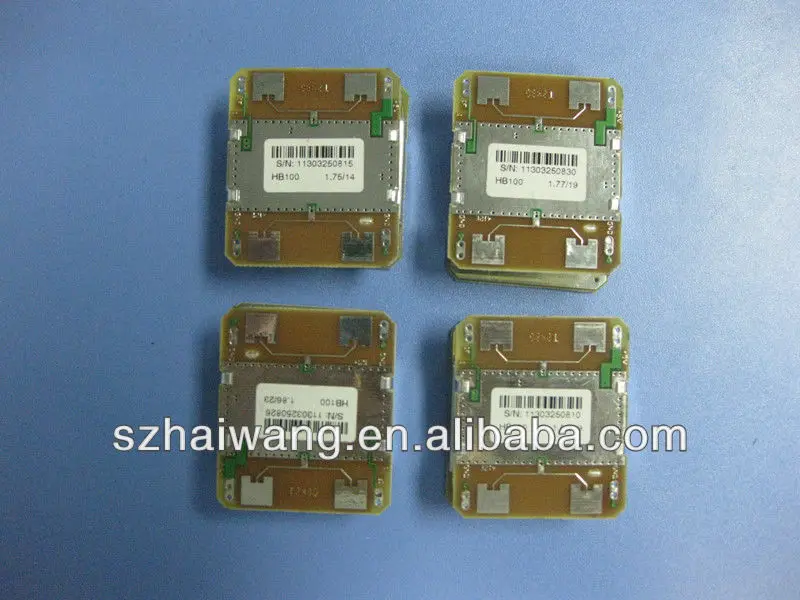

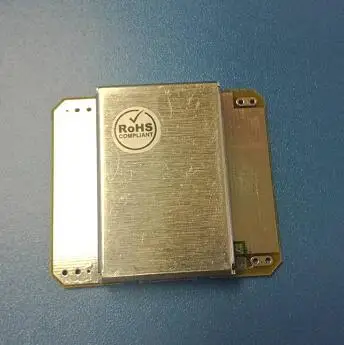

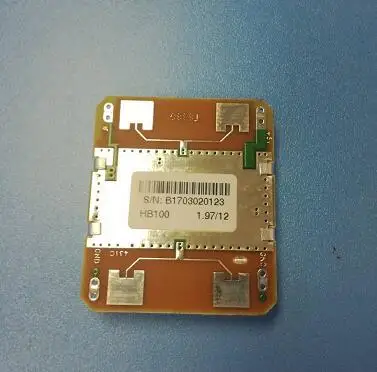

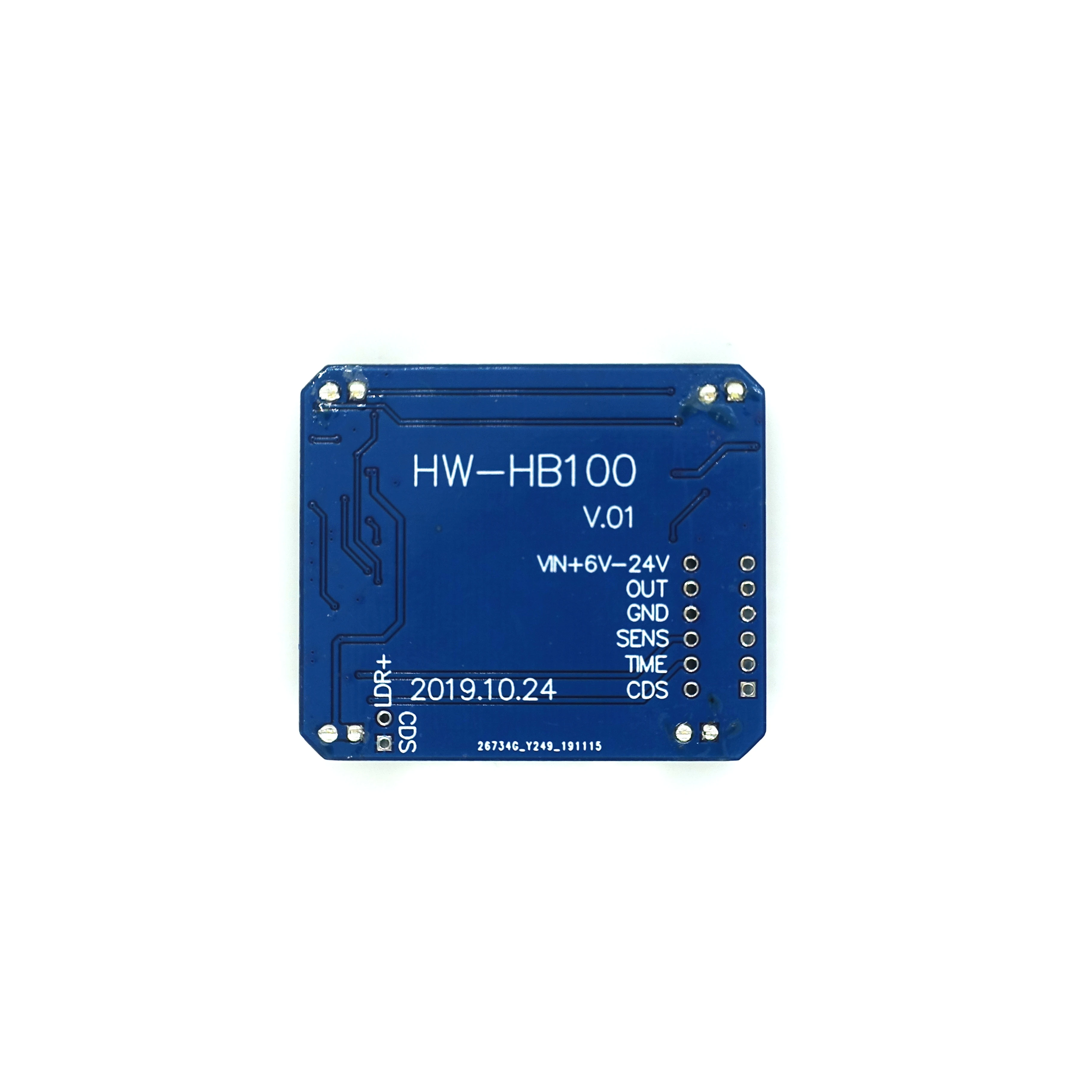

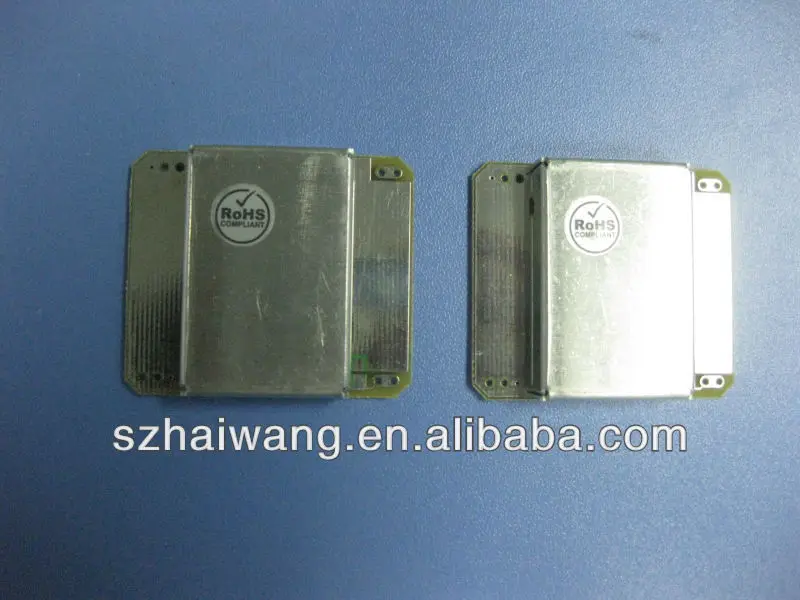

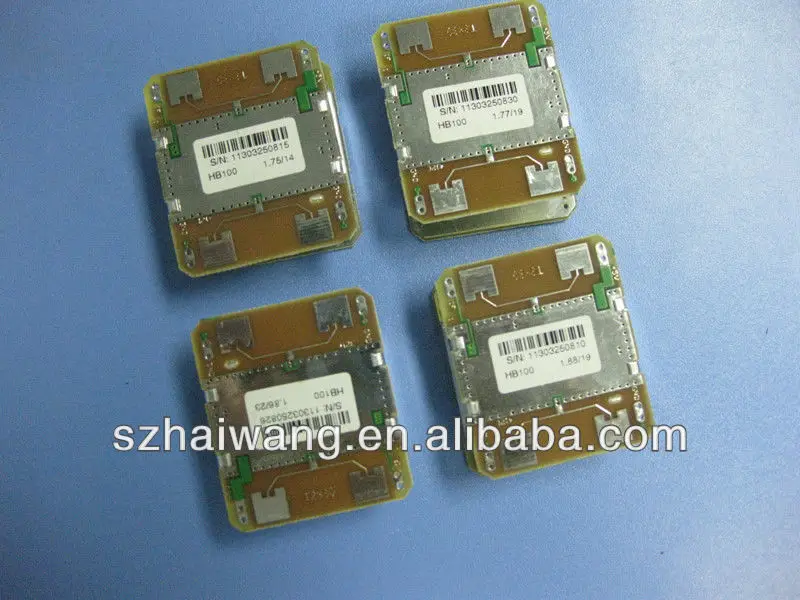

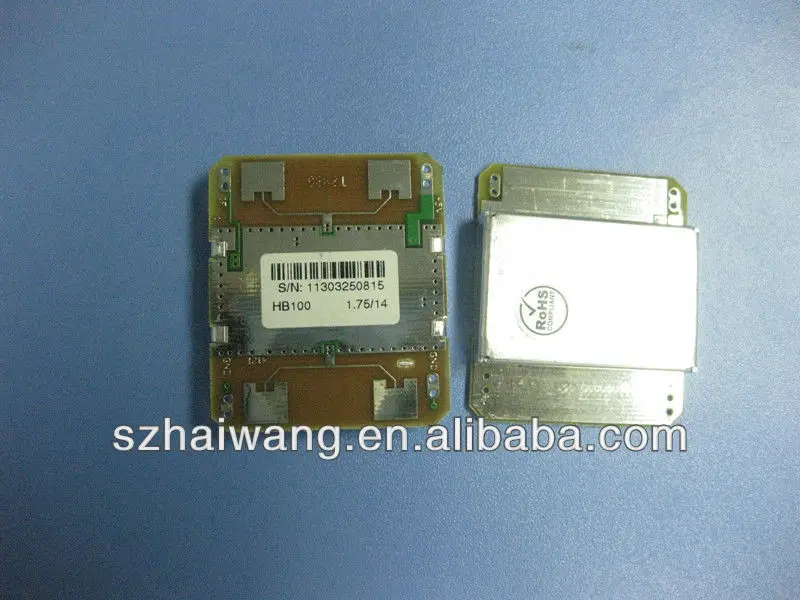

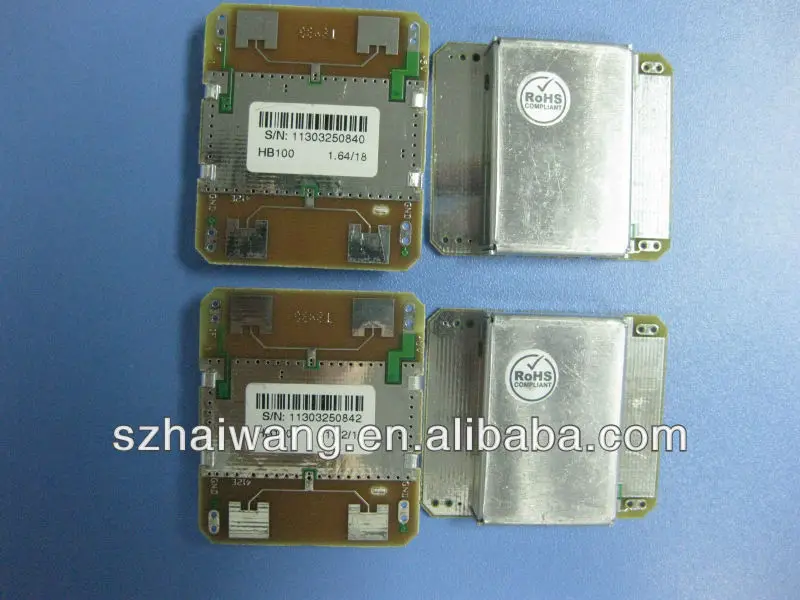

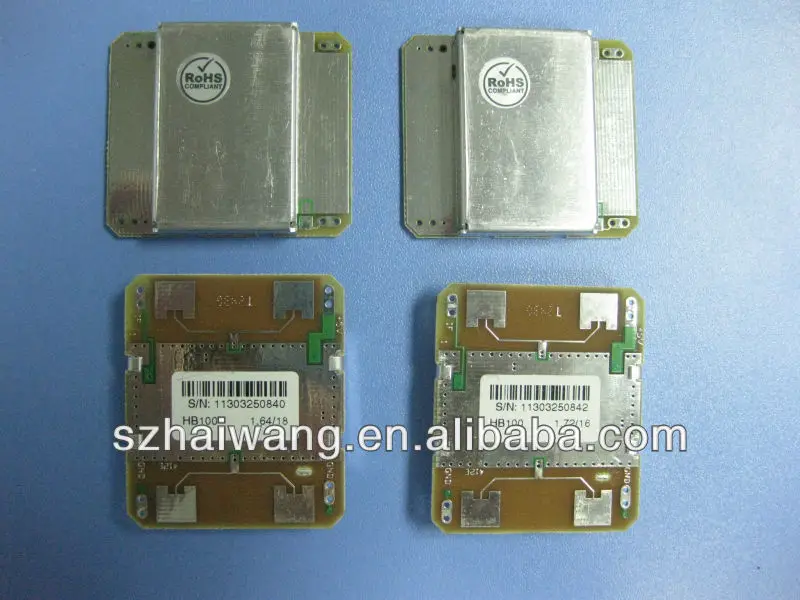

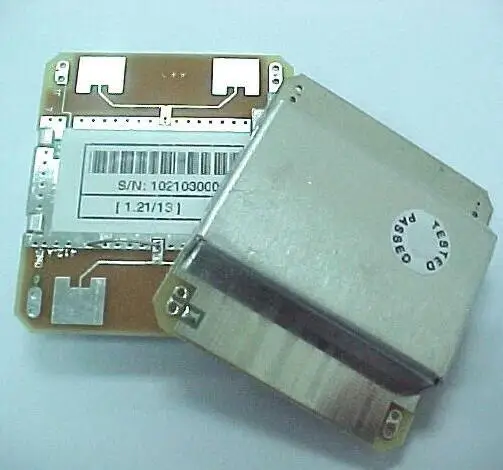

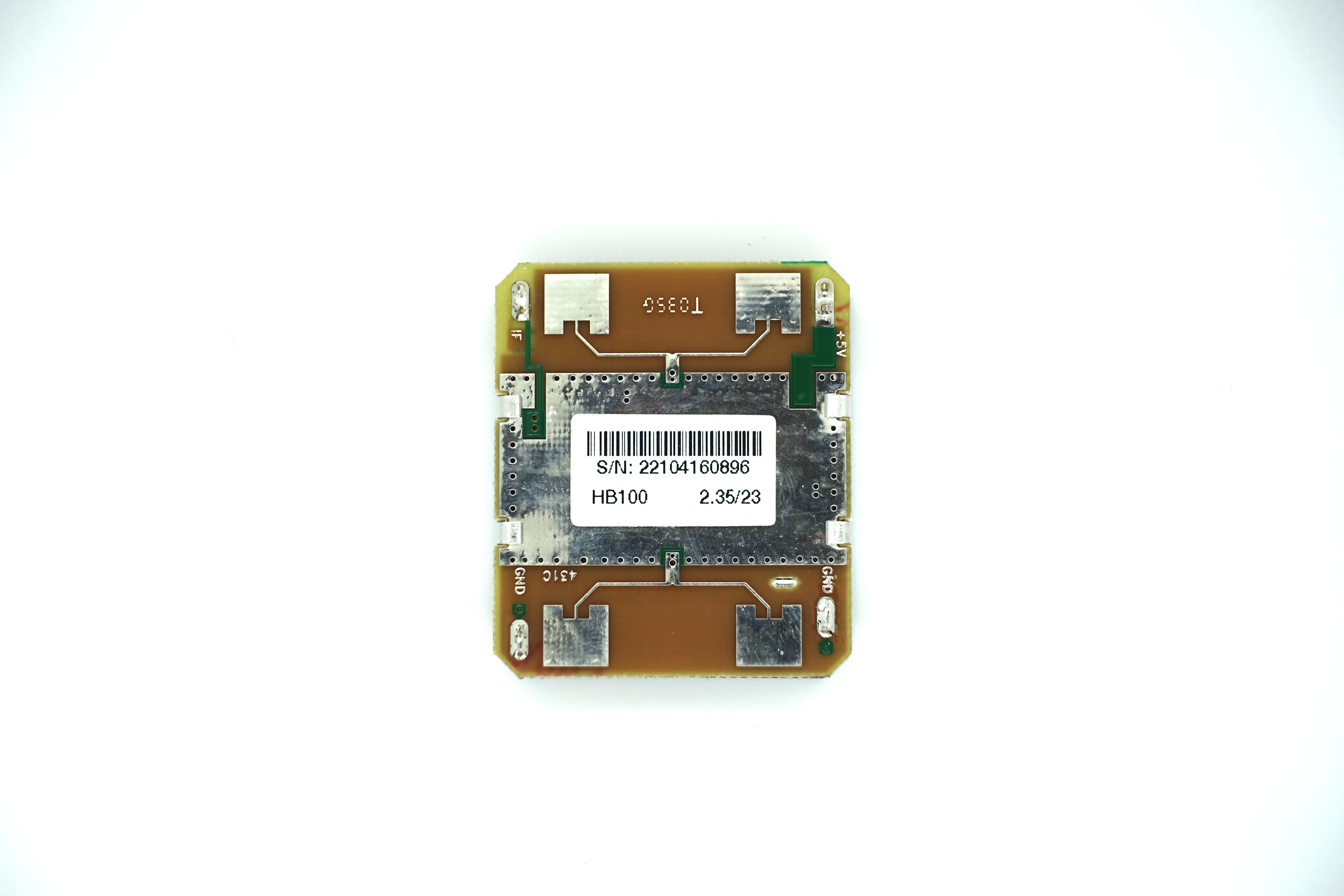

HB100 microwave Doppler Wireless Radar Detectors 10.525G Velocity Sensor Motion Sensor

Product Overview

Description

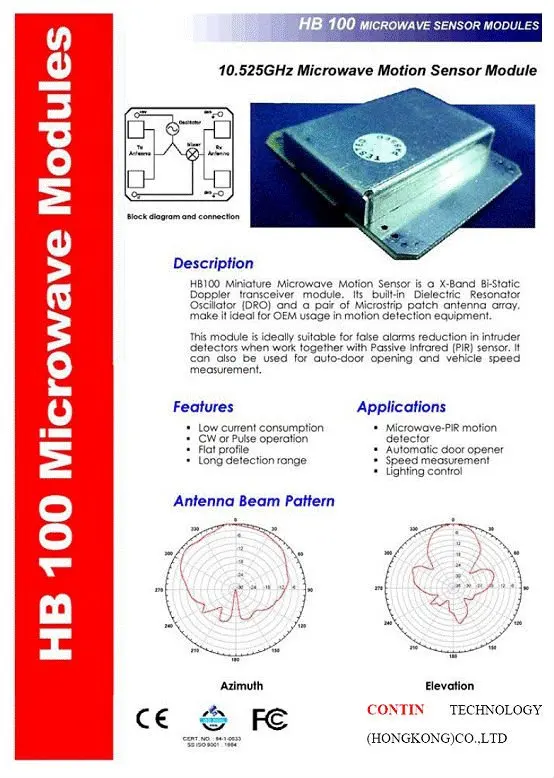

HB100 microwave Doppler Wireless Radar Detectors Velocity Sensor Motion Sensor



Specifications:
1) frequency setting: 10.525GHZ (typ)
2) setting time: 3(typ) μSec
3) supply voltage: 5.0VDC
4) current consumption: 30-40ma
5) Operating Temperature: -15 ~ 5°C
6) Velocity measurement:40 x 46.5 x 8.7 mm,

7)Weight:8 g



Features:
1) Low current consumption

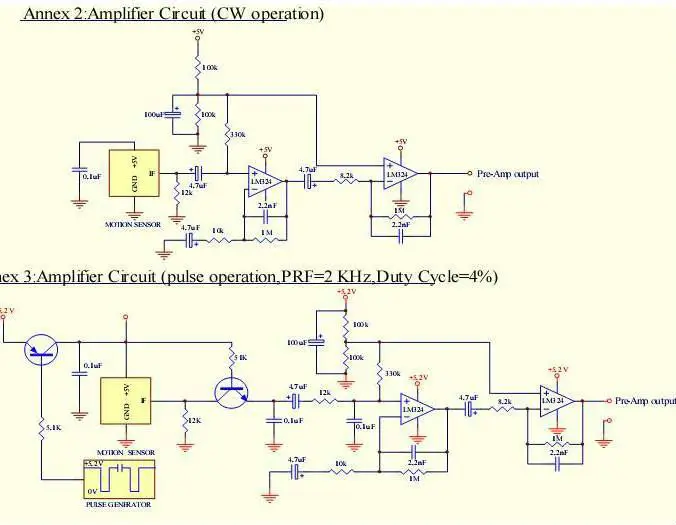

2) CW or Pulse operation
3) Flat profile
4) Long detection range

Note1: The radiated emissions is designed to meet FCC rules.



Note2:The Received Signal Strength(RSS) is measured at the total 2



Ways path loss of 93dB.



Note3: The noise voltages are measured from 10Hz to 100Hz at the



Output port, inside an Anechoic chamber.



Note4: Pulse operation
