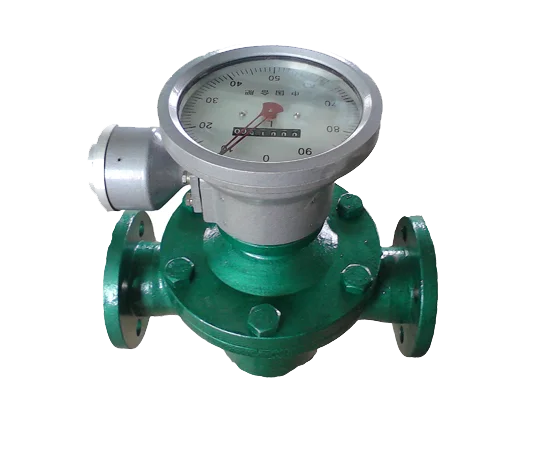

Hydraulic Oil Oval Gear Flow Meter 3', 4' inch

Product Overview

Description



Oval Gear/Oil Flow Meter Series







Description

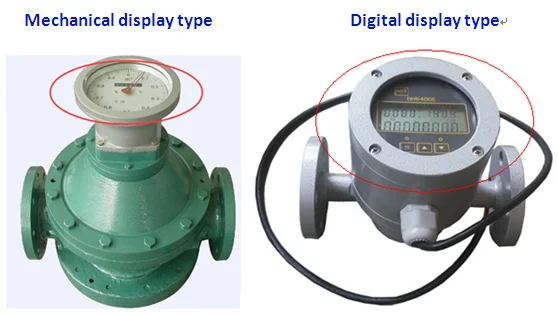

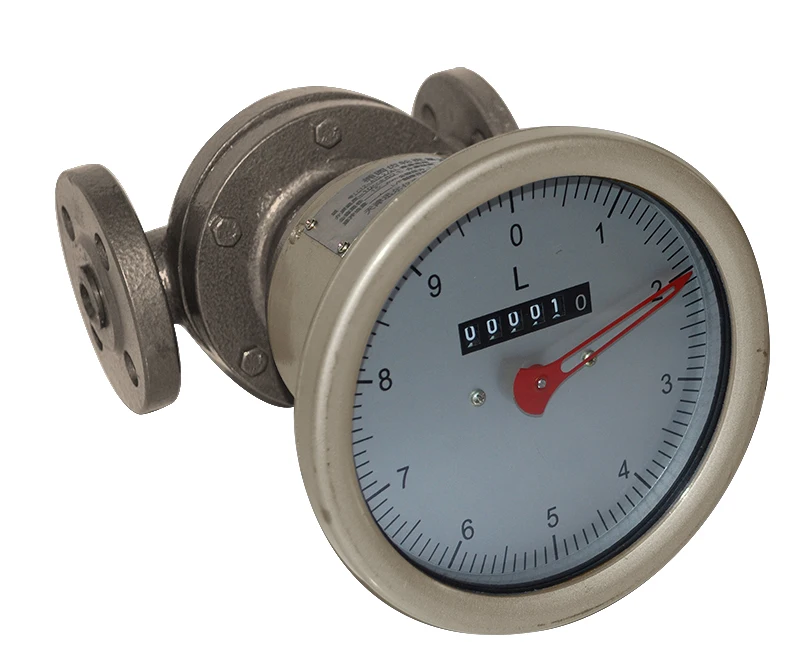

Oval gear flow meter is a pointer display. It is a kind of light volume flow meter of which the print wheel has cumulative
count and zero. This flow meter is widely used in various industrial areas to control the liquid flow.



It is applicable to all types of liquid measuring, such as crude oil, diesel, gasoline and so on, with great range and high precision, convenient use and maintenance. Different materials selected can meet the petroleum, chemical, pharmaceutical, food, metallurgy, electricity, transportation and other fields of liquid flow measurement.



Operating Principle



Fluid enters inlet port and then passes through the metering chamber. Inside the chamber, fluid forces the internal gears to
rotate before exiting through the outlet port. Each rotation of the gears displaces a specific volume of fluid. As the gears rotate, a
magnet on each end of the gear passes a reed switch in the top mounted register’s circuit board.





Flow Range



Diameter (MM)	Flow Range(m3/h)		Temperature
	0.5% of rate accuracy	0.2% of rate accuracy
10	0.08-0.4	0.08-0.4	-20...80 deg cel (High Temperature is on Request)
15	0.3-1.5	0.5-1.5
20	0.4-3	0.8-3
25	0.8-6	1.5-6
40	1.5-15	3-15
50	3-24	8-24
65	6-40	10-40
80	8-60	12-60
100	13-100	20-100
150	19-190	38-190
200	34-340	68-340

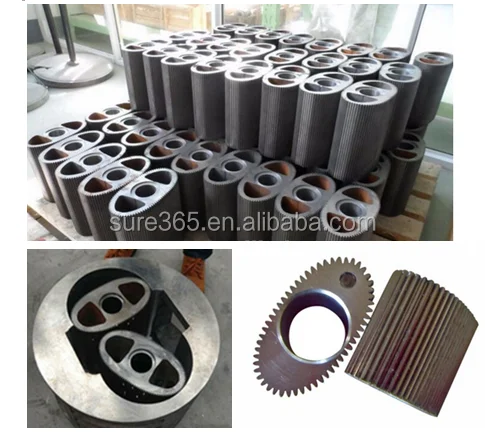

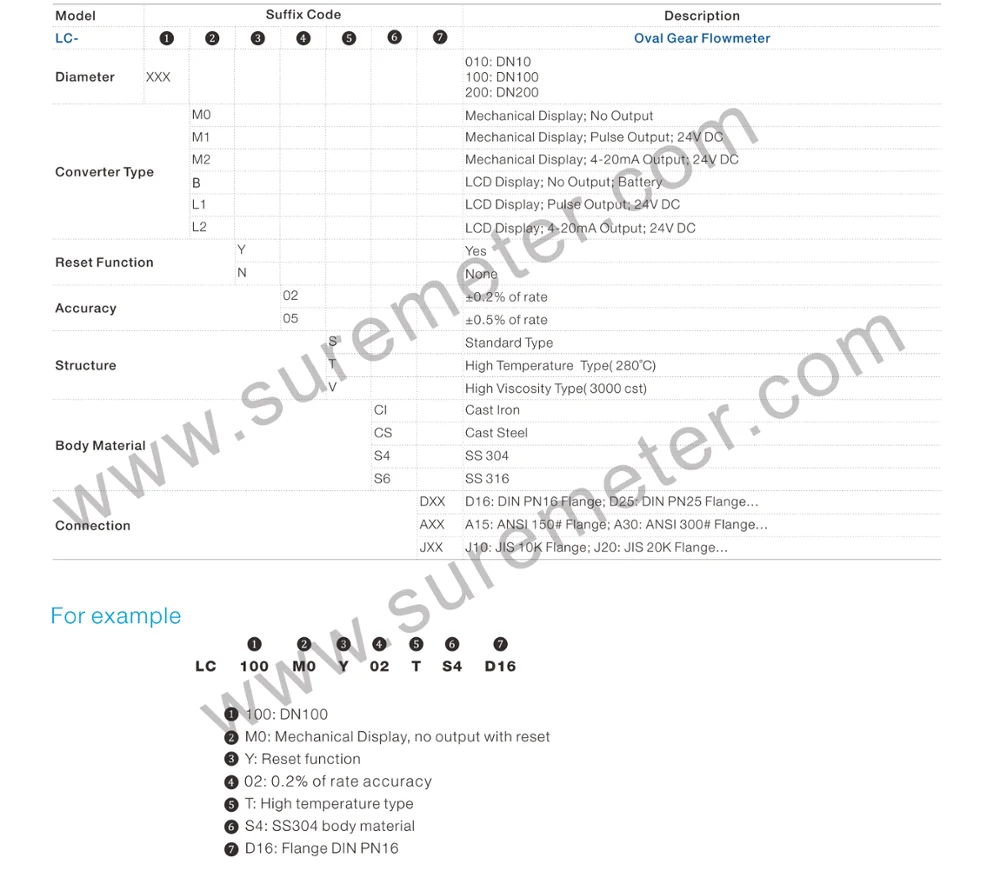

Model Selection







Facility & Certificate

SURE Exhibition

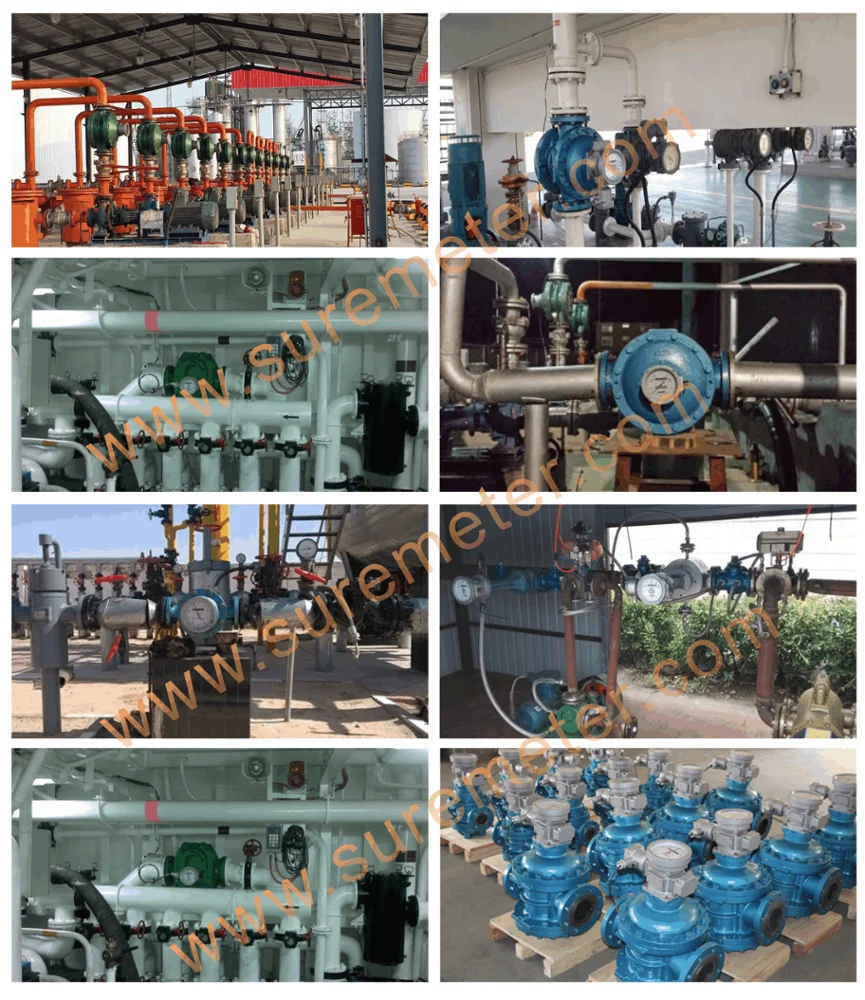

Product Application
