Boshida BD SW35 compound trinocular biological microscope with infinity optical system for laboratory and hospital
- Category: >>>
- Supplier: Shenzhen Boshida Optical Instrument Co. Ltd.
Share on (60574138282):
Product Overview
Description
BD-SW35 compound trinocular biological microscope with infinity optical system for laboratory and hospital
Product Description

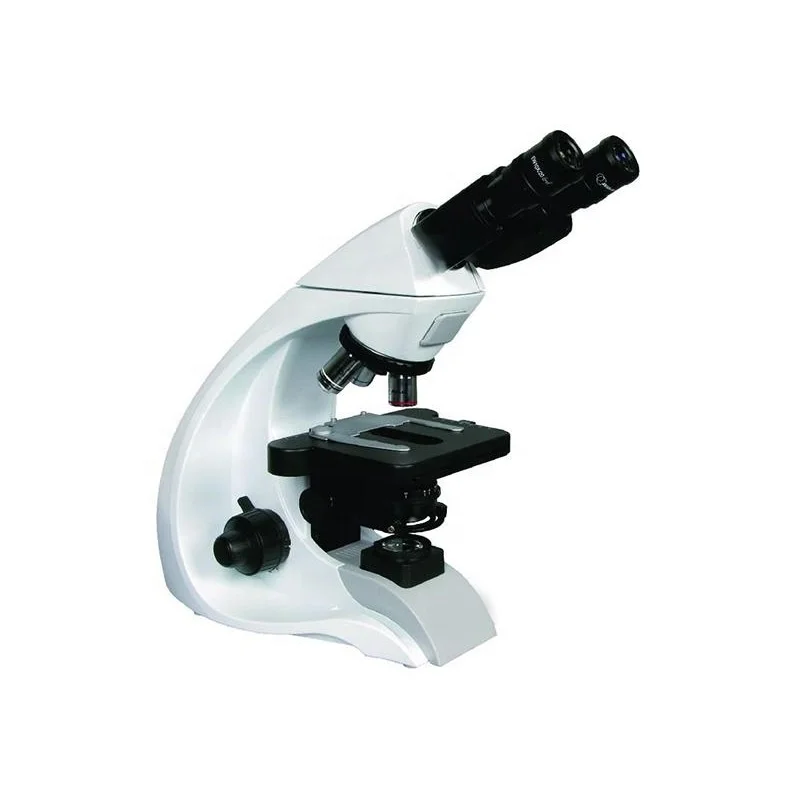

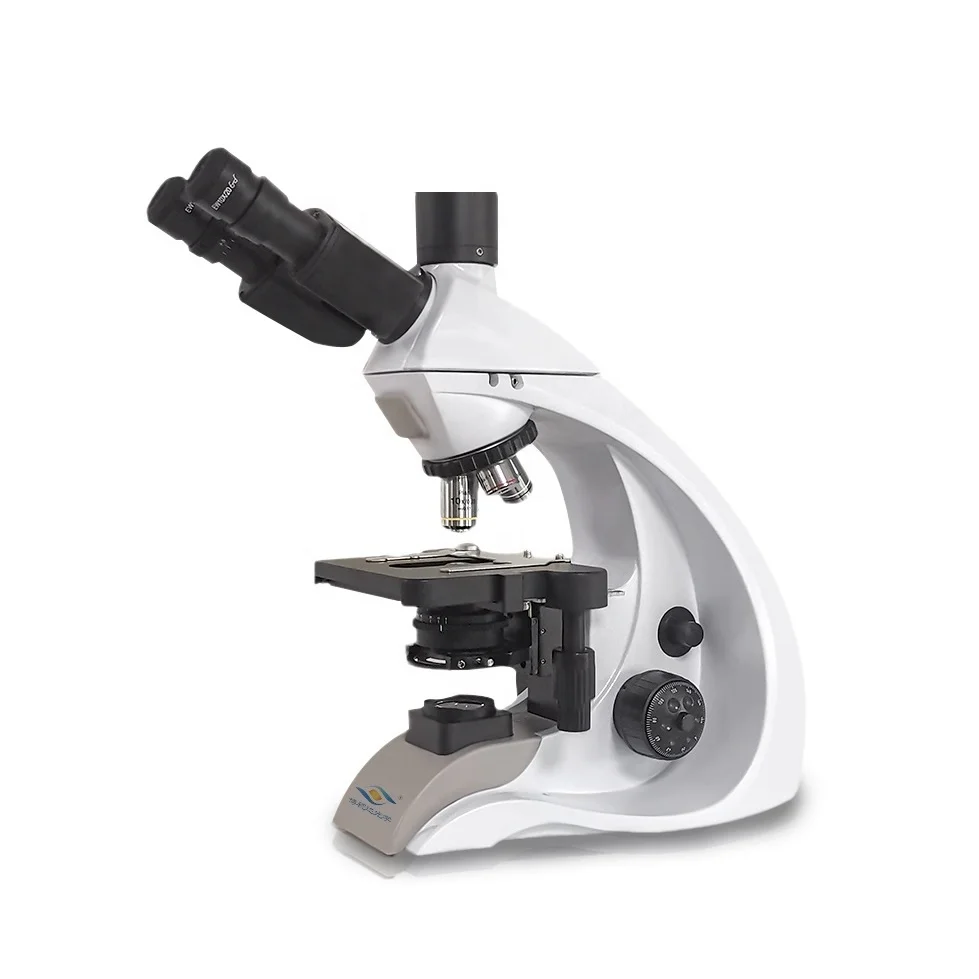

BD-SW35 compound trinocular biological microscope
Standard version
Optional:

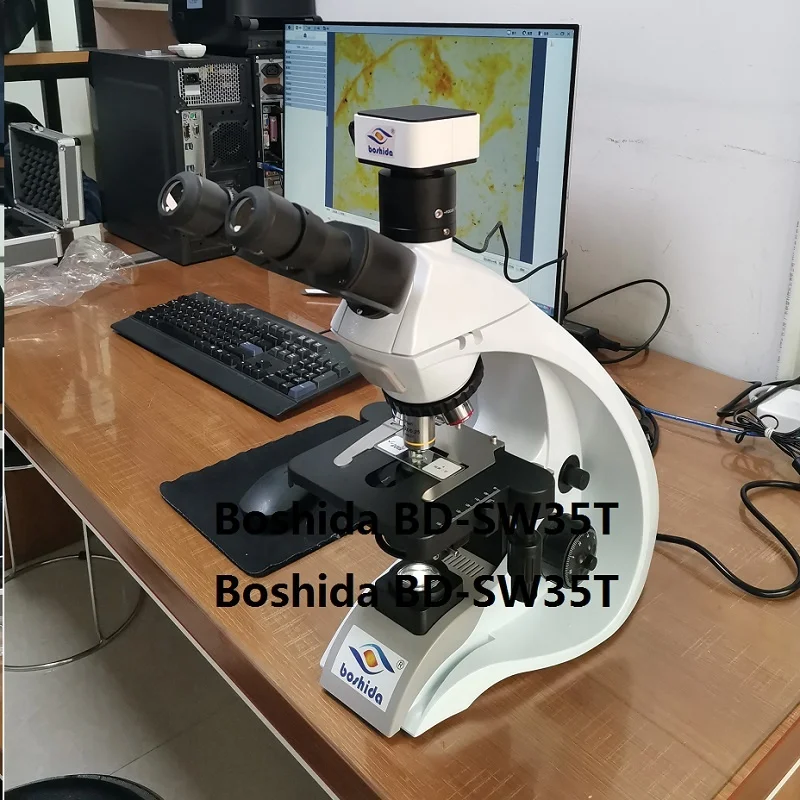

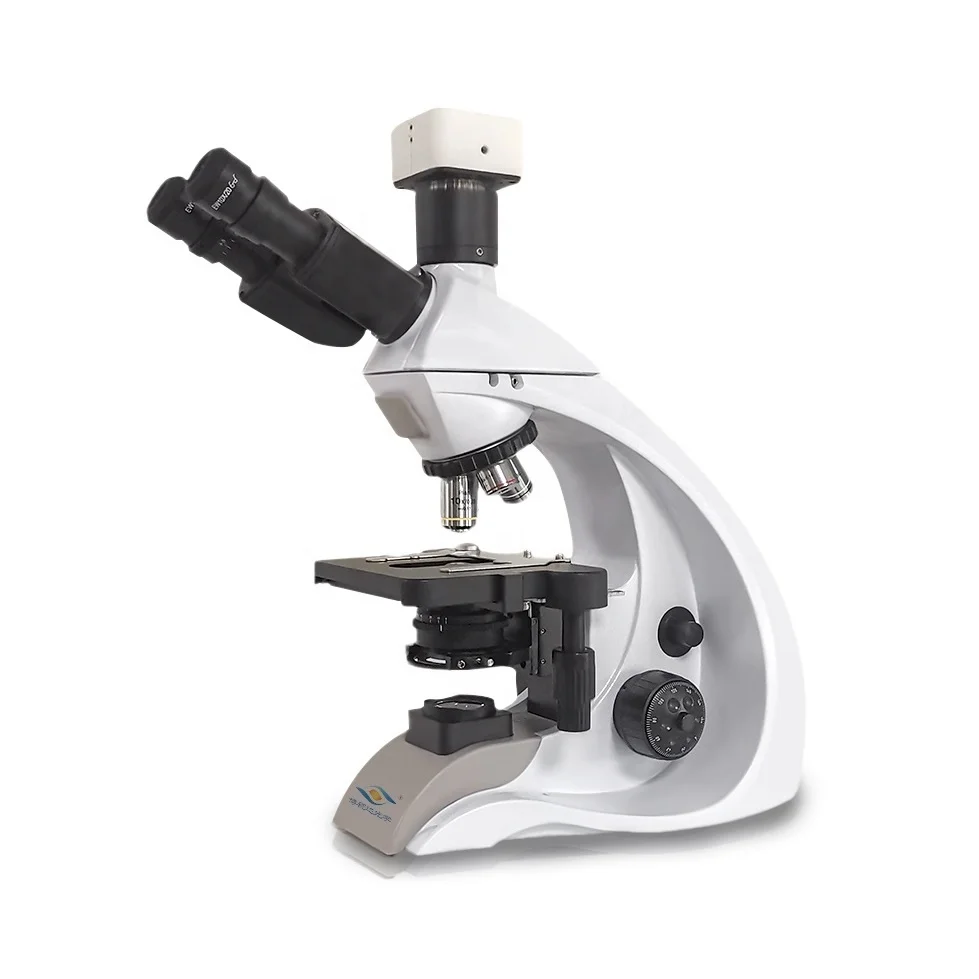

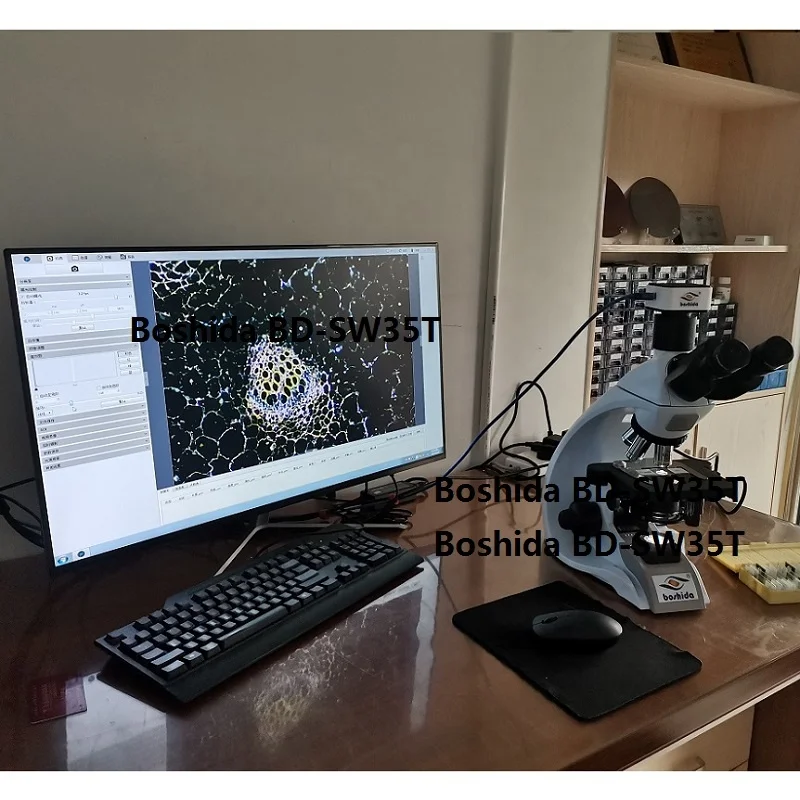

BD-SW35 compound trinocular biological microscope with camera connect to PC
Optional:

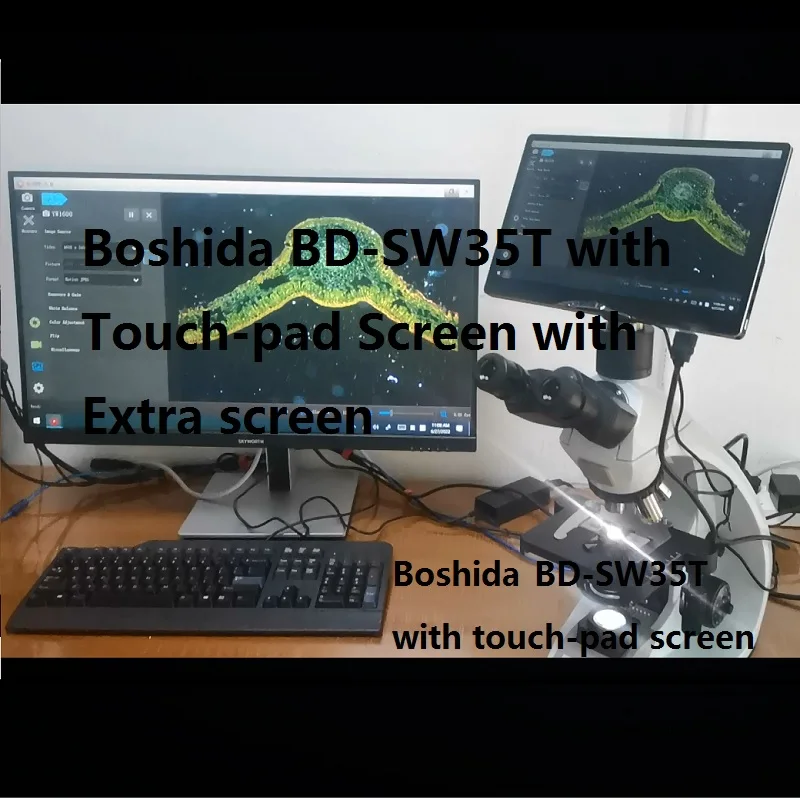

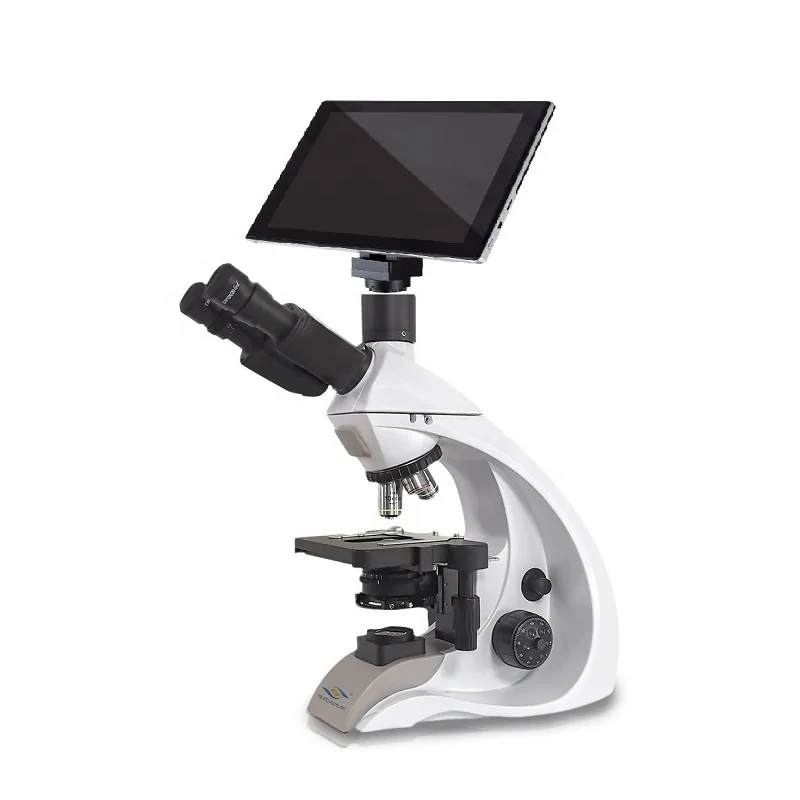

BD-SW35 compound trinocular biological microscope with Touchpad screen
(It can connect to a extra Monitor)
Model | BD-SW35 Biological Microscope |
Optical system | NIS45 Infinity Plan achromatic optical system. |
Observation | Standard: Brightfield. Optional: Dark field, phase contrast, polarizing, LED fluorescence filters. |
View head
| Trinocular or Binocular head, 30 ° incling, 360°rotating. Interpupillary distance: 47-78 mm. Diopter adjustment -5~+5. Split ratio: 50%:50%. |
Eyepiece | Wide field WF10X / 20mm. Optional: WF16X. |
Nosepiece | Quadruple or Quintuple reversed nosepiece, rotating on ball bearings. |
Objective | Infinity Plan Achromatic Plan objective: 4X/0.10 10X/0.25 40X/0.65(Spr) 100X/1.25(Oil, spr) |
Stage
| Mechanical double layer stage, dimensions 150x140 mm, Moving range( translation rank): 76mm ×52mm. Vernier scale on both axes of movement with an accuracy of 0.1 mm. Double slides clips. |
Focusing mechanism | Coaxial coarse and fine adjustment system. Coaxial Coarse 37.7 mm per circle, Fine Focus Knob Minimum Division 0.002mm. Built in stop mechanism to protect the specimen and objective. Tension adjustment of coarse regulation knob. |
Condenser | NA1.25 Abbe condenser, with aperture iris diaphragm. |
Illumination | Transmit Kholer Illumination, 1W LED. |
Body | Ergonomics designed rigid frame. With handle for carry. All metal material with cover. Anti-fungi, anti-bacteria. |
Camera | Optional. |
Power supply | AC 100~ 240V, 50 / 60Hz. |
Accessories | Dust cover, cable, manual. |
Our Services
1. Free sample testing.
We can test sample of user and help user to choose the most suitable microscope according to applications and requirements.
2. Online trainning.
3. Life time technical service.
4. Free Solutions.
We can suggest solutions according to applicatins and requirements.
5. Customized.
We can customize products according to applicatins and requirements.
5. Warranty: 1 year.
We will supply new microscope or parts if the microscope have problem within warranty time.
FAQ
1. How can you do sample testing?
We can suggest microscope according to applications of user. We had thousands of sucessful cases.
If user is not sure of the microscope image quality, user can send us samples for testing.
We will send pictures to user. If user is not satisfited with it, don't need to buy it.
2. What kind of customization you can supply?
Our microscope have standard version and optional parts. User can choose configuration according to requirement and budget.
For Industry using, there are varity of requirements. We can supply/produce microscopes and correct solutions according to requirements,
