Product Overview
Description

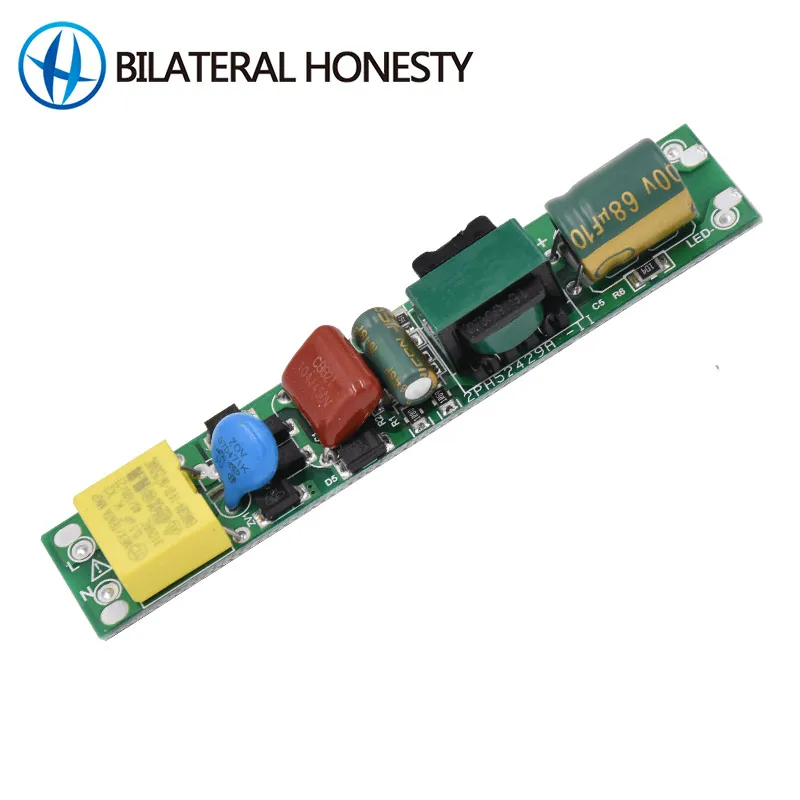

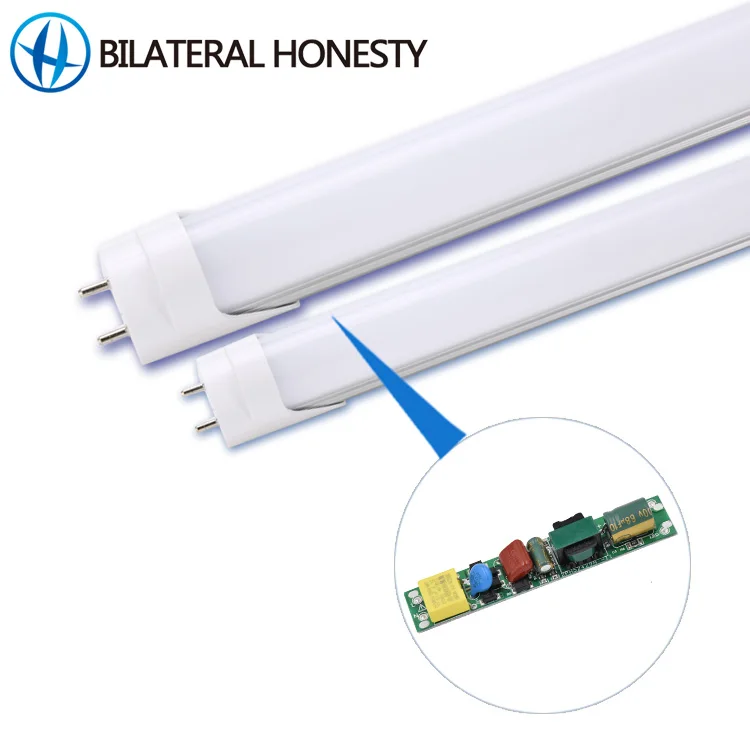

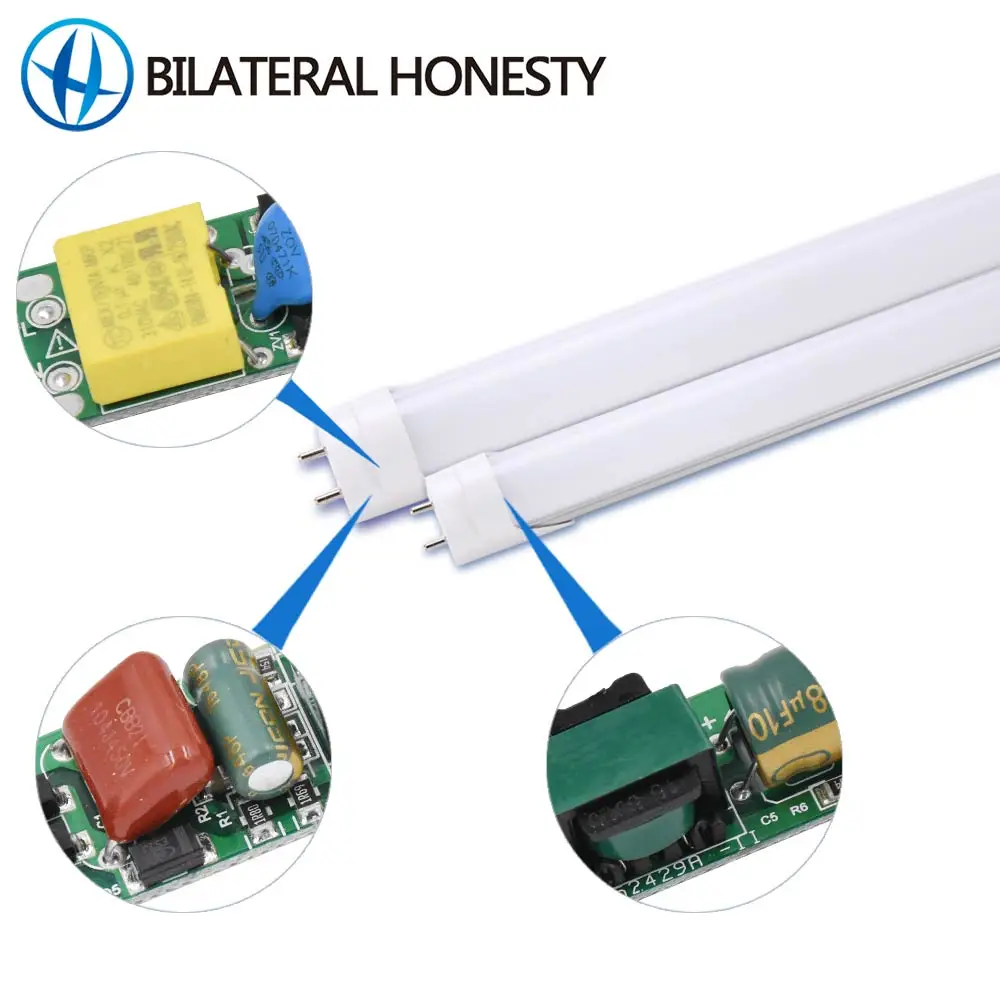

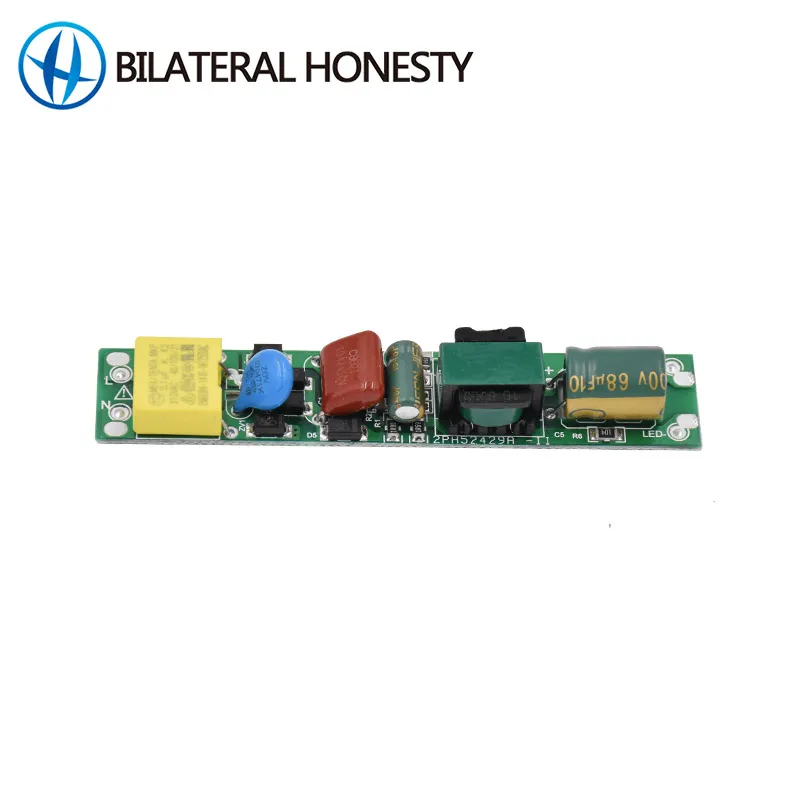

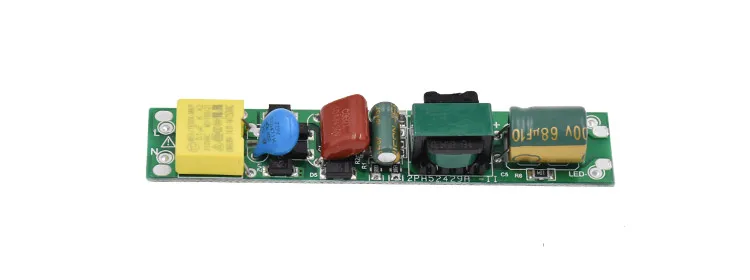

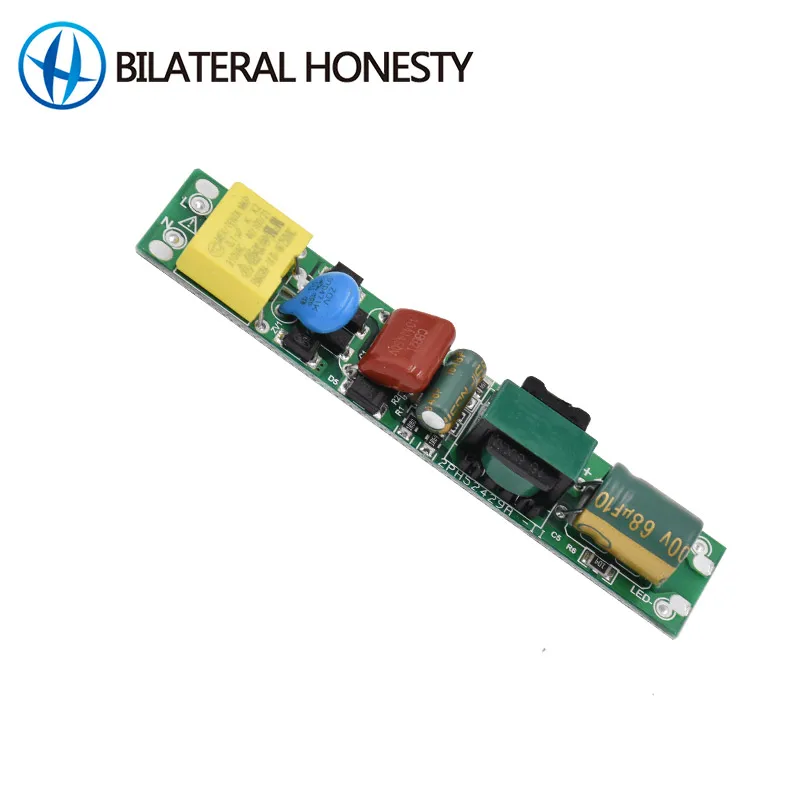

High efficiency T8 led tube light driver for 6W9W15W18W20WT5 T8 T10 led tube light
| XS-80 | |
| Output Power: | 6~20W |
| Voltage Input: | 85~264V |
| Output Voltage: | 20~80V |
| Output Current: | 80~240mA(adjustable) |
| Efficiency: | 90% |
| PFC: | PF≥0.9 |
| THD: | ≤18% |
| Size(L*W*H): | 85*16*10mm |
| Warranty: | 2 Years |
| Others: | Surge protection 500V |
| P/N | Typical Power | Input Voltage | Output Voltage | Output Current | Conversion Efficiency | Power Factor | THD |
| XS-85 | 9W | 85~264V/305V | 20~80V | 80~250mA | 90% | >0.9 | ≤20% |
| XS-85 | 15W | 85~264V/305V | 20~80V | 80~250mA | 90% | >0.9 | ≤20% |
| XS-85 | 18W | 85~264V/305V | 20~80V | 80~250mA | 90% | >0.9 | ≤20% |
| XS-85 | 20W | 85~264V/305V | 20~80V | 80~250mA | 90% | >0.9 | ≤20% |
XS-85 driver using jingfung Mingyuan BP2336 scheme ,it is a high efficiency, high power factor full voltage stable LED strip drive, high precision 2A built-in MOS, off-time control circuit, constant current drive control circuit, suitable for high brightness LED series and constant current driver.
Product characteristics:
- Start fast, high efficiency, stable, small size.
- Multiple protections: LED open circuit, the output short circuit, over-temperature protection, OVP can be set and so on.
- When the input voltage changes, the output ripple is no flash.
- High power factor, IC comes with PFC, rated power at full load PF≥0.9
- Constant current output smooth, without intermittent.
- The product uses EE14 electronic transformer, the product power is bigger the heat is lower
Driver Sell Well
FAQ
Q1. Can I have a sample order for led light?
A: Yes, Mixed samples are acceptable.
Q2. Delivery time:
A.Samples needs 3-5 days, mass order needs 1-2 weeks
Q3. What about MOQ for the order?
A: 1pc is available
Q4. What about the shipment ?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on led light product?
A: Yes. Please inform us before produce and confirm the design based on our sample
Q6: what about the warranty?
A: 2-5 years .
Q7: How to deal with the faulty?
A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair and resend to you .
