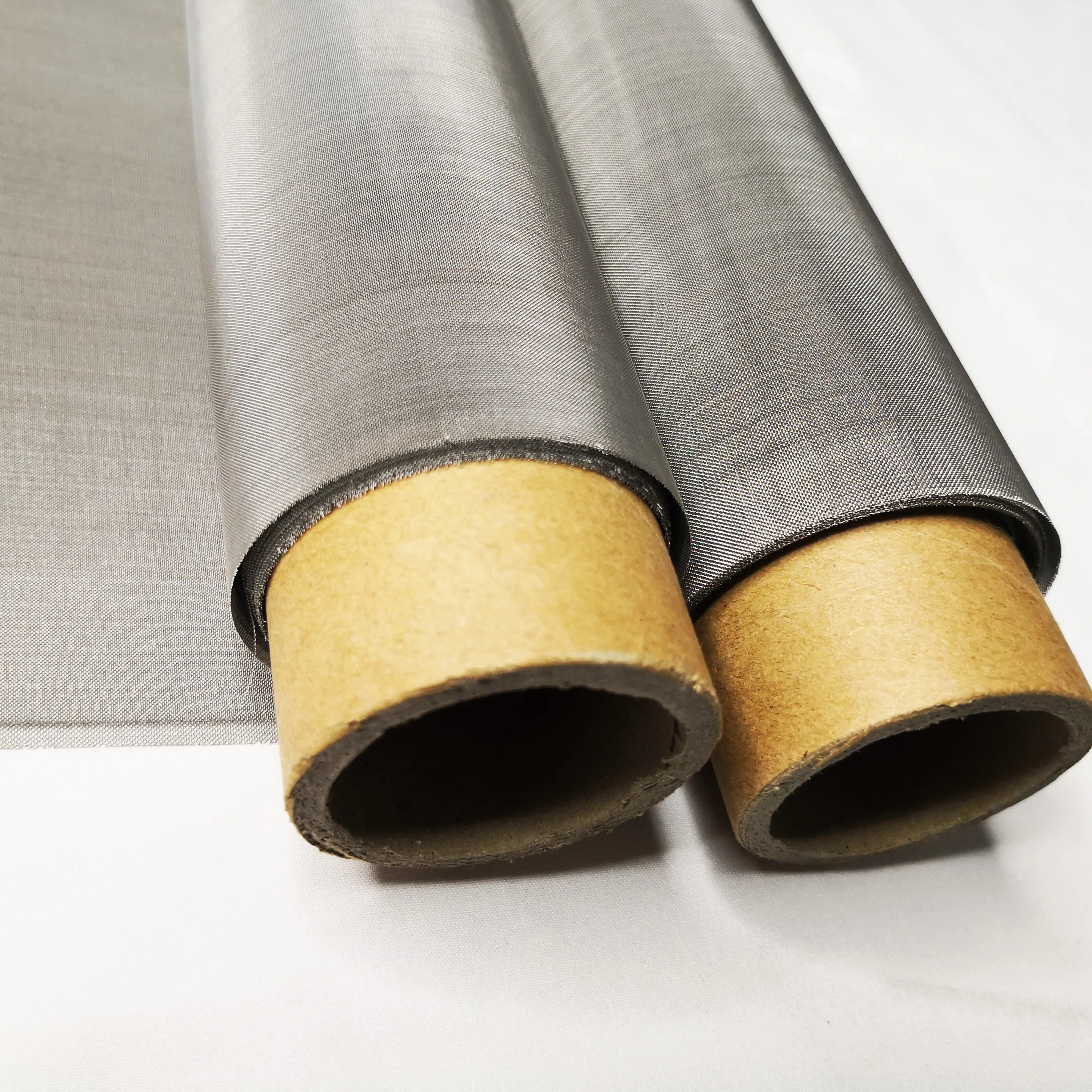

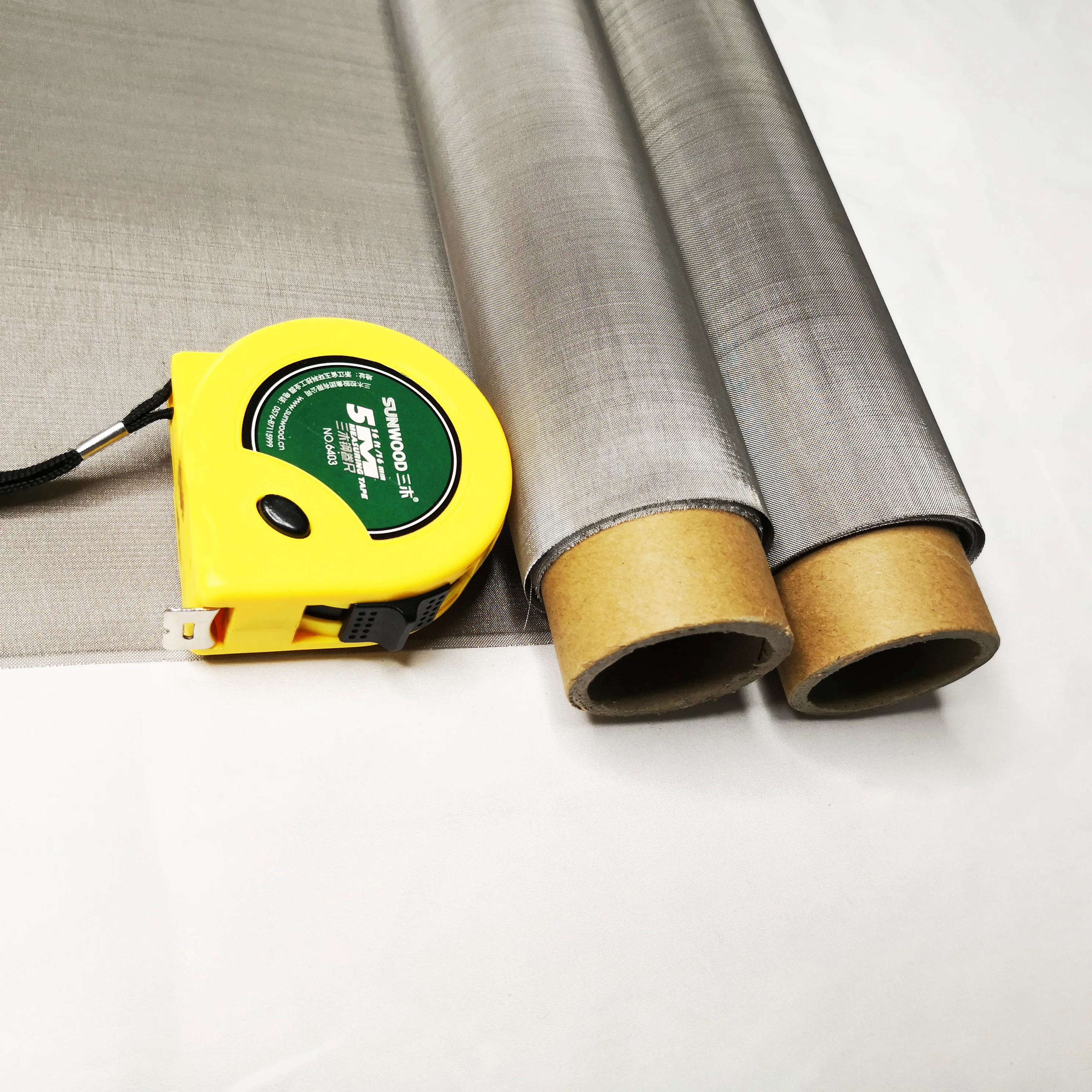

200 Mesh 75 Micron Stainless Steel Fine Filters Cloth Mesh

Product Overview

Description

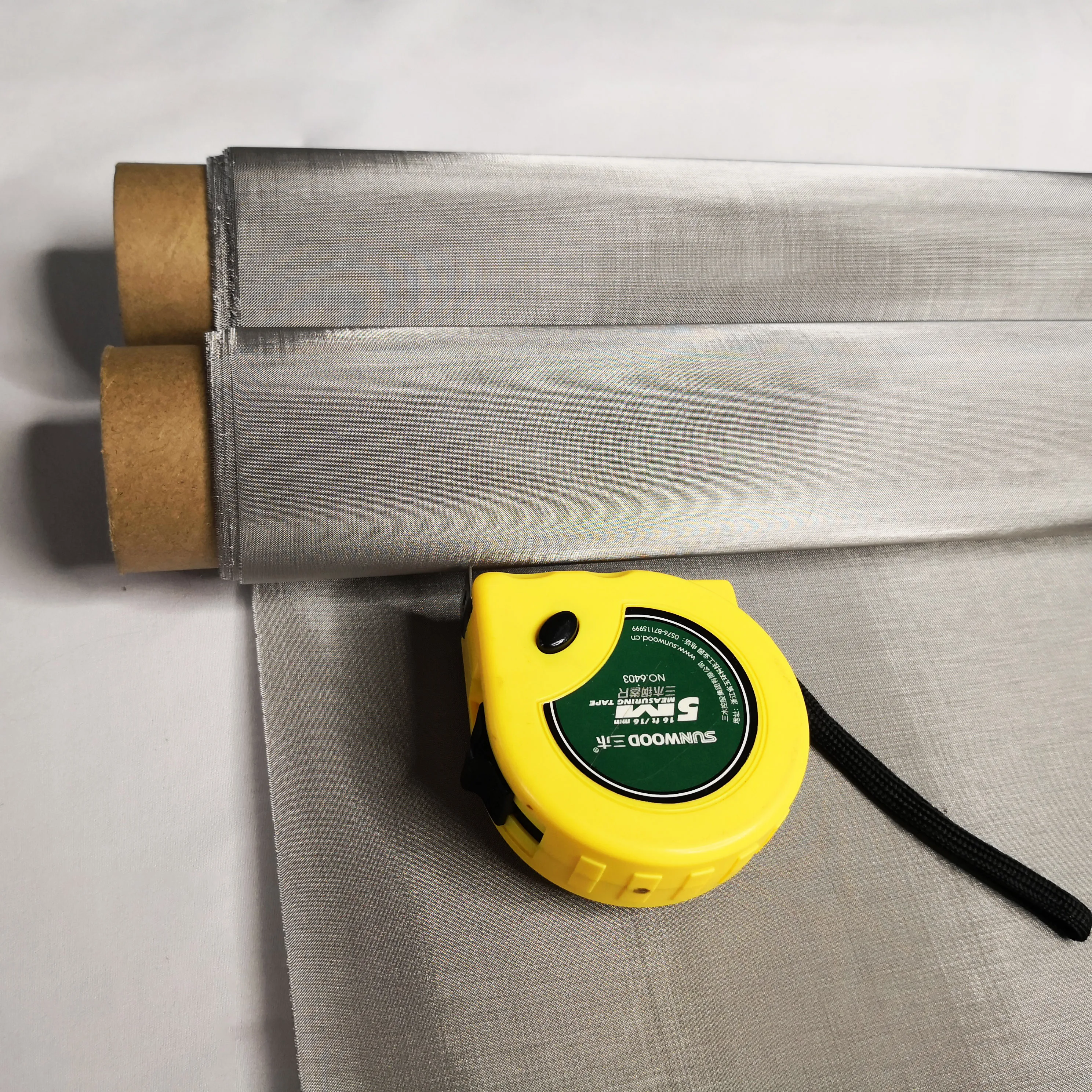

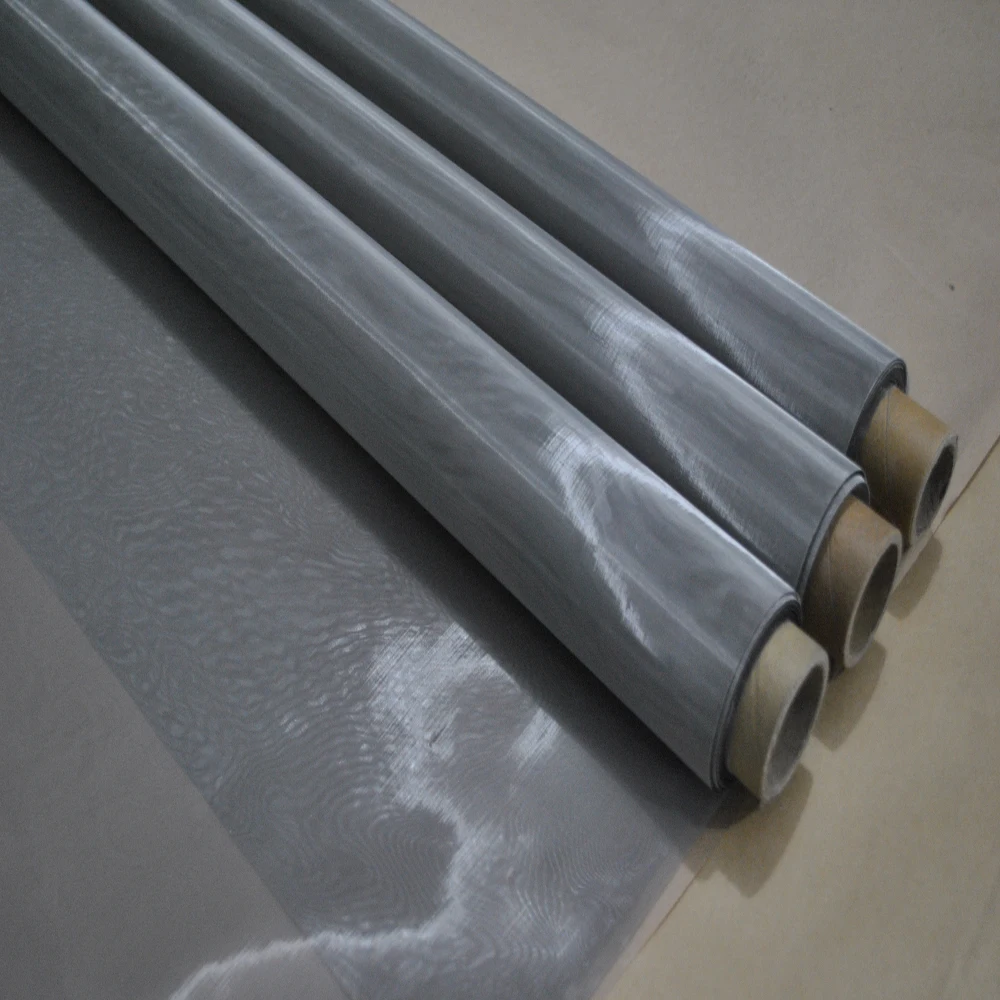

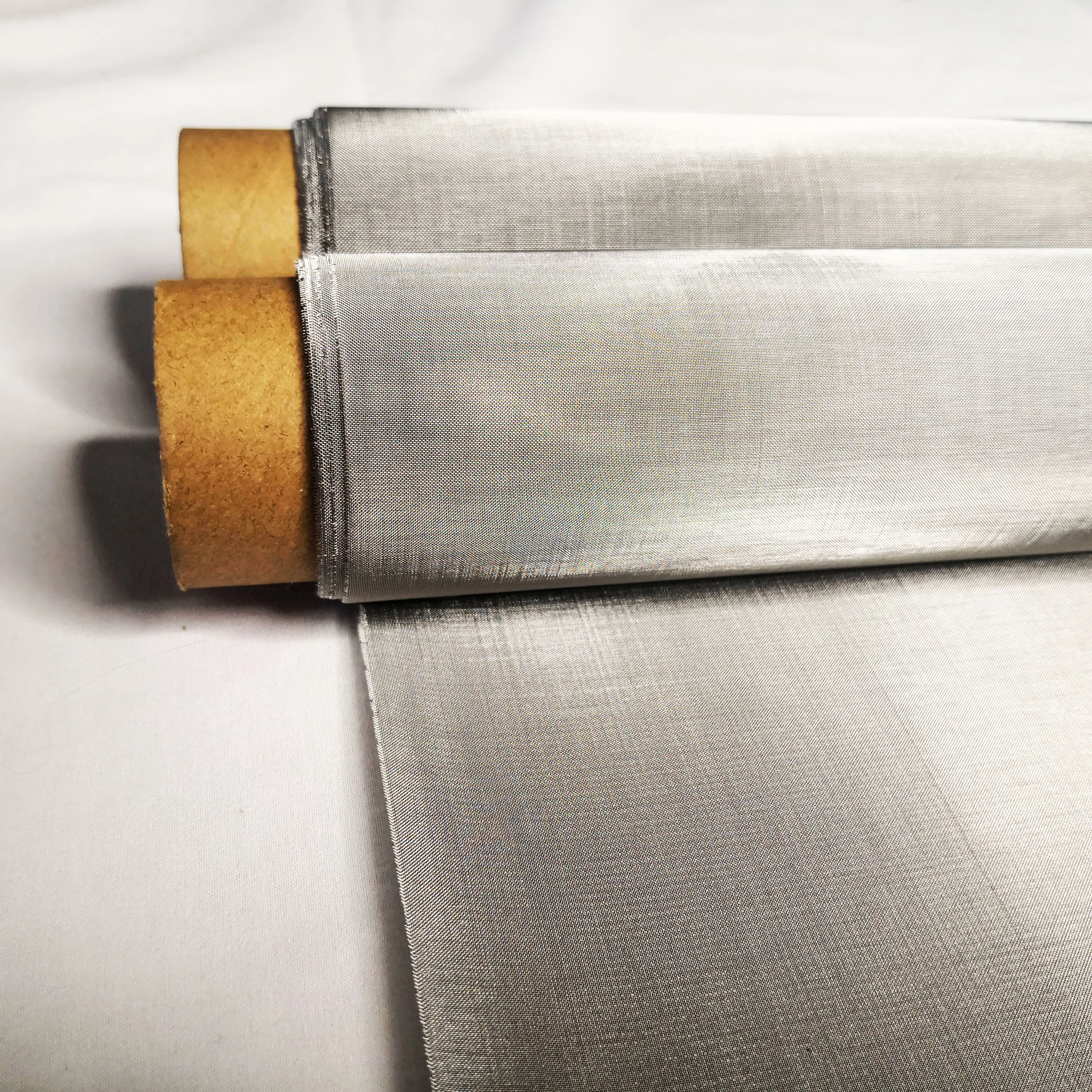

200 Mesh 75 Micron Stainless Steel Fine Filter Cloth Mesh



200 Mesh 75 Micron Stainless Steel Fine Filter Cloth Mesh



Stainless steel wire mesh is mainly used for filtering products, also known as stainless steel mesh.

Material: SUS201, 202, 302, 304, 316, 304L, 316L, 321 stainless steel wire, etc.

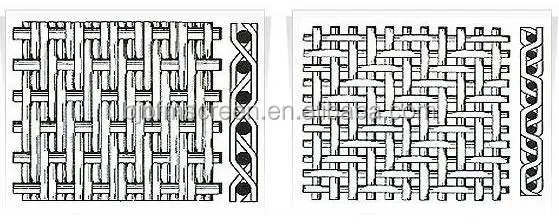

Knitting: plain weave, twill weave and dense weave.

Number of meshes: specification of stainless steel wire mesh 1 mesh - 635 mesh. The mat weaving can reach 2800 meshes.

Uses: Stainless steel mesh and other metal wire woven mesh are mainly used for screening and filtering under acid and alkali environment, oil industry as slurry screen, chemical fiber industry as screen screen screen, electroplating industry as pickling screen, gas, liquid filtration and other media separation.



Product Name	200 Mesh 75 Micron Stainless Steel Fine Filter Cloth Mesh
Mesh count	200 mesh
Mesh Aperture	75 micron
Width	1m or 1.22m
Material	304 stainless steel



Specifications

Mesh count: 1mesh-635mesh
Wire diameter: 0.02mm-2.03mm
Weaving types: plain
ISO9001: 2000,SGS



Weave Type	Mesh Count	Wire Dia. (Inch)	Width of Opening (Inch)	Open Area (%)	Weigh Per 100 sq' based on 304ss	Opening (Micron)
Plain	2 x 2	.063	.4370	76.4	51.7	11119
Plain	3 x 3	.0540	.2790	70.1	57.3	7099
Plain	4 x 4	.0470	.2030	65.9	58.2	5165
Plain	5 x 5	.0410	.1590	63.2	55.4	4046
Plain	6 x 6	.0350	.1320	62.7	48.6	3359
Plain	6 x 6	.0320	.1350	65.	20.7	3435
Plain	7 x 7	.0320	.1110	60.4	47.5	2824
Plain	7 x 7	.0280	.1150	64.8	36.2	2926
Plain	8 X 8	.0250	.1000	64.0	32.9	2545
Plain	9 X 9	.0250	.0860	59.9	37.3	2188
Plain	9 X 9	.0230	.0880	62.7	31.4	2239
Plain	10 x 10	.0250	.0750	56.3	41.6	1908
Plain	11 x 11	.0230	.0680	56.0	38.8	1730
Plain	11 x 11	.0200	.0710	61.0	29.1	1807
Plain	12 x 12	.0200	.0630	57.2	31.9	1603
Plain	14 x 14	.0200	.0510	51.0	37.6	1298
Plain	16 x 16	.0180	.0445	50.7	34.8	1132
Plain	18 x 18	.0170	.0386	48.3	35.1	982
Plain	20 x 20	.0200	.0300	36.0	55.8	763
Plain	30 x 30	.0120	.0213	40.8	29.7	542
Plain	30 x 30	.0095	.0238	51.0	18.2	606
Plain	40 x 40	.0100	.0150	36.0	27.9	382
Plain	50 x 50	.0055	.0145	52.6	10.1	369
Plain	60 x 60	.0060	.0107	41.2	14.8	272
Plain	60 x 60	.0045	.0122	53.3	8.1	310
Plain	80 x 80	.0055	.0070	31.4	17.1	178
Plain	100 x100	.0045	.0055	30.3	14.3	140
Plain	100 x100	.0040	.0060	36.0	11.1	153
Plain	120 x120	.0026	.0058	47.3	5	148
Plain	150 x150	.0026	.0041	37.4	7.2	104
Plain	165 x165	.0019	.0042	47.1	4.2	107
Plain	180 x180	.0023	.0033	34.7	7.5	84
Plain	200 x200	.0019	.0030	60.6	3.6	77
Plain	230 x230	.0014	.0029	46.0	3.4	74
Plain	250 x250	.0016	.0024	36.0	4.3	61
Twill	270 x270	.0016	.0021	32.2	4.8	53
Plain	300 x300	.0012	.0018	29.7	3	46
Twill	325 x325	.0014	.0017	30.0	4.3	43
Twill	400 x400	.0011	.0014	31.4	3.4	36
Twill	500 x500	.0010	.0010	25.0	*	25
Twill	635 x635	.0008	.0008	25.0	*	20







Advantages of 200 Mesh 75 Micron Stainless Steel Fine Filter Cloth Mesh

(1)Plain/Twill weave stainless steel wire mesh has good performance at acid-resisting, alkali-resisting and anticorrosion.

(2)High strength, good tension\\toughness and abrasion performance, durable in use.

(3)Resistance to high temperature oxidation, 304 stainless steel wire mesh nominal resistance temperature is 800 degree Celsius, 310S stainless steel wire mesh nominal resistance temperature can reach 1150 degrees Celsius.

(4)Room temperature processing, easy to do plastic processing, make the possible use of stainless steel wire mesh diversified.

(5)Good surface finish, no need to do any surface treatment, with convenient and simple maintenance.

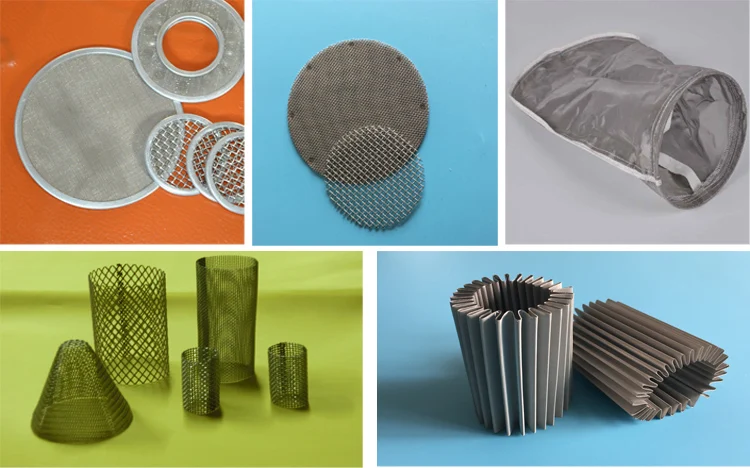

Application of 200 Mesh 75 Micron Stainless Steel Fine Filter Cloth Mesh  :

The product is mainly used for gas separation, liquid filtration and other medium; Widely used in precision pressure filter, fuel filter, vacuum filter, filter materials, aerospace, petroleum, pharmaceutical, sugar, oil, chemical industry, chemical fiber, rubber, tire manufacturing, metallurgy, food, health, scientific research and other industries.

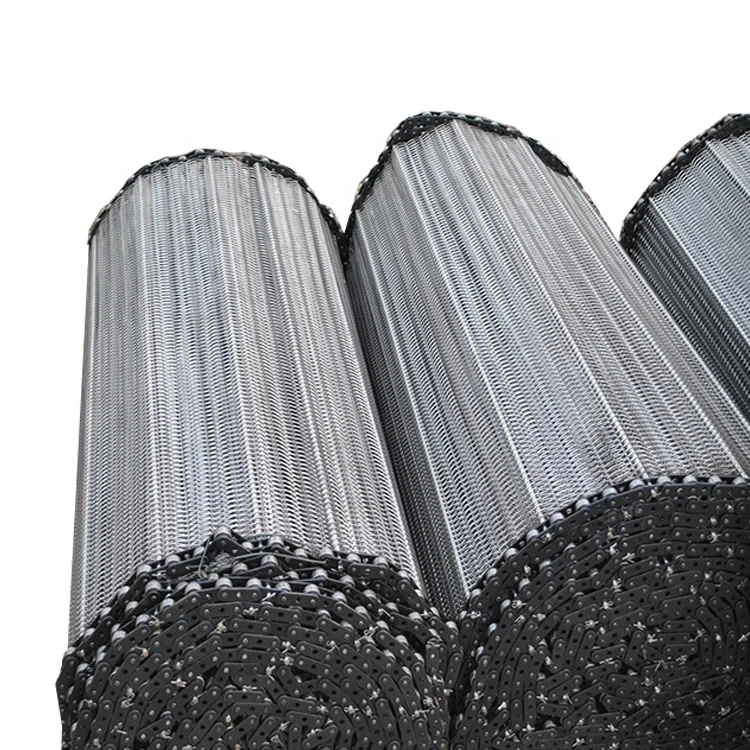

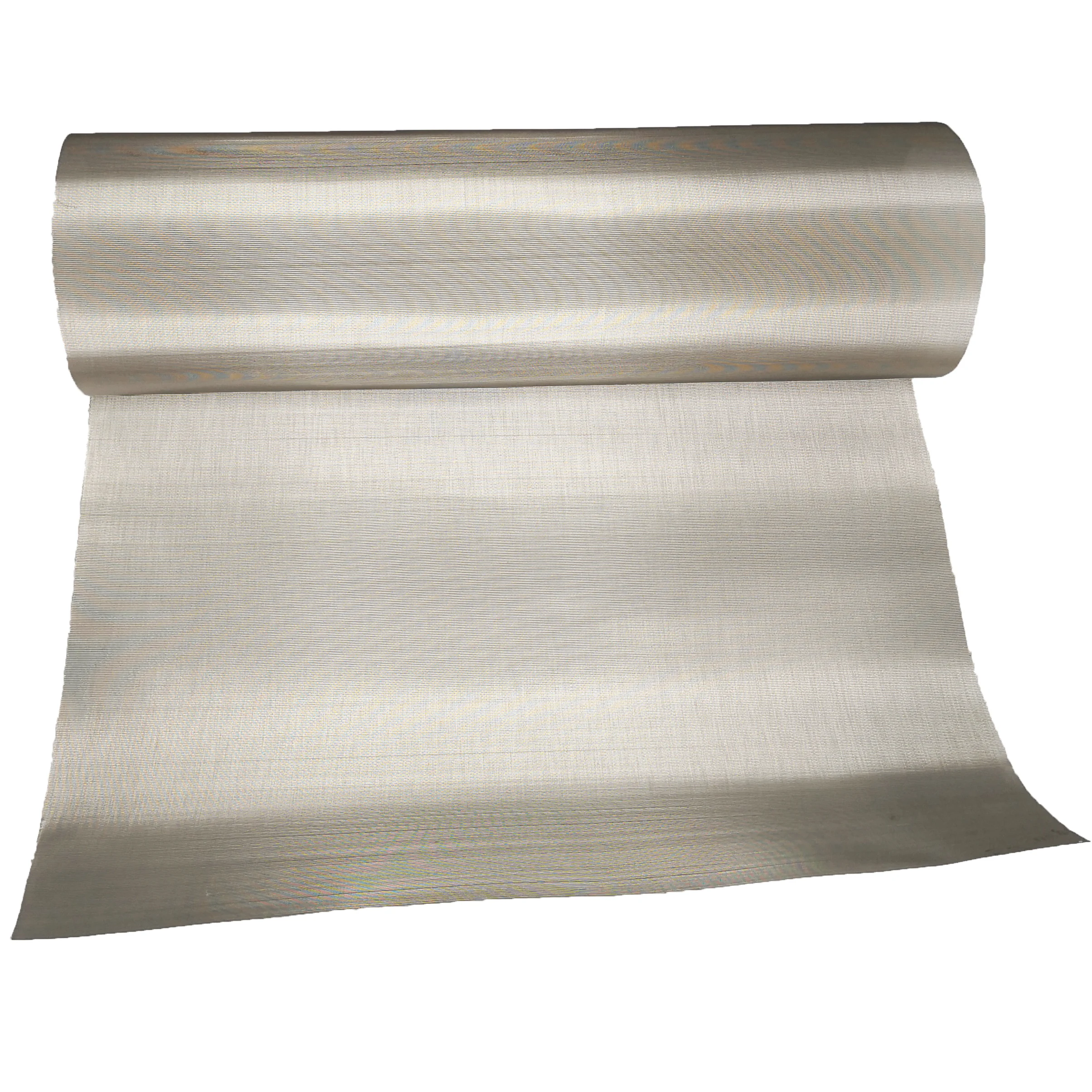

Stainless steel dutch filter mesh	Stainless steel extruder filter screen	Stainless steel chain mail conveyor belt



Packaging:

200 Mesh 75 Micron Stainless Steel Fine Filter Cloth Mesh
1.waterproof paper inside, plywood case outside

Delivery :
1. for small quantity, shipped by courier.
2. for large quantity, shipped by air or by sea.
3. tracking number will be emailed to you after the order has been shipped.
4. If you have forwarder in China, we can send to your forwarder for free.







1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply to you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me feedback. If you have any questions about the problem, contact us, we will offer the solve way for you.

5.Sample testing support.

6.Changing for new if dissatisfaction.
