Product Overview
Description
FSCT-770/570 Automatic Fast Food Box Plastic Thermoforming Machine
Hot Product
Machine video link:
https://www.youtube.com/watch?v=k33AmuyF3_k
Whatspp & wechat & mob:+86-18358758585
Product Description
The FSCT770570 ,which is a combination of mechanical,electrical and pneumatic components, adopts the most advanced thermoforming technology.The whole system is controlled by micro PLC and operated by the man-machine interface.It combines the feeding,heating,forming, cutting and stacking into one process.
Main parameters:
| Model | FSCT-680/420-A | FSCT-680/420-B | FSCT-770/570-A | FSCT-770/570-B |
| Qty of Stations | 3 | 4 | 3 | 4 |
| Sheet Material | PP,PS,PET,PVC,HIPS,EPS,OPS,ABS | |||
| Max.Forming Area | 680x420mm | 770x570mm | ||
| Max.Forming Depth | 100/100mm | |||
| Max.Sheet Width | 700mm | 790mm | ||
| Max.Sheet Roll Dia. | 1200mm | |||
| Sheet Thickness | 0.1-2mm | |||
| Air Consumption | 3m³/min,0.6-0.8Mpa | |||
| Overall Power | 120kw | 130kw | 180kw | 190kw |
| Machine Size | 9500x2300x2500mm | 10500x2300x2500mm | 11500x2400x2400mm | 12600x2400x2400mm |
| Weight | 8T | 12T | 15T | 20T |
| Power Supply | 380V/50HZ/3P | |||

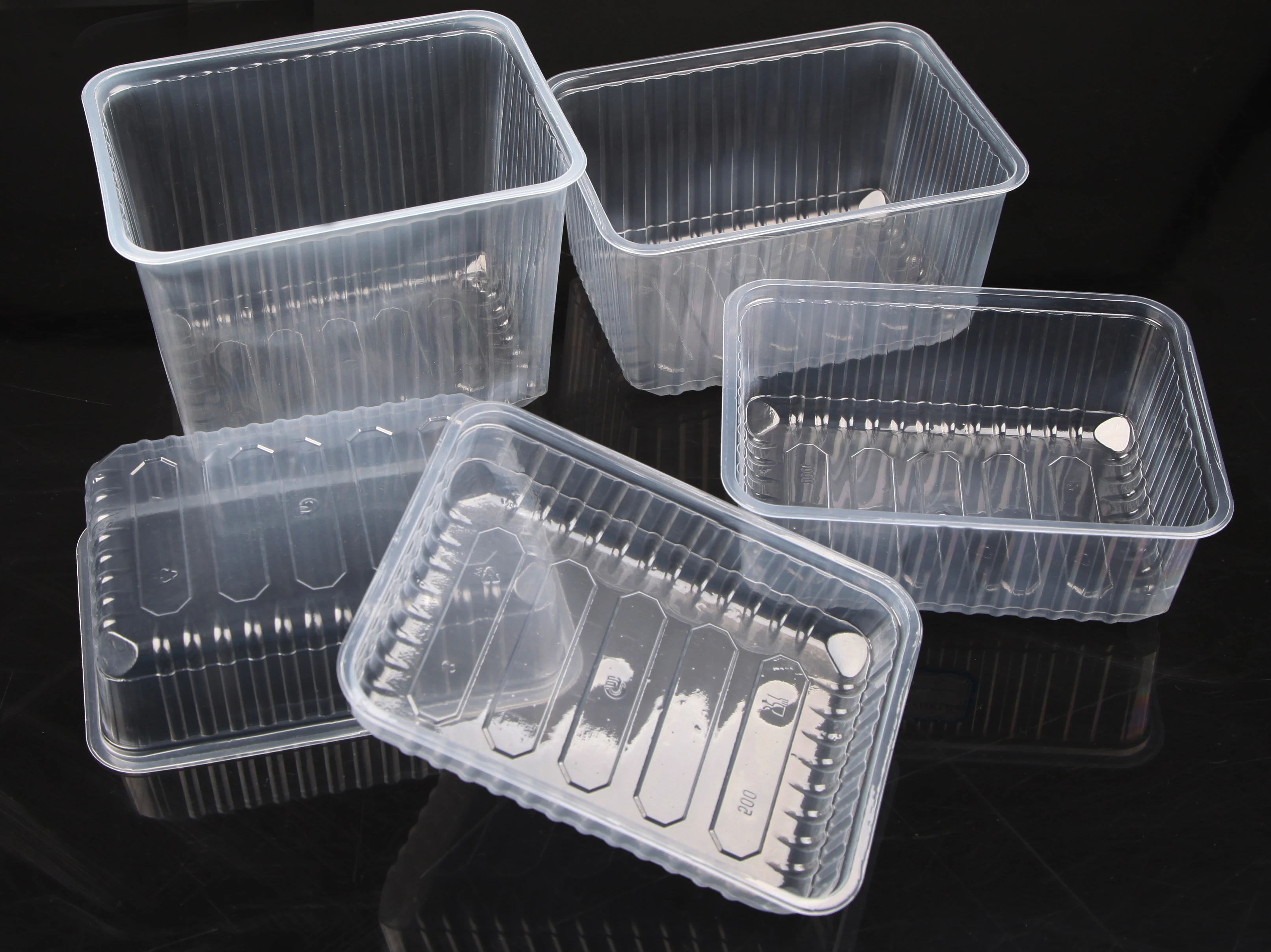

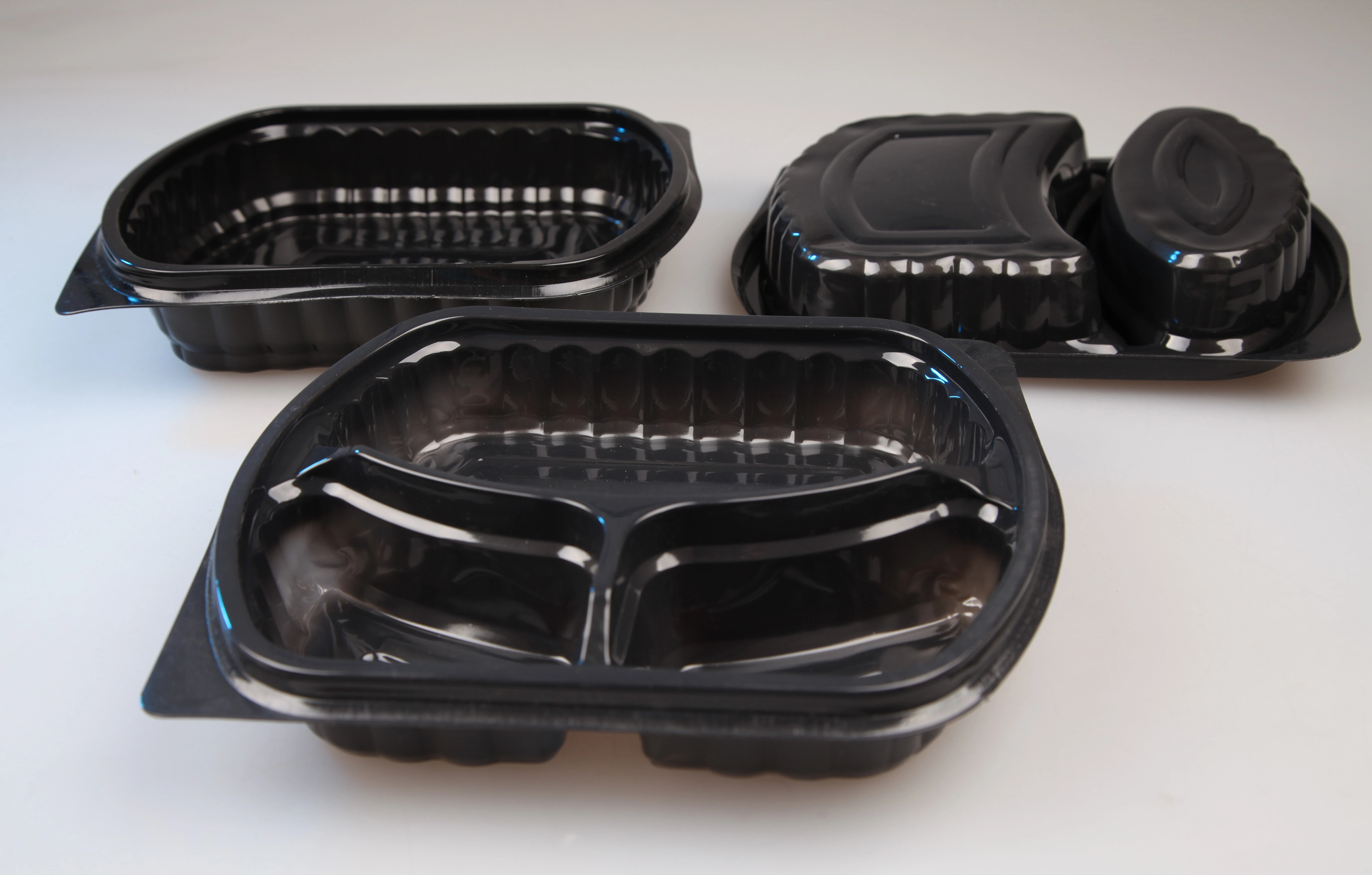

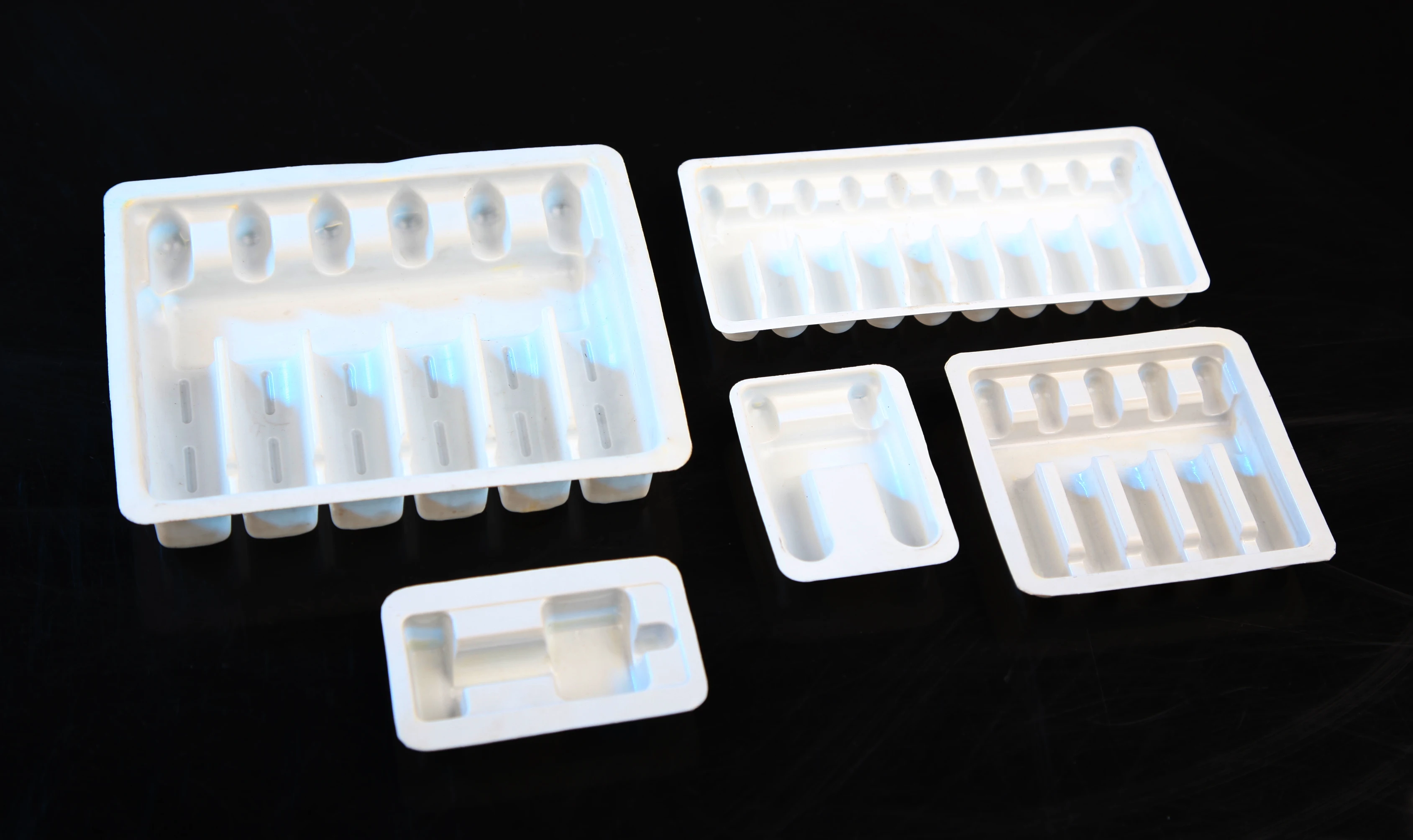

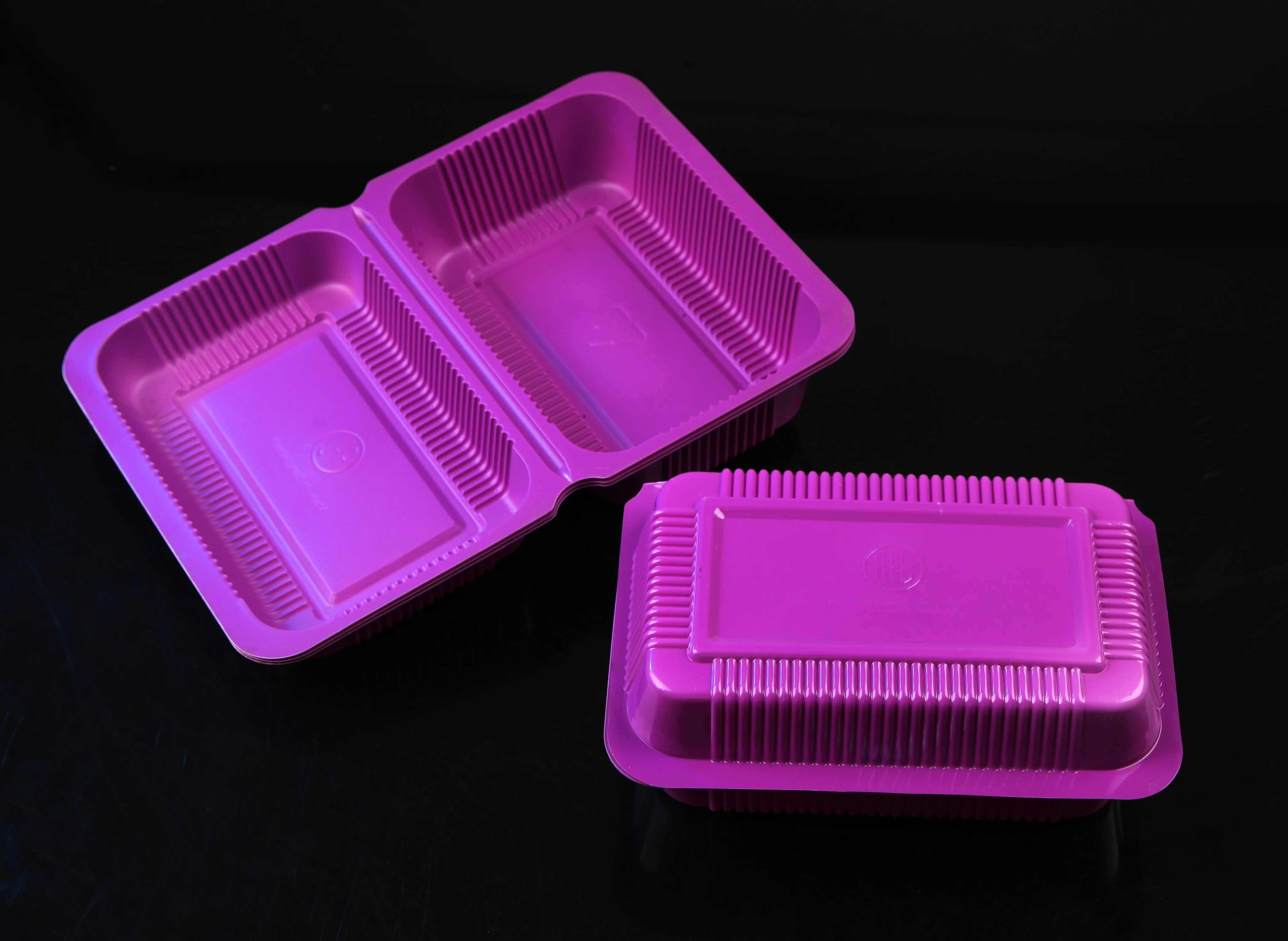

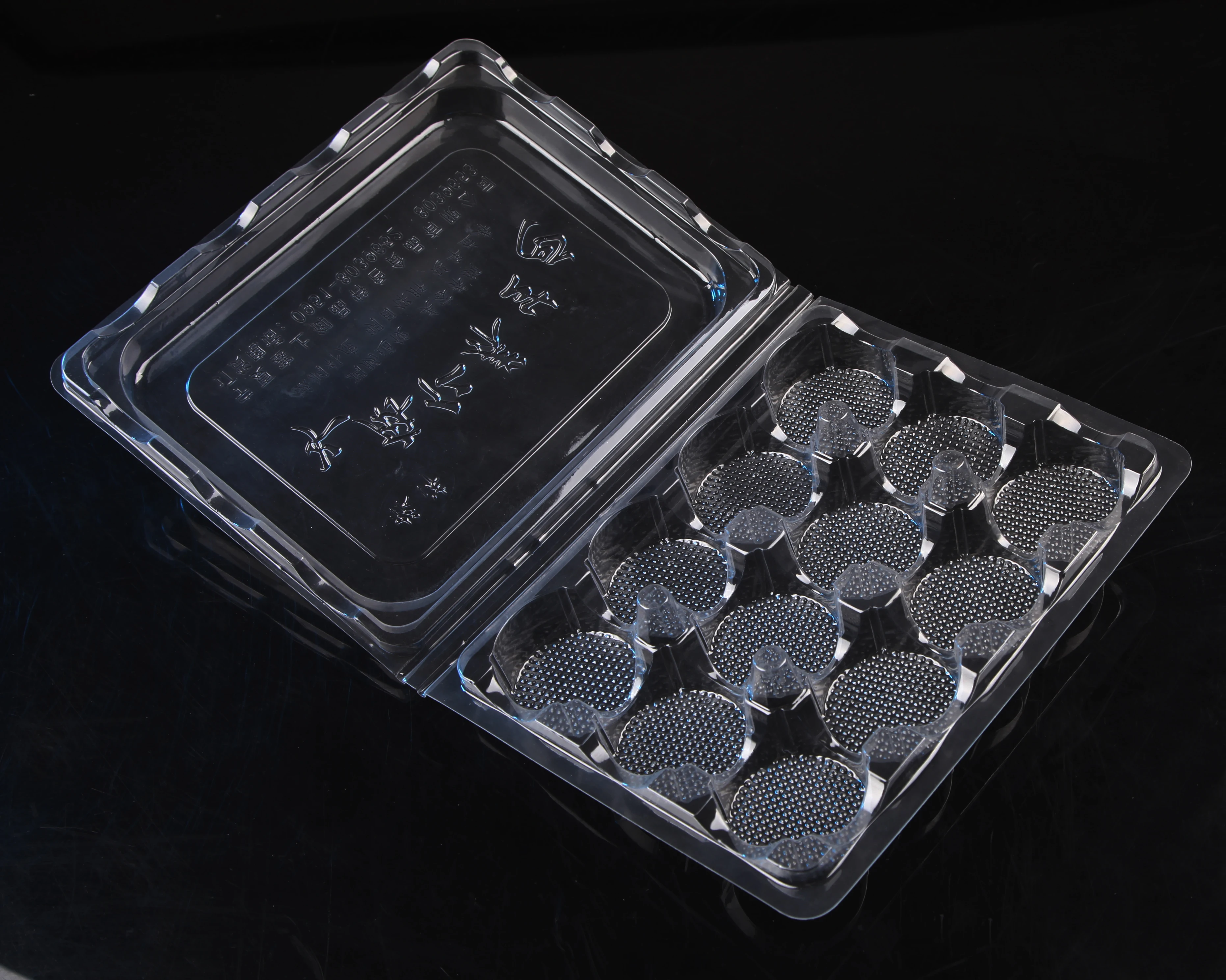

Sample information:

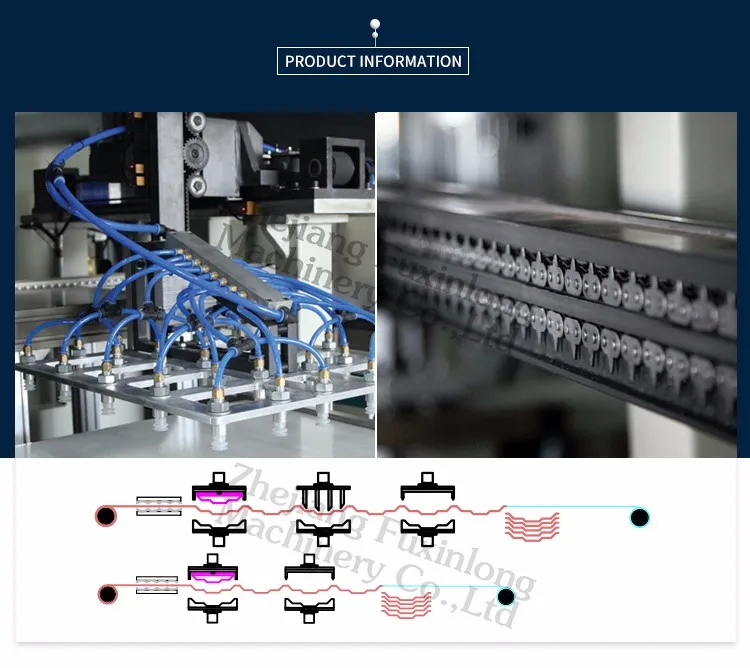

Machine Pictures:
