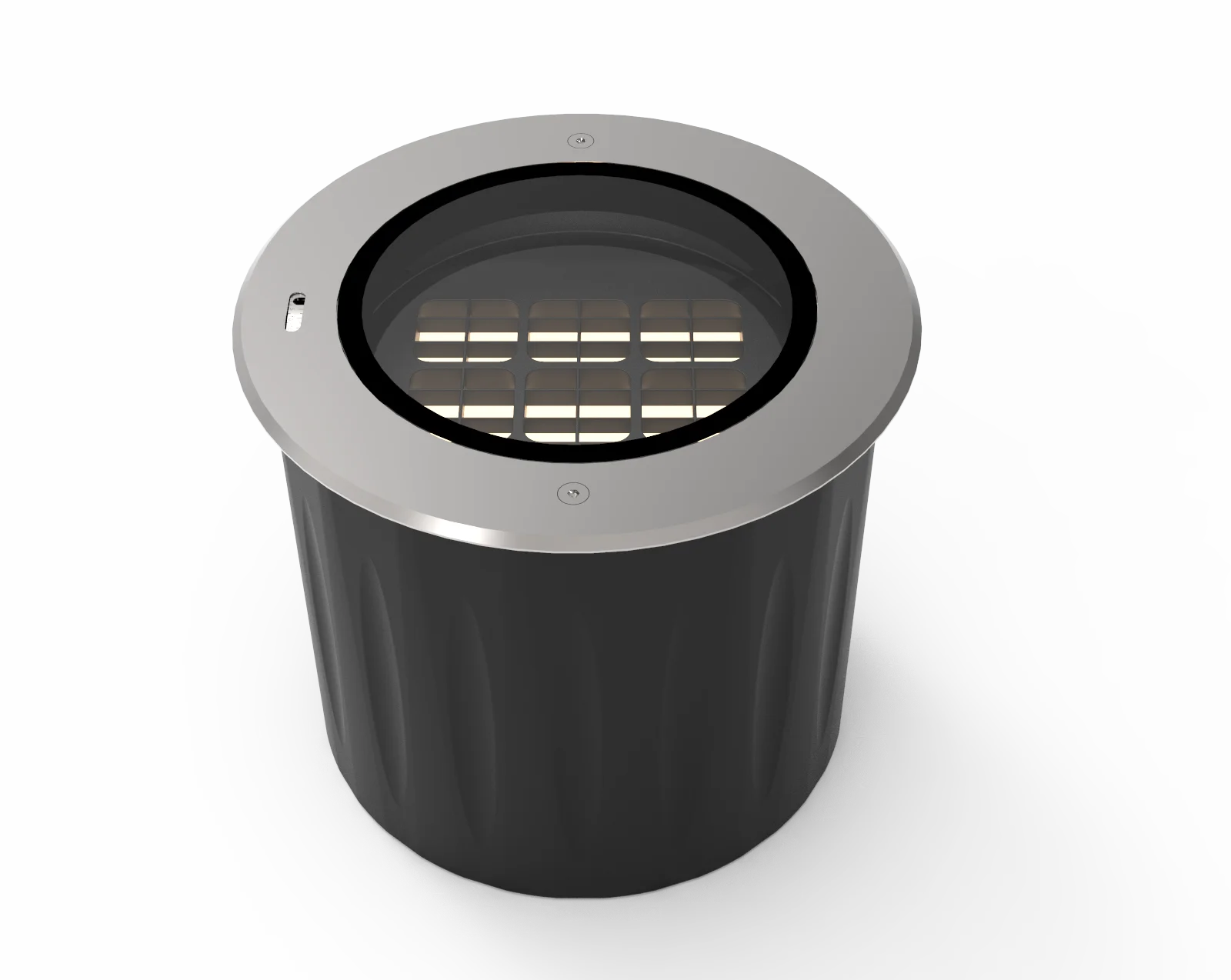

60W die casting aluminum recessed Driveway underground led lights led uplight
- Category: >>>
- Supplier: Beijing Bestpower Technology & Engineering Co. Ltd.
Share on (60574651966):
Product Overview
Description
Product Details
Characteristics
Characteristics
60W die casting aluminum recessed Driveway underground led lights IP67 Ip68 led uplight
Housing: Die-casting aluminum housing; AISI304 stainless steel faceplate, anti-corrosion coating; AISI304 stainless steel/Aluminum alloy recessing box provide remarkable heat radiation.
Cover: 19mm tempered glass
Housing color: Grey
Mounting: Floor/ground recessed mounted.
LED Chips: CREE chips.
Protection grade: IP68 IK08
Rated Power: 60W
Color Temperature: 2700K/3000K/4000K/5500K
Input Voltage: AC100-305V, 50/60Hz
Beam Angle: 5°/8°/12.5°/20°/30°/60°/15X30°/10X60°
CRI: >80
Control Mode: on/off (standard) , 0-10V dimmable(optional), DMX512(optional)
Cable: 3*1mm2 outdoor rubber cable
Load Capacity: 5,000Kg (Static load) / 2,000Kg – 20Km/h (Load / car)
Working temperature: -25℃~50℃
Working Humidity: 10%~90%
Glare Shield Accessory: honeycomb grill
Other Accessory: Anti-slip glass
Application: Facade lighting, landscape lighting, garden lighting, building lighting
Cover: 19mm tempered glass
Housing color: Grey
Mounting: Floor/ground recessed mounted.
LED Chips: CREE chips.
Protection grade: IP68 IK08
Rated Power: 60W
Color Temperature: 2700K/3000K/4000K/5500K
Input Voltage: AC100-305V, 50/60Hz
Beam Angle: 5°/8°/12.5°/20°/30°/60°/15X30°/10X60°
CRI: >80
Control Mode: on/off (standard) , 0-10V dimmable(optional), DMX512(optional)
Cable: 3*1mm2 outdoor rubber cable
Load Capacity: 5,000Kg (Static load) / 2,000Kg – 20Km/h (Load / car)
Working temperature: -25℃~50℃
Working Humidity: 10%~90%
Glare Shield Accessory: honeycomb grill
Other Accessory: Anti-slip glass
Application: Facade lighting, landscape lighting, garden lighting, building lighting
Model | SL2166CF-6 | SL2166CC-24 | |
LED Brand | CREE XP-L/XHP50 | CREE/OSRAM RGBW 4 in 1 | CREE XP-G3 |
LED quantity | 6pcs | 6pcs | 24pcs |
Rated Power | 60W | 60W | 60W |
Input Voltage | AC100-305V, 50/60Hz | AC100-305V, 50/60Hz | AC100-305V, 50/60Hz |
Color Temperature | Single | RGBW | Single |
Beam Angle | 3.5°/12°/20°/30°/ 60°/10X70°/5X20° | 15°/20°/30°/15X60° | 5°/8°/12.5°/20°/30°/60°/15X30°/10X60° |
Control Mode | on off | DMX512 | On off |
Life Span | 80000H | 80000H | 80000H |
Protection Grade | IP68 | IP68 | IP68 |
In series(max) | 20pcs | 20pcs | 20pcs |
Ambient Temp. | -25℃~+50℃ | -25℃~+50℃ | -25℃~+50℃ |
Installation Instructions
Relalted Products

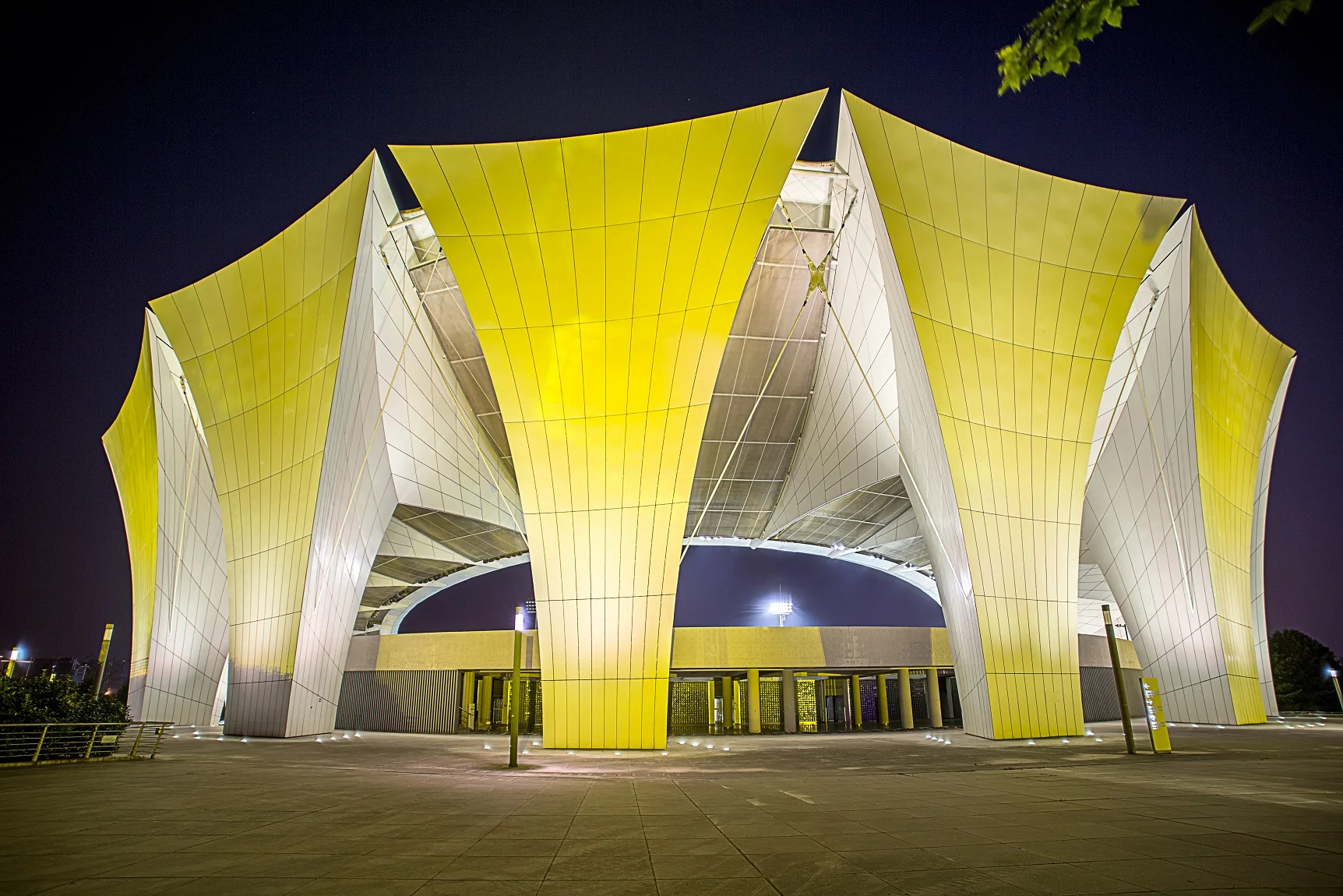

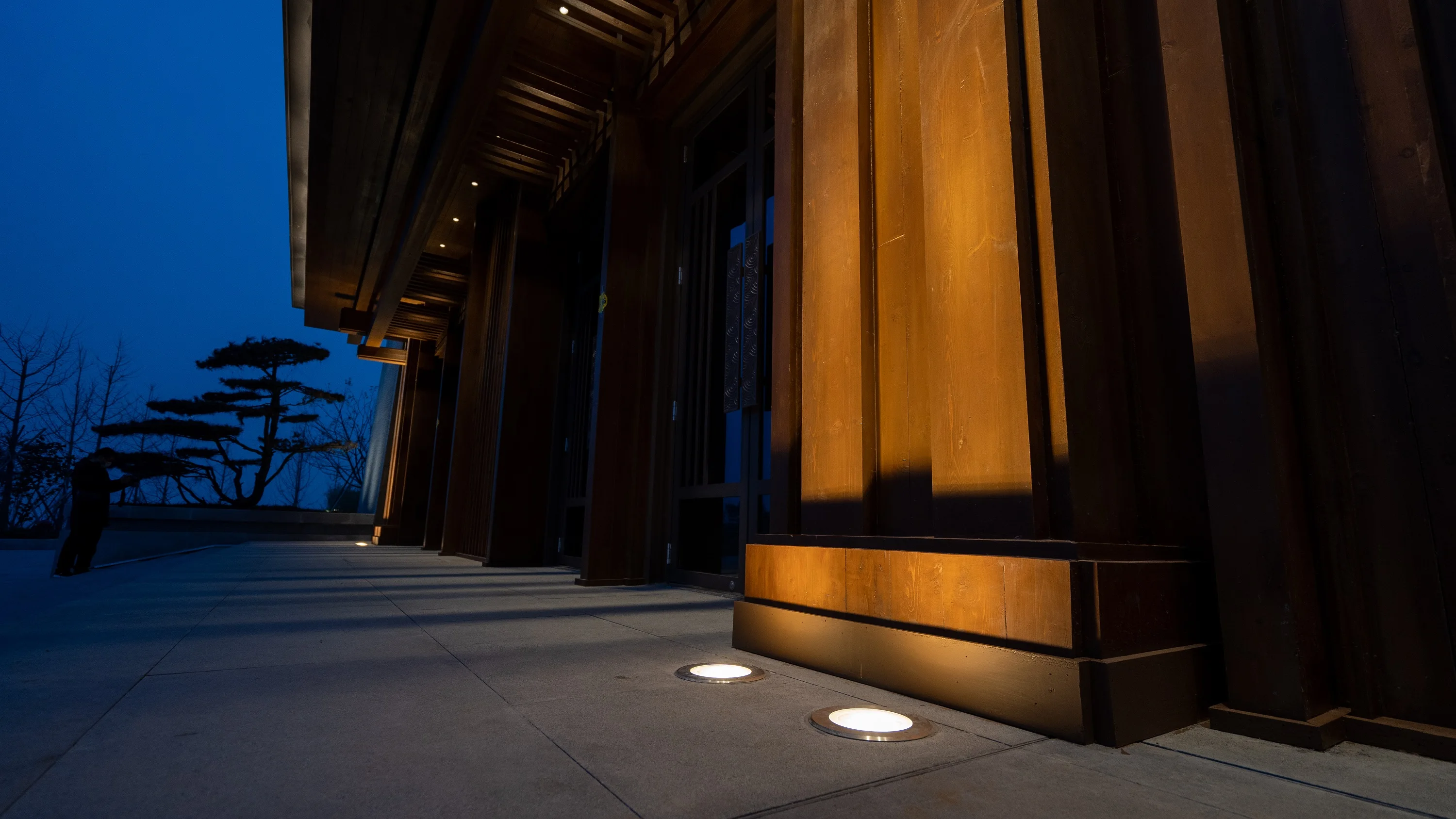

Project Reference
Certifications
Our Inground light series has gotten EMC(CE), LVD(CE), RoHS certificate, and passed IP67, IK08, EN62471, UV and Vibration test.
Package and Delivery
1.standard paper packaging: inner boxes+ourter boxes+pallets;
2.Logo customization is available if there is a big quantity
3.Shipping mark is based on your request
4.DHL/FedEx/UPS/TNT/SF express are availabel.
2.Logo customization is available if there is a big quantity
3.Shipping mark is based on your request
4.DHL/FedEx/UPS/TNT/SF express are availabel.
5.Sample delivery: 3-7days;
Bulk order delivery: 10-15days.
About Us
About Us
Our factory covers an area of 33000 m2, total 212 employees, producing over 5000 sets daily. In 2019, our total sales amount to USD 24 million. We have established provincial-level standard testing center, which owns distribution photometer, spectral protocol, optical detection apparatus and etc. All products are tested in our laboratory to ensure that they meet the highest standards of performance, light quality and longevity. We pursue win-win and international cooperation, ‘While our lights are developed and produced carefully and with an eye on the future by our team’. Let’s start our win-win cooperation from now.
Exhibition
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available, and 10pcs for mass order.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
